Atlona AT-PKT-3H-KIT Pocket Cable Access Enclosure Kit with HDMI - MD and USB-C Cables

ITEM #: ATNO-AT-PKT3HKIT MFG #: AT-PKT3HKIT

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Our Price:

$209.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    AT-PKT3HKIT - Overview

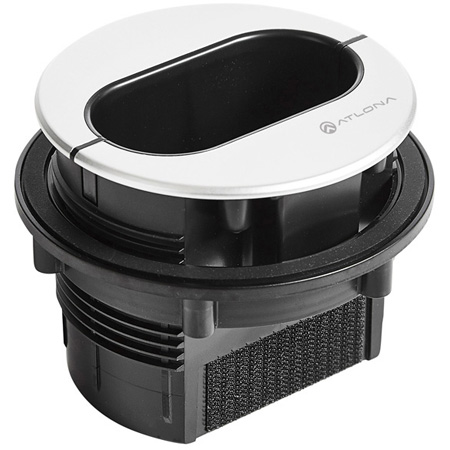

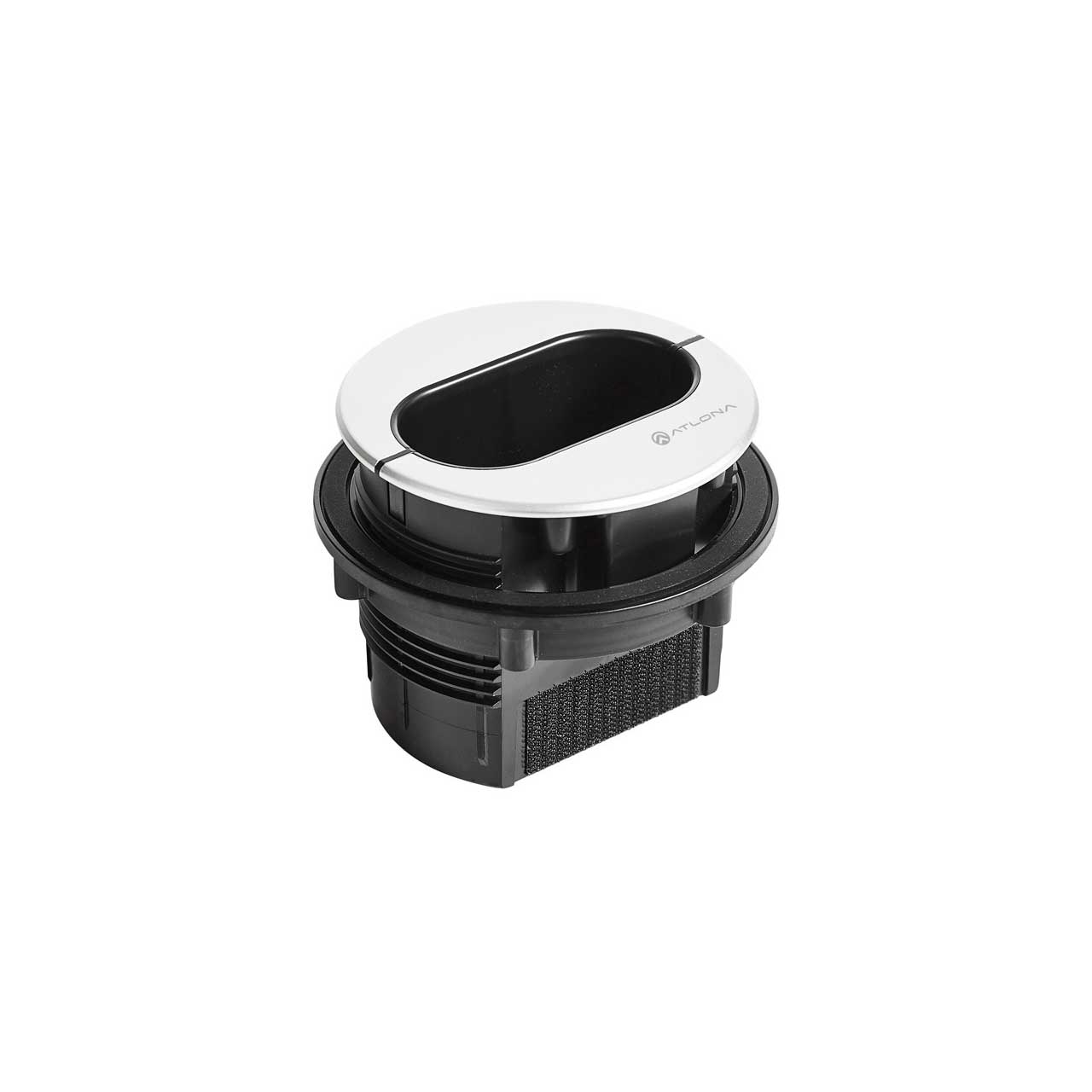

    The Atlona Pocket™ 3H (AT-PKT-3H) is a tabletop cable access enclosure ideal for meeting spaces. The Pocket 3H can accommodate up to three AV cables, supported in place by an insert designed to facilitate easy cable access and return. This cable access enclosure features an aesthetically pleasing, low-profile design to easily blend with any modern or traditional décor. It can be installed into a meeting table or other surface up to 2 inches (50mm) deep by drilling an opening with a 4 inch (102 mm) hole saw. Also included is a cable bag that neatly conceals cables below the table. The Pocket 3H is an ideal complement to Atlona switchers, extenders, and networked AV endpoints for integrating meeting room AV equipment installed under a meeting or conference table.

    The Pocket 3H is the perfect complement to Atlona presentation AV systems for meeting rooms. It easily allows AV integrator to specify a complete, cost-effective BYOD / collaboration system that includes switching, extension, and a simple yet elegant cable management system.

    Applications:
    Meeting Rooms
    Auditoriums and Lecture Halls

    • Features:

      • Tabletop cable access enclosure kit with under-table cable management system
      • Provides quick and easy access to AV cables for meeting participants
      • Supplied insert holds three cables in place with connectors easily accessible
      • Low-profile design for any modern or traditional décor
      • Convenient under-table bag conceals cables for a clean, professional installation
      • Also available as a kit with three, 2 meter (6.6 feet) cables: HDMIr to HDMI, Mini DisplayPort to HDMI, and USB-C to USB-C

    • Specifications:

      • AT-PKT-3H
      • External Dimensions (HxWxD): 5.51 x 6.50 x 6.50" (140 x 165 x 165mm)
      • Internal Dimensions (WxD): 3.27 x 1.65" (83 x 42mm)
      • Weight: 0.50 LBs (0.23kg)
      • Certification: CE

        AT-LC-H2H-2M, AT-LC-MDP2H-2M, and AT-LC-UC2UC-2M
      • Bandwidth: 18 Gbps
      • Video: up to 4Kx2K
      • VESA: up to 2560x2048
      • Audio: passes through up to Dolby® Digital, DTS® 5.1, Dolby Digital Plus™, Dolby TrueHD, DTS-HD Master Audio™, Dolby Atmos®, DTS:X®
      • Length: 6.6 ft (2m)
      • Shielding: Triple Shielded
      • Cable Diameter: 7.3 mm (0.29 in)
      • Jacket Material: PVC
      • Conductor: 30 AWG
      • Connector: 24k Gold-plated
      • Bend Radius: 3.94" (100mm)
      • Fire Rating: CL2

    • Item Includes:

      • 1x 2 meter LinkConnect™ cables to get you going out of the box.
      • 1x HDMI to HDMI (AT-LC-H2H-2M)
      • 1x Mini DisplayPort to HDMI (AT-LC-MDP2H-2M)
      • 1x USB-C to USB-C (AT-LC-UC2UC-2M)
      • 1x Installation Guide
      • 1x Cable Management Hardware
      • 1x Cable Bag

    • Warranty:

      • 10 Year Limited Product Warranty
