Atlona AT-UHD-SW-510W 4K/UHD Five-Input Universal Switcher with Wireless Presentation Link

ITEM #: ATNO-ATUHDSW510W MFG #: AT-UHD-SW-510W

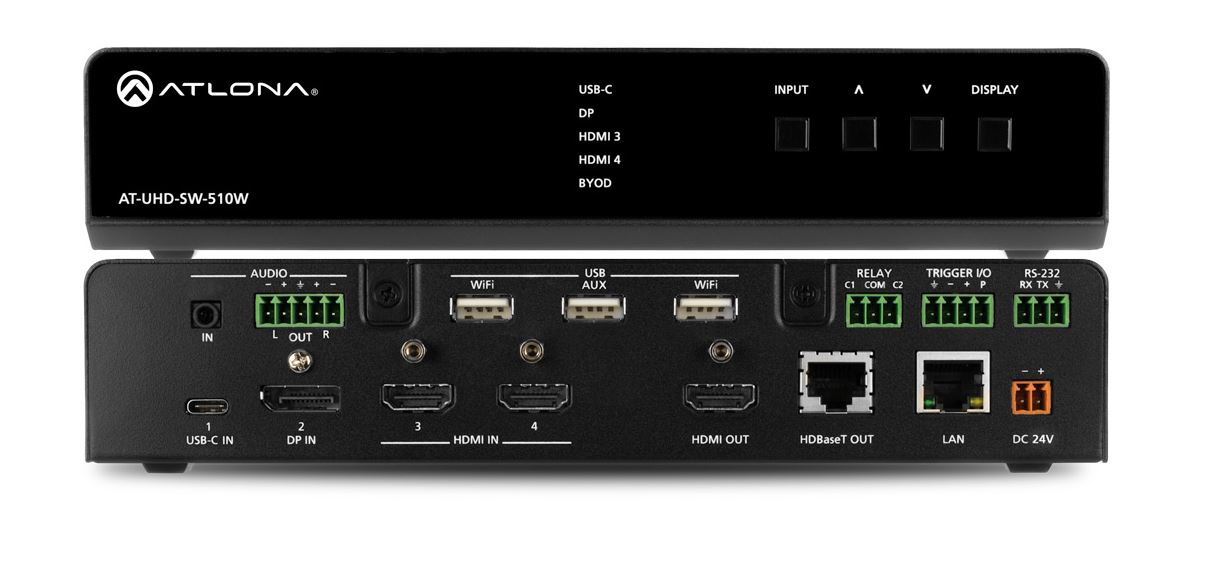

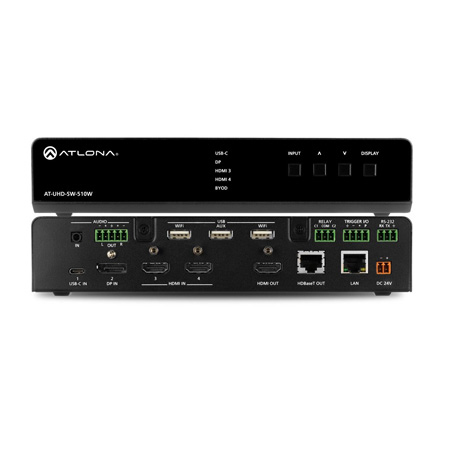

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the ATNO-ATUHDSW510W

AT-UHD-SW-510W - Overview

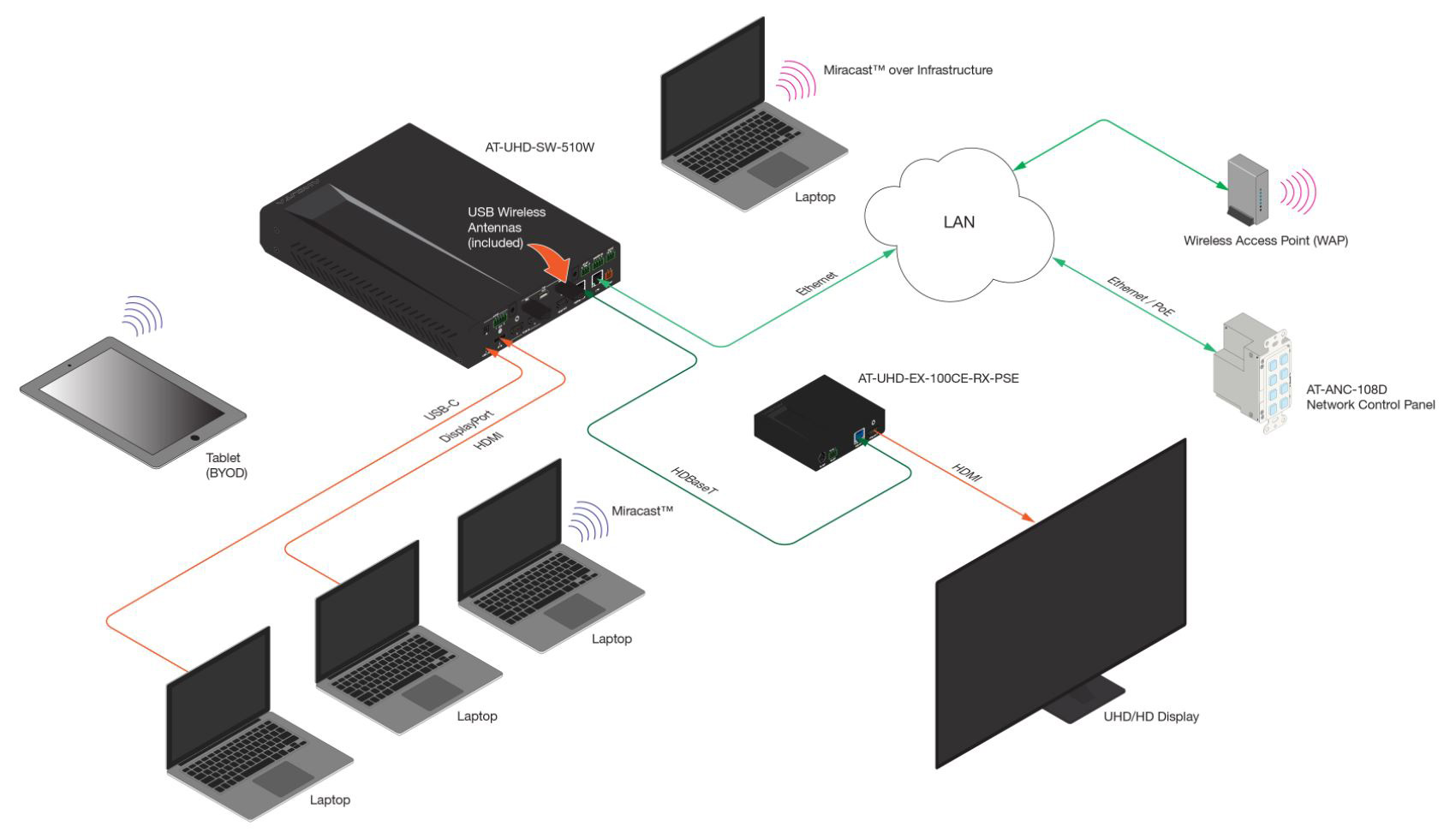

The Atlona AT-UHD-SW-510W is a 5x1 multi-format switcher with wireless presentation capability. It provides universal BYOD (bring your own device) compatibility with HDMI, DisplayPort, and USB-C inputs, plus wireless connectivity for mobile devices. The SW-510W is HDCP 2.2 compliant, and features an HDMI output and a mirrored HDBaseT output that can be used with the Atlona AT-UHD-EX-100CE-RX-PSE HDBaseT receiver. It also includes automatic input switching and automatic display control capability, both applicable to wired and wireless source connections. This unique multi-format switcher and wireless gateway provides a universal connectivity solution for presentation devices in a wide range of professional AV applications.

The USB-C port on the SW-510W is ideal for newer Mac, Chromebook, and Windows PCs. All inputs and the local HDMI output are compatible with video signals up to 4K/UHD @ 60 Hz with 4:4:4 chroma sampling, as well as data rates up to 18 Gbps. For integration convenience and flexibility, simultaneous 18 Gbps HDMI and 10 Gbps HDBaseT outputs make the SW-510W ideal for various presentation scenarios such as primary and confidence displays in a corporate auditorium or lecture hall. The HDBaseT output extends video, audio, control, and Ethernet up to 100 meters. (For AV signals exceeding 10 Gbps, 4K/UHD video will be subsampled to 4:2:0, or HDR metadata removed for HDBaseT transmission.)

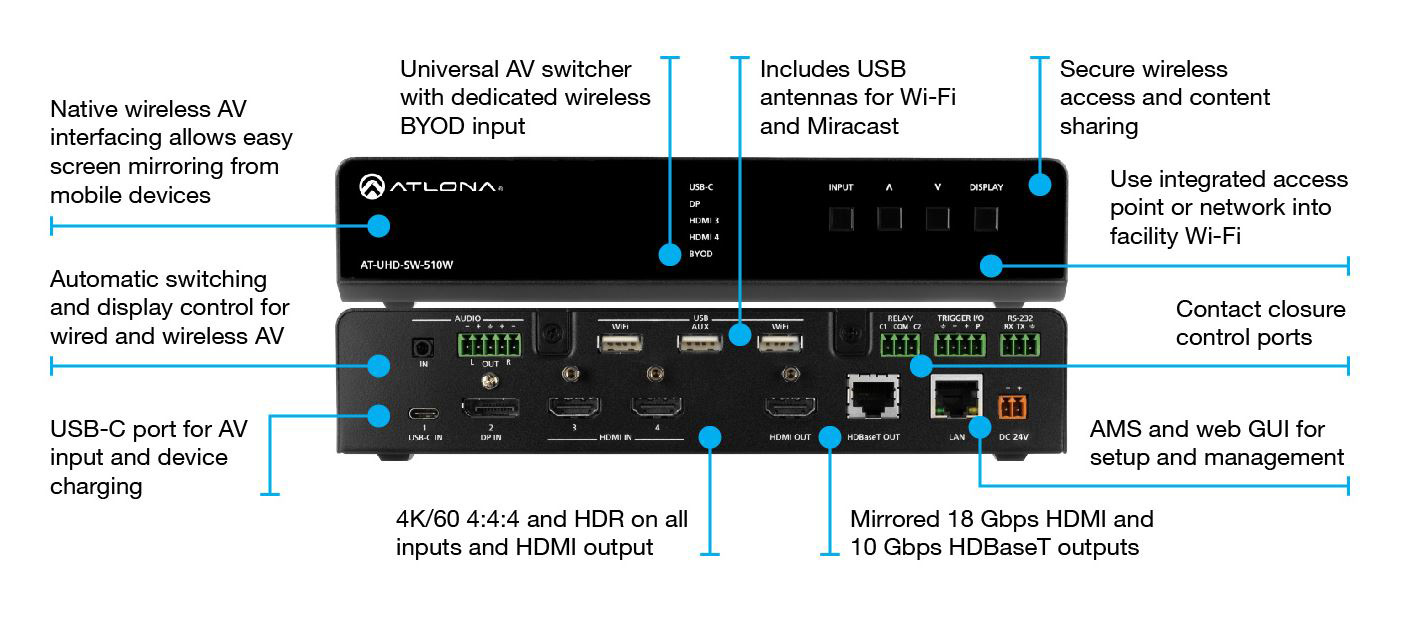

  • Features:

    • Two HDMI, one DisplayPort, and one USB-C input, plus an input for wireless AV
    • Mirrored HDBaseTTM and HDMI outputs
    • Wireless AV gateway for iOS, AndroidTM, Mac, Chromebook, and Windows devices
    • 4K/UHD capability at 60 Hz with 4:2:0 chroma subsampling, plus support for 4K/60 4:4:4 and HDR formats on local ports (HDMI, USB-C, and DisplayPort)
    • HDCP 2.2 compliant
    • Automatic input selection and automatic display control
    • USB-C port supports device charging for laptops, tablets, and smartphones

  • Specifications:

    • Video
    • UHD/HD/SD: 4096x2160@60/30/25/24Hz, 3840x2160@60/30/25/24Hz, 1080p@60/59.9/50/30/29.97/25/24/23.98Hz, 1080i@60/59.94/50Hz, 720p@60/59.94/50Hz, 576p@50Hz, 576i@50Hz, 480p@60/59.96Hz, 480i@60Hz
    • VESA: 2560x1600, 2048x1536, 1920x1200, 1680x1050, 1600x1200, 1440x900, 1400x1050, 1280x1024, 1280x800, 1366x768, 1360x768, 1152x864, 1024x768, 800x600, 640x480
    • USB-C: Up to 4K/UHD @ 60Hz for devices supporting USB-C Alternate Mode video output
    • Wireless: Up to 1080p @ 30Hz 4:2:0 (up to 1080p @ 60Hz with Miracast); dependent on wireless signal quality
    • Color Space: YUV, RGB
    • Chroma Subsampling: 4:4:4, 4:2:2, 4:2:0
    • Color Depth: 8-bit, 10-bit, 12-bit
    • HDR: HDR10 and Dolby Vision @ 60Hz

      Audio
    • Pass-Through Formats: PCM, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS Digital Surround, DTS-HD Master Audio, and DTS:X
    • Analog Input: Unbalanced 2-channel, 3.5 mm
    • Analog Output: Balanced / unbalanced 2-channel, 5-pin captive screw
    • Sample Rate: 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz
    • Bit Rate: 24-bit (max.)

      IP and Control Ports
    • Ethernet Ports: RJ-45
    • Protocols: DHCP, HTTP, HTTPS, SFTP, SMTP, SNMP, Telnet, SSH, TCP/IP, UDP
    • Ethernet Speed: 10/100/1000 Mbps
    • Addressing: DHCP, static
    • Wi-Fi: IEEE 802.11n/ac 2.5 GHz / 5 GHz
    • Wi-Fi Protocols: WEP, WPA, PSK, WPA2 PSK, WPA Enterprise, WPA2 Enterprise
    • Antenna: 2 included
    • RS-232: Bidirectional, 3-pin captive screw
    • Relay: 3-pin captive screw, normally open (NO), with adjustable Toggle and Pulse modes; Electrical rating: 48 V @ 1 A
    • Trigger: 4-pin captive screw; Electrical rating: 30 V @ 1 A (max.)

      Physical
    • Operating Temperature: 32° to 122°F
    • Storage Temperature: -4° to 140°F
    • Humidity (RH): 20% to 90%, non-condensing
    • Power Consumption (full load): 121 W
    • Idle Power Consumption: 35 - 40 W
    • Power Supply: Input: 100 - 240 V AC, 50/60 Hz; Output: 5 V DC
    • Dimensions (H x W x D): (w/ feet) - 1.77" x 8.46" x 10.19"; (w/o feet) - 1.73" x 8.46" x 10.00"
    • Weight: 3.70 lbs
    • Certification: CE, FCC, UL

  • Item Includes:

    • 1 x AT-UHD-SW-510W
    • 1 x Captive screw connector, 5-pin
    • 1 x Captive screw connector, 4-pin
    • 2 x Captive screw connector, 3-pin
    • 2 x Wi-Fi antenna modules
    • 1 x USB-C cable, 2 meters
    • 1 x 24V DC power supply
    • 2 x Mounting plates
    • 4 x Mounting screws
    • 1 x Installation Guide

  • GTIN:

    0846352005146
