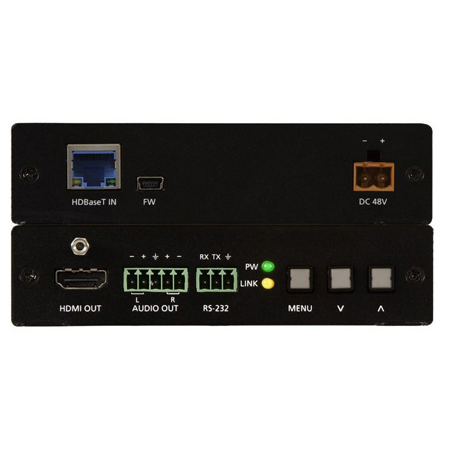

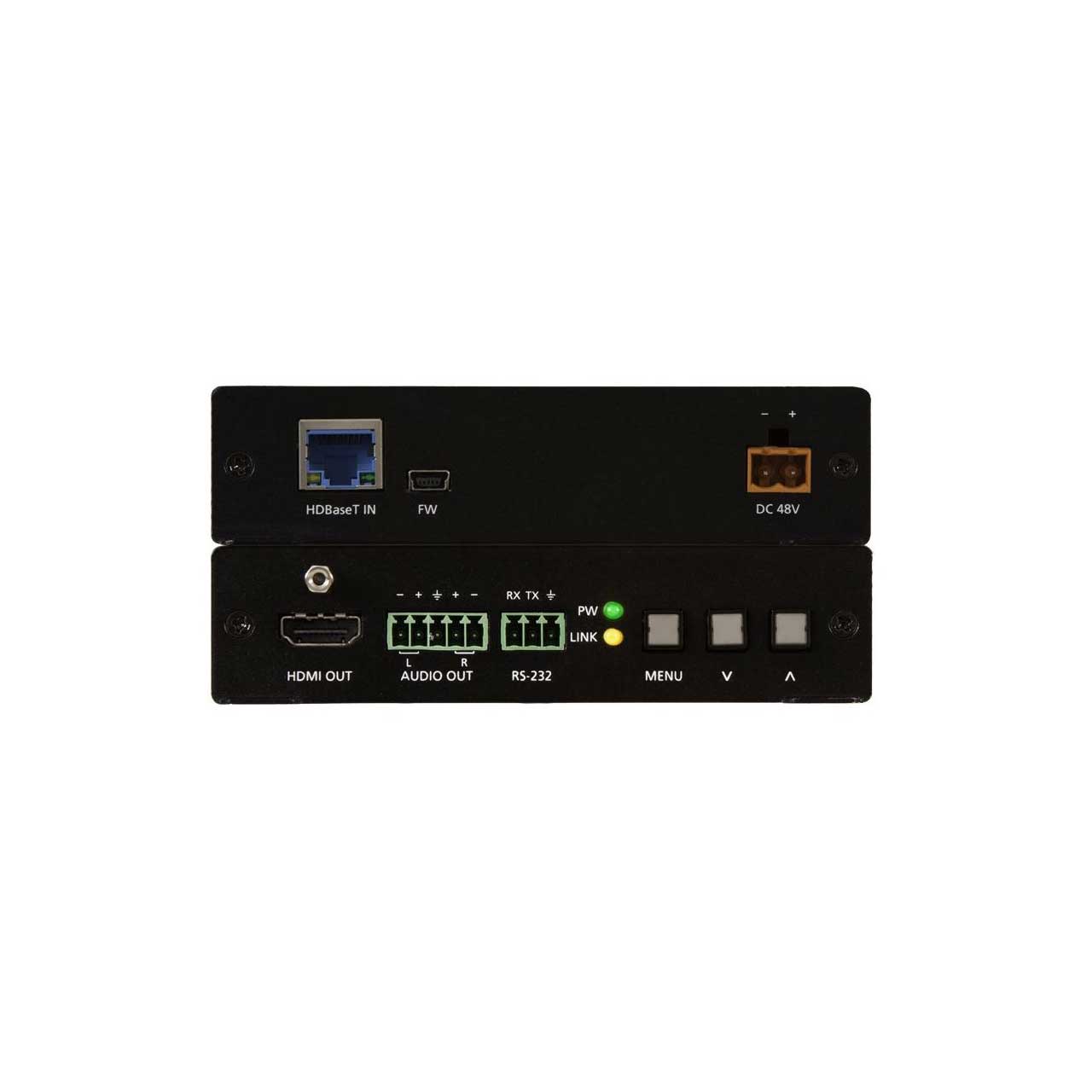

Atlona AT-HDVS-RX HDBaseT Scaler with HDMI and Analog Audio Outputs

ITEM #: ATNO-HDVS-150-RX MFG #: AT-HDVS-150-RX

  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
free ship

Our Price:

$749.00

Availability: Typically Ships in 3-10 Days
iAvailability Description Popup


    AT-HDVS-150-RX - Overview

    HDBaseT Scaler with HDMI and Analog Audio Outputs
    The Atlona AT-HDVS-150-RX is an HDBaseT scaler receiver for HDMI transmission over category cable. It receives AV signals up to 1080p/60Hz or 1920x1200 video with embedded multi-channel audio and control signals at distances up to 230 feet (70 meters). Features include balanced analog audio de-embedding, RS-232 control, and Power over Ethernet for compatible transmitting devices. The receiver offers advanced scaling capabilities including image adjustment capability and an Auto-set feature for matching incoming signals to the display's native resolution. Designed for use with the AT-HDVS-150-TX transmitter, the transmitter/receiver pair enables auto display on/off, auto-switching, third-party control, and other features. The built-in scaler works with matrix switchers to optimize source signals with different resolutions to a display's native resolution. The AT-HDVS-RX is ideal for long distance transmission and display control in corporate or educational settings using analog and digital sources.

    The HDVS-150 maintains all capabilities the HDVS series is known for and adds industry-standard Power over Ethernet for full HDBaseT certification. The HDVS-150 Series is a simple audio visual system with auto-switching for HDMI and VGA inputs, projector on/off control, analog audio de-embedding, volume control, and a scaler. Much more than an extender system, it provides a complete system for small spaces like huddle rooms and teaching spaces with 2 or 3 sources.

    The AT-HDVS-150-RX is ideal for use in:

  • Complete system applications with the AT-HDVS-150 Series transmitters to provide a 2 or 3-input AV system supporting HDMI, VGA signals, auto-switching, display control, and scaling plus 230 foot (70 m) extension to displays
  • System expansion applications as an output scaler for the AT-UHD-CLSO-824 matrix switcher
    • Features:

      • Long distance HDMI extension
      • Receives HDMI and VGA/Audio signals up to 230 ft (70m) @ 1080p over CAT6a/7 and 197 feet (60 m) @ 1080p over CAT5e/6
      • Uses easy-to-integrate category cable for low-cost, reliable system installation

        Scaled HDMI output and input resolution control
      • Scales output video signals up to 1080p/60Hz and1920x1200; Set preferred input resolution from 800x600 to 1920x1200
      • Assures compatibility of VGA and HDMI sources to the display's native resolution

        Power over Ethernet for AT-HDVS-150-TX
      • Industry standard IEEE 802.3af PoE supplied by the receiver over HDBaseT
      • No local AC outlet required at the AT-HDVS-150-TX switcher; saves time and integration costs

        Audio de-embedding
      • Provides two channel, analog audio signal on balanced captive screw connectors
      • Improves AV system audio with the use of an external amplifier such as the Atlona AT-PA100-G2

        RS-232 scaler control
      • Image adjustments, resolution settings, and auto-set to display's native resolution can be made from a third party control system
      • Seamless integration with larger, control system-based AV systems

        RS-232 display control
      • Facilitates On/Off display control; Included software simplifies programming
      • Eliminates need for complex control system in small AV system

        Field updatable firmware
      • Rear panel USB port provides an easy means for kit upgrades
      • Ensures long term system return on investment

    • Specifications:

      • Resolution
      • IN [email protected]/24/25/29.97/30/50/59.94/60Hz, [email protected]/59.94/60Hz, [email protected]/29/30/50/59.94/60Hz, 576p, 576i, 480p, 480i
      • 1920x1200RB, 1680x1050, 1600x1200, 1600x900, 1440x900, 1400x1050, 1366x768, 1280x1024, 1280x960, 1280x800, 1280x768, 1152x854, 1024x768, 800x600, 720x400, 640x480
      • OUT [email protected]/24/25/29.97/30/50/59.94/60Hz, [email protected]/59.94/60Hz, [email protected]/29/30/50/59.94/60Hz
      • 1920x1200, 1680x1050, 1680x1200, 1400x1050, 1366x768, 1280x1024, 1280x800, 1024x768
      • Color Space YUV, RGB
      • Chroma Subsampling 4:4:4, 4:2:2
      • Color Depth 8-bit, 10-bit, 12-bit

        Audio
      • Analog PCM 2Ch (De-embedded)
      • HDMI OUT & HDBaseT IN PCM 2Ch, LPCM 5.1, LPCM 7.1, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
      • Sample Rate 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
      • Bit Rate up to 24-bit

        Distance
      • CAT5e/6 up to 60 meters up to 197 feet
      • CAT6a/7 up to 70 meters up to 230 feet
      • HDMI IN/OUT up to 10 meters up to 30 feet

        Signal
      • Bandwidth 6.75 Gbps
      • CEC No
      • HDCP Compliant - 1.4

        Temperature
      • Operating 0°C to 40°C 32°F to 104°F
      • Storage -20°C to 60°C -4°F to 140°F
      • Humidity 20 to 90% non-condensing

        Power
      • Consumption 15W (varies per paried transmitter)
      • Supply Input: AC100-240V ~ 50/60Hz
      • Output: DC 24V/2.7A

        Dimension
      • H x W x D 30 x 122 x 125 (mm) 1.18 x 4.8 x 4.92 (inch)

        Weight
      • Device 0.31 kg 0.67 lbs

        Certification
      • Unit CE, FCC
      • Power Supply CE, FCC, Level VI, RoHS, cULus, RCM, CCC

    • Warranty:

      • 10 years

    • GTIN:

      0846352004767
