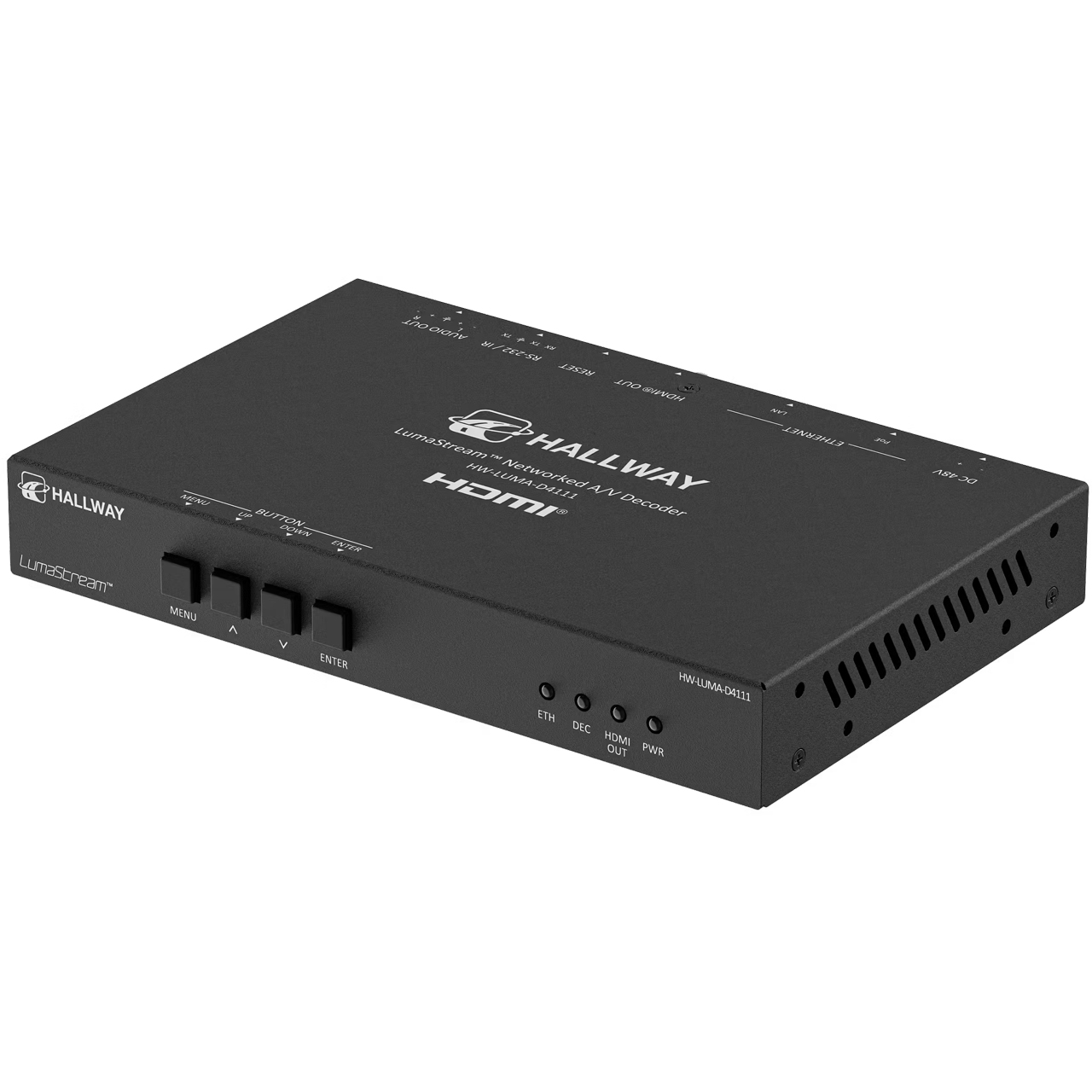

Atlona HW-LUMA-D4111 LumaStream H.264/265 Networked HDMI Decoder

HW-LUMA-D4111 - Overview

Designed for High-performance Distribution of Video, Audio, and Control over Data Networks, with Emphasis on Bandwidth Efficiency and Scalability

• Features:

  • H.264 and H.265 (HEVC) decoder for HDMI outputs
  • High-efficiency H.264 or H.265 encoding
  • Integrated video processing including 4K upscaling and downscaling
  • Simplified multicast discovery and joining
  • Fast switching
  • Preview decoder output as a snapshot image thumbnail
  • Enhance AV presentations with visual enhancements
  • Audio de-embedding
  • PoE+ (Power over Ethernet+) or optional local powering
  • Simplify integration with plug and play network switch compatibility
  • Secure content distribution with AES-128 encryption
  • Supports industry standard network security features and protocols
  • Front panel signal status LEDs
  • On-screen display
  • Field-updatable firmware


• Specifications:

  Video
  • Signal: HDMI
  • Copy Protection: HDCP 2.2
  • UHD/HD/SD:
    - 4096x2160 (DCI) @ 30/24Hz
    - 3840x2160 (UHD)(2) @ 60/50/24/25/30Hz
    - 1920x1080p @ 23.98/24/25/29.97/30/50 /59.94/60Hz
    - 1920x1080i(1) @ 25/29.97/30Hz
    - 1280x720p @ 30/50/59.94/60Hz
    - 720x576p @ 50Hz
    - 720x576i @ 25Hz
    - 720x480p @ 59.94/60Hz
    - 720x480i @ 29.97/30Hz
  • VESA(3): 2560x1600, 1920x1200, 1680x1050, 1600x1200, 1600x900, 1440x900, 1400x1050, 1366x768, 1360x768, 1280x1024, 1280x800, 1280x768, 1152x768, 1024x768
  • Color Space: YUV, RGB

    Decoding
  • Video Compression: H.265, H.264
  • Bit Rate: 128 kbps - 60 Mbps
  • Scaler: Configurable to any supported output resolution and frame rate
  • Latency: 150 ms max end-to-end
  • Thumbnails: 1 thumbnail per device, 320x180 px, JPG, updated every 2 seconds

    Audio
  • Signal Type: Input: Network Output: HDMI, Balanced Analog, Network
  • HDMI Audio: Format: LPCM 2.0 Bit Depth: Up to 16 bits Sample Rate: 32 kHz, 44.1 kHz, 48 kHz
  • Analog Audio: 2-channel balanced analog Output Level: +20 dBu max Frequency Response: 20 Hz - 20 kHz ± 0.5 dB THD+N: < 0.025%

    Network
  • Ports: 2x RJ45 (PoE port + LAN port)
  • Speed: 10/100/1000 Mbps

    Protocols
  • Video Streaming: RTP
  • Audio Streaming: RTP, up to 2 channels
  • Addressing: DHCP, static
  • Encryption: AES-128
  • QoS Tagging: RFC 2475
  • IP Multicast: IGMPv2 and IGMPv3 support
  • Management: HTTP, HTTPS, SSH, Telnet, WebSocket, LLDP
  • Authentication: IEEE 802.1x: PEAP/MSCHAPv2 or EAP-TLS

    Control
  • RS-232: Device control and configuration; supports baud rates from 2400 to 9600 Bidirectional pass-through from control system to network
  • IR: Pass-through from control system to network Pass-through from network to control system

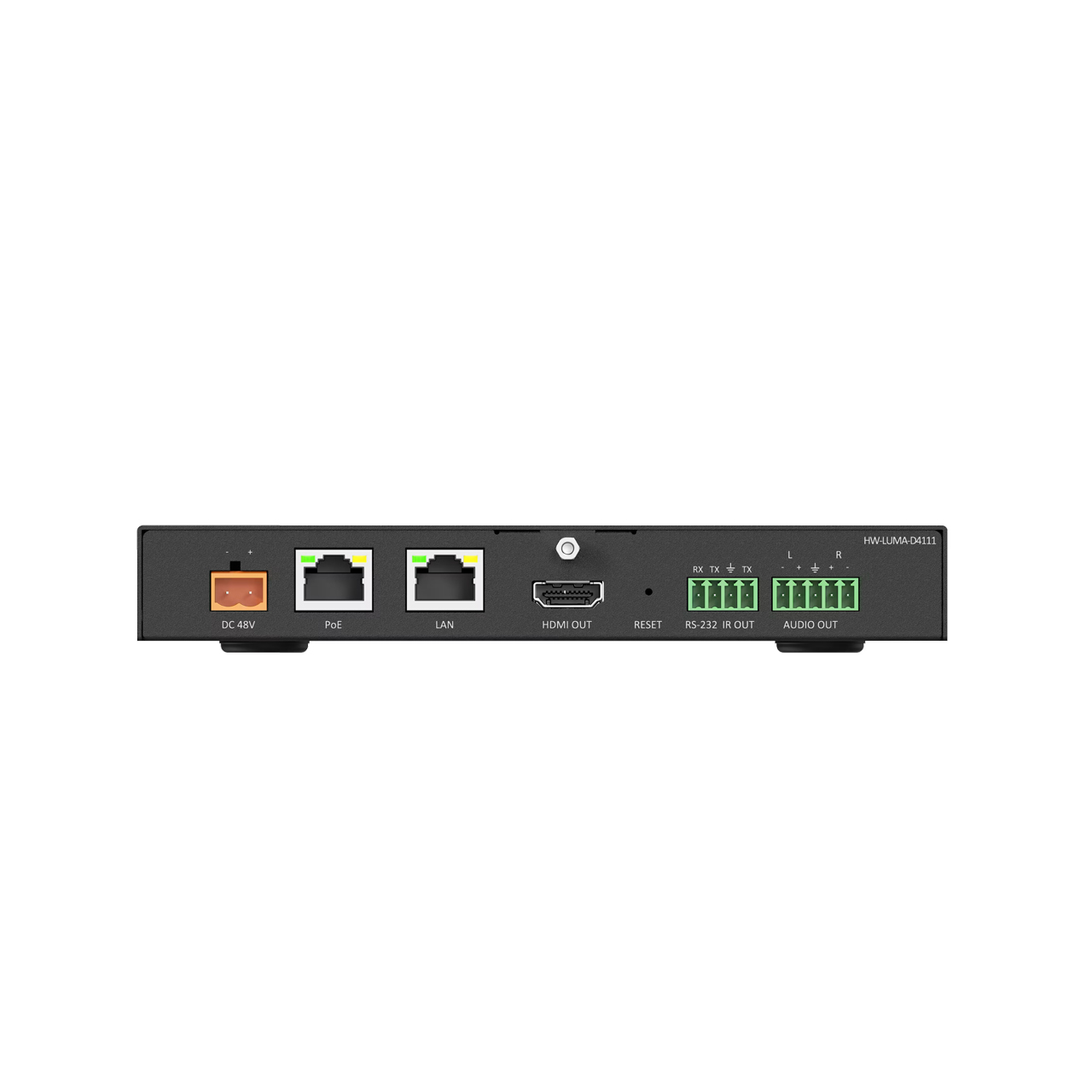

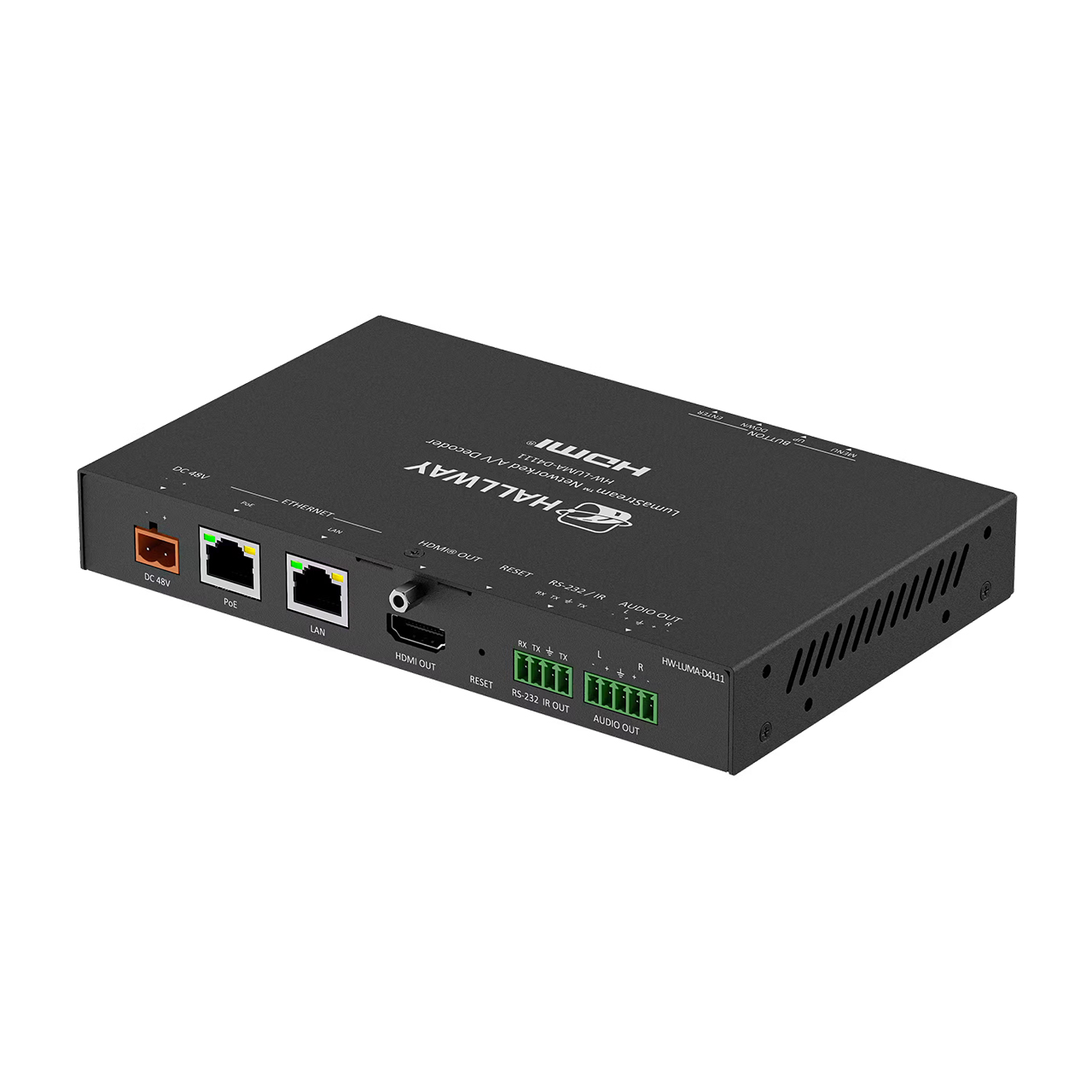

    Connectors
  • HDMI Out: 1x Type A, 19-pin, female
  • PoE / LAN: 2x RJ45, 10/100/1000 Mbps
  • RS-232 / IR Out: 1x 4-pin captive screw
  • DC Power: 1x 2-pin captive screw
  • Audio Out: 1x 5-pin captive screw

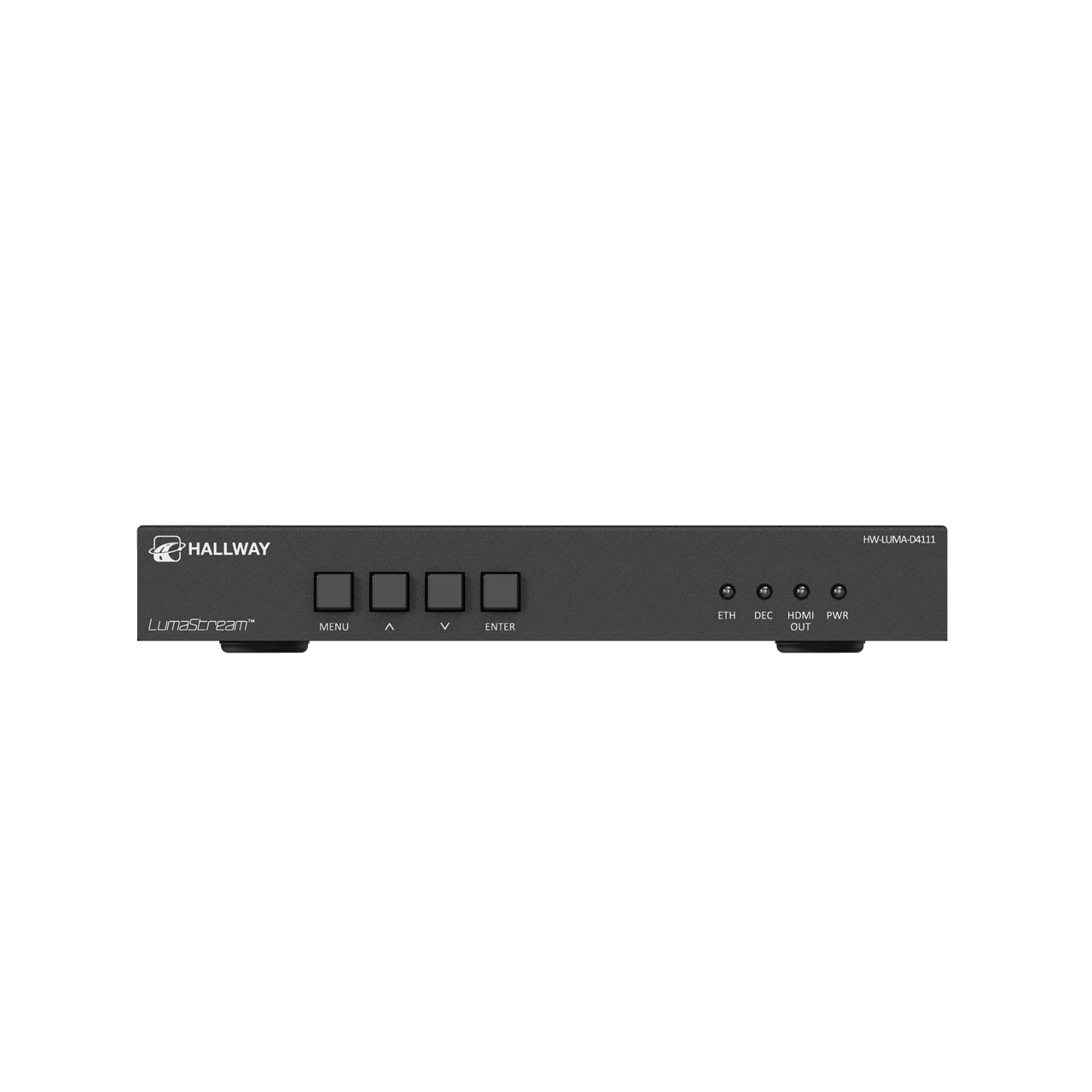

    Buttons & Indicators
  • Buttons: 4x momentary tact-type: Menu, Up, Down, Enter
  • LED Indicators: ETH, STREAM, STATUS

    Power
  • PoE Standard: IEEE 802.3af (PoE+)
  • Power Consumption: Up to 9 W
  • Heat Dissipation: 30.1 BTU/h
  • Optional Power Supply: AT-PS-48083-C (48 V DC, sold separately)

    Environmental
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Storage Temperature: -4°F to 140°F (-20°C to 60°C)
  • Operating Humidity (RH): 20% to 95%, non-condensing

    Mechanical
  • Dimensions(LxWxH): 4.34" x 6.89" x .98" (110.2mm x 175mm x 24.9mm)
  • Weight: 1.21 lbs (.55 kg)

    Certification and Compliance
  • Device Certifications: CE, FCC, CB, RoHS
  • Supply Certifications : CE, FCC, cULus, CB, RCM, RoHS
  • Compliance: NDAA-899 and TAA


• Item Includes:

  • 1x HW-LUMA-D4111 LumaStream Decoder
  • 1x Surface-mount / rack-mount brackets (pair)
  • 1x 4-pin captive screw connector (RS-232/IR)
  • 1x 5-pin captive screw connector (Audio Out)
  • 1x 2-pin captive screw connector (DC Power)
  • 1x Quick-start guide


• Warranty:

  • 3 Year Limited Warranty


• GTIN:

  0846352008932
