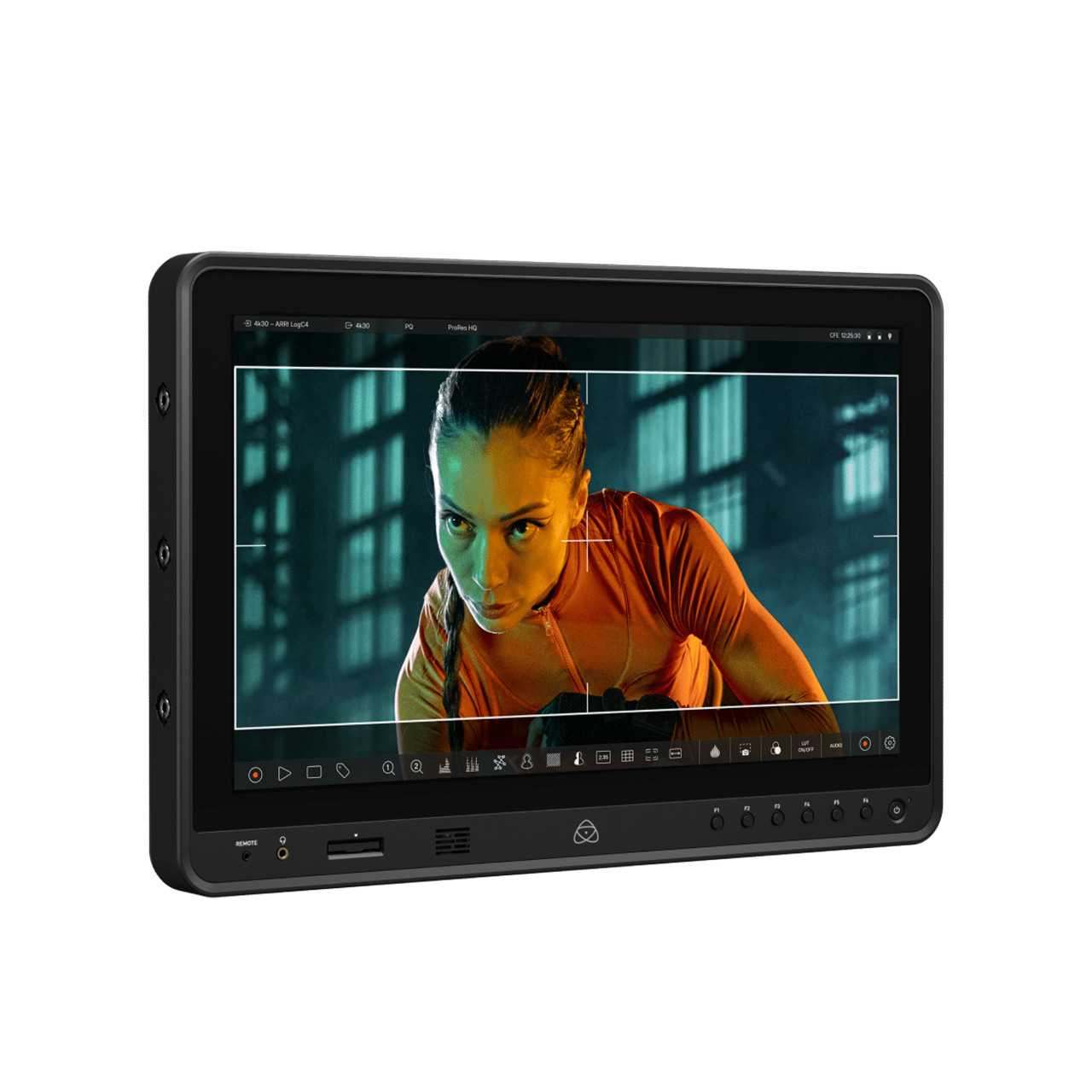

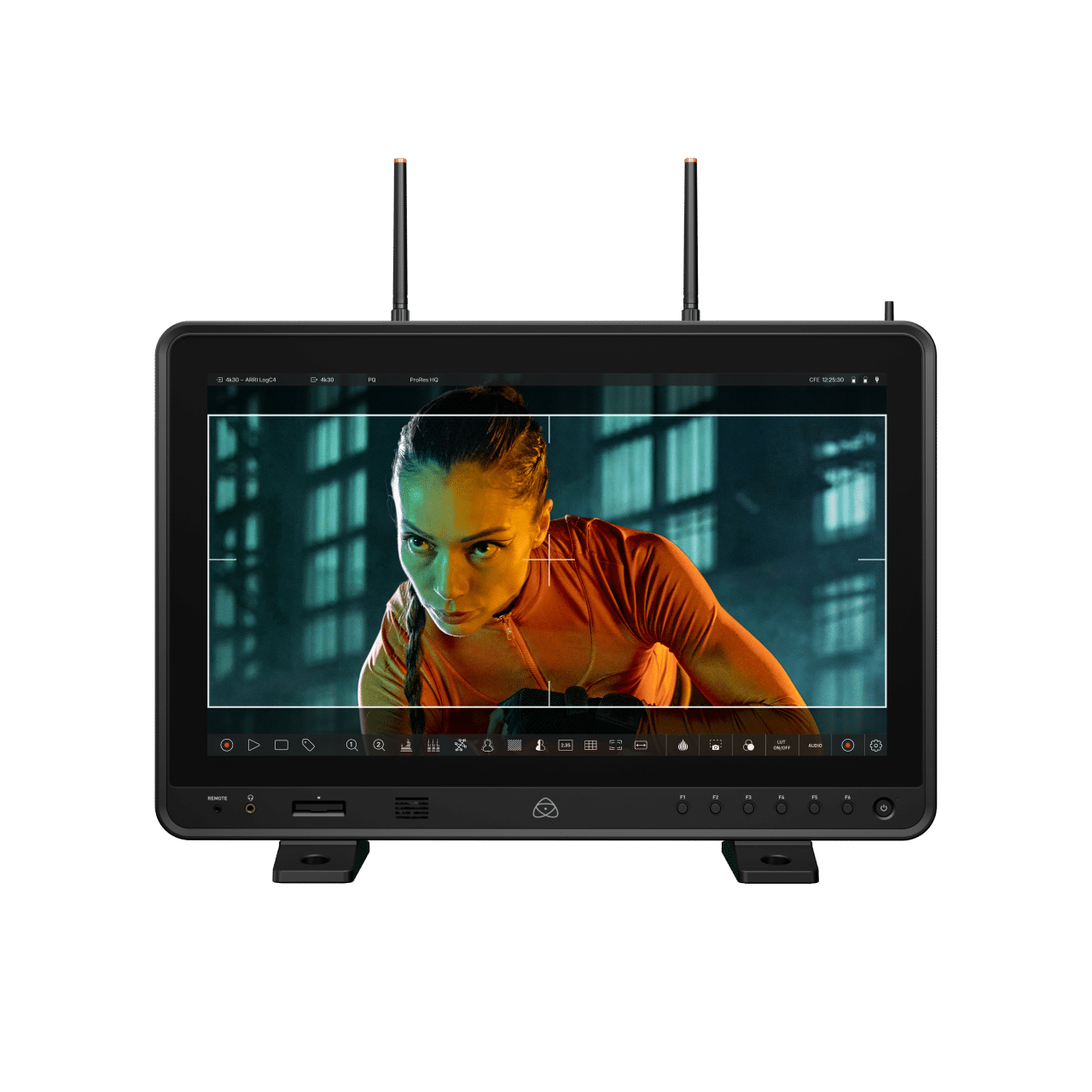

Atomos ATOMSMPR19 Sumo PRO 19 Inch 4K HDR Monitor / Recorder / Switcher with Dual XLR Audio Inputs and Phantom Power

ITEM #: ATO-ATOMSMPR19 MFG #: ATOMSMPR19

Primary Image
Free Shipping with $49 Minimum Order

Our Price:

$2,899.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


ATOMSMPR19 - Overview

On-set 4K Monitoring You Can Trust

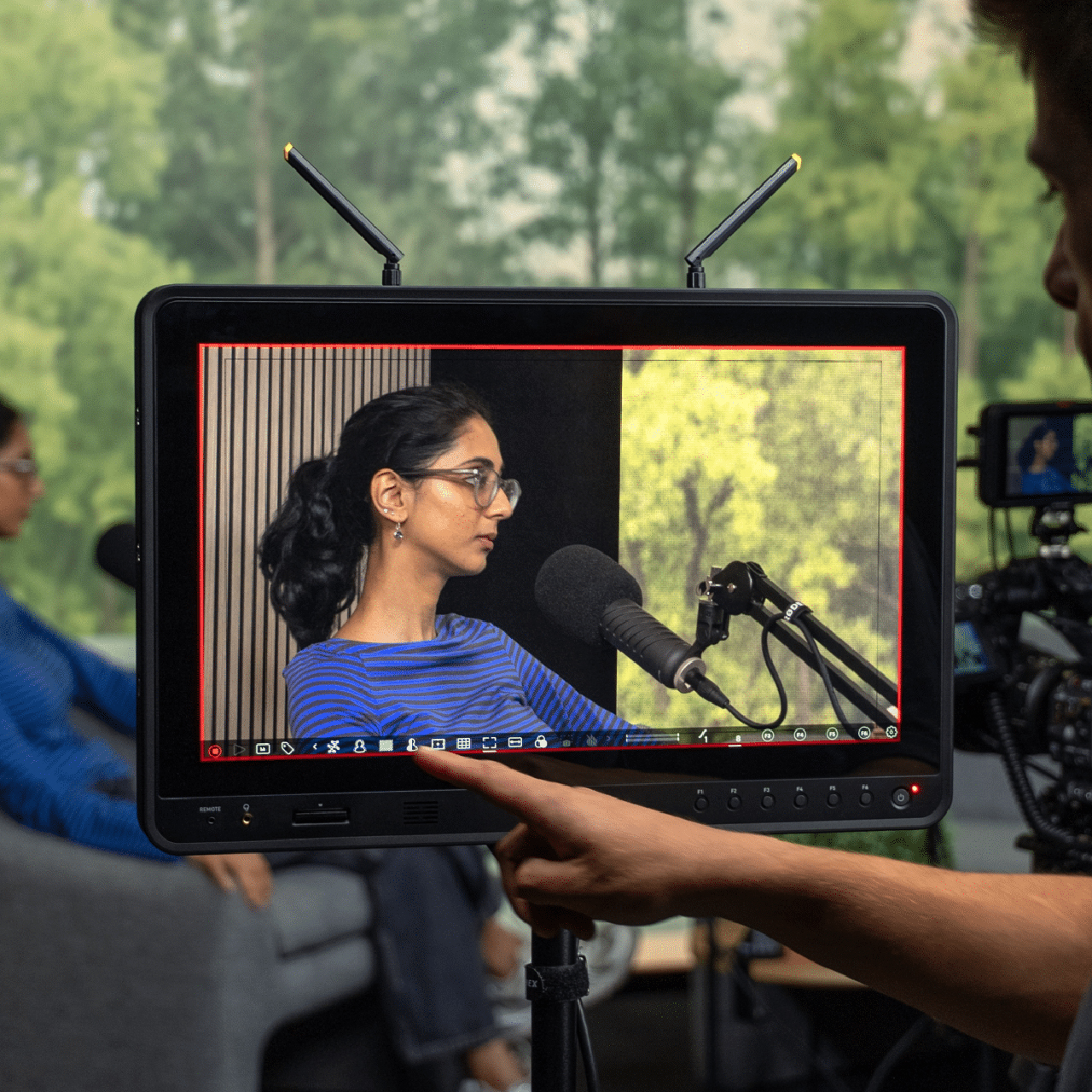

The Atomos Sumo PRO-19 is a 19-inch 4K HDR monitor-recorder-switcher, built for real-world on-set workflows. This is not just a monitor for the video village. It's the control center, providing directors, clients, and talent with an on-set viewing station for rapid decision-making.

Camera Control & Touch to focus
Sumo PRO-19 offers touchscreen control over key camera parameters including start/stop, ISO, shutter, aperture, and white balance for supported cameras, as well as touch to focus. The ability to control cameras remotely is especially valuable in situations where the camera itself is difficult to access during shooting, for example when mounted on cranes, jibs, or ceiling rigs. Now, the director doesn't just watch the shot. From the comfort of their chair, they can directly control the camera via the touchscreen. Adjust settings, refine the image, and shape the shot in real-time without needing to step onto the set. Faster decisions, tighter feedback, better results. Control is available for most Canon, Fujifilm, Nikon, Panasonic, and Sony mirrorless cameras.

CFexpress - Built for Speed
Capture 8K RAW and high-bitrate codecs with confidence, thanks to ultra-fast write speeds designed for sustained performance. CFexpress Type B media is compact, durable, and built to withstand the rigours of video production. With rapid offload speeds, your footage moves into post or the cloud without slowing down your pipeline. Alternatively, you can capture to external, cost-effective USB-C storage.
*Storage media purchased separately. Minimum performance/certification requirements apply.

Camera to Cloud
Camera to Cloud (C2C) is a revolutionary new workflow that lets you upload your video files directly from your Atomos monitor-recorder to the cloud, from wherever you're shooting. There's no time lost transporting and copying drives. Sumo PRO-19 has everything you need to do C2C built in, and supports direct upload to Atomos's cloud platform - ATOMOSphere - as well as third-party platforms, including Frame.io and Dropbox.

NDI 6 HX3 Transmit and Receive
NDI can send and receive video over ordinary networks (including Wi-Fi) in high quality, but with very low bandwidth requirements. It's used increasingly in live production and events. Sumo PRO-19 can be an NDI source, visible to all other authorized devices on the network, or an NDI receiver, with all the monitoring functionality you expect from an Atomos device. Using NDI, you can send a video stream from a Ninja TX to a Sumo PRO-19 over a local network without any video cables.

  • Features:

    • 19-inch, 4K HDR DCI-P3 monitor-recorder-switcher
    • Record in ProRes, ProRes RAW, Avid DNx & H.265 formats
    • Up to 8K30 recording via SDI & HDMI
    • CFexpress and external USB-C recording options
    • Touchscreen control over key parameters including start/stop, ISO, shutter, aperture, and white balance, as well as touch to focus for supported cameras
    • Record up to four isolated camera feeds (ISOs) plus a fifth program output
    • Quad-view and multi-camera monitoring

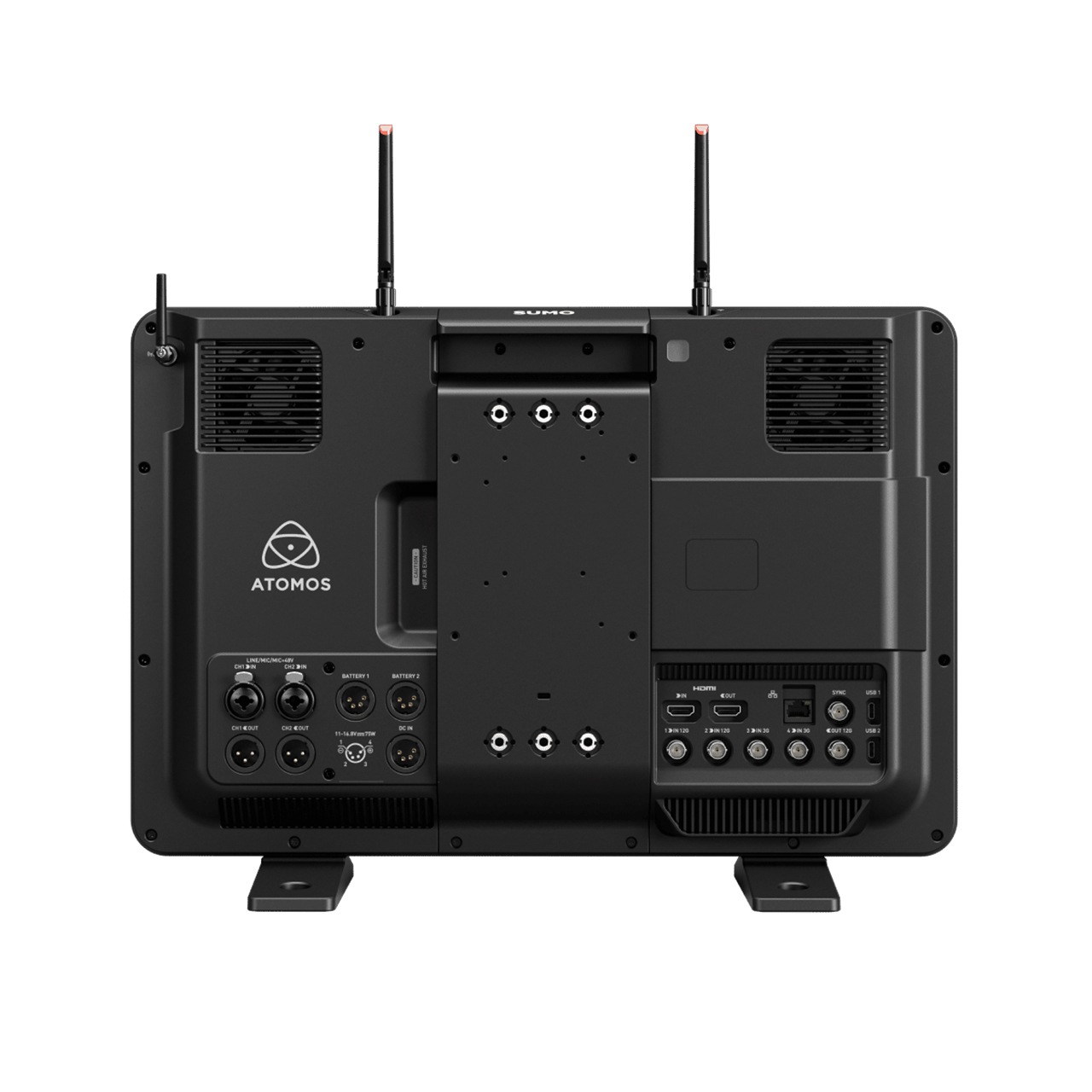

    • 2x 12G-SDI + 2x 3G-SDI in, 12G-SDI out, HDMI in/out with XLR audio
    • Comprehensive technical monitoring tools including EL Zone false color, focus peaking, waveform & more
    • Transmit and receive NDI HX3 over Wi-Fi or Ethernet
    • Direct upload to ATOMOSphere, Frame.io, Dropbox and mor
    • User-definable function buttons
    • AirGlu RF and Bluetooth timecode sync
    • Dual XLR audio inputs with phantom power
    • Over-the-air (OTA) firmware updates

  • Specifications:

      Physical
    • Dimensions(WxHxD): 18.7" x 12.4" x 2.4" (474mm x 315mm x 62mm)
    • Weight: 15.7lbs (7.1kg)
    • VESA Mount: 100x100

      Construction
    • Body: Aluminium with ABS plastic
    • Cooling: Actively controlled fan and heat sink
    • Touch Screen: Capacitive touch
    • Tally Light: LED on rear
    • Multi-Function Button: Power + 6x assignable

      Power
    • Input Voltage: DC 12V to 16.8V DC
    • Operating Power: 75W
    • Compatible Batteries: 95Wh+ V-Lock/Anton Bauer Gold Mount via XLR terminal (optional mounting plates available)
    • Battery Voltage: 14.4V nominal
    • Battery Power: Dual battery input via dedicated 4-pin XLR
    • DC-In Connector: 1x 4-pin XLR for included DC power supply
    • D-Tap: Via third-party D-Tap to 4-pin XLR cable

      Display
    • Size: 19-inch
    • Resolution: 3840x2160 4K UHD
    • Bit Depth: 10-bit (8+2 FRC)
    • Backlight Type: Double Edge Lit
    • Brightness (cd/m²/nits): 1200
    • Aspect Ratio: 16:9
    • Color Gamut: 100% Rec.709, 99% DCI-P3, 99% NTSC, 87% BT.2020
    • Calibration Support: Calibrite Display Pro or Display Plus on PC/Mac with Atomos LANC cable (ATOMCAB018, sold separately)

      Video Input
    • HDMI: 1x HDMI (2.0) Up to 4K60
    • Locking Port: No
    • SDI: 2x 12G-SDI (6G/3G backwards compatible) + 2x 3G-SDI
    • Wi-Fi: Wi-Fi 6E
    • Bit Depth: 8/10-bit for video / Up to 12-bit for RAW
    • Video Chroma Subsampling: YCbCr 4:2:0 & 4:2:2
    • HDR Output Conversion: HDMI auto detection

      Video Output
    • HDMI: 1x HDMI (2.0) Up to 4K60
    • Locking Port: No
    • SDI Loop Through: 1x 12G-SDI
    • Wi-Fi: Wi-Fi 6E
    • Bit Depth: 8/10-bit video
    • Video Chroma Subsampling: 4:2:2

      Audio In/Out
    • Audio Quality: 24-Bit/48kHz
    • Audio Codec: PCM
    • HDMI: 8-channel, 24-bit (input dependent)
    • SDI: 12-channel, 24-bit (input dependent)
    • Analog Audio In: 2x 3-pin XLR (female)
    • Analog Audio Out: 2x 3-pin XLR (male)
    • Speakers: Mono confidence up to 1.5W
    • Headphone Out: 3.5mm headphone jack, 2-channel

      Resolution and Frame Rates (Record, Monitor & Play)
    • 8K RAW: Up to 8K30
    • 6K RAW: Up to 6K30
    • 4K RAW: Up to 4K60
    • 2K RAW: Up to 2K240
    • 4K DCI: Up to 4K60
    • 4K UHD: Up to UHD60
    • 2K DCI 2048x1080: Up to 2K60
    • 1080p: Up to 1080p120
    • 1080PsF: Only via pulldown to progressive
    • 1080i: 1080i50/1080i60
    • 720p: Up to 720p60

  • Item Includes:

    • 1x Atomos Sumo PRO-19 4K HDR Monitor-Recorder-Switcher
    • 1x 4-Pin XLR Power Supply
    • 1x Antenna Tip Set (Black, White, Yellow, Green, Red)
    • 2x Wi-Fi Antenna
    • 1x AirGlu Antenna
    • 3x Antenna Cap
    • 1x Desktop Feet Set
    • 1x Hex Wrench
    • 1x Cleaning Cloth
    • 1x Screw Set

  • Warranty:

    • 1-Year Limited Warranty
