Aurora DXE-CAT-RX2-4K 330ft HDBaseT Receiver

ITEM #: AURA-DXECATRX24K MFG #: DXE-CAT-RX2-4K

  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
free ship

Our Price:

$550.00

Availability: Ships Factory Direct, Typically in 3-10 Days
iAvailability Description Popup


    DXE-CAT-RX2-4K - Overview

    The DXE-CAT-RX2 is part of Aurora's expanding Digital Xtreme Series, and the first of the new HDBaseT CAT extenders. The DXE-CAT-RX2's powerful design provides usability and features not found anywhere else. Single-sided connections for LAN, HDMI, Control and Power provide a cleaner wiring and rack mounting solution. The Patents Pending design allows the system to be powered via POE or AC adapter from either side! With a single CAT 5e/6/7 cable, the DXE-CAT-S2 can go up to 330ft 1080p 60Hz 48bit color depth with bi-directional RS-232, IR, & LAN (up to 600ft with CAT 6a shielded cable at 24bit color depth).

    • Features:

      • Transmit HDMI up to 1080p 60Hz 48bit 330ft over one CAT 5e/6/7 cable
      • Transmit HDMI up to 1080p 60Hz 24bit 500ft over one CAT 6 cable
      • Transmit HDMI up to 1080p 60Hz 24bit 600ft over one CAT 6a shielded cable
      • Supports 4K x 2K & HDMI 3D
      • HDCP Compliant

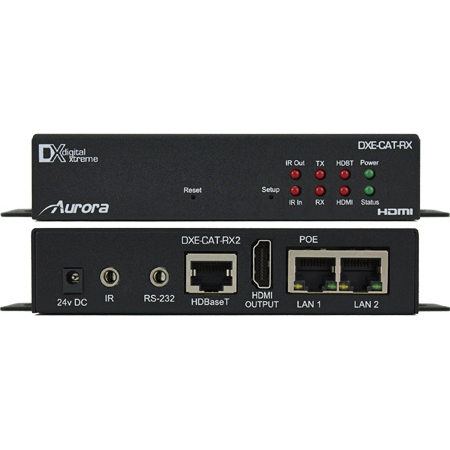

      • All connectors on one side for easier installation
      • Bi-directional RS-232 & IR & LAN
      • Power both units from TX or RX side with wall power supply (HDBaseT POE)
      • LAN POE (Power-Over-Ethernet) can power both TX & RX without wall supplies (Patents Pending)

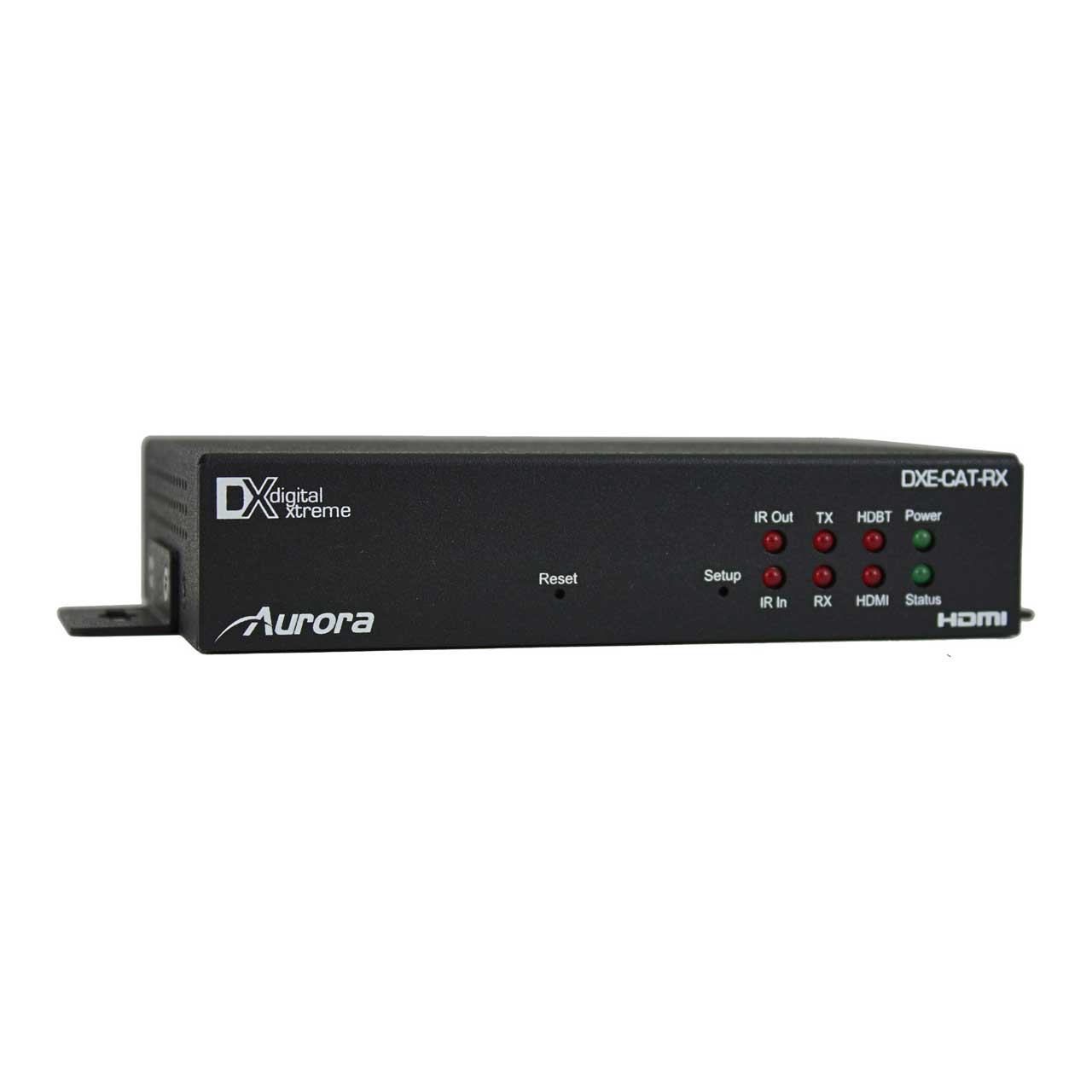

      • Status LED for all connections on front
      • Various mounting options
      • Comes in a variety of models for different features & cost savings

    • Specifications:

      • Video
      • HDMI Compliance: HDMI 3D
      • HDCP Compliant: Yes
      • Distance: 330ft over one CAT 5e/6/7 cable (1080p 60Hz 48bit),500ft over one CAT 6 cable (1080p 60Hz 24bit),600ft over one CAT 6a cable (1080p 60Hz 24bit)
      • Max Resolution: 1080p
      • Color Depth: 48bit
      • Connectors
      • TX Connectors (1) HDMI in, (2) RJ-45 out, (1) HDBaseT, (1) RS-232 3.5mm TRS, (1) IR 3.5mm TRS
      • RX Connectors (1) HDMI in, (2) RJ-45 out, (1) HDBaseT, (1) RS-232 3.5mm TRS, (1) IR 3.5mm TRS
      • Mechanical
      • Dimensions 4.7" x 3.03" x 1.1" [120 x 77 x 28mm]
      • Weight 0.87lbs [395g]

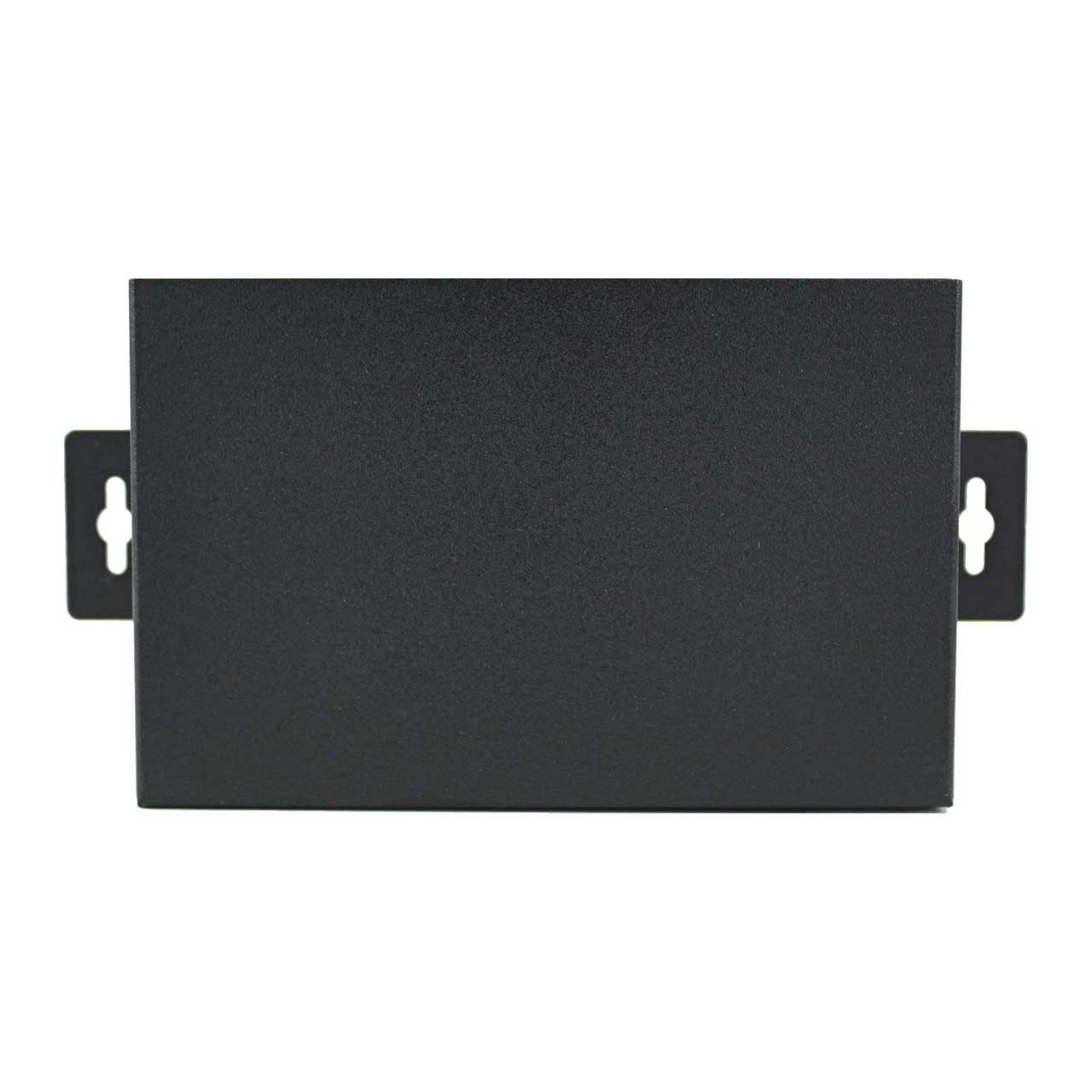

      • Mounting Wall mounting tabs (included)
      • Rack mount bracket (included)
      • Power
      • Power Supply 24V 0.65A DC 5Watts
      • Environmental
      • Operation Temperature: 32~104°F [0~40°C]
      • Storage Temperature: -4~140°F [-20~60°C]
      • Relative Humidity: 20~90% RH [no condensation]
