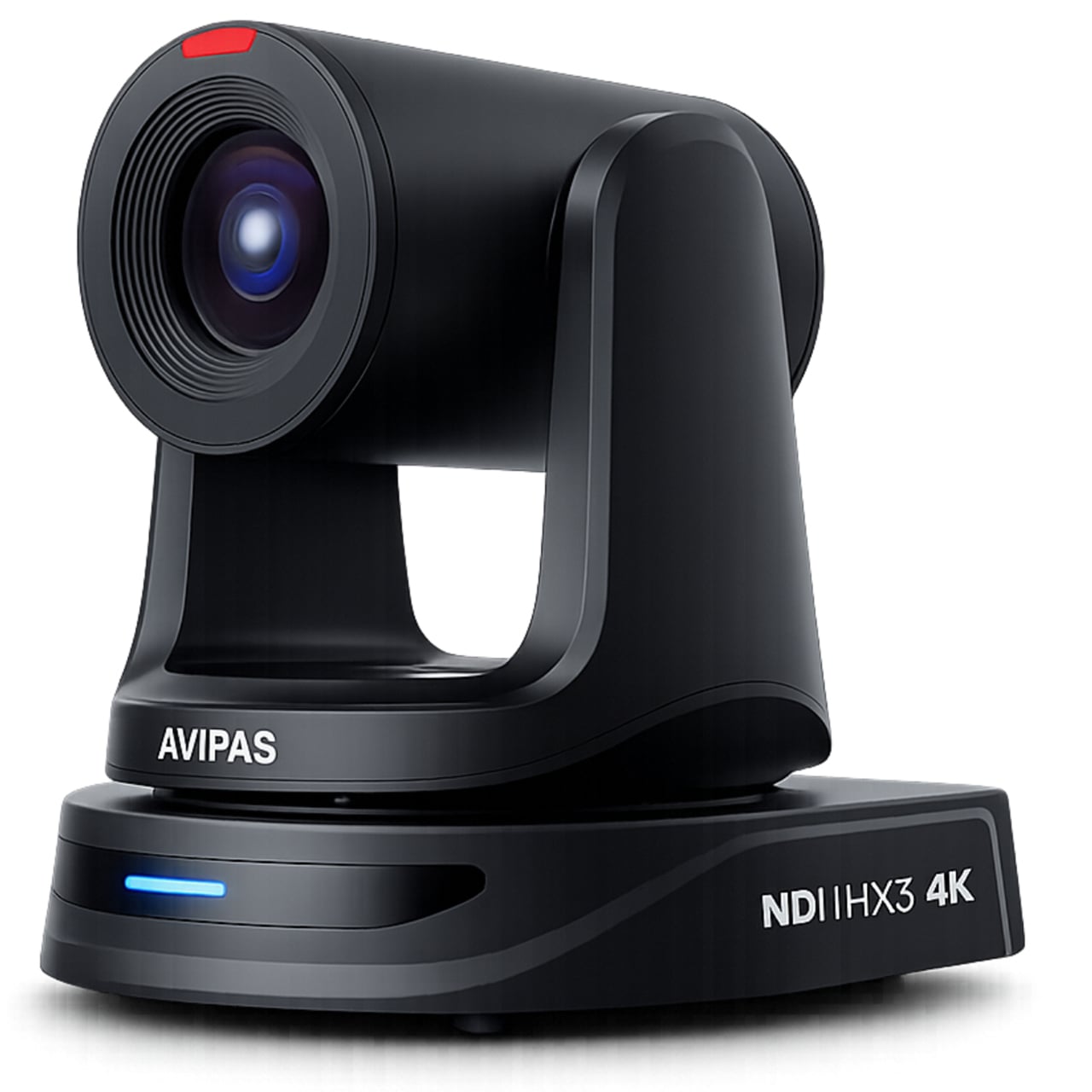

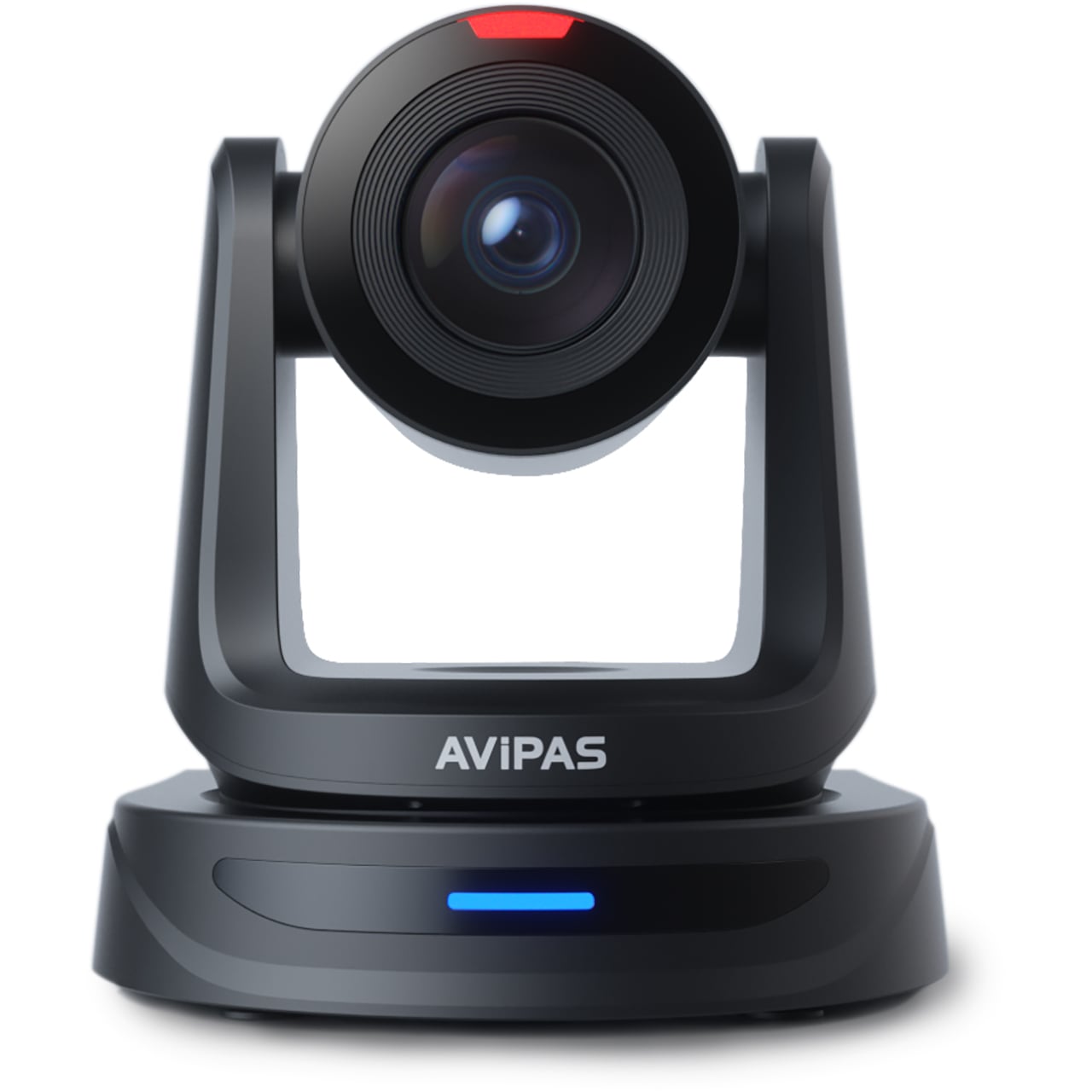

AViPAS AV-2046B 20x Zoom 4K NDI HX3 Auto-Tracking PTZ Camera with Tally Light - Black

ITEM #: AV-2046B MFG #: AV-2046B

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$1,339.00

Our Price:

$1,319.00

Availability: In Stock - Ships Factory Direct, Typically in 6 Business Days.
Please Email, Chat or Call (800) 522-2025
iAvailability Description Popup


AV-2046B - Overview

Designed for professional productions, live streaming, conferencing, education, and worship environments!

The AViPAS AV-2046 delivers intelligent tracking, stunning 4K video, and flexible connectivity in a compact PTZ solution. Powered by advanced AI Auto Tracking technology, the AV-2046 automatically detects and follows presenters with smooth and accurate movement - keeping subjects perfectly framed without requiring a dedicated camera operator. Custom tracking zones and adjustable framing provide greater flexibility for dynamic productions.

Capture every detail in ultra-sharp 4K UHD up to 3840x2160p60 with the high-quality 1/1.8" Sony CMOS sensor. Combined with a powerful 20x optical zoom lens and advanced low-light performance, the AV-2046 delivers crisp, vivid images in both large venues and challenging lighting conditions.

Built for modern IP workflows, the camera supports simultaneous 4K HDMI 2.0, 3G-SDI, USB, and IP video outputs, including NDIr|HX3 for low-latency, high-efficiency network video production. Support for SRT, RTMP, RTSP, and ONVIF ensures seamless integration into professional streaming and broadcast environments.

An integrated Tally Light provides clear on-air indication during live productions, making multi-camera workflows more intuitive and efficient for operators and presenters alike.

  • Features:

    • Auto Tracking PTZ
    • 20x Optical zoom, 8x Digital zoom
    • 1/1.8" CMOS Sensor, 8.42MP effective pixel
    • Resolution: 3840x2160 up to 60 fps
    • Lens: f=6.8mm~120mm, F1.61~ F4.13
    • 0.5 Lux minimum illumination @ F1.8
    • Field of View: 58.5°
    • Pan: -170° ~ +170°, Tilt: -90° ~ +90°
    • 2D&3D digital noise reduction
    • Horizontal/Vertical image flip
    • 4K HDMI2.0, 3GSDI, USB2.0, NDIHX3 and IP simultaneous outputs
    • H.264/H.265/MJEP Video streaming encoding
    • 3.5mm TRS Audio Line Level input with AAC and LPCM audio encoding, (audio embedded out via HDMI/SDI/IP)
    • RTSP/RTMP/SRT etc. streaming protocols
    • Preset positions: 255 via serial or IP; 10 via IR remote control
    • Communication interface: RS232 (RS485), USB-C and RJ45
    • Control Protocol options: VISCA/VISCA Over IP/Pelco-D/Pelco-P/OnviF/UVC1.1
    • PoE+ supported: IEEE 802.3at Standard
    • Standard wall/ceiling mounting
    • Tripod mountable (1/4"-20 female on the bottom)

  • Specifications:

      Video Formats:
    • HDMI:
      - 3840x2160p 60/59.94/50/30/29.97/25
      - 1920x1080p 60/59.94/50/30/29.97/25/24/23.98
      - 1920x1080i 60/59.94/50
      - 1280x720p 60/59.94/50/30/29.97/25
    • NDI HX3:
      - Main Stream: 3840x2160p 15~60, 1920x1080p 15~60, 1280x720p 15~60, 1024x576p 15~60
      - Sub Stream: 720x480p 15~60, 640x480p 15~60, 640x360p 15~30
    • SDI:
      - 1920x1080p 60/59.94/50/30/29.97/25
      - 1920x1080i 60/59.94/50
      - 1280x720p 60/59.94/50/30/29.97/25
    • USB:
      - 3840x2160p30
      - 1920x1080p60
      - 1280x720p60
      - 1024x576p60
      - 800x448p30
      - 640x360p30
      - 352x288p30
      - 320x240p30

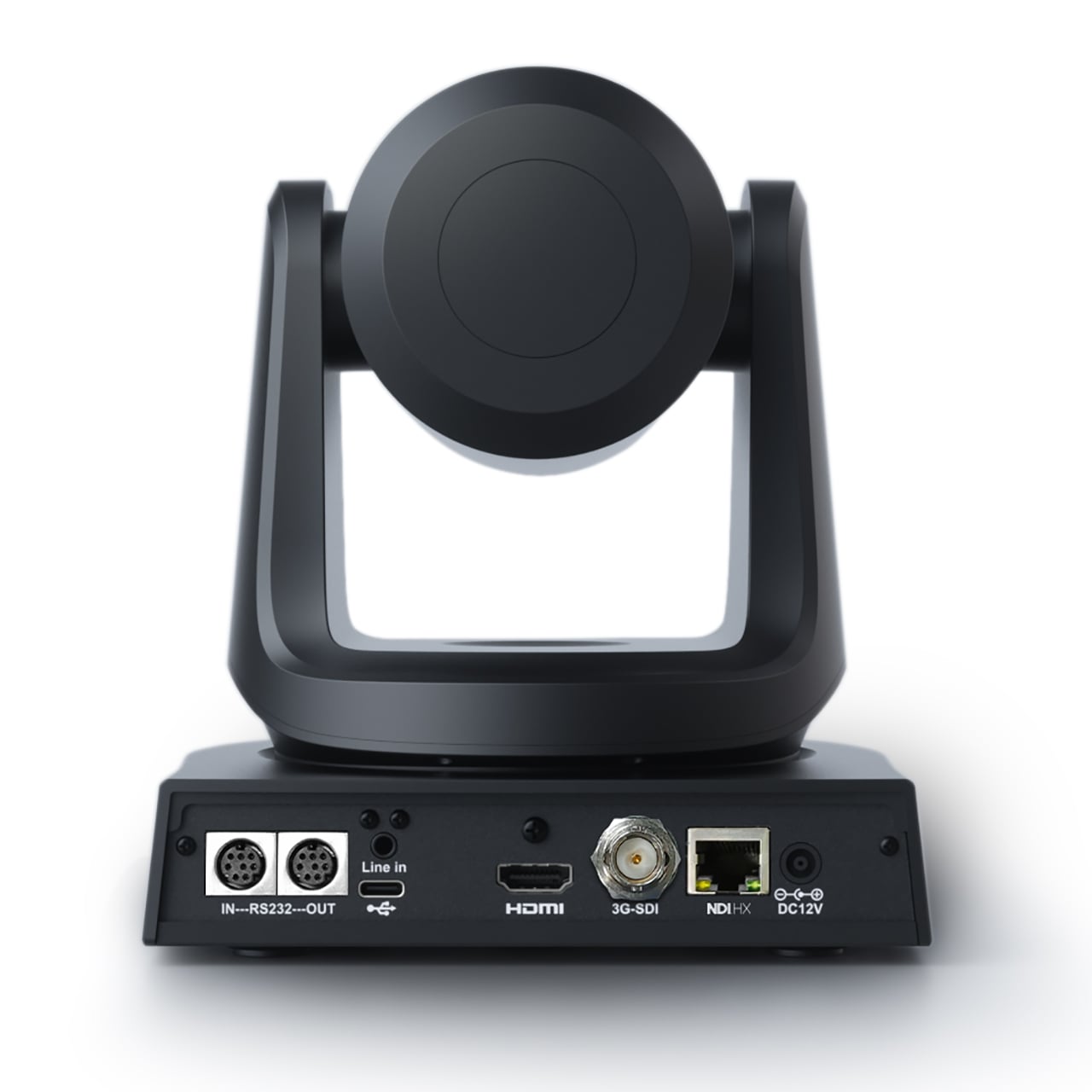

    • Video Interface: HDMI, SDI, RJ45, USB2.0
    • Sensor: 1/1.8" 8.42MP Sony CMOS sensor
    • Zoom: f6.8~120mm, F1.61~4.13
    • Field of View: 58.5°
    • Minimum Lux: 0.5 Lux at F1.8
    • White Balance: Auto/Manual / ATW / Indoor / Outdoor / OnePush / Color Temperature (2500~10000)
    • Exposure: Auto/Manual / Shutter / Iris / Bright
    • Focus: Auto/Manual
    • Iris: Auto/Manual
    • Electric Shutter: Auto/Manual
    • Tally Light: Support
    • Network Port Speed: 1000M
    • Gamma: 0 ~ 8
    • WDR: Support
    • BLC: Support
    • 2D/3D Noise Reduction: Support
    • Anti-Flicker: OFF/50Hz/60Hz
    • Image Flip: Horizontal/Vertical flip
    • Video Encode: H.264 / H.265
    • Bit Rate Control: Variable Bit Rate, Constant Bit Rate
    • Bitrate Range: 1Mbps~120Mbps
    • IP Protocol: SRT/TCP/UDP/TCP-IP, HTTP, RTSP, RTMP, DHCP, ONVIF
    • Control Port: RS232, RJ45 (VISCA over IP/ ONVIF), USB2.0 (UVC1.1)
    • Daisy Chain: RS232 serial daisy chain (up to 7 cameras)
    • Preset:
      - IR remote Control: 10
      - Serial Control: 255
      - Accuracy: 0.1°
    • Rotation Angle:
      - Pan: -170° ~ +170°
      - Tilt: -90° ~ +90°
    • Power Input: DC12V, POE+(IEEE802.3at) Standard
    • Power Consumption: 13W
    • Dimension: 6.6" x 6.6" x 7.1" (167.5 x 168 x 180.5mm)
    • Net Weight: 3.5lb (1.6kg)
    • Operating Temperature: 14°F ~ 122°F (-10°C ~ 50°C)

  • Item Includes:

    • 1x V-2046 20x 4K Auto Tracking PTZ Camera
    • 1x AC Adaptor with power cord(US standard)
    • 1x RS232 Cable (6.5ft 9-Pin DB-9 Female to 8-Pin Mini-DIN Male)
    • 1x USB2.0 Cable (9.8ft Type A Male to Type C Male)
    • 1x IR Remote Controller
    • 1x User Manual

  • GTIN:

    0858738005008
