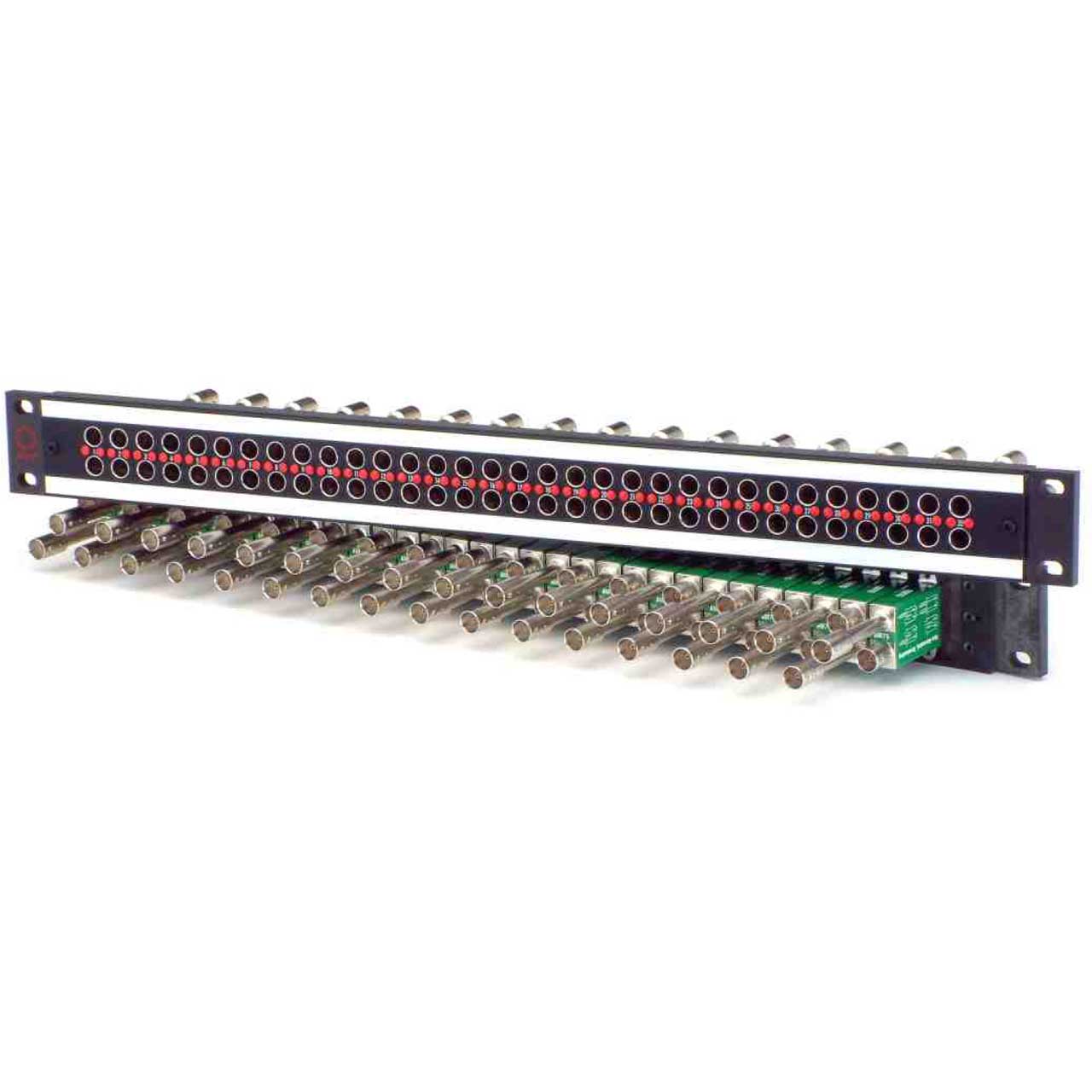

AVP AV-D432E3-AMN75-B10 3.0Ghz - 3GH/s Midsize Video Jackfield 4x32 3RU Panel 64 AVP-AMN75 Normaled Terminating Jacks

AV-D432E3-AMN75-B10 - Overview

• Features:

  • SuperHD+ 3.0GHz midsize dual & single video jacks
  • Jacks exceed SMPTE 424M-2006 HDTV specifications
  • Life Cycle rating of 30,000
  • Made in North America
  • Various normaling & terminating combinations for all applications
  • 1, 1.5, 2, 3 & 4RU Mosaic panels


• Specifications:

  • Electrical
  • Rated Bandwidth: 3.0 GHz - Meets HDTV/SMPTE 424M Specification
  • Characteristic Impedance: 75 Ohms
  • Contact Resistance: Less than 50 milliohms
  • Termination Resistance: 75 Ohms ± 1%
  • Center Conductor: Accepts 0.048" pin diameter

    Environmental
  • Operating Temperature: -40° to 149°F (-40° to 65°C)
  • Storage Temperature: -40° to 149°F (-40° to 65°C)
  • Thermal Shock: Per MIL-STD-202, Method 107
  • Moisture & Humidity: Per MIL-STD-202, Method 106

    Mechanical
  • Mechanical Shock: Per MIL-STD-202, Method 213, Test condition I
  • Vibration: Per MIL-STD-202, Method 201
  • Insertion Force: 7Lbs maximum
  • Withdrawal Force: 1Lbs minimum
  • Life Cycle: 30,000 minimum

    Material
  • Housing: Zinc alloy, nickel plated
  • Center Contacts: Copper alloy, gold plated
  • Switching Contacts: Copper alloy, gold plated
  • Grounding Contacts: Copper alloy, gold plated
  • Actuators: Thermoplastic, UL 94V-0 rated
  • BNC Insulators: Teflon
