Avenview HDM-C6MWIP-SET HDMI H.264 IP Matrix Decoder/Encoder Over CATx With Videowall Mode Support


  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
free ship

Our Price:


Availability: Ships Factory Direct, Typically in 3-10 Days
iAvailability Description Popup

    HDM-C6MWIP-SET - Overview

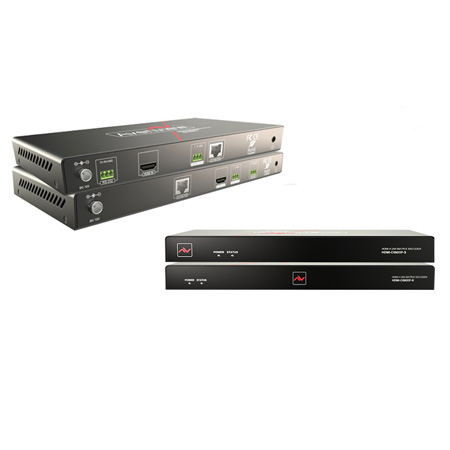

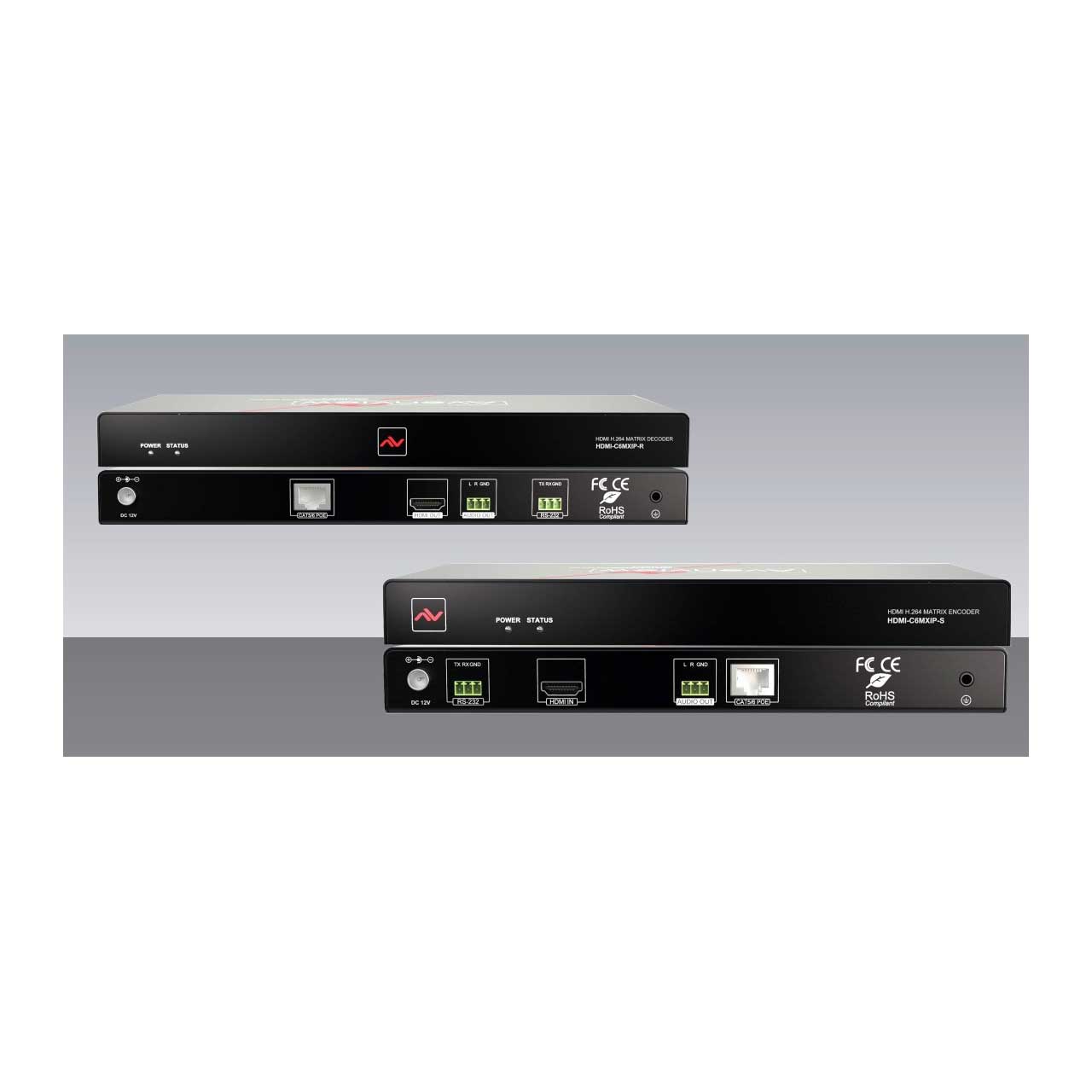

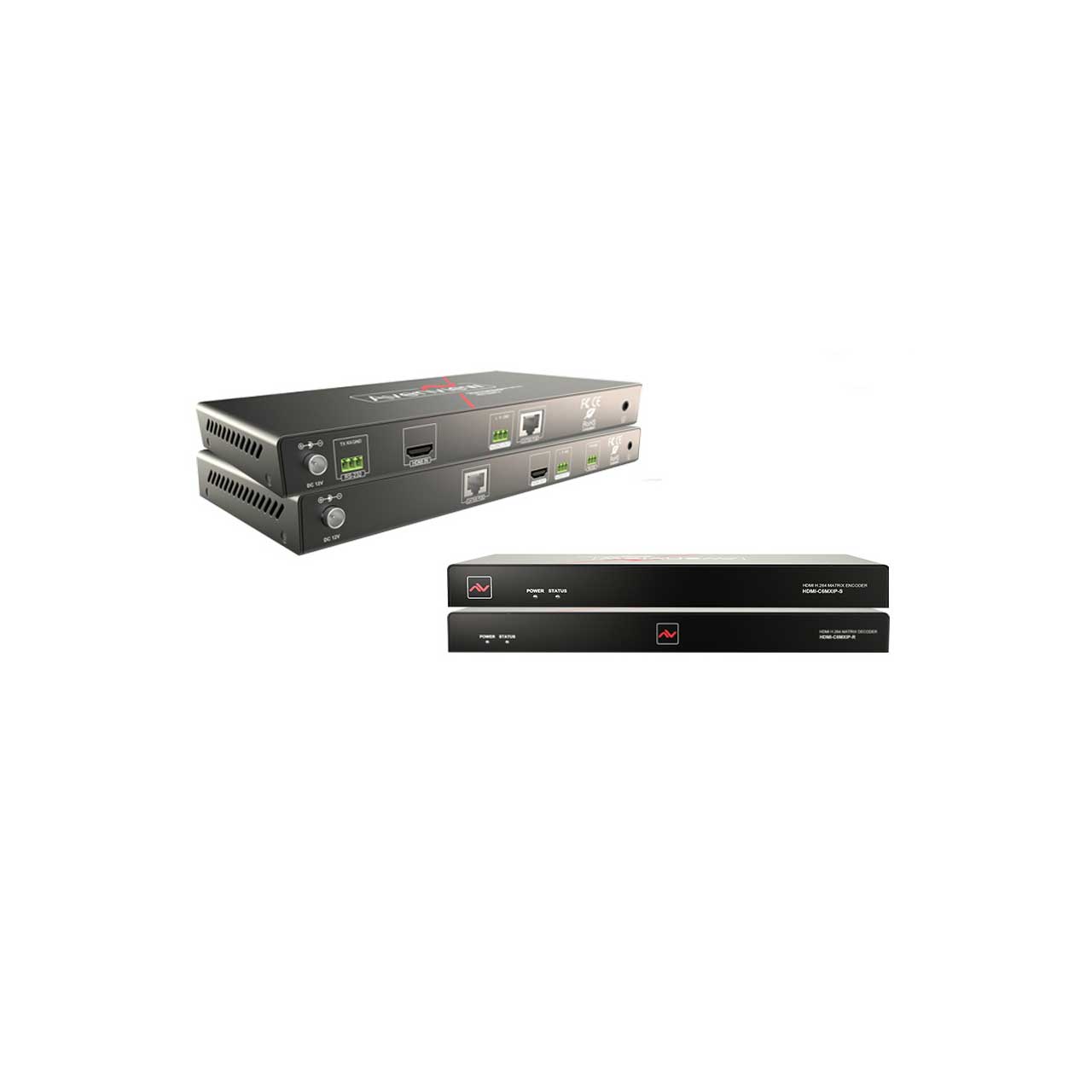

    The Avenview HDM-C6MWIP-SET, HDMI H.264 IP Videowall/Matrix Decoder/Encoder delivers end-to-end streaming media over IP networks. The HDM-C6MWIP-SET is composed of two units a Decoder and an Encoder. The Decoder H.264/MPEG-4 AVC video compression format, it receives the encoded IP signal through LAN port and decodes video/audio signal out through HDMI interface, it also supports stereo de-embeding and streaming resolutions up to 1920 x [email protected]

    • Features:

      • Flexible control and management options;
      • CEC Function;
      • Supports live IP video stream decoding;
      • Supports POE;
      • Capable of outputting two IP Streams (allows video previewing);
      • Supports multiple interfaces HDMI, DVI, VGA, YPbPr or CVBS signals over IP networks;
      • Point to Point: (Direct Connection with CAT5/6)330ft;

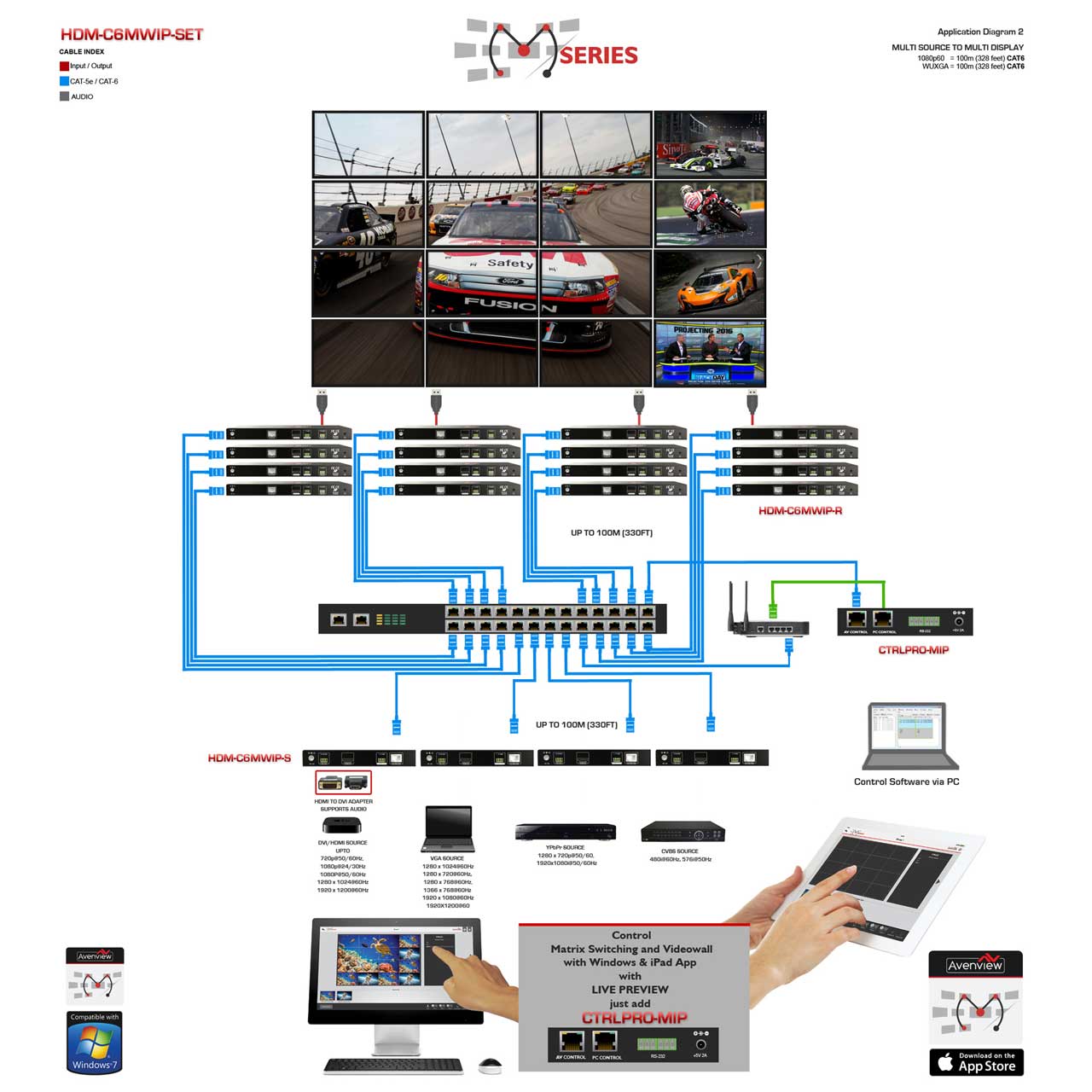

      • Point to Multi: Point with CAT5/6 requires a POE Network; Switch which supports port based, IGMP v2.0 or above protocol; for large application, we would recommend Dell Networking 5500 series, which use 2 HDMI port or 2 SFP port to cascade;
      • Matrix and Videowall functions;
      • Supports audio embedding and de-embedding;
      • Auto Scaler;
      • Supports H.264 features baseline profile, main profile and high profile
      • Supports H.264, TCP/IP, Telnet, UDP and IGMP;
      • Supports Auto IP, Zero-configuration networking (zeroconf);
      • Seamless switching, no black screen, no frame lock;
      • Configurable encoding bit rate up to 30 Mbps;
      • Auto input format detection;
      • HDCP compliant.
    • Warranty:

      • 3 Years
