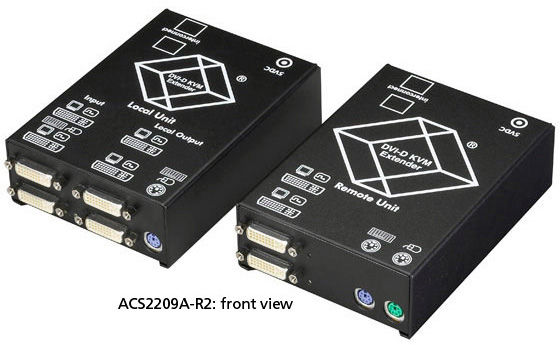

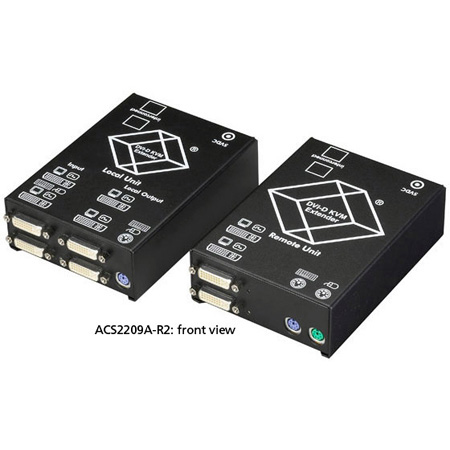

Black Box ACS2209A-R2 KVM Extender Dual DVI-D PS/2 CATx

ITEM #: BBX-ACS2209A-R2 MFG #: ACS2209A-R2

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the BBX-ACS2209A-R2

ACS2209A-R2 - Overview

With a ServSwitch™ DVI CATx KVM Dual Extender for PS/2®, you can send your keyboard, mouse, and DVI-D video signals up to 400 feet (121.9 m) over CAT5, CAT5e, or CAT6 cable.

It works with a PS/2 keyboard and mouse, and is built for today's computers with dual video heads. Connect up to two DVI-D monitors directly to the computer on the transmitting end of the link and two DVI-D monitors at the receiving KVM console.

Imagine what you can do with more monitors connected to your computer. Put a different application on each monitor to eliminate tedious switching between applications. Or if you have an application that uses lots of small windows, expand it across both monitors to provide more work space.

  • Features:

    • Uses inexpensive CAT5/5e/6 cable to extend KVM signals
    • Resolution up to 1600 x 1200
    • Connect up to two DVI-D monitors to the computer and at the remote KVM console
    • Put a different application on each console's monitor

  • Specifications:

    • Connectors: Local unit: Keyboard and mouse: (1) 6-pin mini DIN F; Monitor: (4) DVI-D F; Interconnect: (2) RJ-45; Remote unit: Keyboard and mouse: (2) 6-pin mini DIN F; Monitor: (2) DVI-D F; Interconnect: (2) RJ-45
    • Dimensions(H x W x D): 1.6 in x 4 in x 5.6 in (4.1 x 10.2 x 14.2 cm)
    • Distance (Maximum): 24 AWG: 400 ft. (121.9 m); 26 or 28 AWG: 200 ft. (60.9 m)
    • Operating Environment: Temperature: 41 to 113® F (5 to 45® C); Humidity: Up to 80% noncondensing
    • Power: 90-240 VAC, 47-63 Hz, autosensing, external, with IEC 320 connector and cord
    • Resolution (Maximum): 1600 x 1200 at 60 Hz
    • Weight: 1.3 lb. (0.6 kg)

  • GTIN:

    0822088001478
