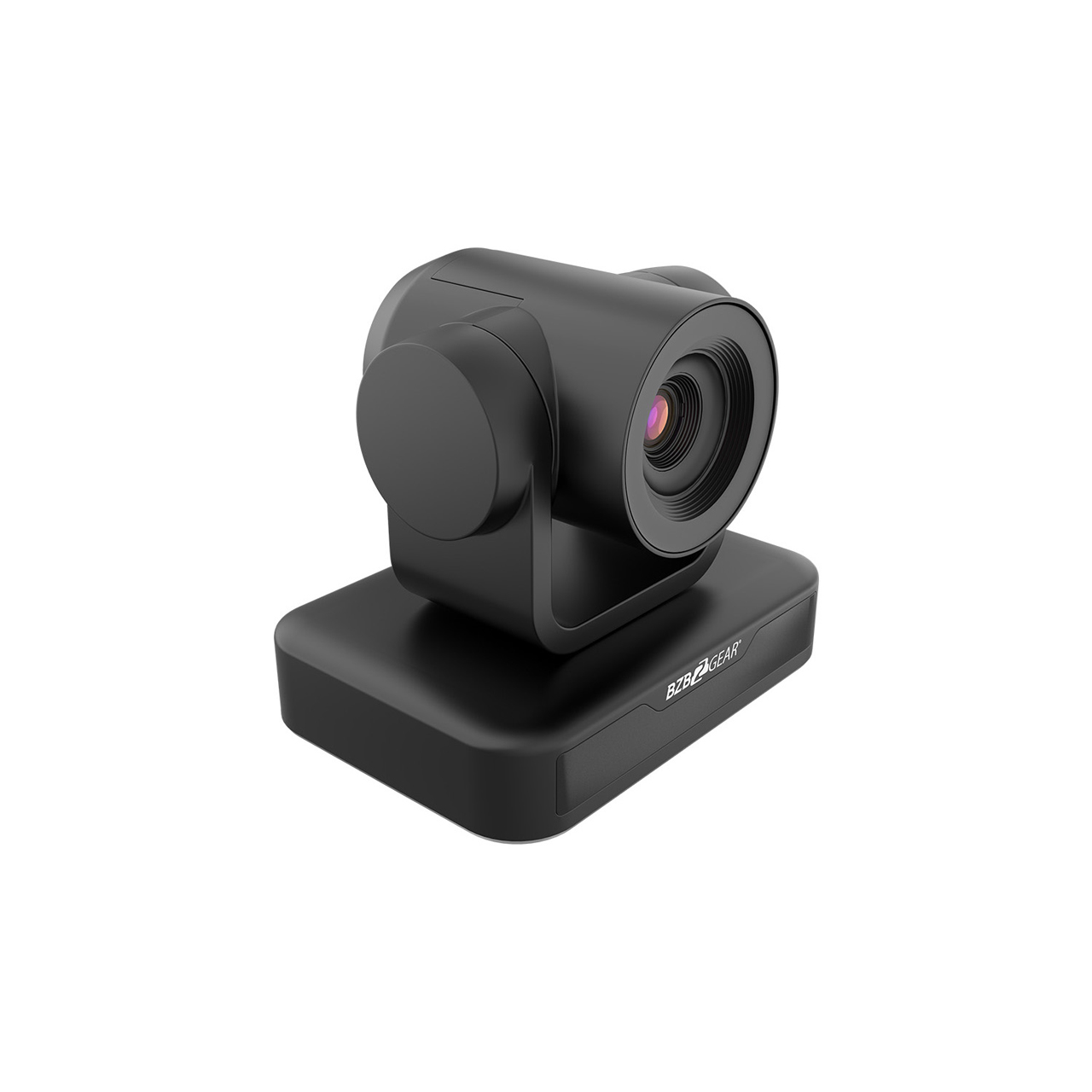

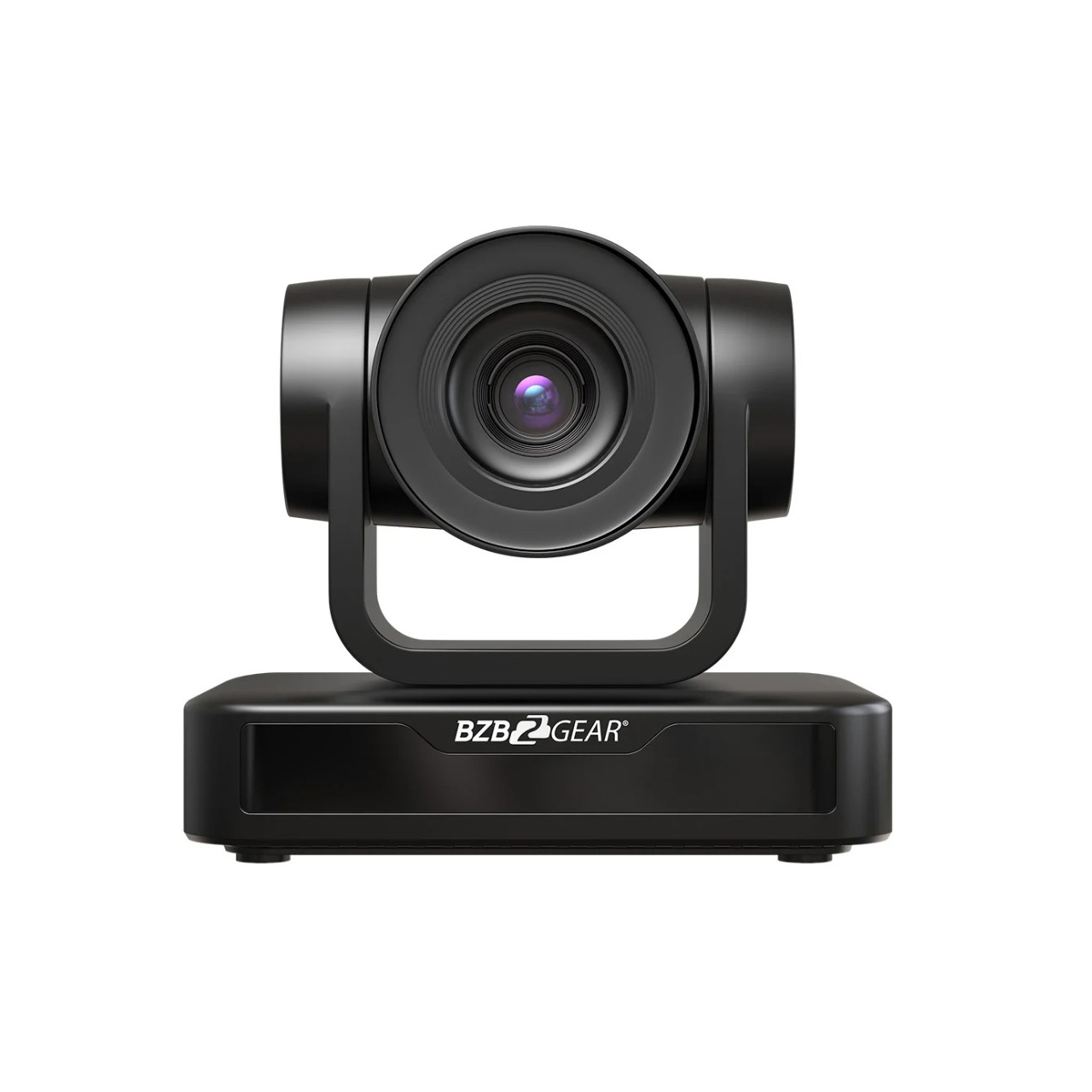

BZBGEAR BG-BPTZ-10XU Core 1080P FHD 10x Zoom USB 2.0 RS-232 Huddle Room PTZ Camera

ITEM #: BG-BPTZ-10XU MFG #: BG-BPTZ-10XU

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$499.00

Our Price:

$399.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


BG-BPTZ-10XU - Overview

The BZBGEAR BG-BPTZ-10XU a high-quality pan tilt zoom (PTZ) USB camera that offers excellent performance and versatility. With 10x optical zoom configuration, this camera is ideal for a range of applications, from smaller spaces to larger rooms where individual subjects are located further away but still need to fill the frame.

The camera supports resolutions up to 1080p@30Hz, producing high-quality imagery from its 1/2.8” high-quality CMOS sensor with a field of view of up to 66°. The BG-BPTZ-10XU offers quick and easy plug and play connectivity with USB 2.0 type A, making it compatible with any video conferencing software on your laptop or desktop PC, such as Skype, Zoom, Microsoft Teams, and Google Meet. A step drive motor mechanism and precision motor drive controller ensure that the PTZ operation of the camera is smooth and quiet, avoiding any disruptions during your video conferencing calls.

This PTZ camera supports several video compression formats, including H.264, H.265, and MJPEG, providing greater flexibility and compatibility with a range of devices and applications. It also has several control options available, including IR remote, RS-232, RS-485, and UVC (USB). Up to 255 preset positions are available, with 10 accessible via the IR remote. This camera can be mounted to a ceiling, wall, or tripod, increasing the potential for installation in many environments.

Overall, the BG-BPTZ-10XU is a high-quality, versatile, and reliable PTZ USB camera that offers a range of advanced features to cater to all your video conferencing needs. Whether you're in the education industry or require video conferencing for remote work or huddle space, the BG-BPTZ-10XU is the perfect choice.

  • Features:

    • 10x Optical Zoom
    • USB 2.0 (Type A) Output
    • 1/2.8" high-quality CMOS sensor with resolutions up to 1080p@30Hz
    • Superb Auto Focus and High-Definition Image
    • Extremely Quiet PTZ
    • Advanced 2D/3D Noise Reduction Technology
    • Enhanced Optical Zoom Lens

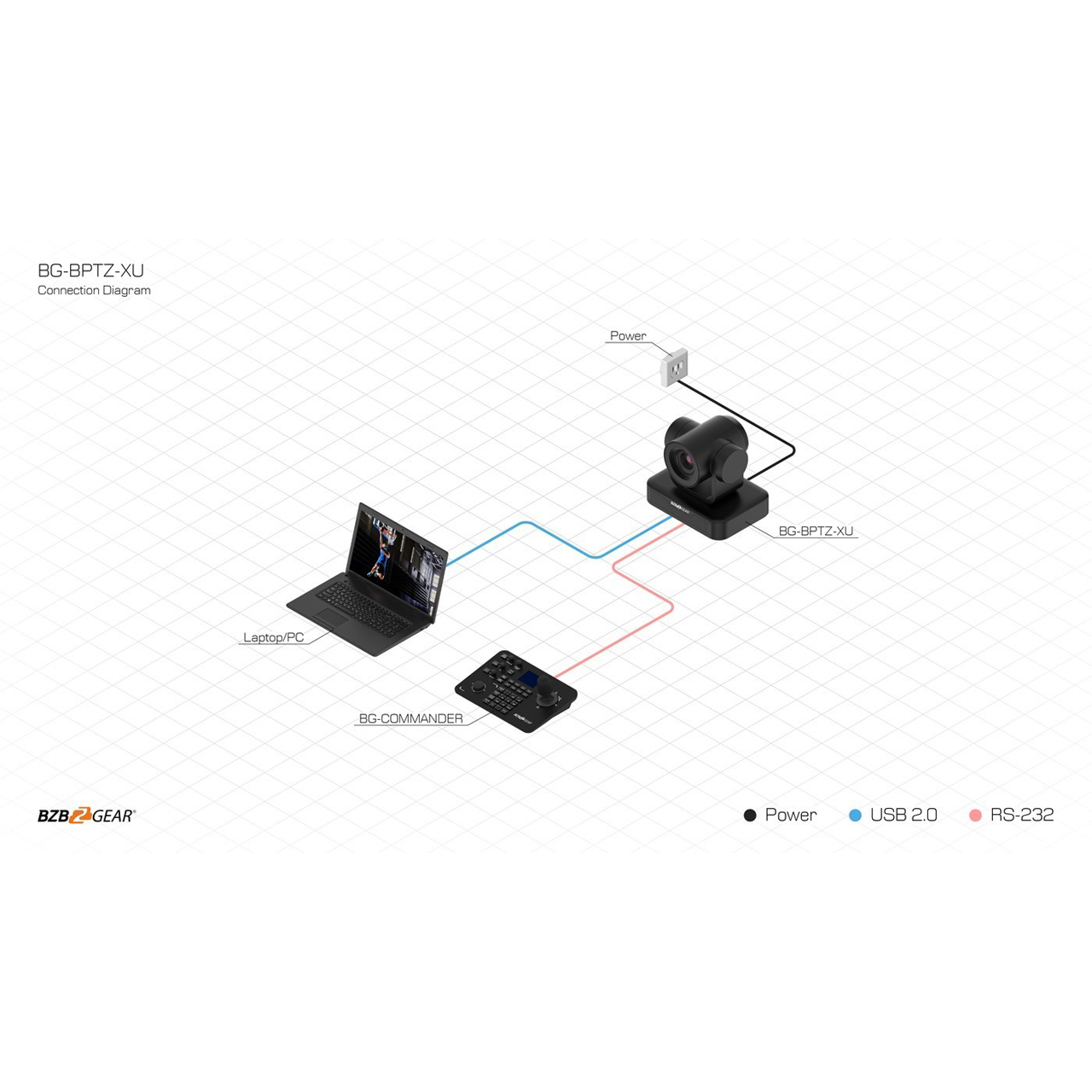

    • Seamless Control Integration with Cascading RS-232 or RS-485
    • Convenient and Secure Mounting Options
    • 255 Preset Positions

  • Specifications:

      General
    • Dimensions: 6.2" x 4.4" x 5.5" (156.8mm x 112.6mm x 139.5mm)
    • Weight: 2.2 lbs (1kg)
    • Working Voltage: 12V
    • Working current: 0.25A (Max)
    • Power Consumption: 2.5W (Max)
    • Working Temperature: 14°F~122°F (-10°C~x50°C) 20%-80%

      Camera
    • Image Sensor: 1/2.9 Inch High Quality CMOS Sensor
    • Effective Pixels: 2.07MP, 16:9
    • Video Format:
      - 1920x1080P@30fps/25fps
      - 1280x720P@30fps/25fps
      - 1024x576P@30fps/25fps
      - 960x540P@30fps/25fps
      - 800x448P@30fps/25fps
      - 640x360P@30fps/25fps
      - 320x176P@30fps/25fps
    • Low Illumination: 0.5Lux (F1.8, AGC ON)
    • DNR: 2D&3DDNR
    • White Balance: Auto/Manual/One Push/3000K/3500K/4000K/4500K/5000K/5500K/6000K/6500K/7000K
    • Focus: Auto/Manual/One Push
    • Electronic Shutter: Auto/Manual
    • BLC: On/Off
    • WDR: OFF/Dynamic Level Adjustment
    • Video Adjustment: Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve
    • SNR: >55dB
    • View Angle: 8.8°-66°
    • F Value: f=4.34mm-41.66mm
    • AV: F1.85-F2.43
    • Optical Zoom: 10x

      Interface and Protocol
    • Video Output: USB 2.0, Type A
    • Video Compression: H.265, H.264, MJPG

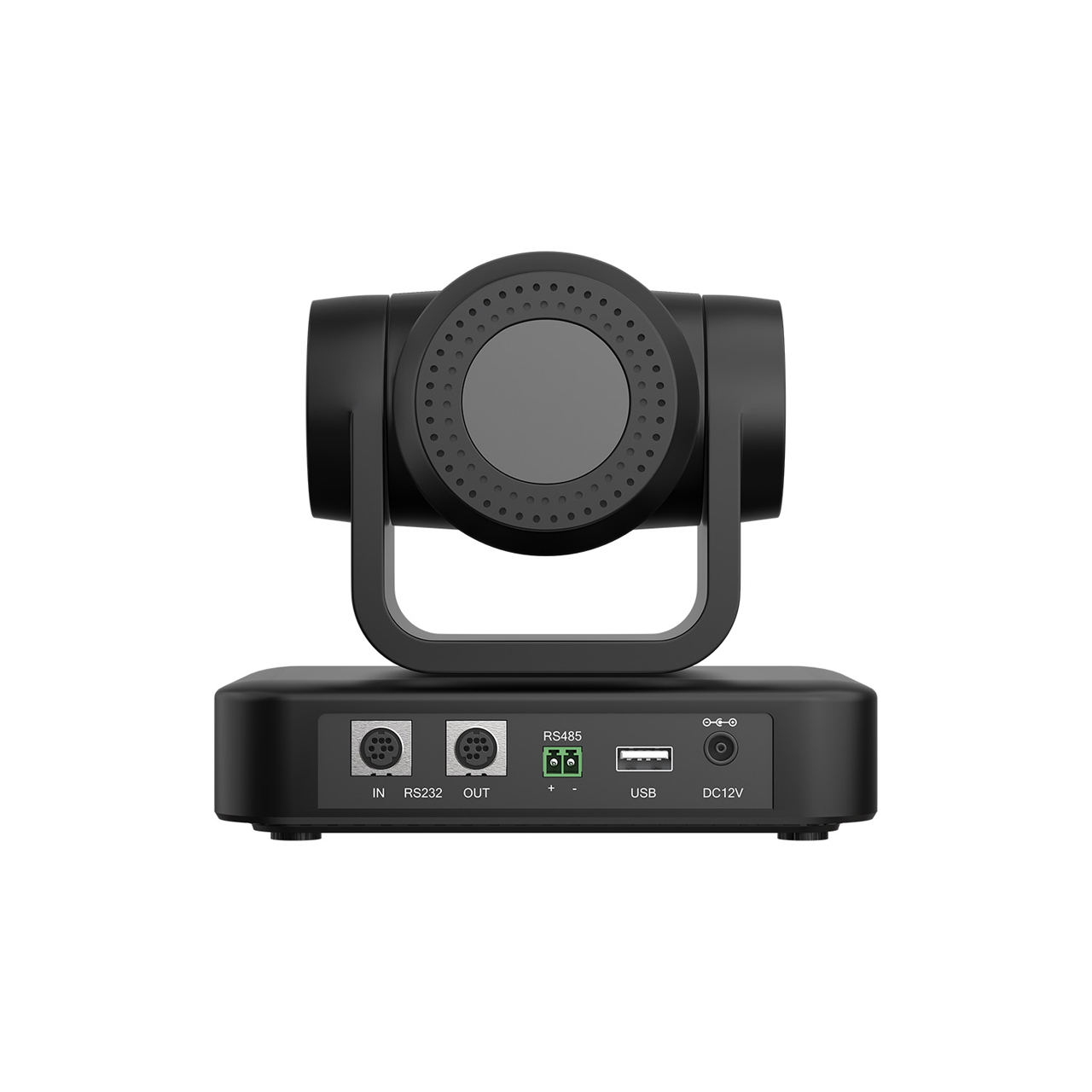

    • Control Port: RS232 in & out, RS485
    • Control Protocol: VISCA/Pelco-D/Pelco-P
    • Power Supply: HEC3800 Outlet (DC12V)

      USB Characteristics
    • Support Operating System: Windows 7, Windows 8, Windows 10, Mac OS, Linux
    • Video Compression: H.265, H.264, MJPG
    • USB Communication Protocol: UVC

      PTZ Parameter
    • Pan/Tile Rotation: -170° - x170° / -30° - x30°
    • Pan/Tile Controller Speed: 0.1-60°/Second, 0.1-30°/Second
    • Preset Speed:
      - Pan: 60°/Second
      - Tilt: 30°/Second
    • Preset Numbers: 255 Presets (10 presets on IR Remote)

  • Item Includes:

    • 1x BZBGEAR BG-BPTZ-10XU Core 1080P FHD 10x Zoom USB 2.0 RS-232 Huddle Room PTZ Camera
    • 1x 12V/1.5A Power supply
    • 1x Remote Control
    • 1x USB 2.0 Cable
    • 1x User Manual

  • Warranty:

    • 3-Year Limited Warranty

  • GTIN:

    0850009357304
