BG-ND-20XHSRP - Overview

BZBGear BG-NDI cameras line (BG-ND-20XHSRP) is a result of adoption of the best video over IP distribution technology from NewTek. BG-NDI cameras enables all the best you can get: Low-latency encoding and transmission over existing network and High Resolution 1080P @ 60fps video and audio, control and power - all of it over one Ethernet cable.

Enclosed in modern looking design these cameras are the best choice not only for your video streaming applications, but for your pocket too!

  • Features:

    • Compatible with all NDI tools from NewTek: NDI Studio Monitor, NDI Scan Converter, NDI Virtual Input and other
    • POE - Deliver power directly over Ethernet cable from your POE enabled network switch
    • Crystal Clear Image -1/2.8in 2.07 megapixel Low-Noise CMOS sensor insures High SNR (Signal to Noise Rate). Resolution up to 1080p@60fps
    • Wide FOV: Field of view up to 65.1° - enough for the whole room (54.7° for 20X and 65.1° for 30X lenses)
    • Add a Mic - supports stereo audio input and embedding
    • Extremely quiet - using high quality step driving motor and precise motor drive controller ensures whisper quiet and smooth rotation and zooming
    • Rich Network Protocol Support - NDI for Video over IP distribution, RTMP and RTMPS for Youtube,Facebook live streaming or other CDN. RTP and RTSP for media streaming. ONVIF and GB/T28181 - for your security applications, VISCA - to enable control

  • Specifications:

    • Camera Parameters
    • Optical Zoom: 20x f=5.5~110mm
    • View Angle: 3.3° (tele) 54.7° (wide)
    • AV: F1.6 - F3.5
    • Sensor: 1/2.8" high quality HD CMOS sensor
    • Effective Pixels: 16: 9 2.07 megapixel
    • Video Format: HDMI/SDI: 1080P60 / 50 / 30 / 25 / 59.94 /29.97; 1080I60 / 50 / 59.94; 720P60 / 50 / 30 / 25 / 59.94 / 29.97
    • Minimum Illumination: 0.5Lux (F1.8, AGC ON)
    • DNR: 2D & 3D DNR
    • White Balance: Auto / Manual / One Push / 3000K / 4000K / 5000K / 6500K
    • Focus: Auto/Manual
    • Aperture: Auto/Manual
    • Electronic Shutter: Auto/Manual
    • BLC: ON/OFF
    • WDR: OFF/ Dynamic level adjustment
    • Video Adjustment: Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve
    • SNR: >55dB

      Input/Output Interface

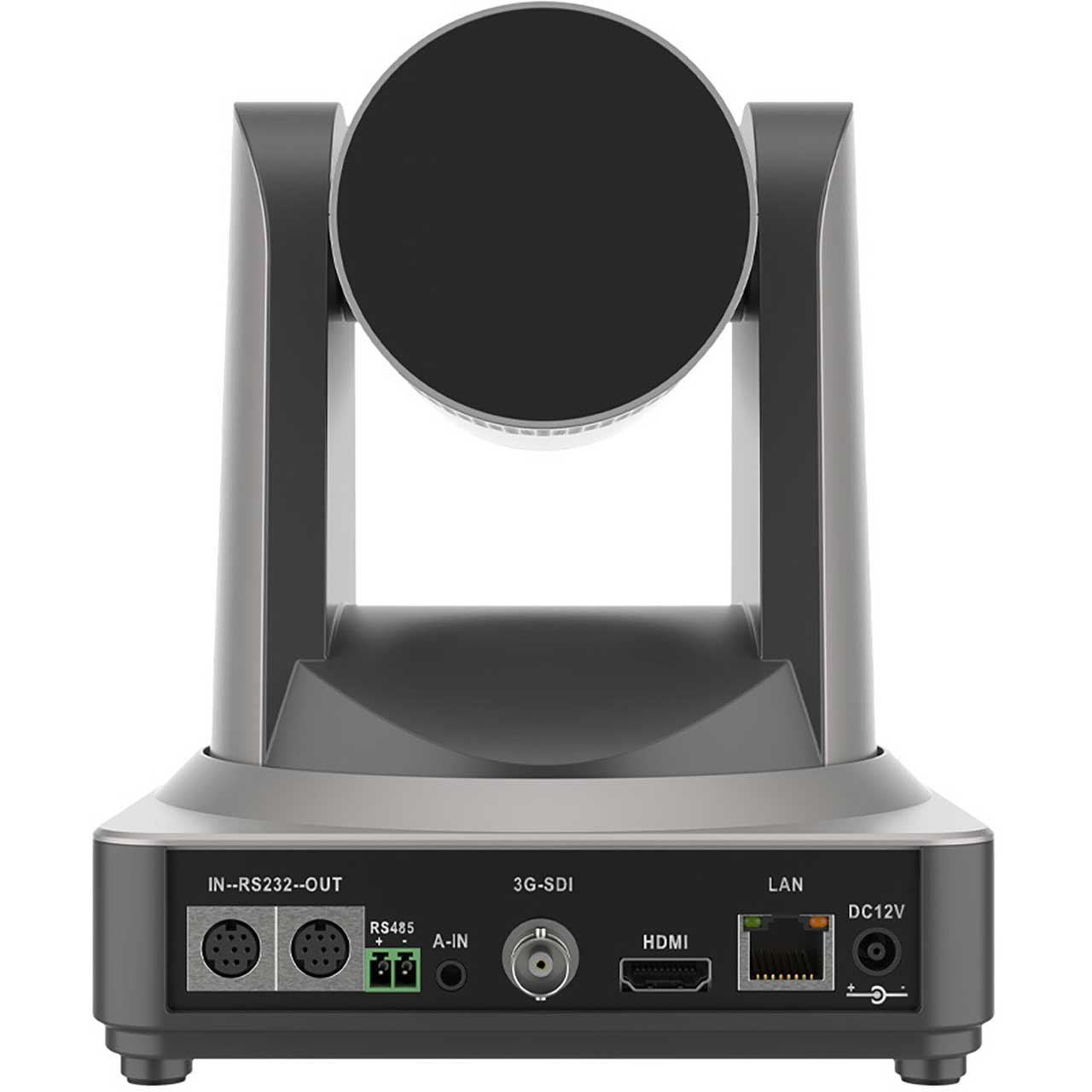

    • Video Interfaces: NDI | HX 4.0, SDI, HDMI, LAN(POE), RS232 (In & Out), RS485, A-IN
    • Image Code Stream: Double streams outputs simultaneously
    • Video Compression Format: H.264, H.265
    • Control Signal Interface: RS-232 Ring through RS232 output, RS-485
    • Control Protocol: VISCA/Pelco-D/Pelco-P; Baud Rate: 115200/ 9600/ 4800/ 2400bps
    • Audio input Interface: Double track 3.5mm linear input
    • Audio Compression Format: AAC/MP3/PMC Audio compression
    • HD IP Interface: 100M IP port (100BASE-TX); 5G WiFi (optional), support NDI & IP Visca control protocol
    • Network Protocol: NDI, RTSP/RTMP,ONVIF
    • Power Interface: HEC3800 outlet (DC12V)

      PTZ Parameters
    • Pan Rotation: ±170°
    • Tilt Rotation: -30°~+90°
    • Pan Control Speed: 0.1 -180°/sec
    • Tilt Control Speed: 0.1-80°/sec
    • Preset Speed: Pan: 60°/sec, Tilt: 30°/sec
    • Preset Number: 255 presets (10 presets by remote controller)

      Other Parameters
    • Supply Adapter: AC110V-AC220V to DC12V/2A
    • Input Voltage: DC12V±10%
    • Input Current: 1A (Max)
    • Consumption: 12W (Max)
    • Store Temperature: 14° to 140°F (-10° to 60°C)
    • Store Humidity: 20 to 95%
    • Working Temperature: 14° to 122°F (-10° to 50°C)
    • Working Humidity: 20% to 80%
    • Dimensions: 5.90 x 5.90 x 6.59" (150 x 150 x 167.5mm)
    • Weight: 3.09Lbs (1.4kg)
    • Working Environment: Indoor
    • Remote Operation (IP): Remote Upgrade, Reboot and Reset

  • Item Includes:

    • 1x BG-ND Camera
    • 1x Power Supply
    • 1x RS232 Control Cable
    • 1x Remote Control
    • 1x User's Manual

  • Warranty:

    • 3 years
