BZBGEAR BG-UHD-QVP-4X2 4x2 4K UHD Switcher Scaler & Multiviewer with Audio De-Embedder & Integrated USB 3.0 Capture Card

ITEM #: BG-UHD-QVP-4X2 MFG #: BG-UHD-QVP-4X2

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$2,699.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


BG-UHD-QVP-4X2 - Overview

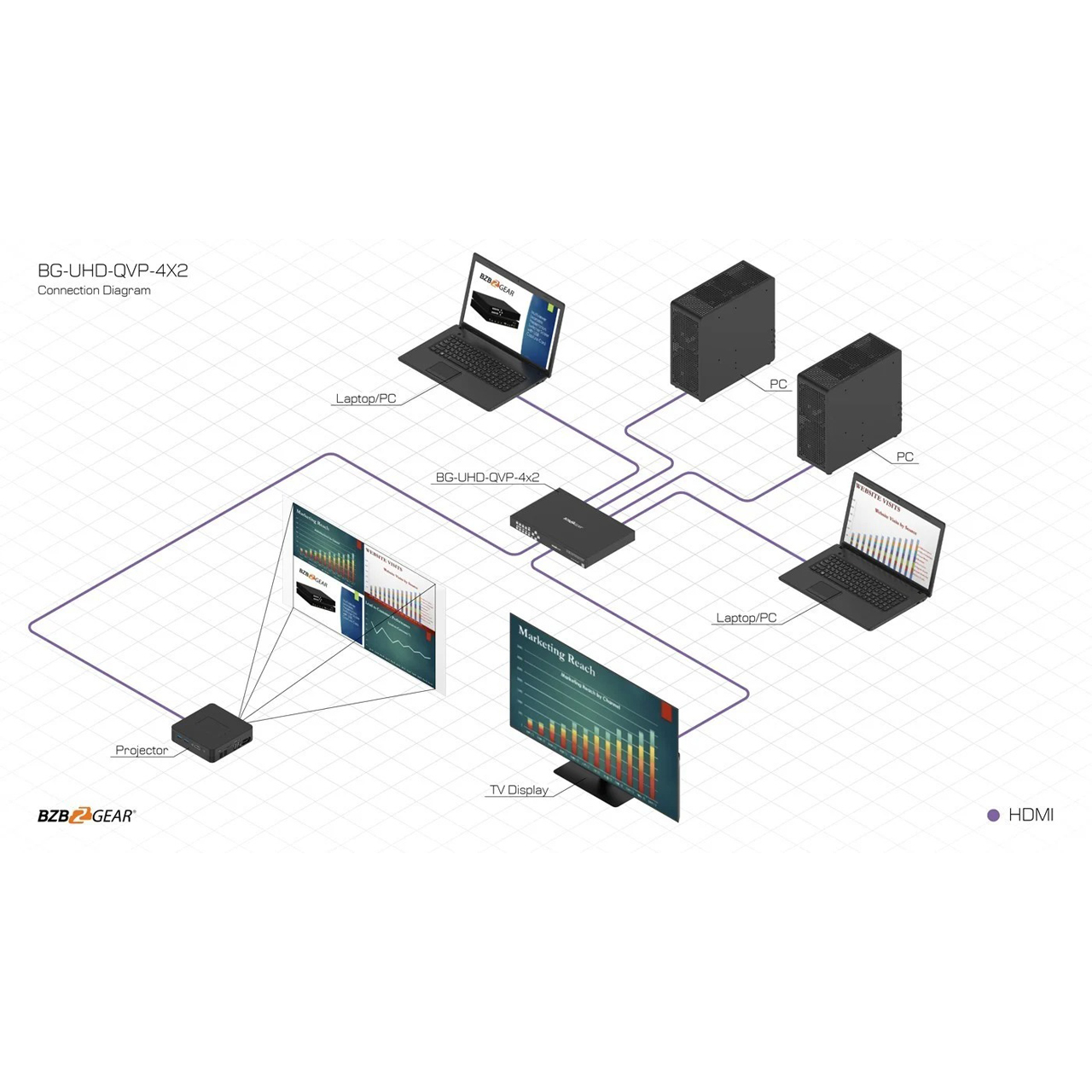

The BZBGEAR BG-UHD-QVP-4X2 is a powerful video processor that provides users with flexible and cost-effective solutions for routing ultra-high definition video from any of the four UHD HDMI sources to two remote displays simultaneously. With 4K2K@60 4:4:4 video resolution, this video processor delivers top-notch video quality with rich, vivid colors and crisp images.One of the most impressive features of the BG-UHD-QVP-4X2 is its built-in USB 3.0 capture & auto scaling down features that allow users to record video or broadcast up to 1080p video & 2ch audio through real-time software such as Skype or Zoom. This unique function makes the video processor perfect for use in education or commercial applications, as a live switch. It can also be used in digital signage, conference room presentation systems, or other similar applications.With adjustable size & position of the image, the BG-UHD-QVP-4X2 provides users with complete control over how their content is displayed. Additionally, the processor supports PIP, PBP, POP, full screen & quad-view display, allowing users to create dynamic layouts and presentations that capture their audience's attention. The BG-UHD-QVP-4X2 also supports titles, borders, and colored backgrounds, which can be used to enhance the presentation's visual appeal.The video processor also supports background picture & logo, allowing users to customize the output video with their branding. Resize, position, zoom, pan, and blend output video features give users the ability to manipulate their content to create the desired effect. The BG-UHD-QVP-4x2 supports seamless, fade-in-&-out, wipe and dissolve switching on full-screen mode, providing a smooth transition between videos or presentations.

  • Features:

    • Input resolutions up to 4k@60Hz 4:4:4 Chroma
    • Quick and easy source switching

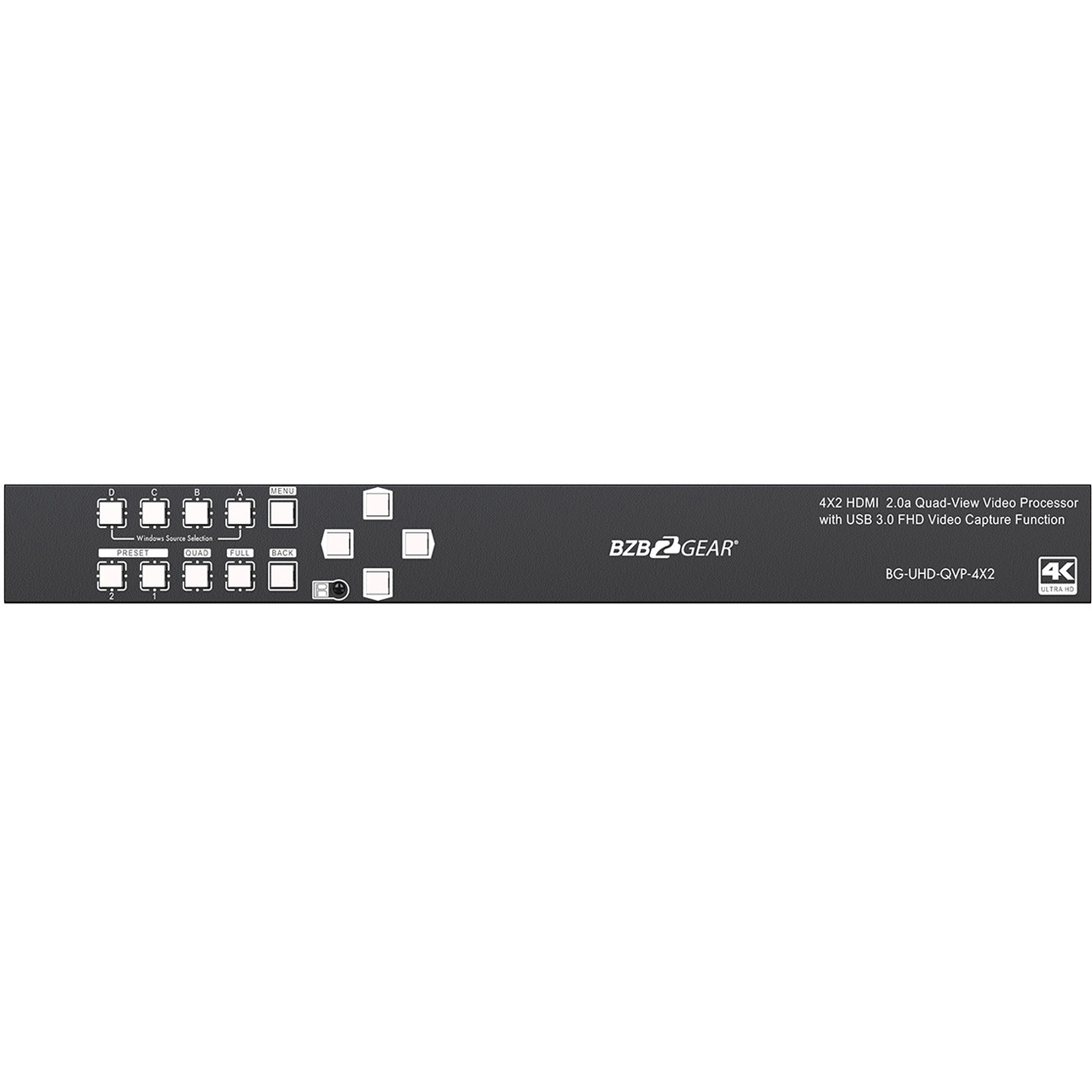

    • Control Options - IR remote, RS-232, Web GUI, or Front Panel Buttons
    • USB Capture - Convert HDMI Sources And Output Via USB 3.0 At Up To 1080p@60Hz
    • UVC1.0 Monitor Output
    • Extract audio from current HDMI input

  • Specifications:

    • Technical Specs
    • HDMI Compliance: HDMI 2.0a
    • HDCP Compliance: 1.4/2.2
    • Video Bandwidth: HDMI (600MHz (18Gbps))
    • Output Video Support: Up to 4K2K@60 (4:4:4 8bits)
    • Video Support: Up to 1080p60
    • Input Video Support: Up to 4K2K@60 (4:4:4 8bits)
    • Video Format Support: HDMI 2.0
    • Audio Support: Bypass
    • Embedded Video Mixer: Yes
    • Input TMDS Signal: 1.2 Volts (peak to peak)
    • Recording Mode: Software Compression
    • Recording Video Format: YUY2 (USB3.0), MJPG (USB2.0/3.0)

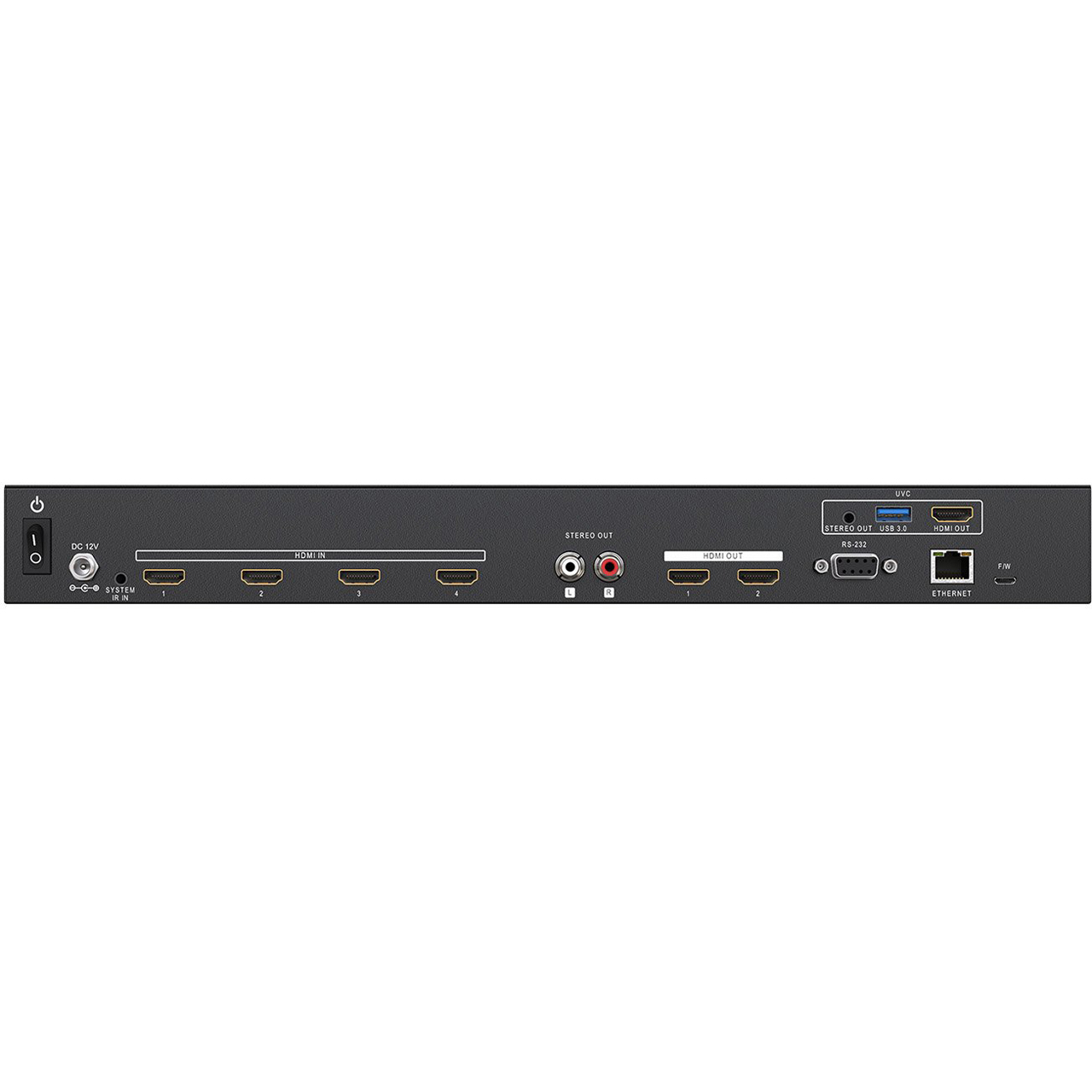

    • Input:
      - 4x HDMI
      - 1x RS-232
      - 1x RJ45 (Ethernet)
      - 1x 3.5mm (IR)
    • Output:
      - 2x HDMI
      - 1x USB
      - 2x RCA
      - 1x 3.5mm
    • HDMI Connector: Type A (19-pin female)
    • USB Connector: USB 3.0 Type A (SuperSpeed USB)
    • RS-232 Connector: DE-9 (9-pin D-sub female)
    • RJ-45 Connector: WE/SS 8P8C
    • OS Support: (Video Capture Function): Windows 7 /8.1 /10, Mac and Linux OS

      Mechanical
    • Housing: Metal Enclosure
    • Dimensions (LxWxH): Model 15.35" x 9.8" x 1.7" (390mm x 248mm x 44mm)
    • Package: 20.71" x 12.5" x 6.1" (526mm x 318mm x 156mm)
    • Weight: 5lbs (2.2kg)
    • Package: 7.8 lbs (3.5 kg)
    • Power Supply: 12V 5A DC
    • Power Consumption: 22 Watts (max)
    • Operation Temperature: 32°F - 104°F (0°C - 40°C)
    • Storage Temperature: -4°F - 140°F (-20°C - 60°C)
    • Relative Humidity 20% - 90% RH (no condensation)

  • Item Includes:

    • 1x BZBGEAR BG-UHD-QVP-4X2
    • 1x Rack-mounting ear set
    • 1x IR receiver
    • 1x Installation software CD
    • 1x DC 5V 4A
    • 1x User Manual
    • 1x IR Remote control

  • Warranty:

    • 5 Year Limited Warranty

  • GTIN:

    0850009357175
