Amphenol 031-70546-12G Straight Crimp Plug 12G BNC Connector for Belden 4505R Cable - 75 Ohm
  • Amphenol 031-70546-12G Straight Crimp Plug 12G BNC Connector for Belden 4505R Cable - 75 Ohm
  • Amphenol 031-70546-12G Straight Crimp Plug 12G BNC Connector for Belden 4505R Cable - 75 Ohm

Questions? Ask a Markertek Expert:
800-522-2025 Email

Amphenol 031-70546-12G Straight Crimp Plug 12G BNC Connector for Belden 4505R Cable - 75 Ohm

Manufacturer: Amphenol

Item #: AMPH-0317054612G   •   MFG #: 031-70546-12G



List Price:$6.20
Our Price:$5.45
Quantity Pricing

free ship


Availability: In Stock
i
Item is Available for immediate shipping from our warehouse.




    Share!

    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov

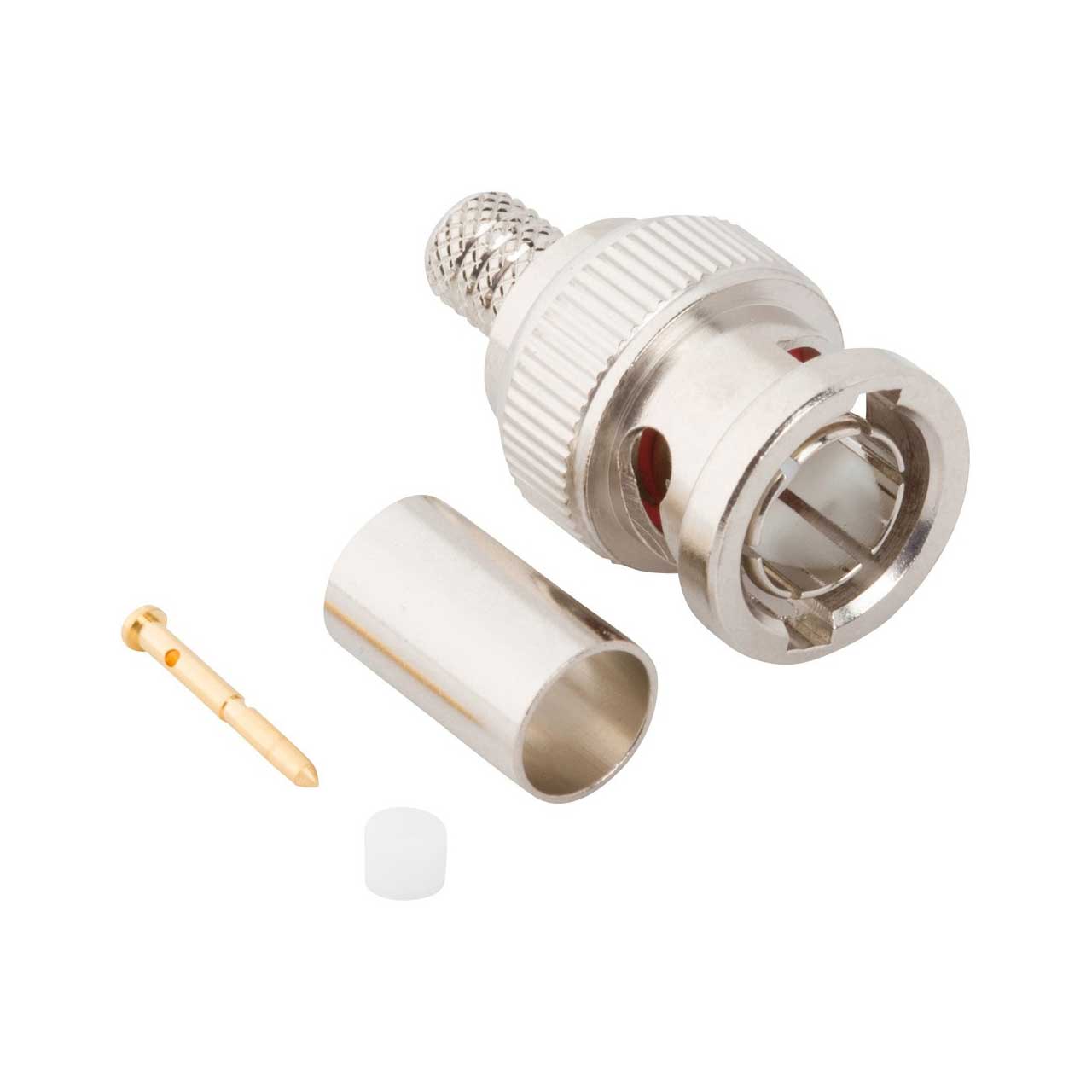

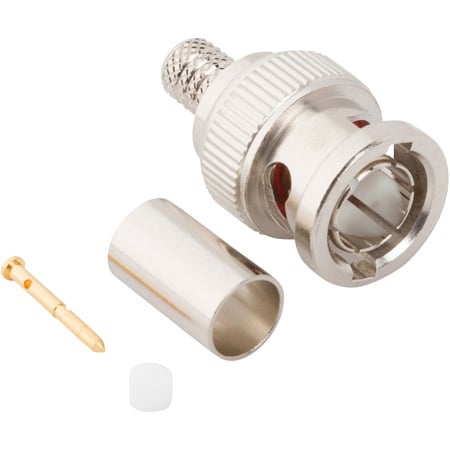

    The Amphenol 031-70546-12G is a 12G optimized straight BNC crimp plug for Belden 4505R cable.


    • Specifications

      • Brand: Amphenol RF
      • Gender: Plug
      • Orientation: Straight
      • Termination Style: Cable - Crimp
      • Impedance (Ohms): 75
      • Body Finish: Nickel
      • Body Material: Brass
      • Contact Finish: Gold
      • Contact Material: Brass
      • Contact Termination Style: Crimp
      • Insulator Material: PTFE
      • Cable Group: Special
      • Cable Type: Belden 4505R
      • Crimp Tool: 47-10110
      • Coupling Mechanism: Bayonet
      • Max Frequency (GHz): 12
      • Polarity: Standard
      • Min. Temp. (Celsius): -65
      • Max. Temp. (Celsius): 165
      • Mating Cycles: 500
      • Hex Crimp Size (cable ferrule): 0.255"
      • Square Crimp Size (center contact pin): 0.042"
