Belden 4794P 4K UHD CMP/Plenum UV Resistant 75 Ohm Series 7 Tri-Shield Coax for 12G-SDI - 16 AWG - Black - 1000 Foot

ITEM #: BL-4794P-1000BK MFG #: 4794P 0101000

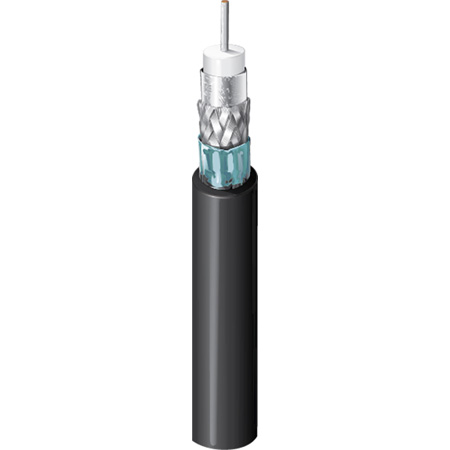

Primary Image
Belden
Free Shipping with $49 Minimum Order

List Price:

$13,374.20

Our Price:

$10,713.08

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

4794P 0101000 - Overview

Belden 4794P is a Series 7, 75 Ohm, 4K UHD Coax for 12G-SDI. It's 16 AWG with a Solid Silvered Copper Conductor and FEP Insulation for UV and Chemical resistance. This cable is Tri-Shielded featuring Foil + 95% Tinned Copper Braid + Foil Shield, in a Plenum/CMP rated PVDF (Polyvinylidene Fluoride) Jacket.

Belden 4K UHD Coax Cables for 12G-SDI maximize 4K signal transmission distance over a single coax, minimizing weight and space utilization compared to multi-link solutions. This solution provides significant headroom and guarantees -15 dB return loss from 4.5 to 12 GHz.

Applications
Ultra-High Definition Digital Video
4K Single-link 12 Gb/s UHDTV
4K D-Cinema
8K Quad-link UHDTV
HD-SDI 1080p

  • Features:

    • Faster Installation: Using Belden's single-link solution saves time and is significantly lighter than dual or quad-link configurations
    • Optimized Design: On Belden 4K UHD Coax Cables for 12G-SDI, the inner foil is bonded to the core to eliminate bunching when installing 1-piece connectors. The outer foil is bonded to the jacket for a quicker, one-step stripping process
    • Superior Performance: The 4K UHD coax cable for 12G-SDI are superior in performance and engineered to optimize transmission distance, the cables exceed the SMPTE Return Loss (RL) specifications for UHDTV
    • Supports 12 GHz: Belden 4K UHD Coax Cables for 12G-SDI are capable of supporting 12 GHz bandwidth and enable a single-link configuration to transmit 4K


  • Specifications:

    • Conductor AWG: 16
    • Conductor Stranding: solid
    • Conductor Material: Silvered Copper
    • Conductor Nominal Diameter: 0.051in
    • Conductor No of Coax: 1
    • Insulation Material: FEP - Fluorinated Ethylene Propylene (Foam)
    • Insulation Nominal Diameter: 0.225 in
    • Outer Shield Layer 1: Tape/Tri-Laminate (Alum+Poly+Alum) 100%
    • Outer Shield Layer 2: Tinned Copper (TC)/95%
    • Outer Shield Layer 3: Tri-Laminate (Alum+Poly+Alum) 100%
    • Outer Jacket Material: PVDF - Polyvinylidene Fluoride
    • Outer Jacket Nominal Diameter: 0.297 in
    • Nominal Conductor DCR: 4.0 Ohm/1000ft
    • Nominal Outer Shield DCR: 2.0 Ohm/1000ft
    • Nom. Capacitance Conductor to Shield: 16.4 pF/ft
    • Nominal Characteristic Impedance: 75 Ohm
    • Nominal Velocity of Propagation (VP) [%]: 83%
    • UL Description: CMP
    • UL Voltage Rating: 300 V
    • UL Temp Rating: 60°C
    • Operating Temp Range: 0°C to +75°C
    • UV Resistance: Yes
    • Bulk Cable Weight: 59 lbs/1000ft
    • Max. Pull Tension: 84 lbs
    • Min Bend Radius During Installation: 3 in
    • NEC/(UL) Compliance: CMP
    • CEC/C(UL) Compliance: CMP
    • Series Type: 7
    • Environmental Space: Indoor - Plenum
    • UL Flammability: NFPA 262
    • CSA Flammability: FT6


  • Item Includes:

    • 4794P 4K UHD CMP/Plenum Coax for 12G-SDI - 16 AWG - Black - 1000 Foot


  • Warranty:

    • Limited 10 Year Warranty
