Amphenol 031-70539-12G BNC Straight Crimp Female Jack for Belden 4794R Cable - 12G Optimized - 75 Ohm

ITEM #: AMPH-0317053912G MFG #: 0317053912G

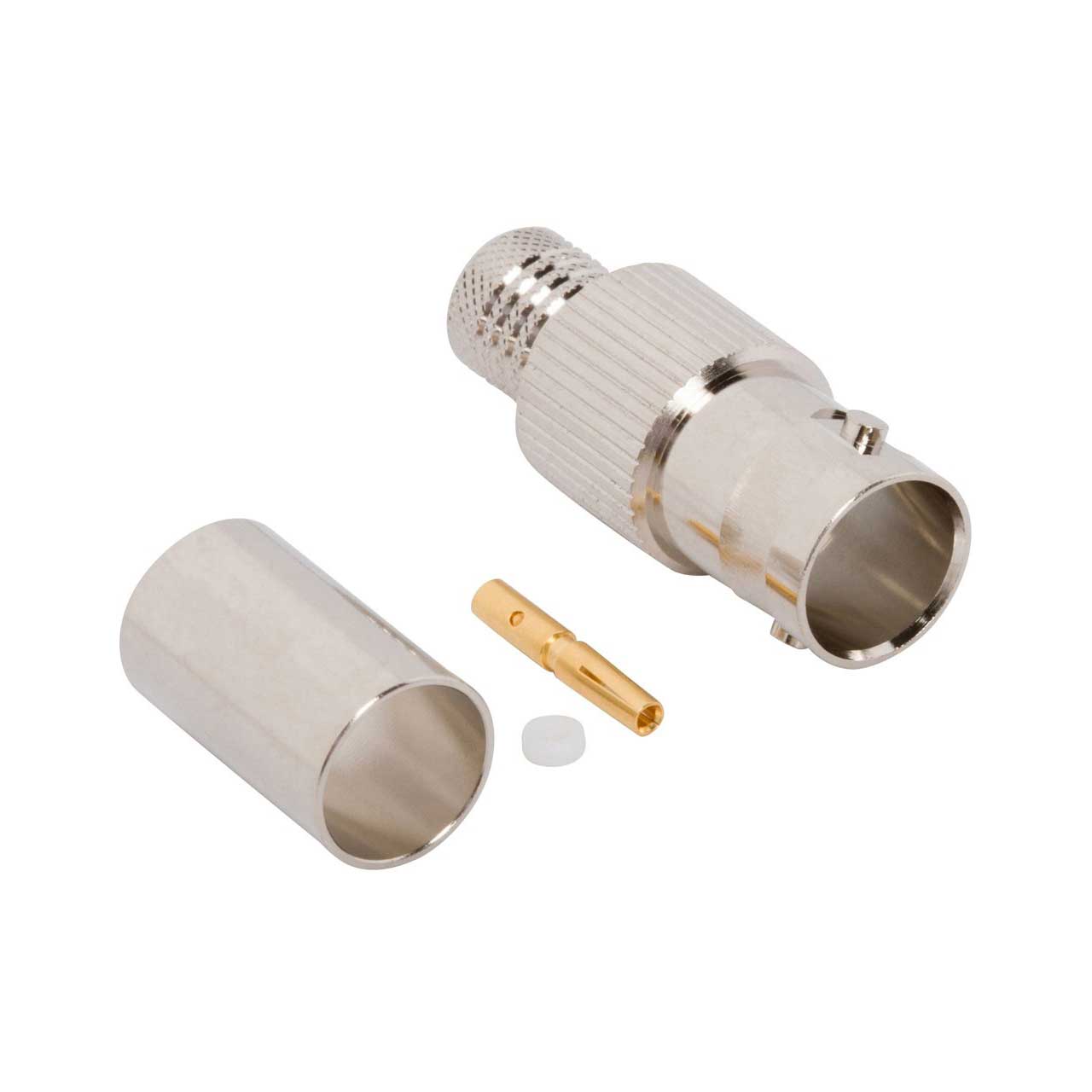

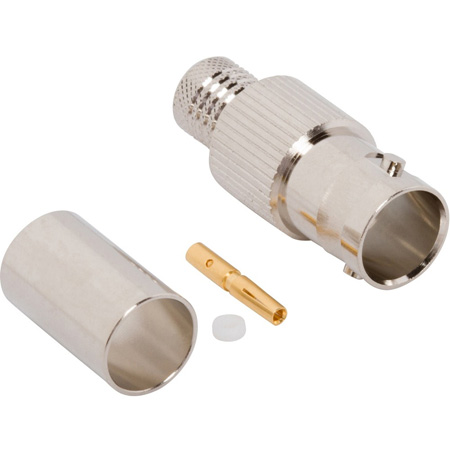

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$12.00

Our Price:

$11.03

Availability: In Stock
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


0317053912G - Overview

Ultra High Definition Video (also known as "Ultra HD" or "4K"), with 4x the resolution of 1080P HD video, requires an interconnect system that can transfer data at a rate of up to 12Gbps. Using legacy BNC connectors often supporting a max frequency of 3GHz, this could require 2 or 4 channels.

Amphenol RF's line of 12G BNC and HD-BNC (031-70539-12G ) products are optimized for 4K Ultra HD Broadcast, providing fully intact signal transmission on a single channel. These connectors are designed for 12G-SDI Video applications, and come in a variety of PCB mounting and cable terminations. Peak performance can be reached when AMphenol RF 12G connectors are used as a mated pair.

  • Specifications:

    • Brand: Amphenol RF
    • Gender: Jack
    • Orientation: Straight
    • Termination Style: Cable - Crimp
    • Impedance (Ohms): 75
    • Body Finish: Nickel
    • Body Material: Brass
    • Contact Finish: Gold
    • Contact Material: Phosphor Bronze
    • Contact Termination Style: Crimp
    • Insulator Material: PTFE
    • Cable Group: Special
    • Cable Type: Belden 1794A, Belden 4794R
    • Crimp Tool: 47-10110
    • Coupling Mechanism: Bayonet
    • Max Frequency (GHz): 12
    • Polarity: Standard
    • Temperature Range: -85° to 329°F (-65° to 165°C)
    • Mating Cycles: 500
    • Package Type: BAG


0317053912G - Required Accessories
