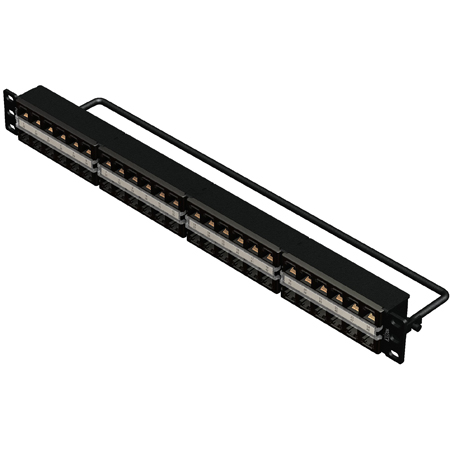

Belden RVAPPF1U48BK 10GX REVConnect Cat6a Patch Panel - 48 Port - 1U (Preloaded) - Black

ITEM #: BL-RVAPPF1U48BK MFG #: RVAPPF1U48BK

Primary Image
Belden
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$1,099.43

Our Price:

$862.00

Add to Wish ListLeasing Options
Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup
    Report Lower PriceLarge Quantity Quote

    RVAPPF1U48BK - Overview

    The Belden RVAPPF1U48BK is a 10GX REVConnect Patch Panel. It's 1U and preloaded with 48 RevConnect modular jacks suitable for 10GX Systems.

    Maximize network performance and keep up with network changes with a Rack-Mount Patch Panel from Belden, designed for networks and data center applications. By capturing all cables in one location, it simplifies and organizes cable management.

    Applications
    Ethernet 10GBASE-T
    Wi-Fi 6, Wi-Fi 5
    In-Building Wireless
    In-Building Small Cells
    Mobile RAN
    Data Center EoR and MoR
    PoE++, PoE+, PoE

    • Features:

      • Convenient Reconfiguration: Terminate cables on the patch panel so hardware isn't disturbed when adding or removing cables
      • Reduce Wear and Tear on Ports: Because all connections are made with the patch panel, cables aren't plugged or unplugged directly from devices
      • Easy Routing and Management: Allows top, bottom or side cable entry


    • Specifications:

      • Dielectric Strength: 1,000 V RMS @ 60 Hz for 1 minute
      • Current Rating: 1.300 A
      • Insulation Resistance: 500 M-Ohm Minimum
      • Termination Resistance: 2.5 mOhm
      • Installation Temp Range: -10°C to +60°C
      • Storage Temp Range: -40°C to +70°C
      • Operating Temp Range: -10°C to +60°C
      • Footprint/Type: REVConnect
      • Tool Compatibility: REVConnect Termination Tool (RVUTT01)
      • Plug /Jack Compatibility: RJ45
      • Termination Front Connection: Mated Connection
      • Termination Front Connection Durability: 750 Cycles
      • Termination Rear Connection: Mated Connection
      • Termination Rear Connection Durability: 20 Cycles
      • Cable/Connector Retention: 15 lbs
      • Connector/Hardware Retention: 20 lbs
      • Plug/Connector Retention: 11.250 lbs
      • UL Rating: UL94V-0
      • Data Category: Category 6A
      • TIA/EIA Compliance: Category 6A - TIA 568.C.2, Category 6A - ISO/IEC 11801:2002 Ed.2
      • IEEE Compliance: Power Over Ethernet (PoE) IEEE 802.3at type 1 and 2 (up to 30W), IEEE802.3bt/D1.7 type 3 and 4 (up to 100W), CISCO UPOE (up to 60W), Power over HDBaseTTM (up to 100W)
      • Other Standards: FCC part 68, Subpart F, IEC 60603-7, UL 1863
      • Height: 1.73
      • Width: 19
      • Depth: 2
      • Port Count: 48 Port
      • Front Connection: Flush
      • Packaging: Individually packaged in a cardboard box.
      • Weight: 3.047


    • Item Includes:

      • 1x RVAPPF1U48BK 10GX REVConnect Cat6a Patch Panel - 48 Port
      • 48x 10GX REVConnect High Density Jacks, Black - Preloaded
      • x50 REVConnect Cable Managers and Caps
      • 4x Clear Windows
      • 1x Rear Cable Management Bar
      • 4x Screws (10x32)
      • 4x Screws (12x24)
      • 2x Velcro Straps
      • 4x Frames
      • 1x Installation Guide
