Blustream ACM200 Advanced Control Module for Multicast IP System

ACM200 - Overview

• Features:

  • Web interface module for configuration and control of the Blustream Multicast system
  • Intuitive 'drag & drop' source selection with video preview feature for active monitoring of system status
  • Advanced signal management for independent routing of IR, RS-232, USB / KVM, audio and video
  • Auto system configuration
  • 2 x RJ45 LAN connections to bridge existing network to Multicast video distribution network, resulting in:
  • Better system performance as network traffic is separated
  • No advanced network setup required
  • Independent IP address per LAN connection
  • Allows simplified TCP/IP control of Multicast system
  • RS-232 integration for control of Multicast system
  • IR integration for control of Multicast system
  • PoE (Power over Ethernet) to power Blustream product from a PoE switch
  • Local 12V power supply (optional) should Ethernet switch not support PoE (PSU not supplied)
  • Support for iOS and Android App control (coming soon)
  • 3rd Party drivers available for all major home control brands


• Specifications:

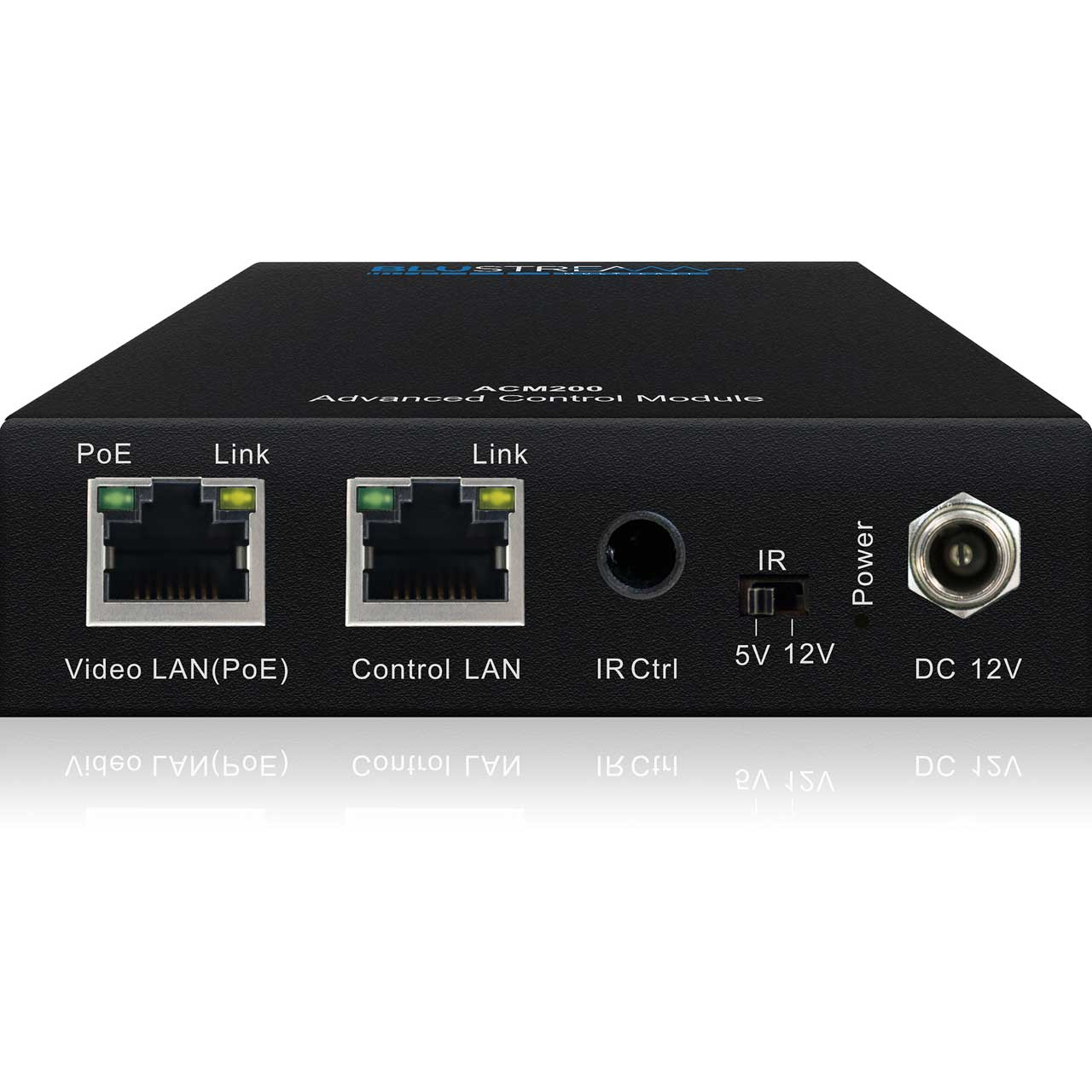

  • Ethernet port: 2 x LAN RJ45 connector (1 x PoE support)

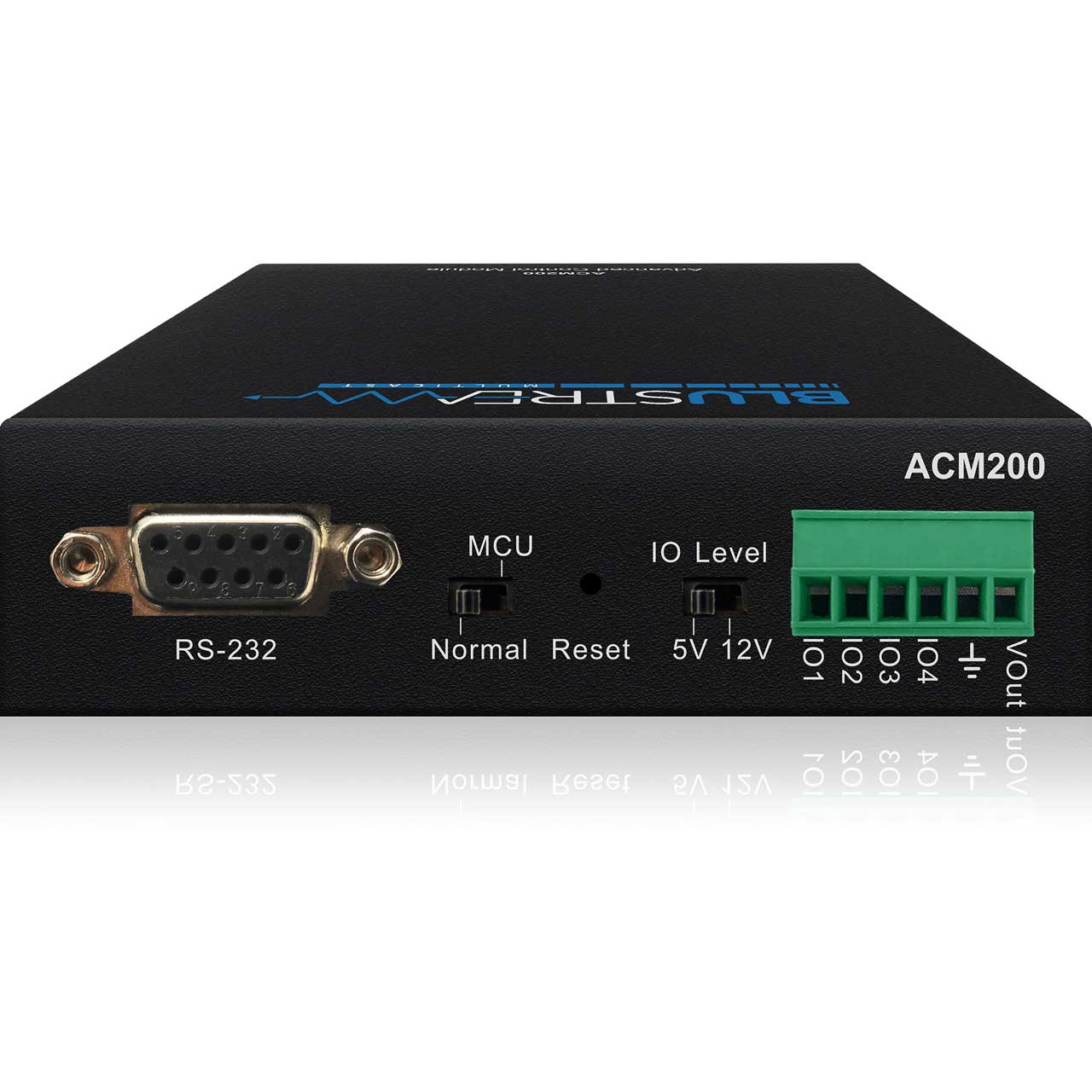

  • RS-232 serial port: 1 x DB-9 female
  • RS-232 & I/O port: 1 x 6-Pin Phoenix connector
  • IR Input ports: 1 x 3.5mm stereo jack
  • Dimensions (W x D x H ): 96mm x 110mm x 26mm
  • Shipping Weight: 0.6kg
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Storage Temperature : -4°F to 140°F (-20°C to 60°C)


• Item Includes:

  • 1x ACM200
  • 1x IR Control Cable – 3.5mm to 3.5mm Cable
  • 1x 6-pin Phoenix Connector
  • 1x Mounting Kit


• Warranty:

  • 3 Year Warranty


• GTIN:

  9340242002914
