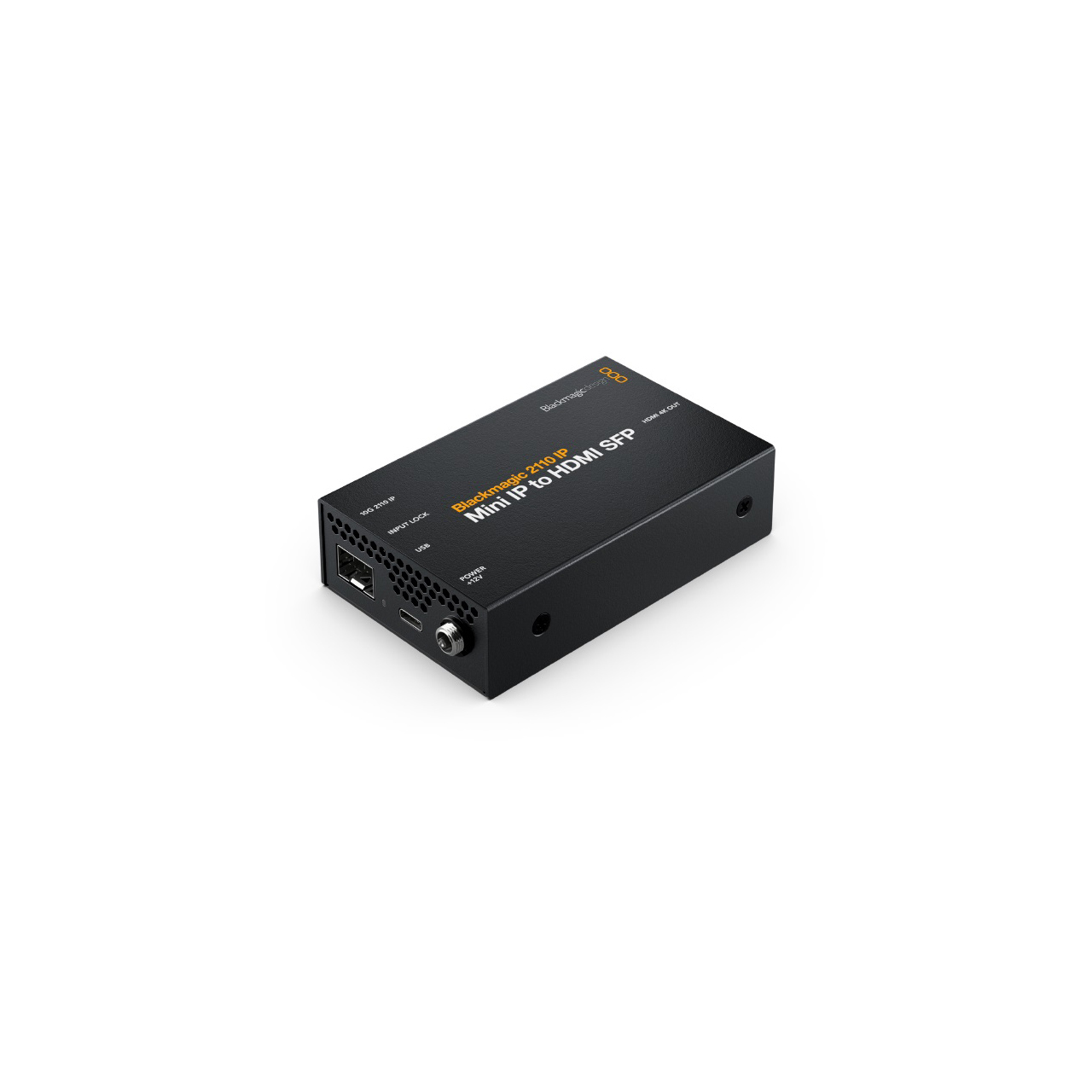

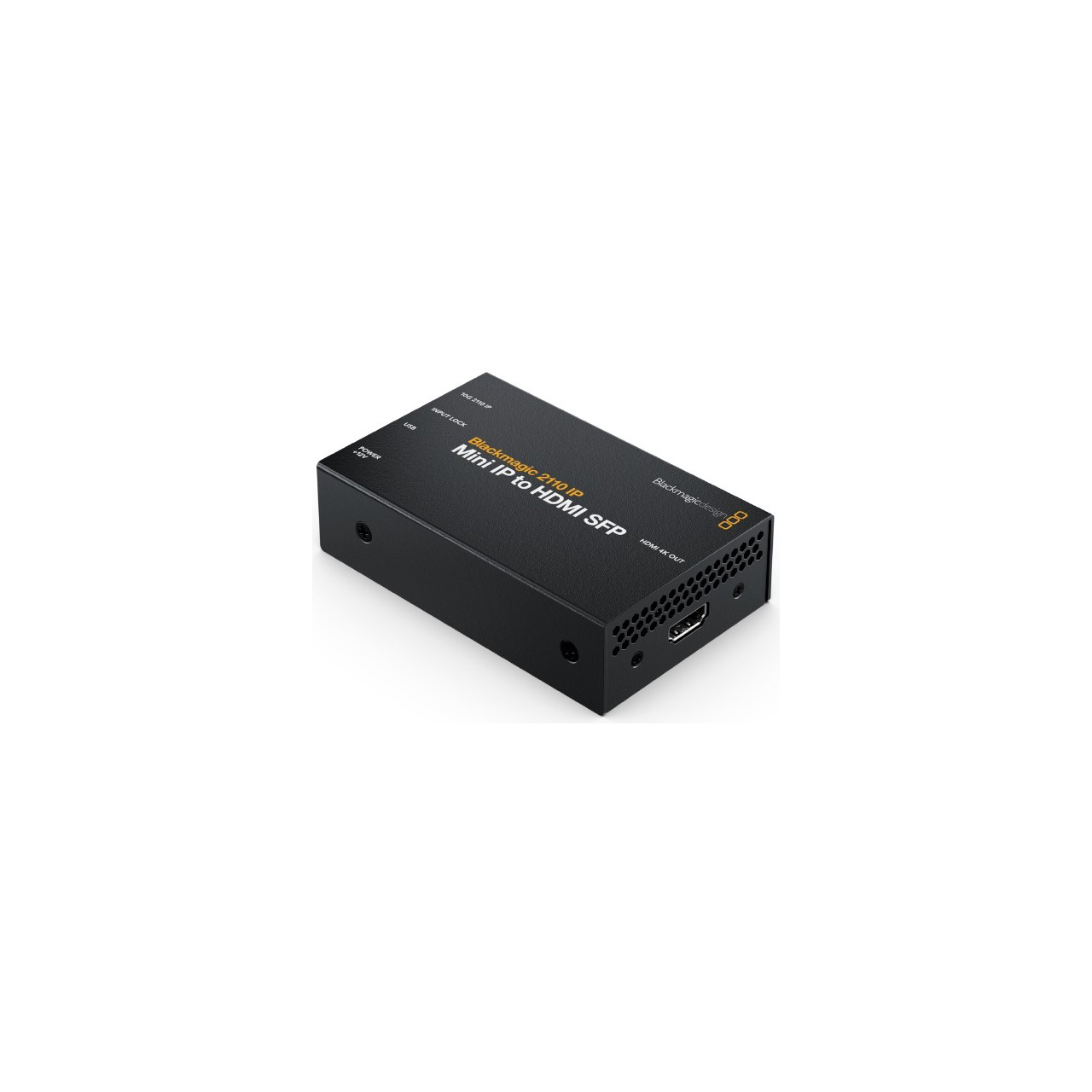

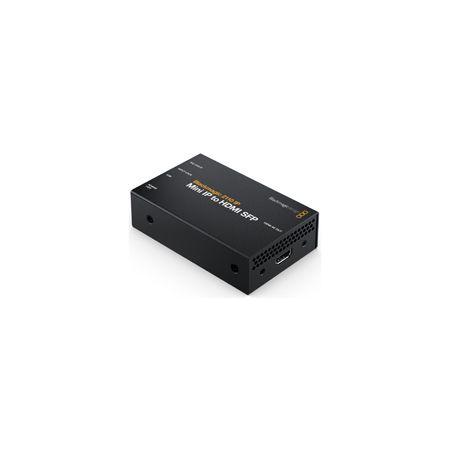

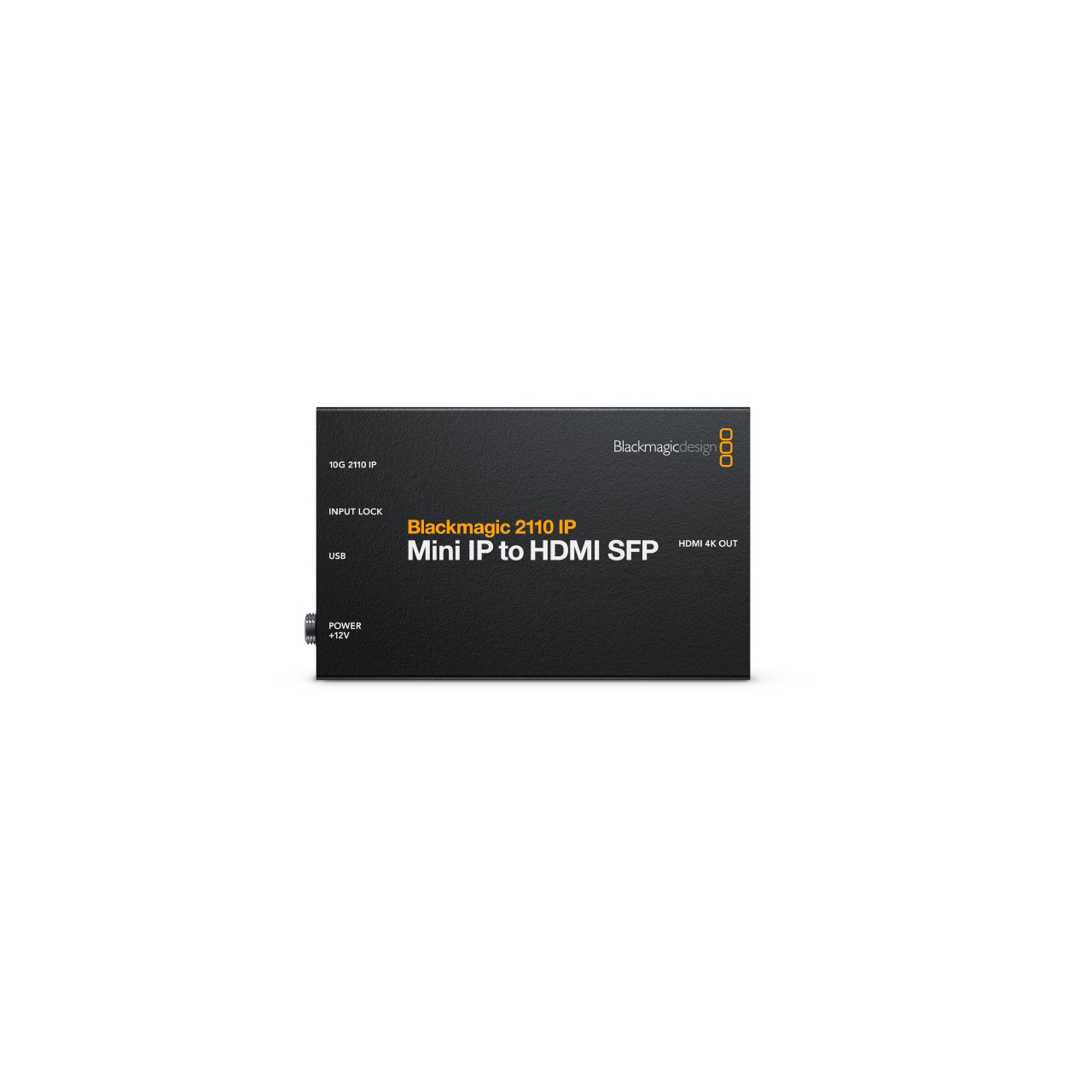

Blackmagic Design CONVNVIPE/IP/HDMISFP 2110 IP Mini IP to HDMI SFP Converter for Monitoring 2110 IP Video/Audio

CONVNVIPE/IP/HDMISFP - Overview

• Features:

  • All converters conform to the SMPTE-2110 IP video standard.
  • Choose between Mini Converter or rack mount models.
  • Uses readily available 10G Ethernet for low cost installation.
  • Re-syncs SDI inputs to a common PTP clock.
  • Includes NMOS Protocol for building a virtual router.
  • Low latency, open standard Blackmagic IP10 codec.
  • Supports all SD, HD and Ultra HD formats up to 2160p60.


• Specifications:

  • Connections
  • HDMI Video Outputs: 1
  • HDMI Audio Outputs: 8 Ch embedded audio on SDI loop output.
  • SMPTE ST-2110 IP Video Inputs: 1 x 10G Ethernet.
  • SMPTE ST-2110 IP Video Outputs: 16 Ch embedded audio on ST-2110 IP video via 10G Ethernet.
  • Ethernet: 1 x 10Gb/s RJ-45 PoE++ connector supporting 10/100/1000/10G BASE-T for SMPTE-2110 IP video in, configuration and firmware updates.
  • Computer Interface: 1 x USB-C 3.0 for configuration and firmware updates.

    SDI Video Standards
  • HDMI SD Video Standards: 525i59.94 NTSC, 625i50 PAL
  • HDMI HD Video Standards: 720p50, 720p59.94, 720p60
  • 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60.
  • HDMI Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60.
  • HDMI 4K Video Standards: 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI and 4Kp60 DCI.
  • SMPTE: Compliant.
  • HDMI Color Precision: 4:2:2.
  • HDMI Color Space: YUV.

    IP Video Compliance
  • SMPTE 2110-20 (Uncompressed Video): IGMP v2.
  • SMPTE 2110-21 (Traffic Shaping): Sender: Narrow, Receiver: Narrow, Wide Synchronous, Asynchronous.
  • SMPTE 2110-30 (PCM): Audio Conformance level: Level C
  • SMPTE 2110-40 (Ancillary Data):Full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M-2, closed captioning and HDR static metadata.
  • Codec: Blackmagic IP10 codec used when converting 12G-SDI rates to 10G 2110 IP video.
  • Precision Time Protocol: IEEE 1588-2008 (PTP v2), ST 2059-1, ST 2059-2.
  • NMOS IS-04 Discovery and Registration: v1.3.2, Peer-to-peer via mDNS/DNS-SD.
  • NMOS IS-05 Connection Management: v1.1.2.
  • NMOS BCP-002-01: Natural Grouping.
  • NMOS BCP-004-01: Receiver capabilities.

    Operating Systems
  • Mac 13.0 Ventura, Mac 14.0 Sonoma or later
  • Windows 10 and 11.

    Displays
  • 1 x IP Input Lock LED indicator light.

    Power Requirements
  • Power Supply: 1 x +12V DC external universal power supply with locking 5.5mm barrel Jack plus international socket adapters for most countries.
  • Operational Voltage Range: 12 - 16 V.
  • Power Usage: TBA,

    Environmental Specifications
  • Operating Temperature: 5° to 40° C (41° to 104° F), Storage Temperature -20° to 45° C (-4° to 113° F), Relative Humidity
  • 0% to 90% non-condensing.


• Item Includes:

  • 1x Blackmagic Design 2110 IP Mini IP to HDMI SFP
  • 1x 12v DC Power Supply


• Warranty:

  • 12 Month Limited Manufacturer's Warranty.


• GTIN:

  9338716009132
