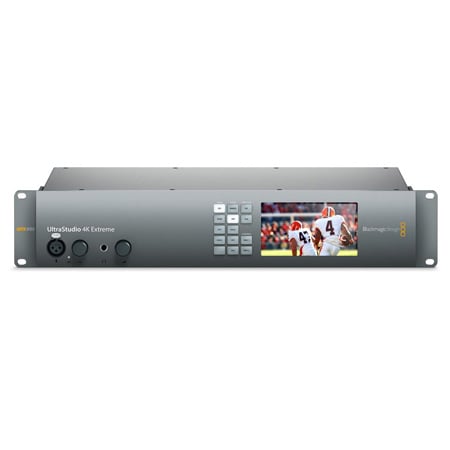

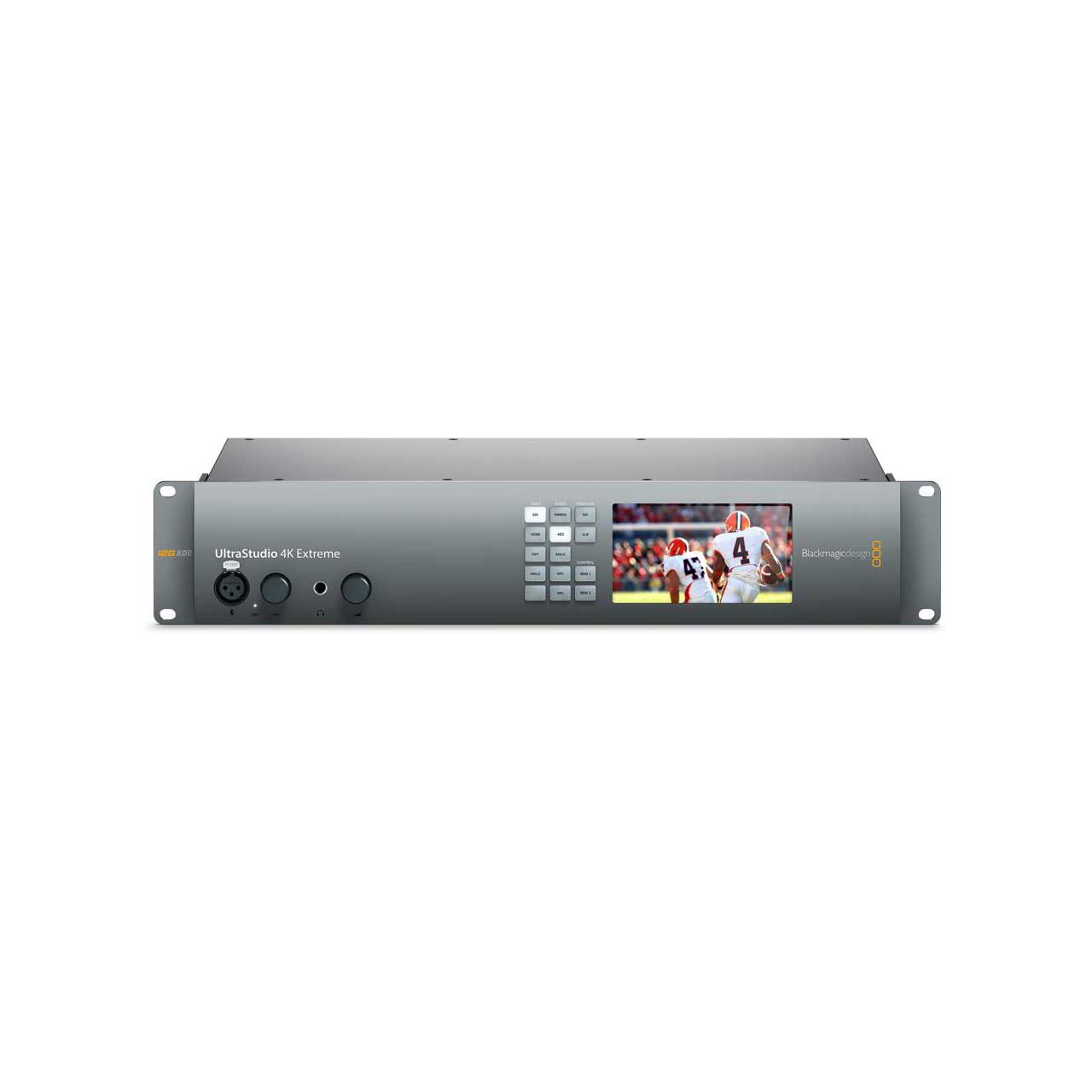

Blackmagic Design BDLKULSR4KEXTR3 UltraStudio 4K Extreme 3 Thunderbolt Video Capture and Playback Solution

ITEM #: BMD-ULSR4KEX3 MFG #: BDLKULSR4KEXTR/3

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

Our Price:

$3,225.00

Availability: In Stock
iAvailability Description Popup


    BDLKULSR4KEXTR/3 - Overview

    When you need the ultimate capture and playback solution then UltraStudio 4K Extreme is the perfect choice as it's the most powerful video capture and playback product available. It features the latest, most advanced 12G-SDI and HDMI 2.0 connections for working with high frame rate 60 frames per second, deep 12-bit color images at massive 4K resolutions! The built in hardware encoder can convert video in realtime to H.265, which is the distribution format for Ultra HD. It also includes a wider range of analog and digital connections than any other UltraStudio model so it can be used with virtually any camera, deck, router or display. With UltraStudio you can connect to virtually any video device, including cameras, monitors and broadcast decks for frame accurate editing and recording!

    For even higher performance, the UltraStudio 4K Extreme 3 model has all the same powerful features of UltraStudio 4K Extreme, but also features the latest high speed Thunderbolt 3 connection for transfer speeds of up to 40 Gb/s over a single cable ! The UltraStudio 4K Extreme models feature a built in multi format hardware encoder that lets you capture to H.265. H.265 delivers amazing quality and is the compression standard for distributing Ultra HD content online. You can also use H.265 compression for SD and HD video giving you smaller files at higher quality than other compression formats. The built-in hardware encoder is designed to be upgradable so you get a future proof solution that can add new formats via software updates as they become available.

    • Features:

      • Supports 4K 60p capture and playback using 12G-SDI and HDMI 2.0 connections.
      • Built in high performance hardware codec for H.265 encoding.
      • Supports 12-bit 4:4:4 RGB 4K for high end color correction and VFX.
      • 3D capture and playback via SDI and HDMI.
      • Analog Component and dedicated NTSC/PAL in and out.
      • 4 channel balanced analog audio in and out. Additional RCA HiFi audio in.
      • 2 channel AES/EBU unbalanced audio in and out.
      • Professional Mic input with phantom power selector and full input gain control.
      • Timecode in and out on XLR connectors.
      • Genlock/tri-sync input & output.
      • 2 x Sony compatible RS-422 deck control.
      • Includes hardware down conversion of Ultra HD to HD on playback.
      • Includes hardware SD and HD keying.
      • Connects with both Thunderbolt 3 and PCIe
      • Includes free DaVinci Resolve software.
      • Includes free developer SDK
      • Elegant 2 rack unit design, with removable ears so it can be used in a rack or sit on a desk.

    • Specifications:

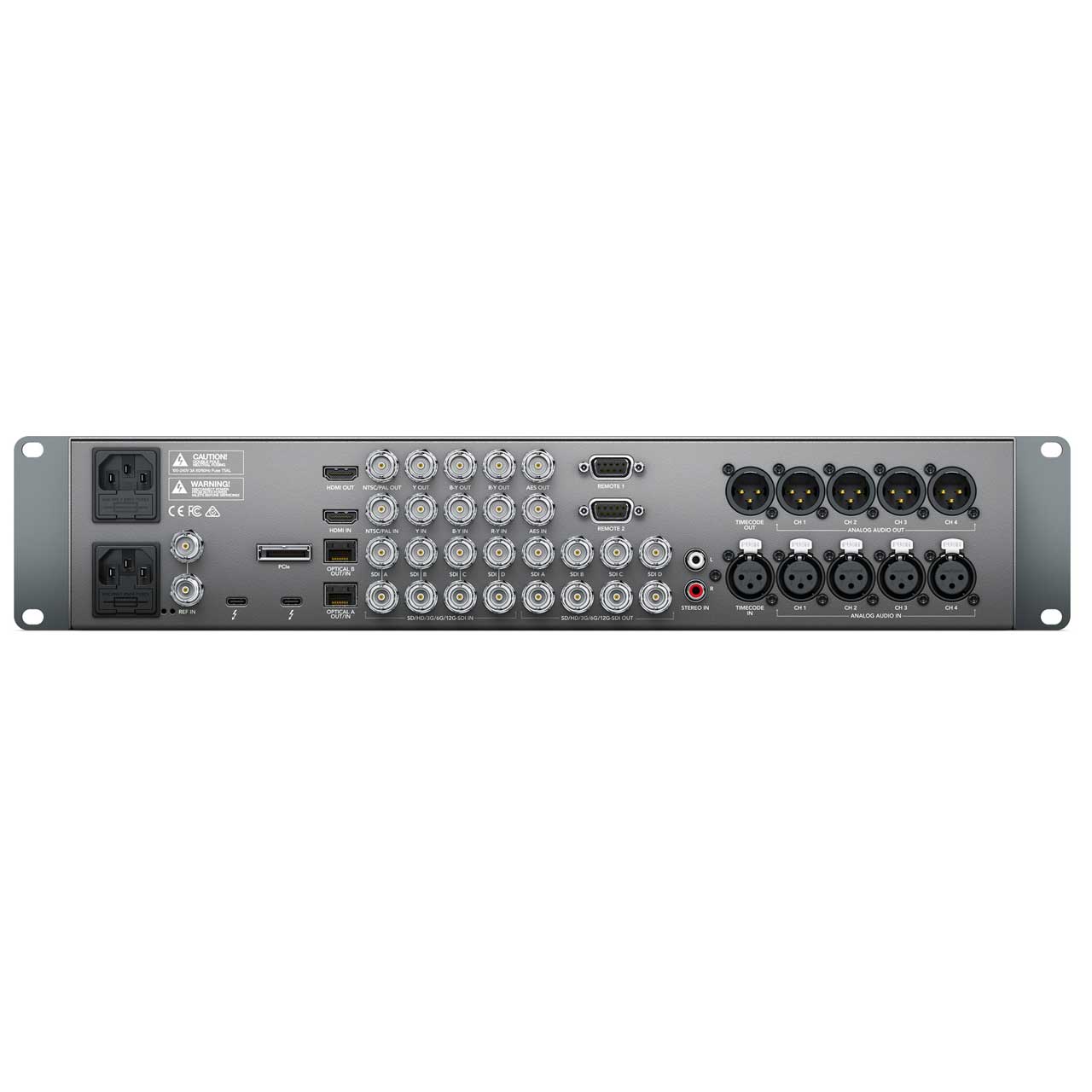

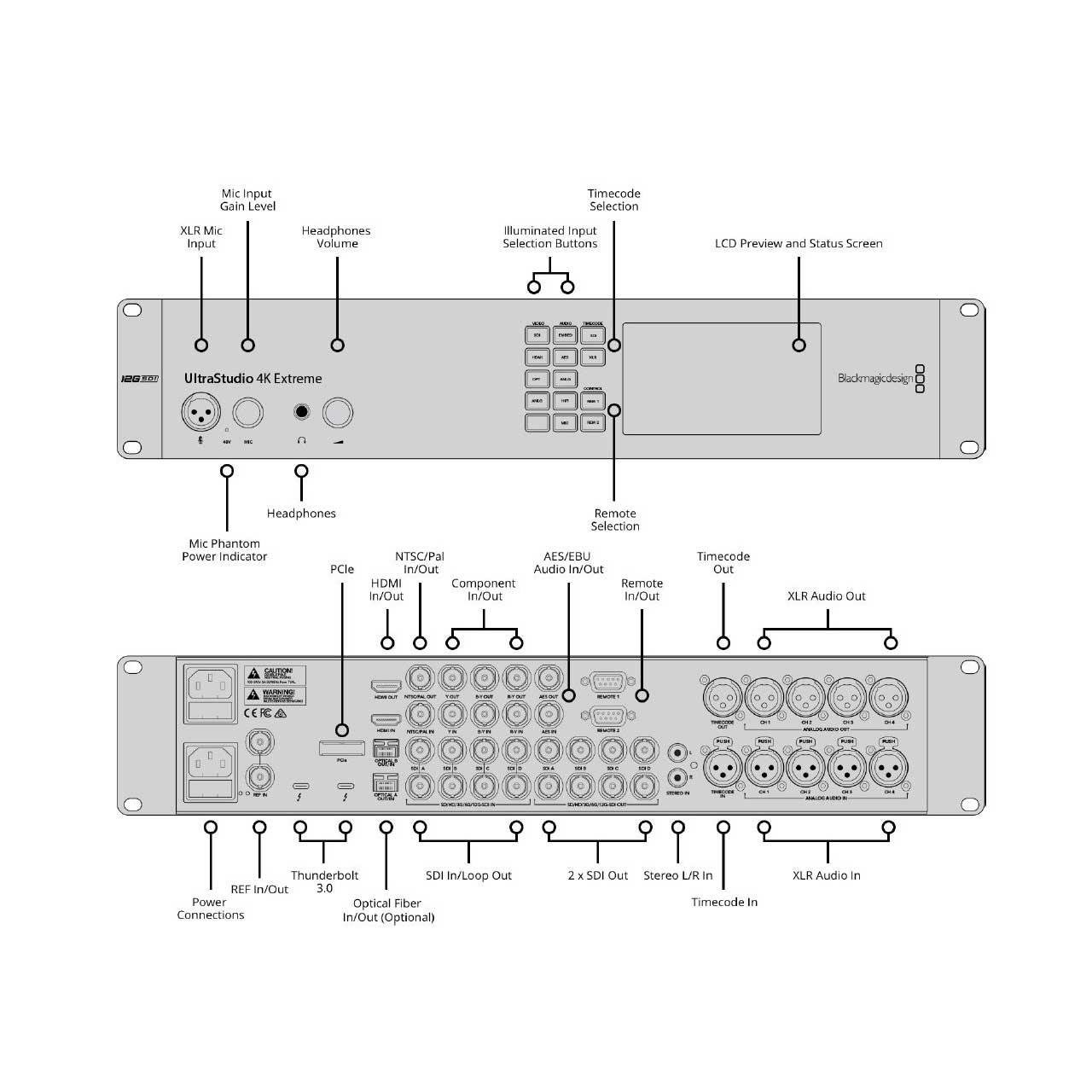

      • SDI Video Input: 2 x 12Gb/s and 2 x 6Gb/s SD/HD/2K/4K. Supports single/dual/quad link 4:2:2/4:4:4. 2D/3D switchable.
      • SDI Video Loop: 4 x reclocked SD/HD/2K/4K linked to corresponding inputs.
      • SDI Video Output: 2 x 12Gb/s and 2 x 6Gb/s SD/HD/2K/4K. Supports single/dual/quad link 4:2:2/4:4:4. 2D/3D switchable.
      • SDI Video Repeated Output: 2 x 12Gb/s and 2 x 6Gb/s SD/HD/2K/4K. Supports single/dual/quad link 4:2:2/4:4:4. 2D/3D switchable.
      • Optical Fiber Input/Output: 2 x 12Gb/s Optical Fiber (Optional).
      • HDMI Video Input: HDMI 2.0 type A connector with support for 2160p60
      • HDMI Video Output: HDMI 2.0 type A connector with support for 2160p60
      • Analog Video Output: 1 x Component YUV on 3 BNCs, 1 x composite NTSC/PAL on 1 BNC
      • SDI Audio Input: 16 Channels embedded in SD/HD/2K/4K.
      • SDI Audio Output: 16 Channels embedded in SD/HD/2K/4K.
      • HDMI Audio Input: 8 Channels embedded in SD/HD/4K.
      • HDMI Audio Output: 8 Channels embedded in SD/HD/4K.
      • Analog Audio Input: 4 Channels of professional balanced analog audio via XLR connectors and 2 channels of consumer unbalanced via RCA connectors.
      • Analog Audio Output: 4 Channels of professional balanced analog audio via XLR connectors.
      • AES/EBU Audio Input: 2 Channels unbalanced with sample rate converter on BNC connector.
      • Mic Input: 1 x 48V microphone input via XLR connector. Phantom Power switchable via software control.
      • Timecode Input: 1 x XLR Input.
      • Timecode Output: 1 x XLR Output.
      • Sync Input: 1 x Reference input. Blackburst in SD or Tri-Sync in HD.
      • Sync Output: 1 x Reference Loop Output. Blackburst in SD or Tri-Sync in HD.
      • Device Control: 2 x Sony compatible RS-422 deck control ports. Serial ports TxRx direction reversible under software control.
      • Computer Interface: Thunderbolt 3, PCI Express
      • Power: 2 x built-in international AC power supply with IEC C14 inlet. 120-240V, 50-60Hz.

    • Item Includes:

      • UltraStudio 4K Extreme 3
      • SD card with software and manual
      • DaVinci Resolve SD card

    • Warranty:

      • 3 Year

    • GTIN:

      9338716003857
