Build 2110 IP Video Systems for Broadcast, Live Production and AV!
Blackmagic Design has a wide range of SMPTE-2110 IP video products, including standards converters, video monitors, audio monitors and even cameras! Plus they support Ultra HD using low cost 10G Ethernet! Most converter models are bidirectional, so they're fantastic to use on cameras when you need an extra program return! The rack mount models have an elegant design with a color LCD for monitoring, menus and diagnostics. All models conform to the SMPTE-2110 standard for IP video, including PTP clocks and even NMOS support so you can make connections using a video router panel.

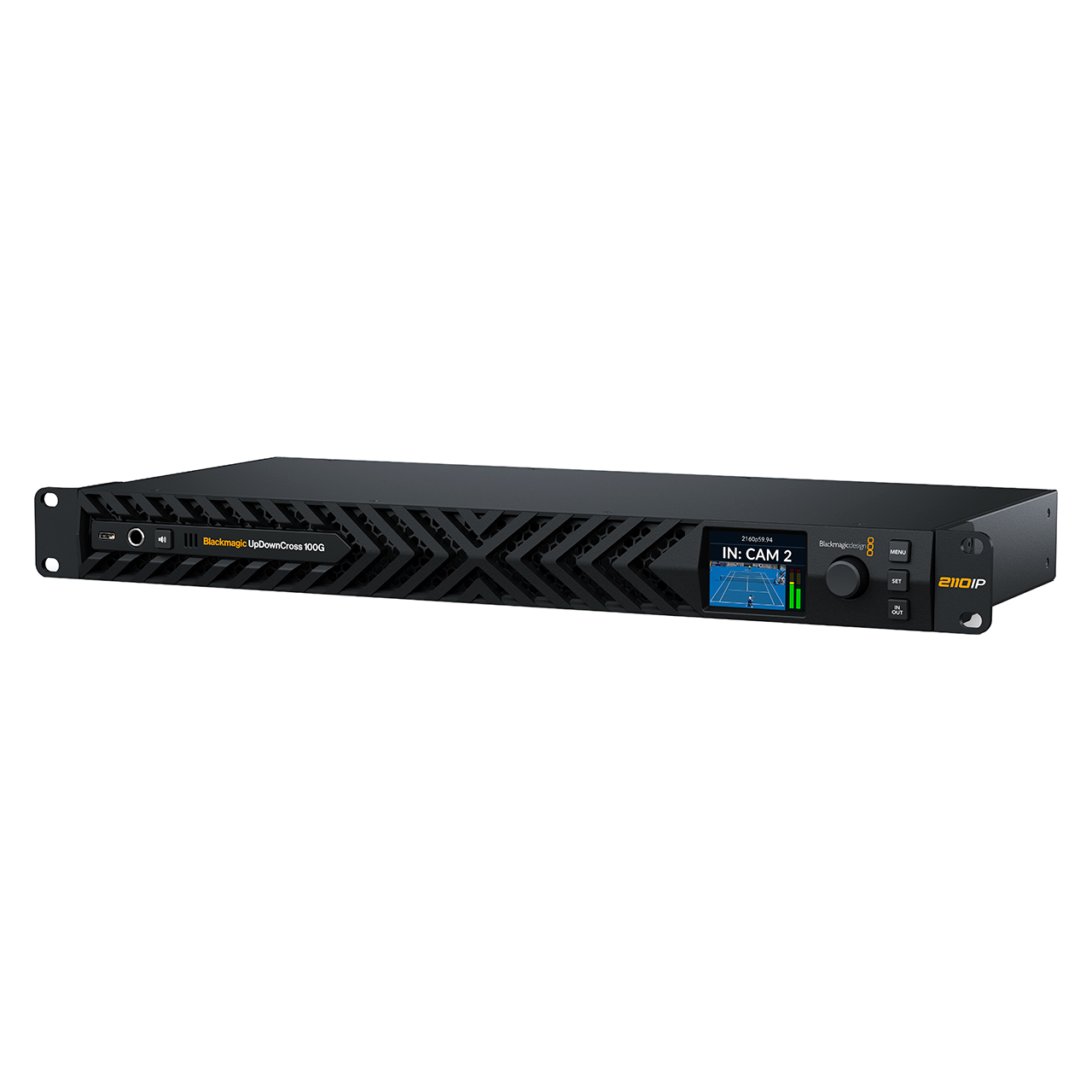

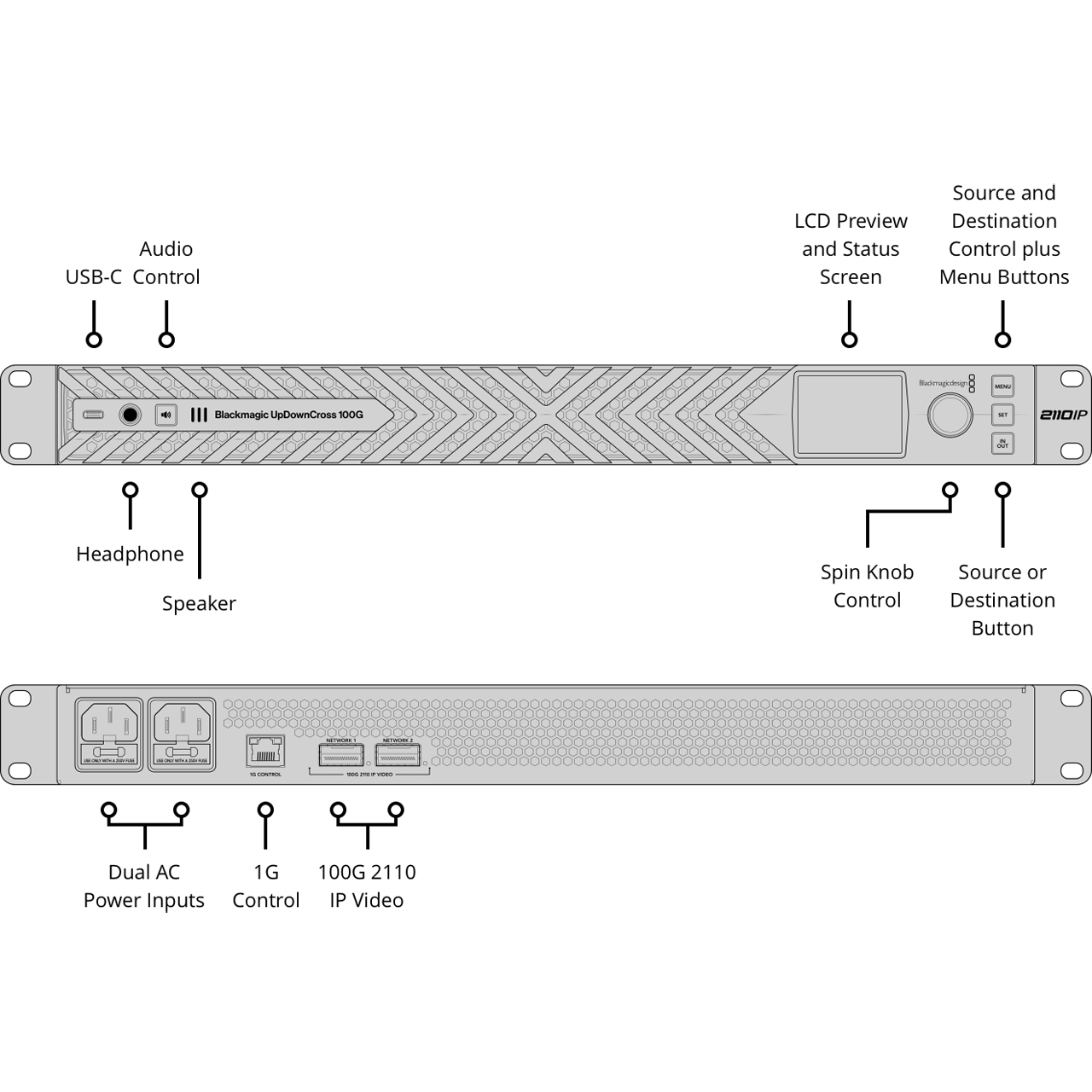

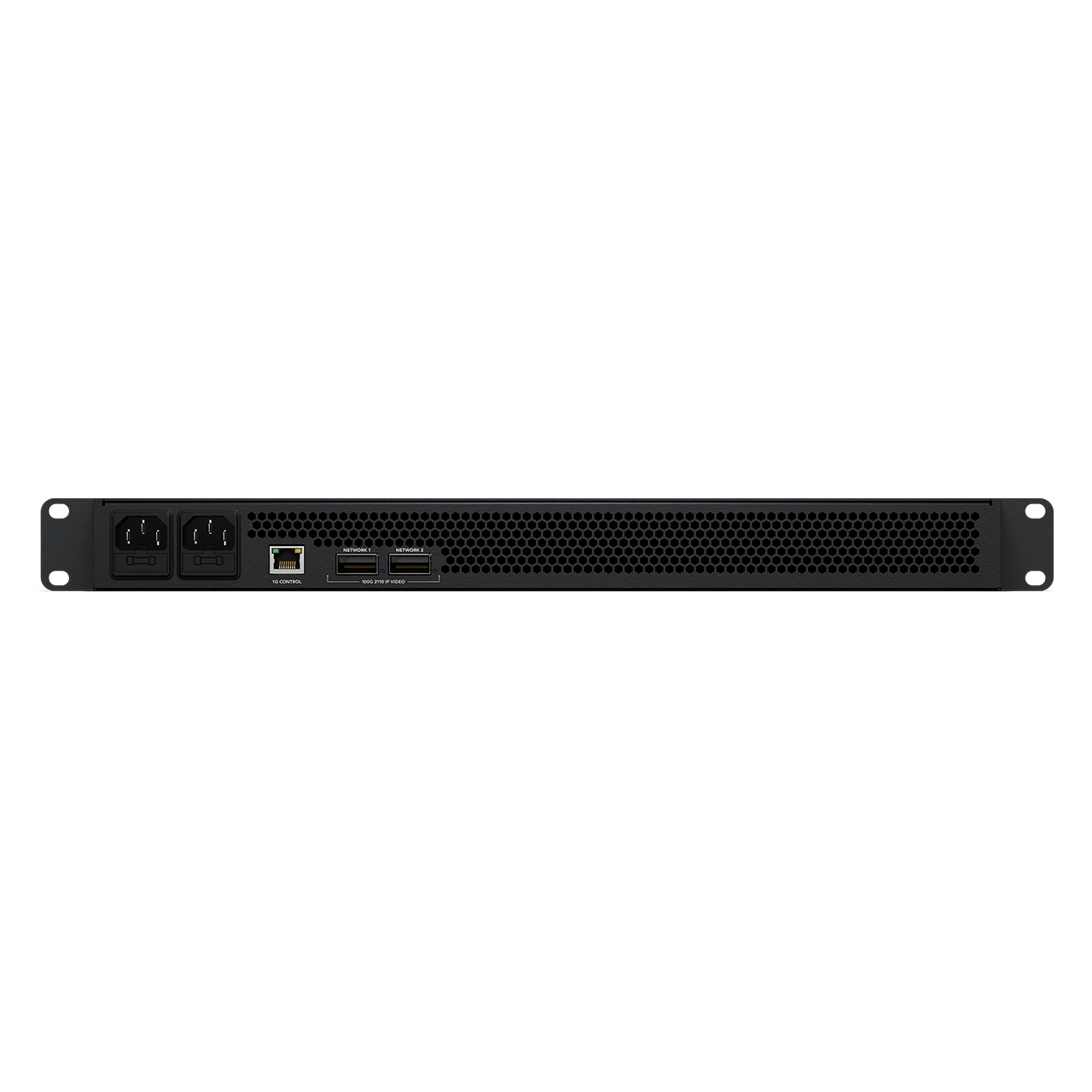

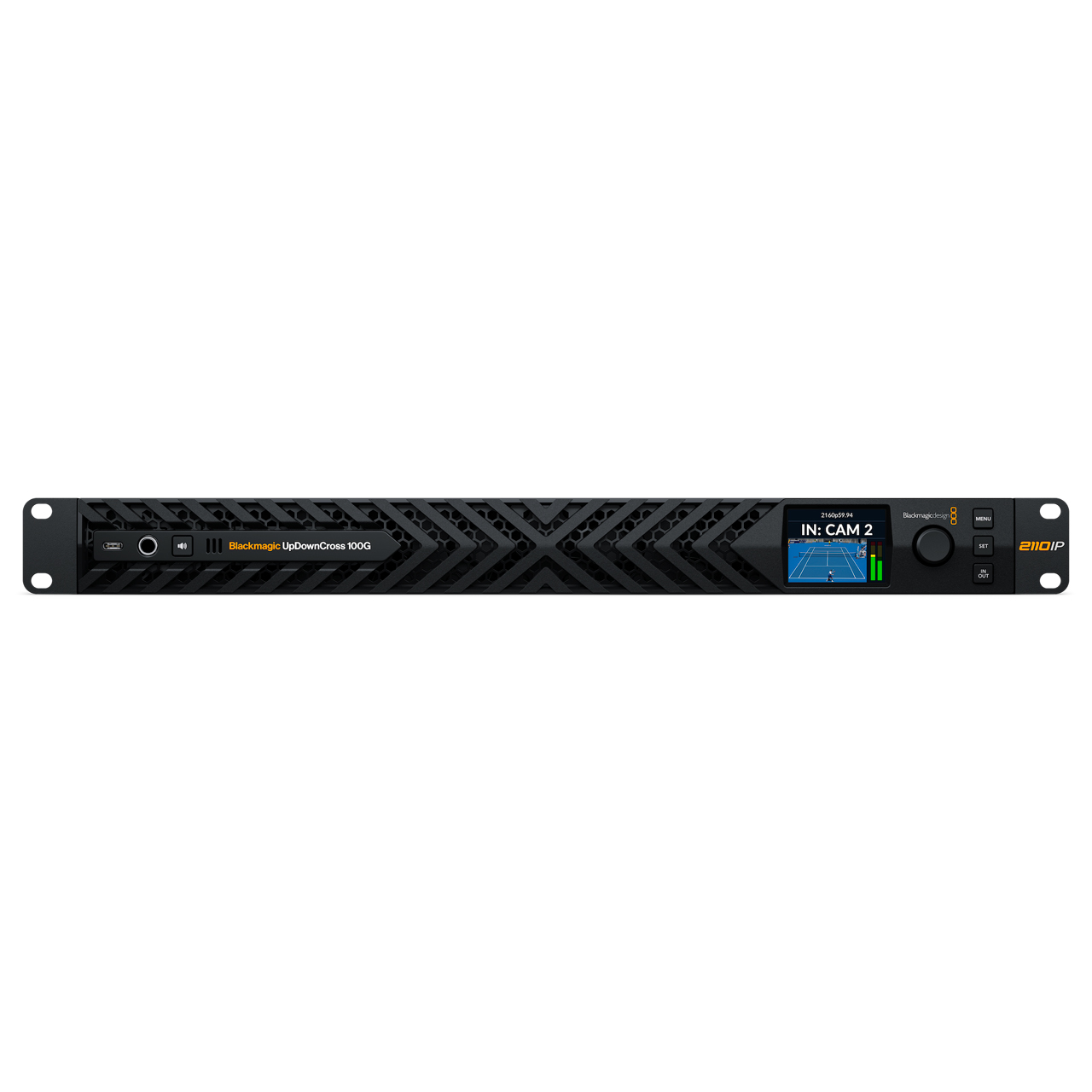

The Blackmagic Design UpDownCross 100G is a powerful 8-channel standards converter with native SMPTE-2110 connections via 100G Ethernet. It converts up to 8 separate channels of SD, HD and Ultra HD video to any other standard simultaneously. The professional 1RU design features front-to-back cooling that's very quiet! It also includes redundant 100G Ethernet for full SMPTE-2022-7 compliance, dual redundant AC power supplies and a separate NMOS control port for connecting to control networks!
Build Large or Small SMPTE-2110 Broadcast Systems
Blackmagic Design has a wide range of SMPTE-2110 equipment for building anything from small mobile racks to broadcast trucks and entire stations. There are cameras, live production switchers, Ethernet switches, standards converters, monitors and audio monitors. Compact mini-converter models work with cameras and monitors, while rack-mount equipment suits larger installations. With such a wide range, you can build a fully native SMPTE-2110 system. Plus, most 10G Ethernet models can be remotely powered! Adding converters is also a low-cost way to bring your existing gear into SMPTE-2110, including switchers, disk recorders, streaming encoders, graphics systems, cameras and televisions.
Please Note: 100G 2110 systems, such as Blackmagic Design's 100G products, use QSFP28 optical fiber Ethernet cables to carry 8+ channels of Ultra HD video over single-mode fiber. These systems feature redundant 100G Ethernet for SMPTE-2022-7 compliance, providing ultra-high speed connectivity.
