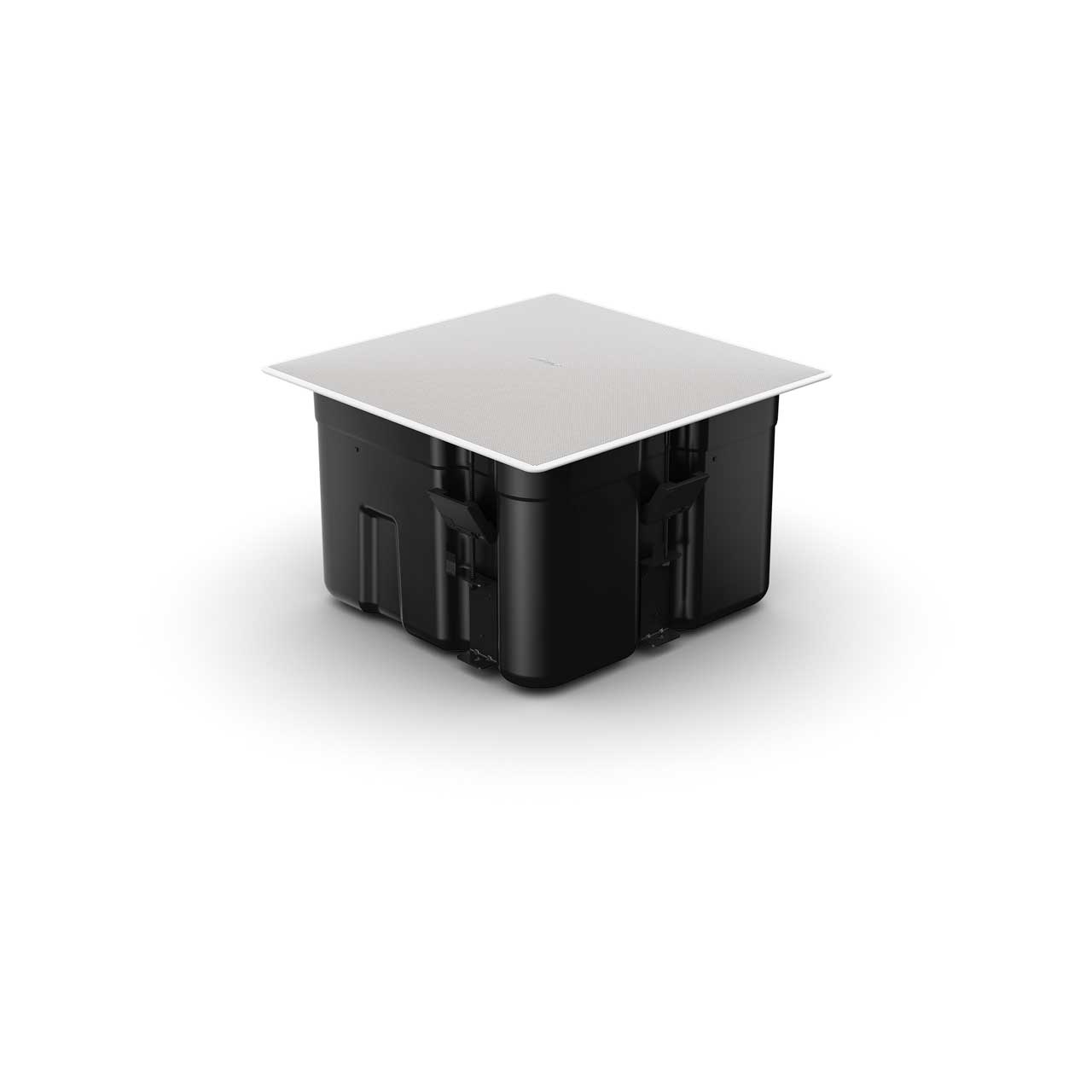

Bose EdgeMax EM180 InCeiling Premium Loudspeaker - White

ITEM #: BOSE-EM180 MFG #: BOS7771890220

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the BOSE-EM180

BOS7771890220 - Overview

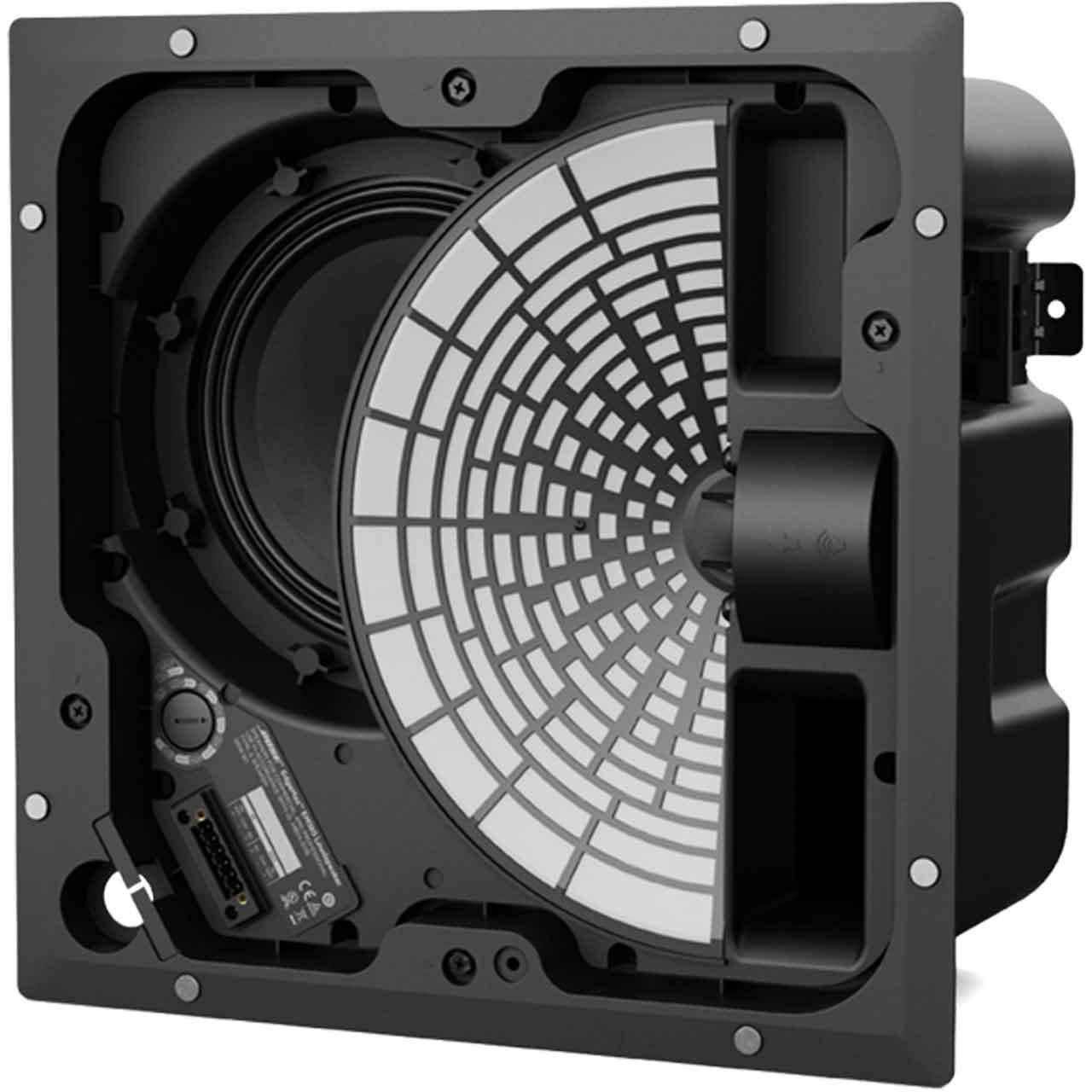

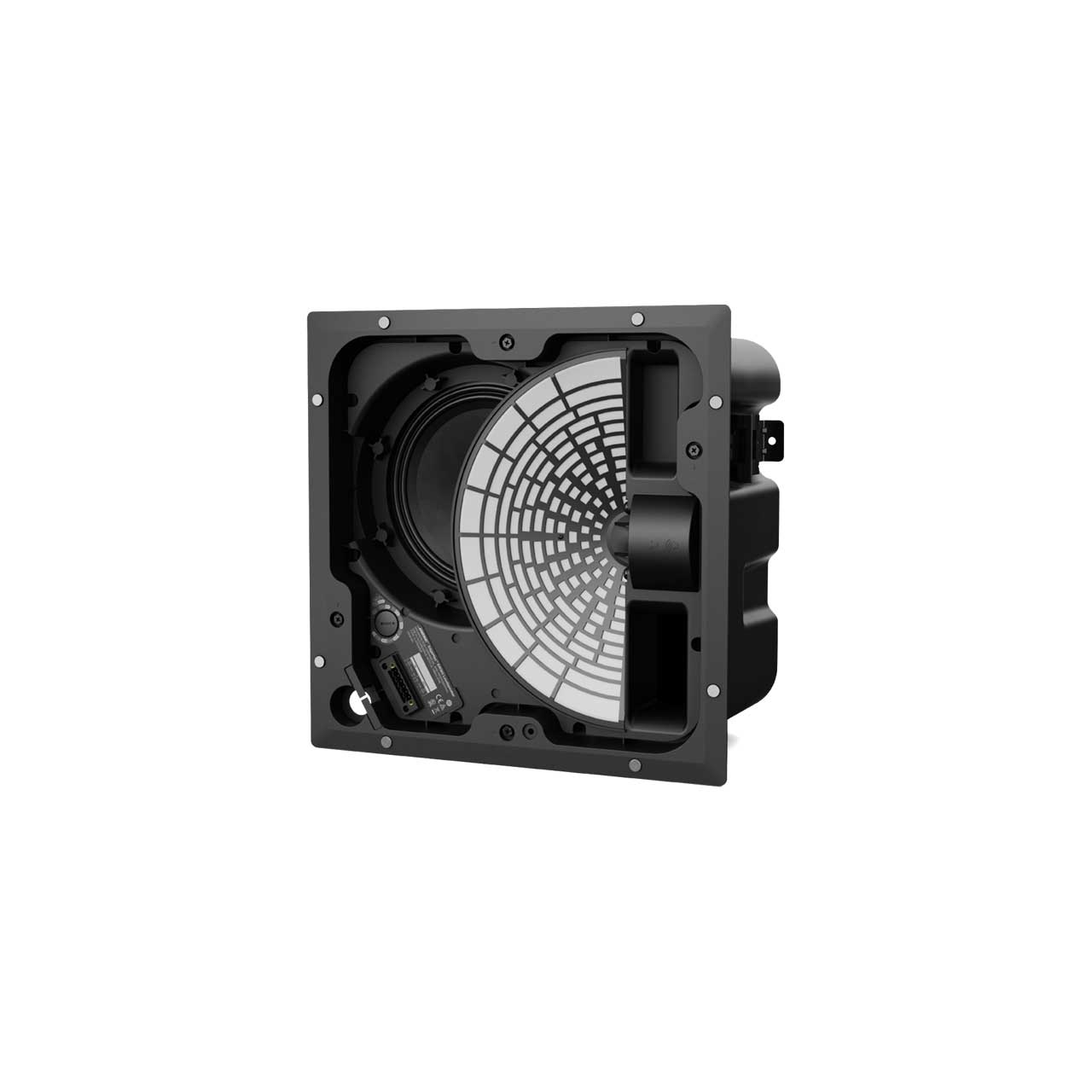

Bose Professional EdgeMax EM180 in-ceiling premium loudspeakers feature proprietary Bose PhaseGuide technology with high-frequency compression drivers to create a new category that combines the room-filling coverage patterns typical of larger surface-mount speakers with the architect-preferred aesthetics of in-ceiling models. Designed to mount near wall-ceiling boundaries, EdgeMax loudspeakers provide improved audio quality and coverage, while reducing the number of required units, compared to conventional dome-tweeter ceiling speakers.

Applications:
Retail stores
Restaurants and bars
Concourse
Transportation facilities
Resorts and hospitality venues
Houses of worship
Conferencing

  • Features:

    • PhaseGuide technology provides a unique asymmetrical vertical pattern for roomfilling coverage when mounting near wall-ceiling boundaries
    • Provides improved room visual appearance for demanding interior designs by eliminating center-of-ceiling or wall-mounted loudspeakers and reducing speaker counts
    • Nominal 180° horizontal coverage designed for in-ceiling mounting centered along wall coverage zones
    • High-frequency compression driver for best-in-class audio quality with superior frequency response and coverage consistency versus typical dome tweeters
    • 8-inch woofer with wall-boundary loading provides extended bass impact
    • 2-way passive crossover with 70/100V transformer
    • New QuickHold spring-loaded mounting arms for fast, easy installs
    • Magnetically attached grille for quick access to wiring and tap settings
    • 45 Hz - 20 kHz frequency range eliminates need for subwoofers
    • Coverage pattern similar to a surface-mount loudspeaker enables stereo designs

  • Specifications:

    • Frequency Response: (-3 dB) 1 50 - 18,000 Hz
    • Frequency Range: (-10 dB) 1 45 - 20,000 Hz
    • Nominal Coverage Pattern: 180° H x asymmetrical 75° V (0° to 75° referenced to wall)
    • Power Handling, long-term continuous: 150 W
    • Power Handling, peak: 600 W
    • Sensitivity (SPL / 1 W @ 1 m): 93 dB
    • Calculated Maximum SPL @ 1 m: 115 dB
    • Calculated Maximum SPL @ 1 m, peak: 121 dB
    • Crossover: 1 kHz (passive 2-way crossover with integrated 70/100V transformer)
    • Loudspeaker EQ: Recommended but not required
    • Recommended High-pass Protection: 55 Hz with minimum 12-dB/octave filter
    • Overload Protection: Resistor-network power reduction with automatic reset
    • Enclosure Material: Engineered-plastics front baffle with integrated steel formed enclosure

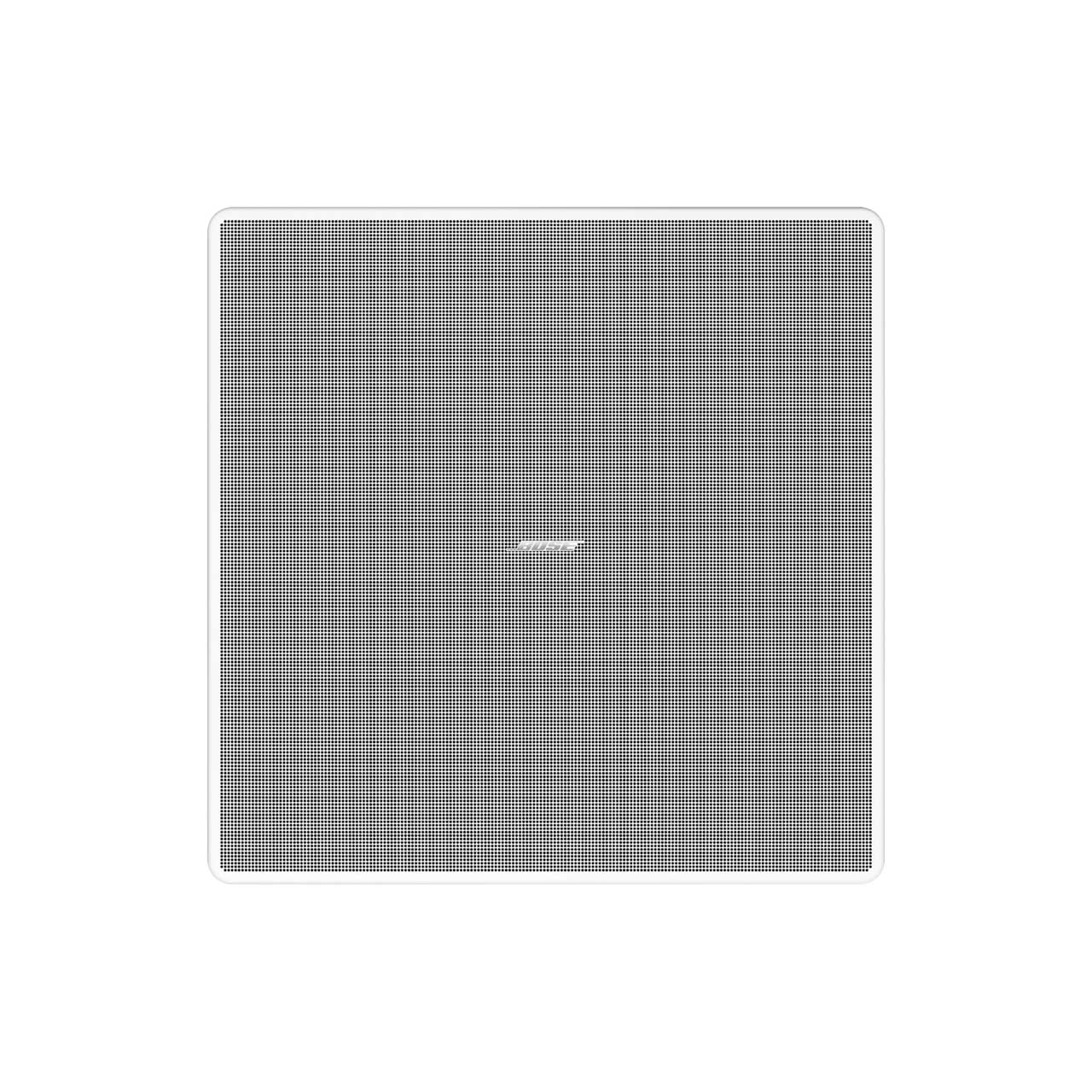

    • Grille: Micro perforated steel, powder-coated finish, white: Bose Arctic White, similar to RAL 9003, paintable
    • Environmental: Indoor only; UL1480A listed, in compliance with UL2043 for plenum-space installation
    • Connectors: Euroblock 6-pin connector with loop-through, front-baffle mounted

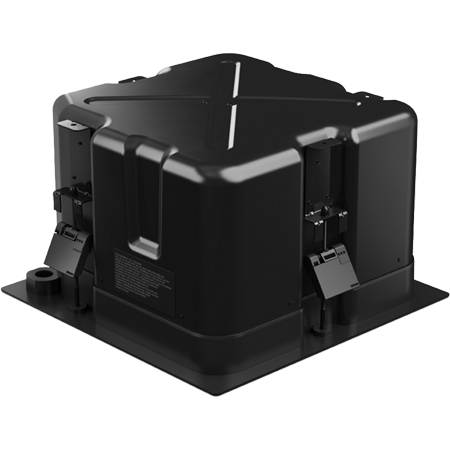

    • Suspension / Mounting: Four (4) QuickHold spring-loaded mounting arms plus four (4) M6 safety cable tabs
    • Maximum Ceiling Thickness: 80 mm (3.2 in)
    • Ceiling Cutout and Clearance: 345 x 345 mm (13.6 in L x 13.6 in W) with 236 mm (9.3 in) mounting depth
