Burst BG2-12V Dual Output Blackburst Generator with 12V Power Supply

ITEM #: BURST-BG2-12V MFG #: BG2-12V

Primary Image

This item is no longer available.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the BURST-BG2-12V

BG2-12V - Overview

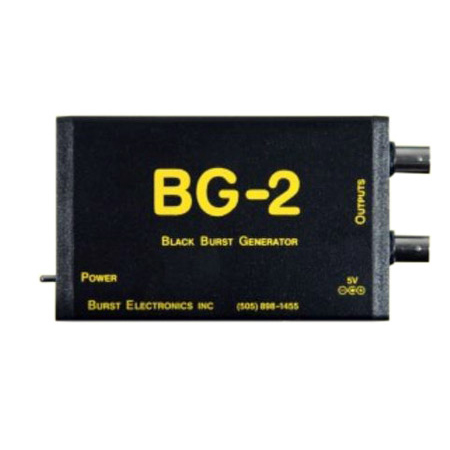

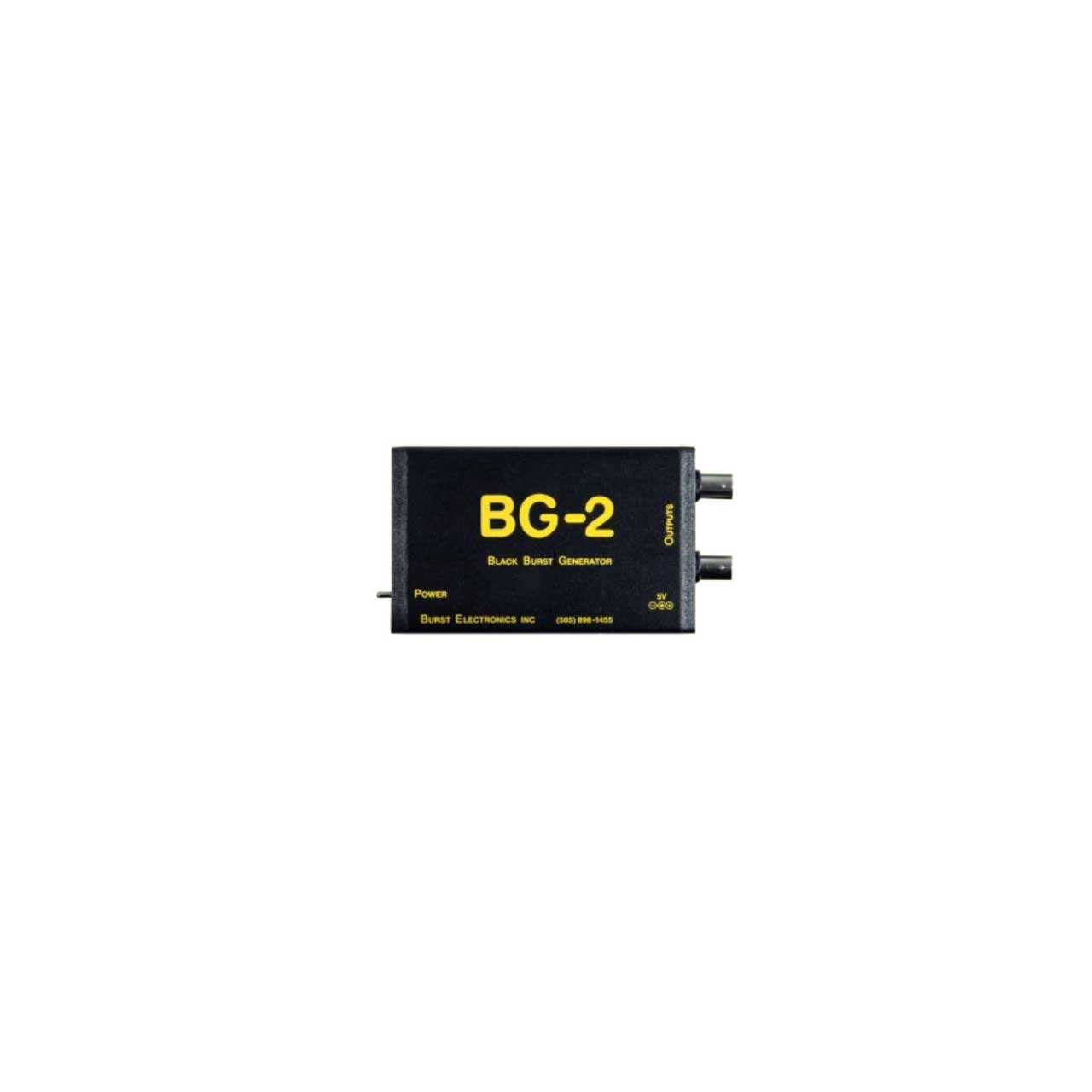

The BG-2 (and BG-2CB) are a new generation of Black Burst Generators. The BG-2 has two video outputs that are digitally generated by an internal microprocessor and an A/D converter. This allows precise waveform generation meeting the requirements of the most demanding applications. Can be configured as either composite or Y/C or both (option).

The BG-2 is simple to use. Connect the unit to the included 5Vdc power supply and push the Power switch up. The green LED on the front of the unit lights up, indicating the BG-2 has power. The composite video output connectors are immediately active when the BG-2 is powered

  • Features:

    • 2 synchronous composite video outputs
    • NTSC video standard

  • Specifications:

    • Output: 1 volt standard video 75 Ohms 1%
    • Sync at -40 IRE
    • Burst at +/-20 IRE (3.579545 MHz NTSC, 4.433619 MHz PAL)
    • Setup: 7.5 IRE NTSC (0 IRE PAL)
    • Fully saturated 75% bars (gray, yellow, cyan, green, magenta, red, blue, black) 5 Vdc, center positive (12 Vdc option)
    • Tone 1 kHz (0dB unbalanced phono jack, +4dB balanced miniXLR)
    • Dimensions: 2.75W x 1.2H x 4.5D (inches)
    • Wall module (included): 120 Vac 60 Hz, 12 Vdc 500 mA, UL listed or 100-240 Vac 50/60 Hz, 5 Vdc 1A, UL listed.
