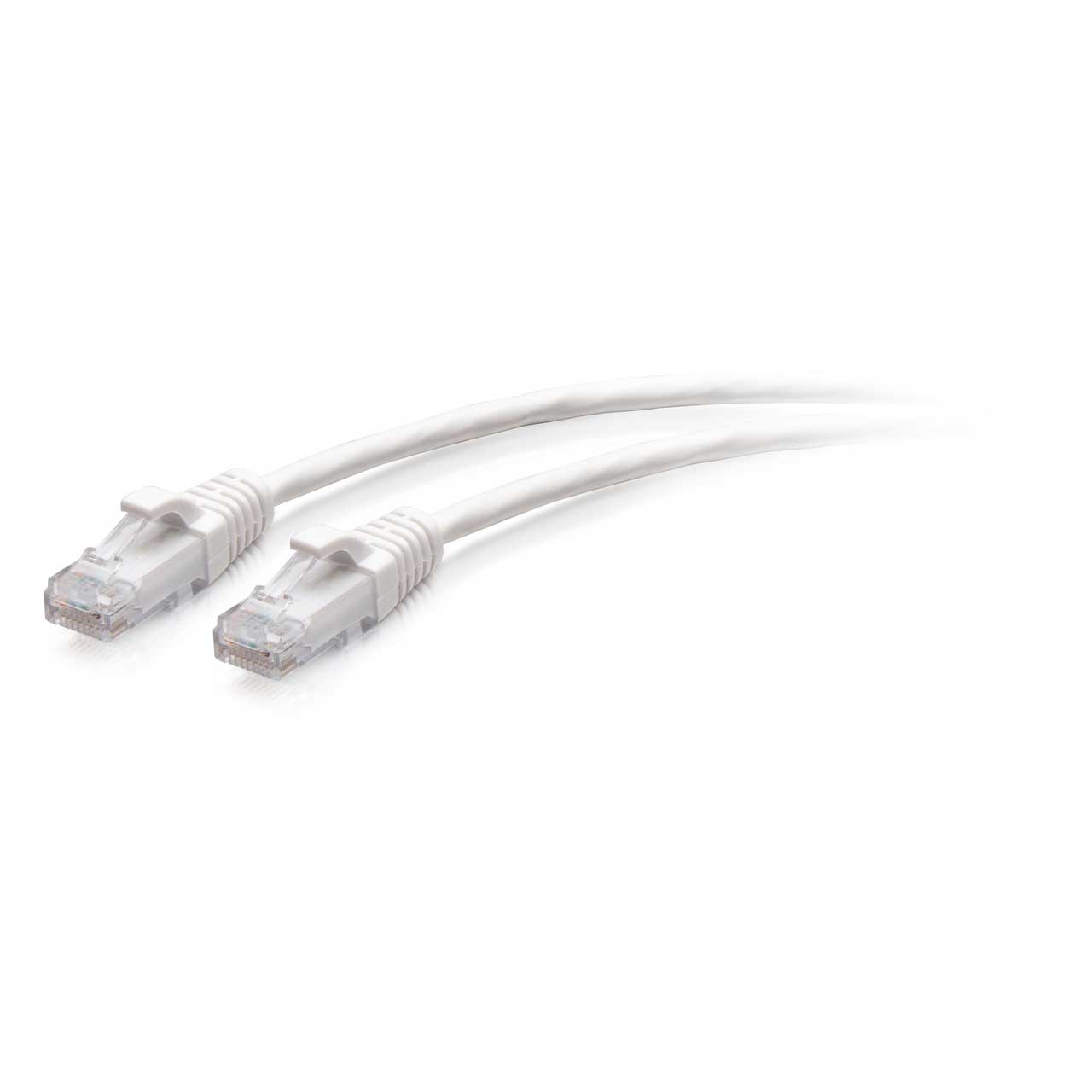

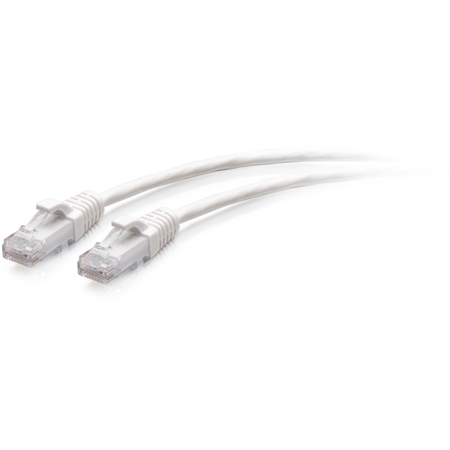

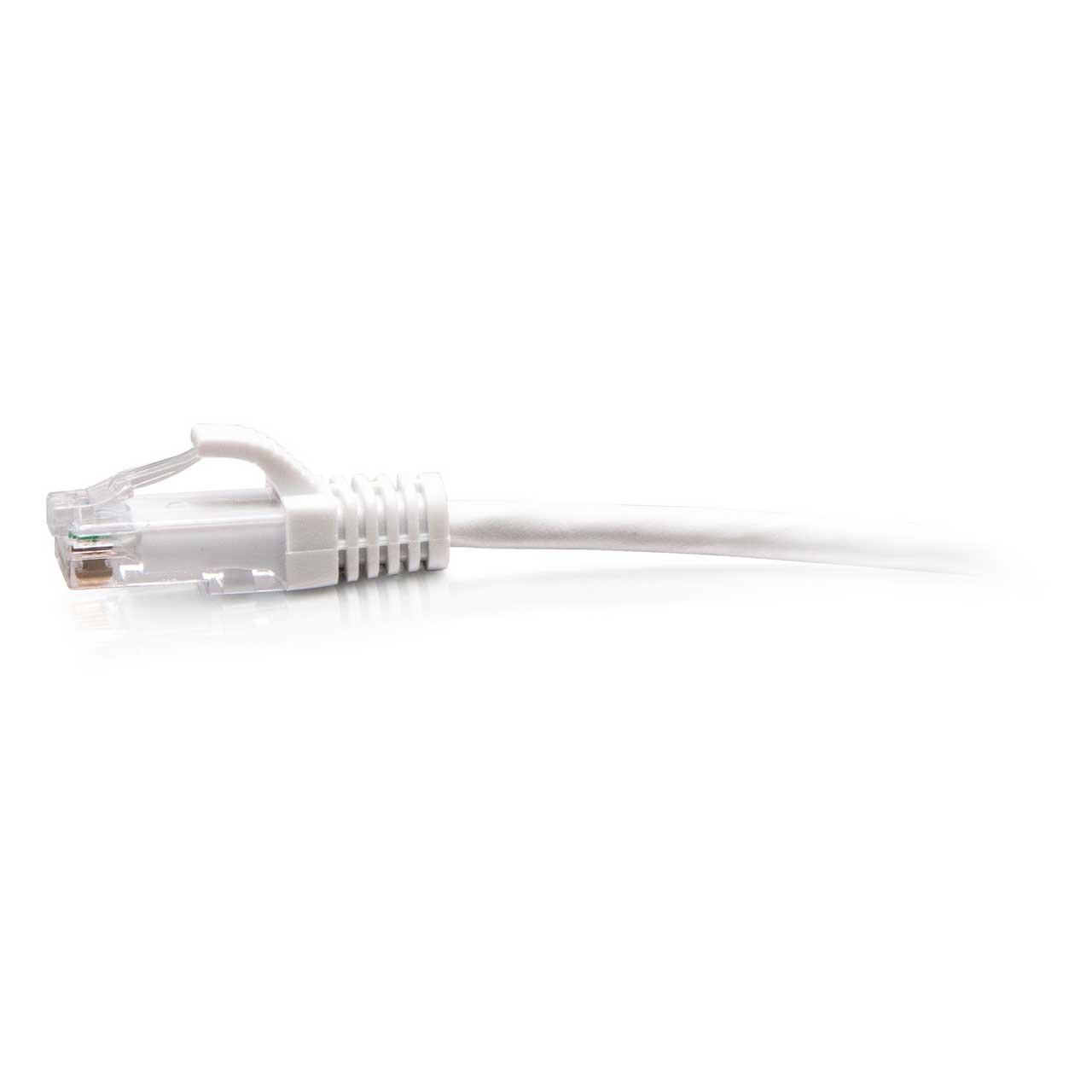

C2G 30185 CAT6A Snagless Unshielded Slim Ethernet Network Patch Cable - White - 10 Foot

ITEM #: C2G-30185 MFG #: C2G30185

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Our Price:

$20.99

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    C2G30185 - Overview

    The Cat6a Snagless Unshielded (UTP) Slim Network Patch Cable is the perfect solution for high density cabling applications such as large conference rooms and datacenters. The molded, snagless boot prevents unwanted cable snags during installation and provides extra strain relief. Available in a variety of colors to easily color-code your network installation.

    This network cable supports ethernet speeds up to 10Gbps at distances up to 328ft which is ideal for large conference rooms that may be leveraging HDBaseT technology. Cat6a technology doubles the minimum bandwidth of previous Cat6 cables and is five times more powerful than Cat5e. This increase in data speeds and bandwidth makes it the perfect Power over Ethernet (PoE) and Voice over Internet Protocol (VoIP) situations.

    The use of 28AWG conductors allows for greater flexibility in those tight space installations where space is always crucial. This reduced diameter provides a smaller cable surface area which allows for increased airflow when compared to standard Cat6 cables. And lastly, these cables are backed by a lifetime warranty to provide peace of mind.

    • Features:

      • 28AWG conductors allow for greater flexibility
      • Snagless boot prevent cable snags
      • Variety of colors and lengths
      • 10Gbps data speeds up to 328ft

    • Specifications:

      • 28AWG construction
      • Connector: RJ45 Male, Gold-Plated Contacts
      • Connector Hood: PVC
      • Product is CE Marked and Conforms to 2011/65/EU ROHS 2
      • Meets the ANSI/TIA-568.2-D; ISO/IEC 11801-1 electrical performance requirements
      • Shield: AL Foil Wrap
      • Cable OD: 4.8mm (about 0.19 in) ± 0.15mm (about 0.01 in)
      • Testing: 100% Test for Short/Open: 10M ohm
      • Insulation Resistance: 300V DC
      • Product Line C2G
      • Color White
      • UPC Number 757120301851
      • Country Of Origin Vietnam
      • Features PoE (Power Over Ethernet)
      • Warranty Type Lifetime
      • Product Length US 10.0 FT
      • Cable Length 10 ft
      • Jacket Material PVC (Polyvinyl Chloride)
      • Wire Gauge 28 AWG
      • Cable Type Ethernet Patch Cable, Booted, Snagless, Slim, Unshielded (UTP)
      • Jacket Rating Standard / Non-Rated
      • Data Transfer Rate 10 Gbps

    • GTIN:

      0757120301851
