Cobalt RM20-9933EMDE-A-HDBNC 20-Slot Opengear Frame Rear I/O Module

ITEM #: CB-RM209933EMDEA MFG #: RM209933EMDEA

Primary Image
Cobalt Digital
Free Shipping with $49 Minimum Order

List Price:

$233.00

Our Price:

$225.00

Add to Wish ListLeasing Options
Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
    Report Lower PriceLarge Quantity Quote

    RM209933EMDEA - Overview

    The Cobalt® RM20-9933EMDE-A-HDBNC is the rear module for the 9933-EMDE-75/110 3G/HD/SD-SDI 16-Channel Unbalanced/Balanced AES Embedder / De-Embedder card which offers full-flexibility AES embedding/de-embedding for unbalanced and balanced AES in a basic, economical, high-efficiency openGear® card. More than only a basic embedder/de-embedder, the 9933-EMDE-75/110 offers the flexibility of AES balun functions as well as fully flexible AES embedding/de-embedding.

    The 9933-EMDE-75/110 provides full 16-channel embed / de-embed between both unbalanced and balanced AES and all four groups of embedded audio. Audio embed adaptive SRC allows asynchronous 48 kHz AES audio to automatically sync with program video 48 kHz timing for glitch-free embedding. Individual, per-pair SRC auto-detects and disables SRC when a Dolby pair is detected on an input pair.

    Full audio crosspoint allows per-channel gain and routing controls, as well as built-in tone generators.

    Full user DashBoard™ or Remote Control Panel remote control allows full status and control access locally or across a standard Ethernet network.

    Please note! Rear module only! Card and chassis are required and sold separately.

    • Features:

      • 16-channel AES support for both balanced and unbalanced. Individual per-pair embedding or de-embedding. Can be used to provide cross-balun I/O as well as 4-group embed/de-embed.
      • DashBoard™ status display, audio meters, tone generators. GUI audio meters provide ready assessment of content presence and line-up.
      • Audio embed adaptive SRC allows asynchronous 48 kHz AES audio to automatically sync with video 48 kHz timing for glitch-free embedding. Individual, per-pair SRC auto-detects and disables SRC when a Dolby pair is detected on an input pair.
      • Low-power/high-density design - less than 18 Watts per card
      • Remote control/monitoring via Dashboard™ software or OGCP-9000 remote control panels
      • Five year warranty

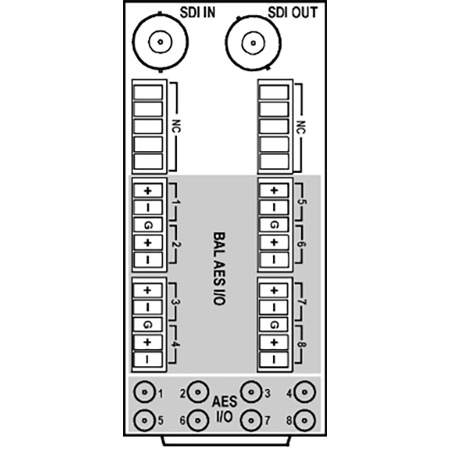

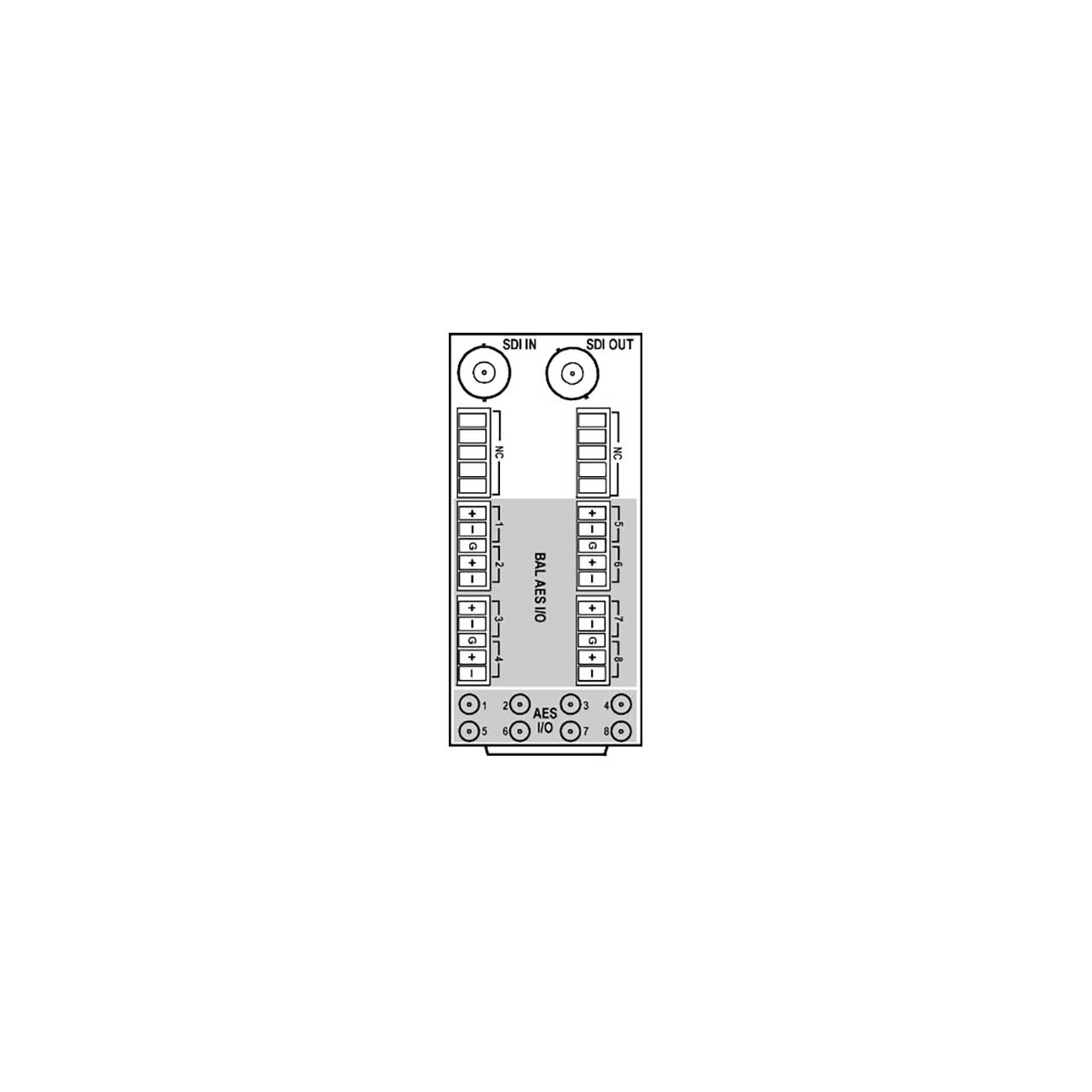

      • SDI In BNC
      • (8) Unbalanced AES I/O
      • (8) Balanced AES I/O
      • SDI Out BNC
      • (All audio coaxial connectors DIN1.0/2.3 or HD-BNC)


    • Specifications:

      • Power: <18 Watts
      • SDI Inputs/Outputs:
        1x 75Ω BNC input
        1x 75Ω BNC output
      • SDI Receive Cable Length (1694A): 120m/180m/360m (3G/HD/SD)
      • SDI Return Loss: >15 dB up to 1.485 GHz; >10 dB up to 2.970 GHz
        *NOTE: SDI Return loss and receive cable length are affected by rear I/O module used. Specifications represent typical performance.
      • Alignment Jitter: 3G/HD/SD: < 0.3/0.2/0.2 UI
      • Timing Jitter: 3G/HD/SD: < 2.0/1.0/0.2 UI
      • SDI Formats Supported: SMPTE 259M, SMPTE 292M, SMPTE 424M
      • Audio Conversion Format:
        48kHz sampling, 24-bit. Auto-SRC bypass for Dolby inputs
        AES Audio Input/Output
        8x Unbalanced AES (AES-3id; 75O) with per-pair port direction controls
        8x Balanced AES (AES/EBU; 110O) with per-pair port direction controls
        *NOTE: Inputs/outputs are a function in some cases of rear I/O module used.
