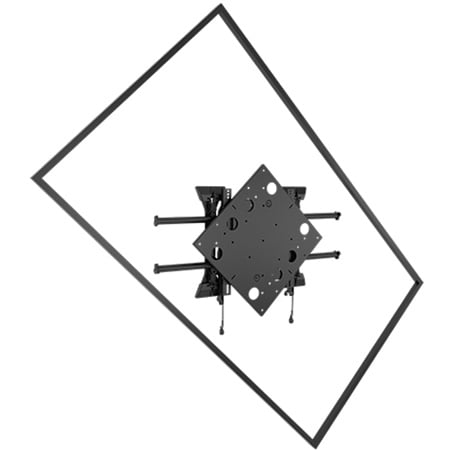

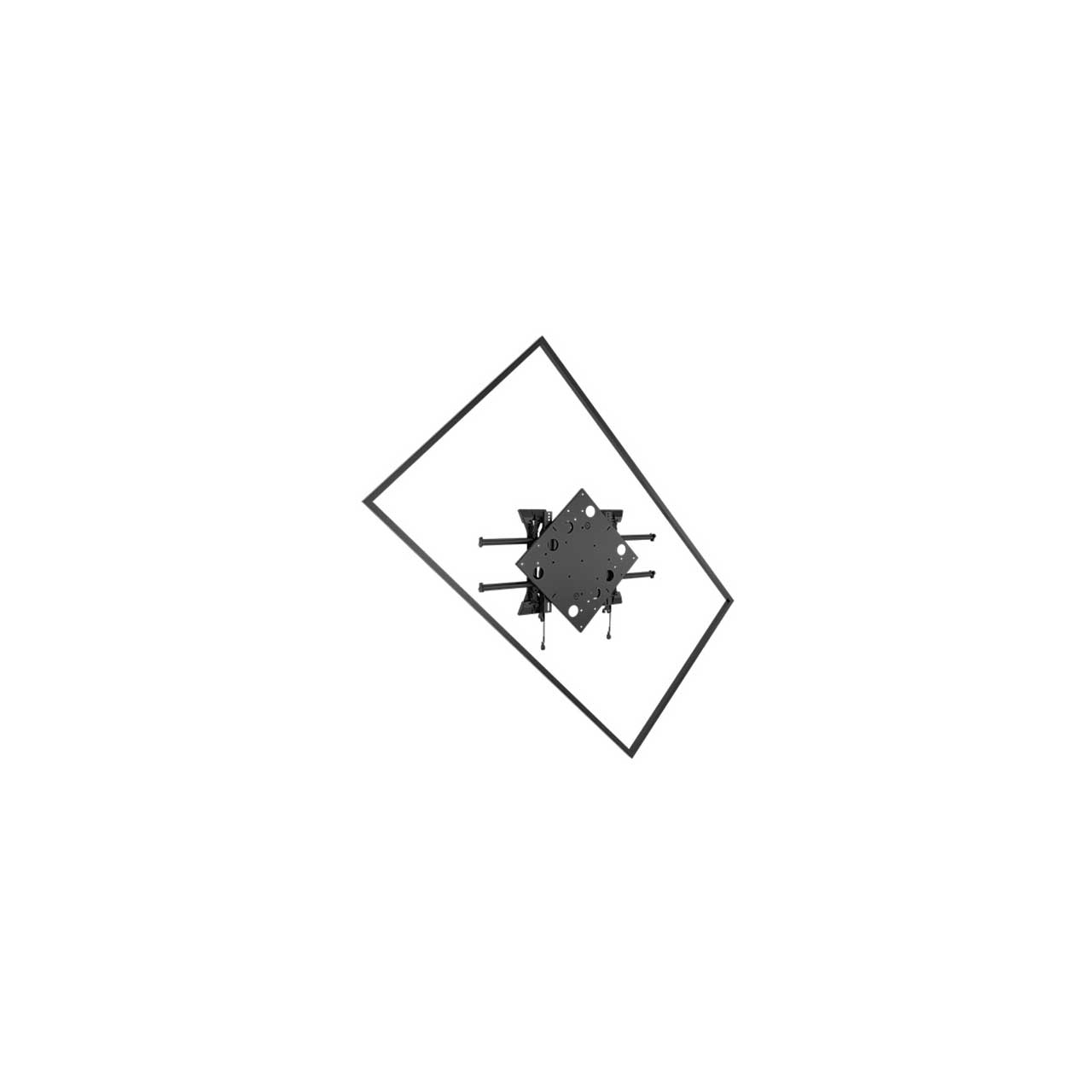

Chief Freestyle Flat Panel Rotation Adapter - Landscape/Portrait - Black

ITEM #: CHF-FRA MFG #: FRA

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$413.00

Our Price:

$300.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


    FRA - Overview

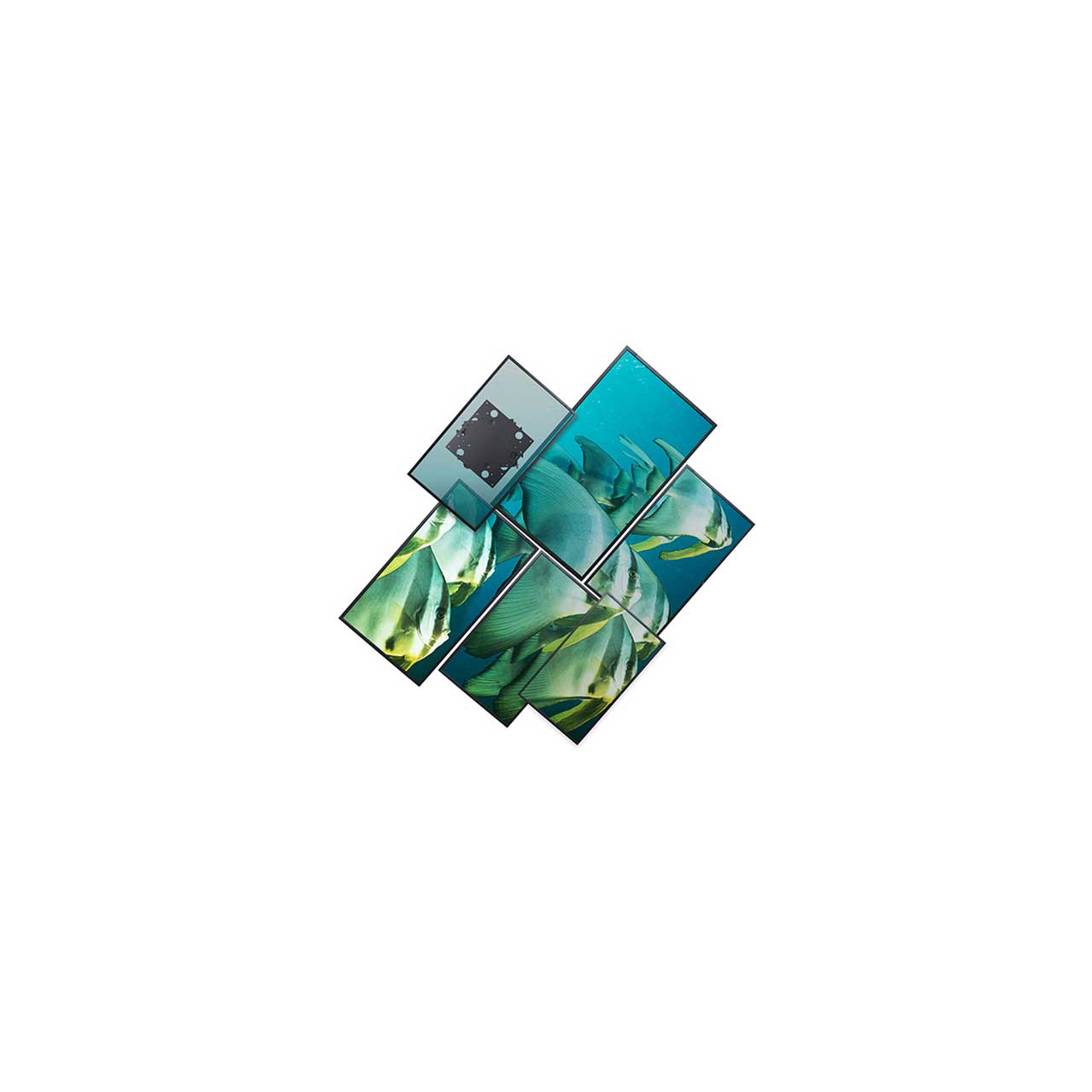

    The Chief FRA Freestyle Rotation Adapter allows designers to generate an extremely wide variety of video display wall configurations using either ConnexSys or Fusion mounts.

    • Features:

      • Positive lockouts at 15 degree increments
      • Provides 90 degrees of rotation for 360 degrees of range
      • Overlapping displays (with Fusion FCADA) adds another level of customization and creativity
      • Micro-adjustment (with ConnexSys)
      • Weight capacity when used with ConnexSys: 125 lbs (56.7 kg)
      • Weight capacity when used with STMS1U, MTMS1U: 55 lbs (24.95 kg)
      • Use with Fusion wall, ceiling and freestanding mounts

    • Specifications:

      • Color: Black
      • Minimum Depth: 0.84" (21 mm)
      • Mounting Pattern Compatibility (Universal Versions): 200 x 200; 200 x 300; 200 x 400; 300 x 300;
        400 x 400; (600 x 400 if using FHB5036 or FHB5037 bracket accessory)
      • Notes: Positive lockouts at 15 degree increments
      • Overall Dimensions (HxWxD): 17.25 x 17.25 x 0.84" (438 x 438 x 21 mm)
      • Rotation: 90 degrees
      • Solution Type: Universal
      • Typical Screen Sizes: Greater than 40" using MTMS1U or STMS1U: 19" minimum display height at
        45°.
      • Greater than 55" using ConnexSys: 27" minimum display height at 45°
      • Weight Capacity: With MTMS1U, STMS1U 55 lbs (24.95 kg): With ConnexSys 125 lbs (56.7 kg)
      • Orientation: Landscape, Portrait

    • GTIN:

      0841872169910
