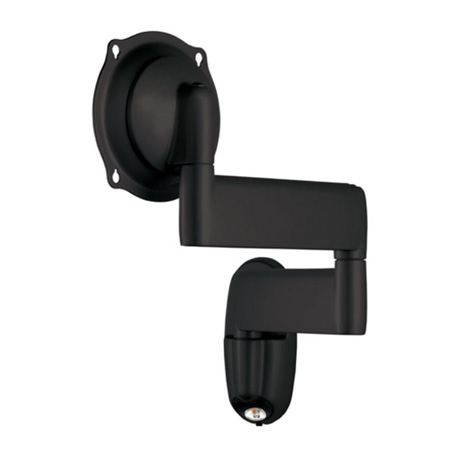

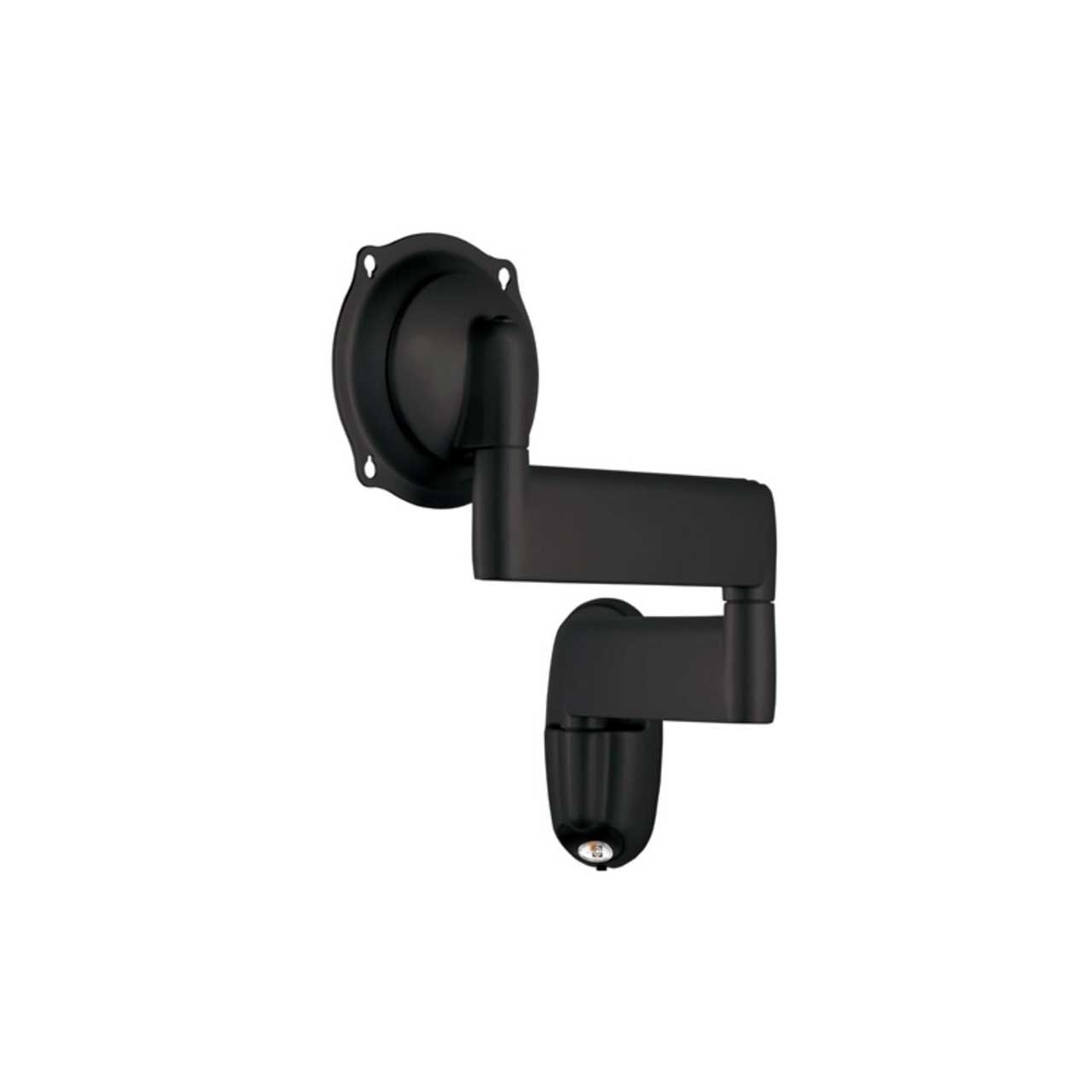

Chief JWDIWUB Medium Low-Profile In-Wall Swing Arm Mount - 21 Inches

JWDIWUB - Overview

• Features:

  • Low profile, designed to ensure that the mount remains concealed behind the screen
  • Centris Technology provides smooth, fintertip tilt in all directions
  • Used with the MAC501B installed in between 16" on center studs.
  • No header or footer necessary
  • Smooth extension up to 21" (538 mm) to achieve ideal viewing angle
  • Back of TV sits close to the wall (0.1" for VESA 100 x 100mm screens and 0.65" for screens having up to 400 x 400mm patterns)
  • VESA Compatibility: JWDIW210: up to 200 x 200mm, JWDIWU: up to 400 x 400mm


• Specifications:

  • Color: Black
  • Maximum Extension: 17"
  • Minimum Depth: 0.1"
  • Mounting Pattern Compatibility (Universal Versions): 100 x 100mm - 400 x 400mm
  • Notes: Require MAC501B. Depth and Extension do no include interface bracket (adds 0.5 - 1.5")
  • Orientation: landscape and portrait
  • Post-Installation Leveling Roll: Yes
  • Shipping Weight: 15.7 lbs
  • Solution Type: Universal
  • Tilt: +15° / - 15°
  • Typical Screen Sizes: 26 - 45"
  • Wall Stud Compatibility: 16"
  • Weight Capacity: 75 lbs


• GTIN:

  0841872114484
