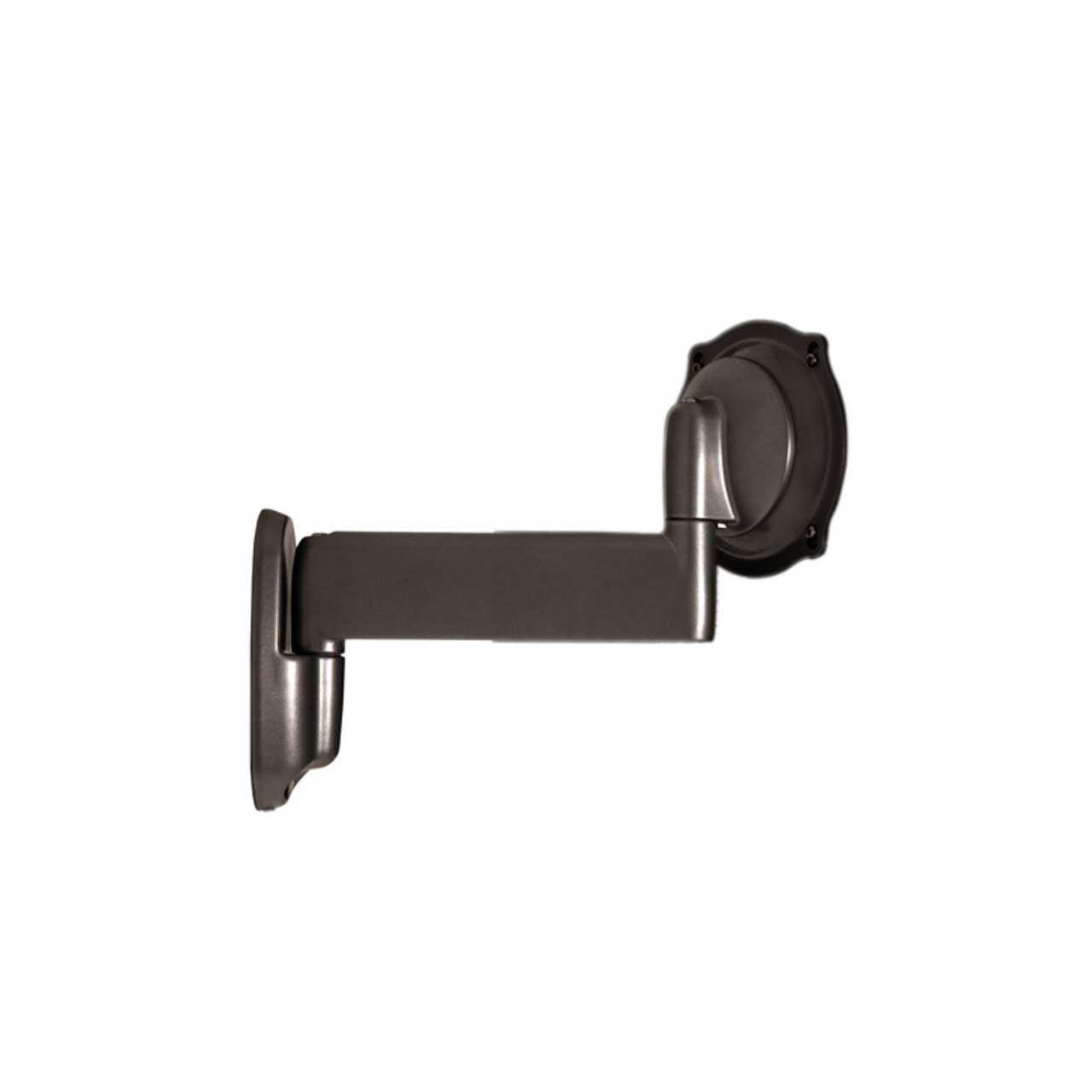

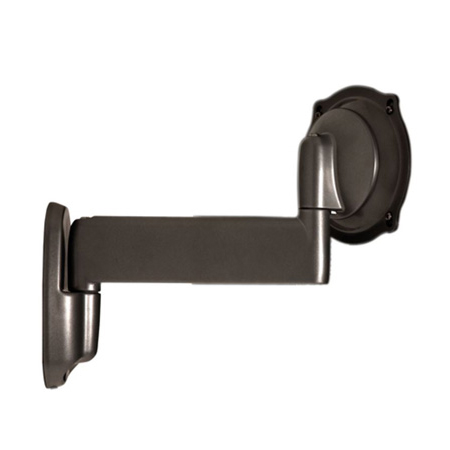

Chief Medium 12 Inch Arm Extension Wall Mount - For Flat Panel Displays - Black

JWSUB - Overview

• Features:

  • Centris Fingertip Tilt provides smooth tilt adjustment in all directions
  • Gravity-centered tilt self-adjusts to securely hold different display weights
  • Teardrop hole pattern makes mounting the screen quick and easy
  • Portrait and landscape screen installation.
  • Smooth extension to achieve ideal viewing angle
  • Independently adjustable tension at pivot points for customized control
  • Quick, easy cable management
  • Sleek, attractive design hides all hardware
  • Ships assembled
  • Universal models available for VESA 100 x 100 mm up to 400 x 400mm mounting patterns
  • MSB interface bracket can be purchased separately for non-VESA compatible screens


• Specifications:

  • Color: Black
  • Maximum Extension: 11.9"
  • Minimum Depth: 3.2"
  • Mounting Pattern Compatibility (Universal Versions):100 x 100mm - 400 x 400mm
  • Notes: Depth and Extension do not include interface bracket (may add 0" - 0.5" of depth)
  • Orientation: landscape and portrait
  • Overall Dimensions (HxWxD): 11.5" x 13.1" x 3.4"
  • Post-Installation Leveling Roll: Yes
  • Shipping Weight: 13.7 lbs
  • Solution Type: Universal
  • Tilt: +15° / - 15°
  • Typical Screen Sizes: 26 - 45"
  • Wall Stud Compatibility: Single Stud
  • Weight Capacity: 75 lbs


• GTIN:

  0841872114361
