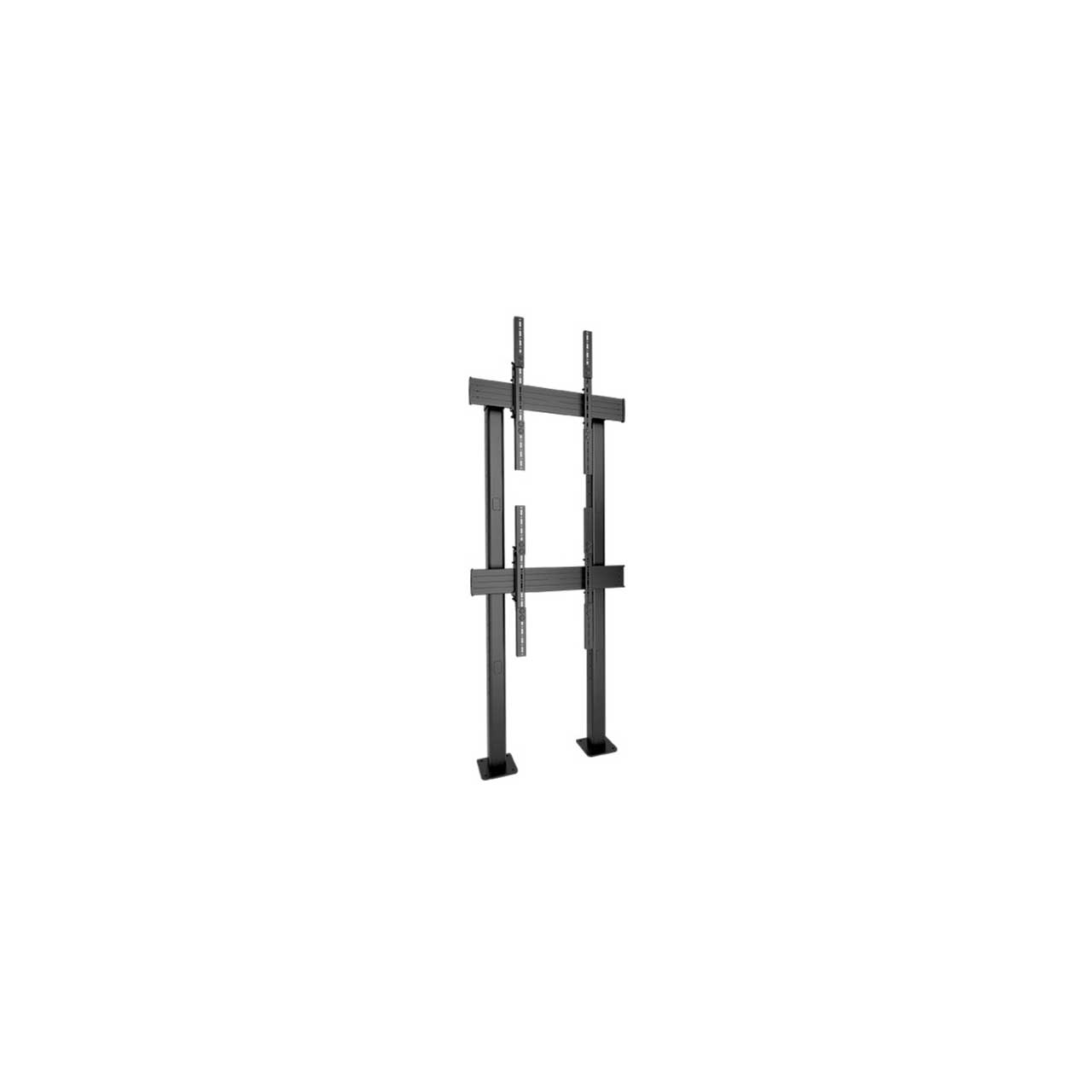

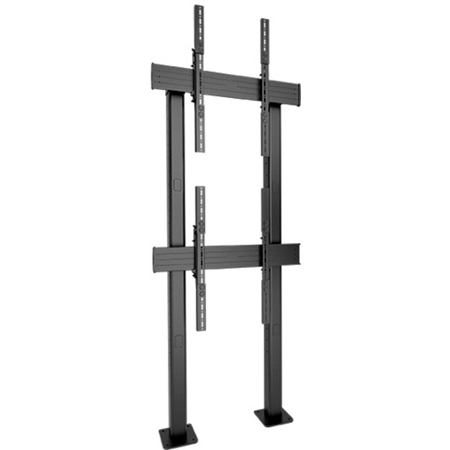

Chief LBM1X2UP FUSION 1 X 2 Micro-Adjustable Large Bolt-Down Freestanding Video Wall - Portrait

LBM1X2UP - Overview

• Features:

  • 1 x 2 portrait screen arrangement for 42" - 80" screens.
  • Easily align displays with independent height, plumb and lateral shift adjustment
  • Bolt-down solution allows for a permanent solution
  • Integrated cable management for a clean installation
  • TAA Compliant


• Specifications:

  • Center of Display to Floor/Table Range: 82.39" (2093mm) (maximum top) - 16.38" (416mm) (minimum bottom)
  • Certifications: UL Listed
  • Color: Black
  • Lateral Shift: Yes
  • Manual Height Adjustment: Micro-adjustment up to 0.75" (19mm) per screen
  • Mounting Pattern Compatibility (Universal Versions): 3.93" x 3.93" (100mm x 100mm) - 31.50" x 35.43" (800mm x 900mm)
  • Orientation: Portrait
  • Overall Dimensions (H x W x D): 84.45" x 36" x 7.5" (2145mm x 914mm x 191mm)
  • Plumb Adjustment: Micro-adjustment up to 0.75" (19mm)
  • Screen Array Configuration: 1x2
  • Shipping Weight: 190.00lbs
  • Solution Type: Universal
  • Typical Screen Sizes: 42" - 80"
  • Weight Capacity: 125lbs (56.7kg) per display


• GTIN:

  0841872165080
