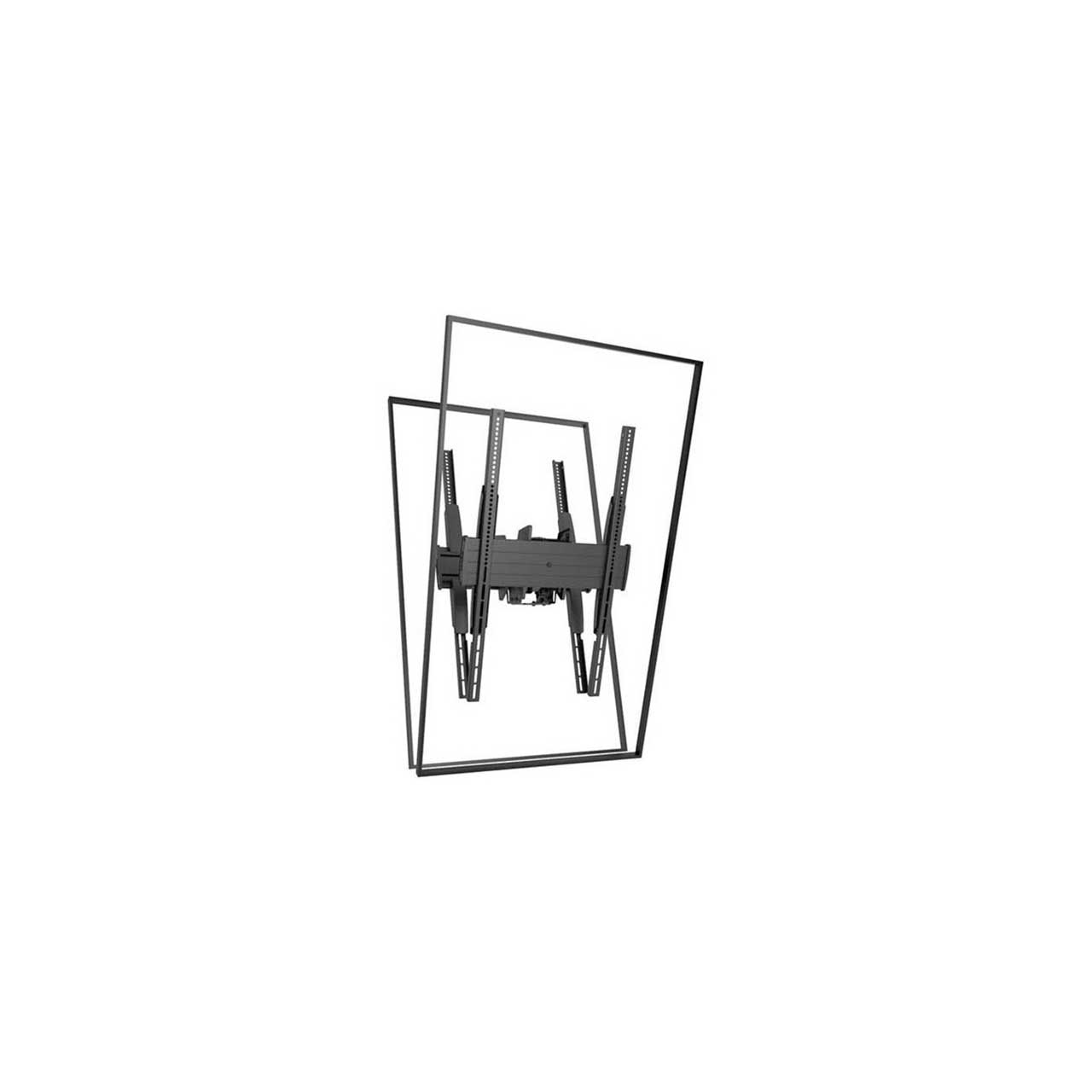

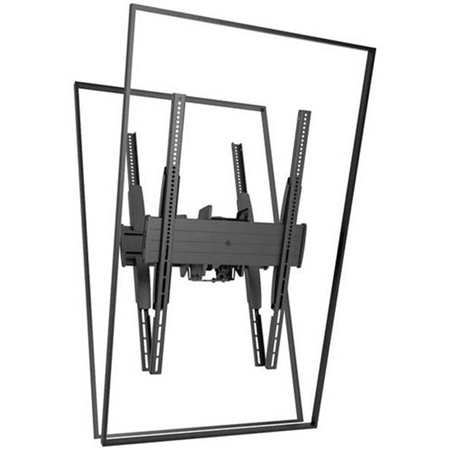

Chief LCB1UP FUSION Large Flat Panel Ceiling Mount

ITEM #: CHF-LCB1UP MFG #: LCB1UP

Primary Image
Chief Mounts
Free Shipping with $49 Minimum Order

List Price:

$843.00

Our Price:

$674.40

Add to Wish ListLeasing Options
Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
    Report Lower PriceLarge Quantity Quote

    LCB1UP - Overview

    Chiefs LCB1UP FUSION™ Flat Panel Ceiling Mounts are installer inspired and offer perfect display positioning and flexible adjustments for large flat panel screens. Great for digital signage installations.

    Ceiling Plate and Extension Column are required and must be ordered separately
    Compatible with traditional 1.5" NPT and new CPA pinned ceiling plates and column system
    Stackable on a single pole when used with CPA columns

    • Features:

      • Fusion back-to-back display mount features:
      • Repeatability
        Continuous tilt ranges with four set locking points to eliminate guess work when adjusting multiple screens.
      • Accessibility
        Simple on/off connection for ease of installation and service.
      • Centris® Fingertip Tilt
        Effortlessly adjust display using Centris fingertip tilt technology.
      • Simple & Secure
        Tool free screen engagement with optional padlock security.
      • Flexibility
        Mount swivels to any preferred viewing angle.
        Stackable on a single pole when used with CPA columns


    • Specifications:

      • Adjustments: Roll, +/-3°
      • Certifications: UL Listed
      • Color: Black
      • Equipment Weight Capacity: 125lbs (56.7kg) per screen
      • Mounting Pattern Compatibility (Universal Versions): 7.87" x 3.93" (200mm x 100mm) - 18.11" x 31.50" (460mm x 800mm)
      • Orientation: LCB1U - Landscape, LCB1UP - Portrait
      • Overall Dimensions (H x W x D): 32.5" x 20.8" x 10.2" (826mm x 529mm x 259mm)
      • Shipping Weight:49.00lbs
      • Tilt: +5°, -20°
      • Typical Screen Sizes: 32" - 60"


    • GTIN:

      0841872159027
