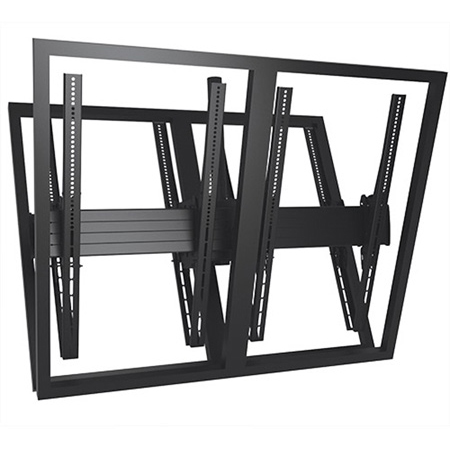

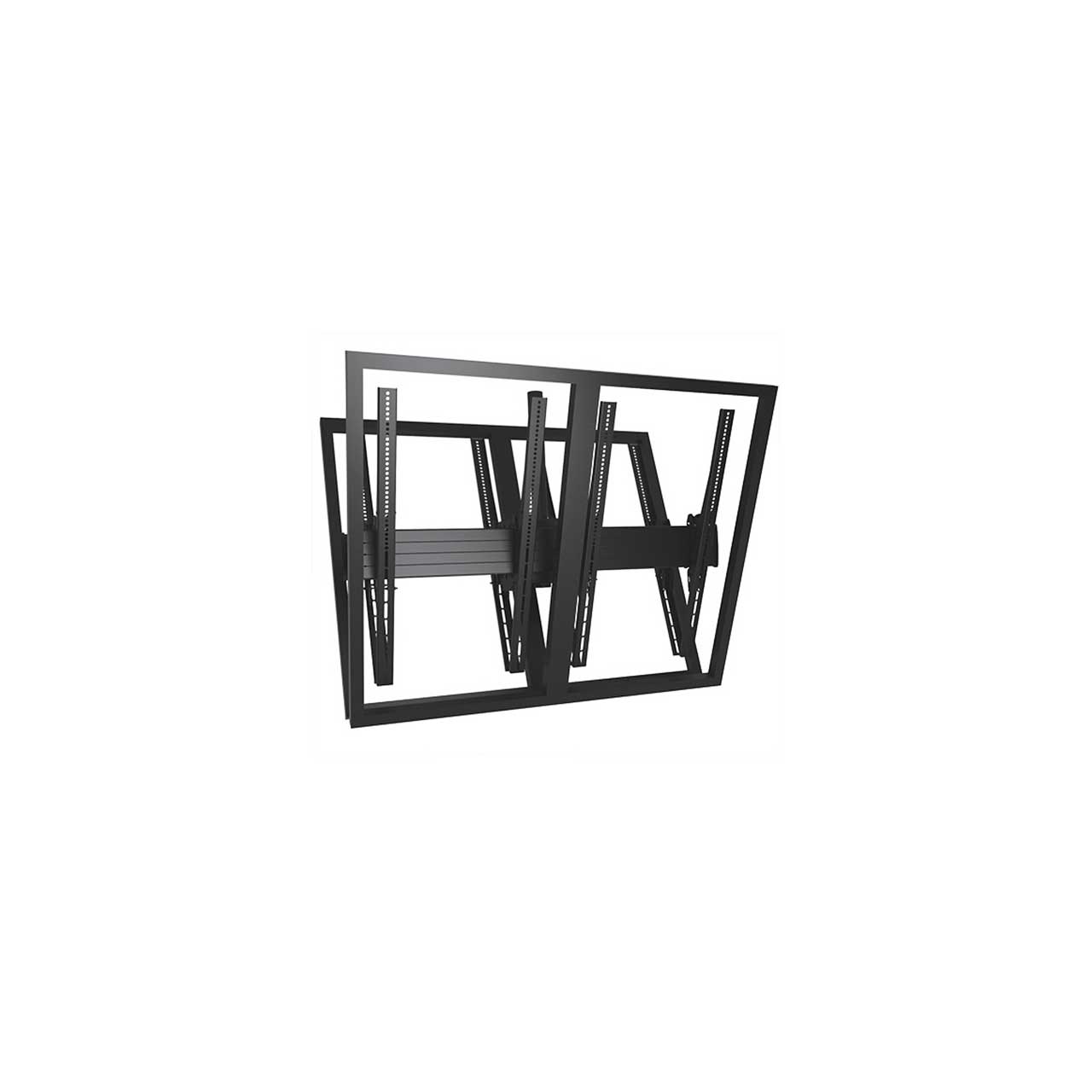

Chief LCB2X1UP FUSION Large Back-to-Back Ceiling Mounted 2 x 1 Menu Board - Portrait

LCB2X1UP - Overview

• Features:

  • Single drop for fast installation
  • Micro adjustable roll for perfect leveling +/-3°
  • 360° swivel for optimal viewing angles
  • Single horizontal extrusion keeps screens aligned
  • Tilting interfaces with Centris technology makes for easy adjustment for +5°/-20°
  • Tool-free screen engagement
  • Secure displays with optional pad-lock security
  • Fits screens 40" - 55" diagonals, add FCAX extension brackets for larger screens up to 65"
  • CEILING PLATE and EXTENSION COLUMN are required and must be ordered separately
  • Compatible with traditional 1.5" NPT and new CPA pinned ceiling plates and column systems


• Specifications:

  • Certifications: UL Listed
  • Color: Black
  • Mounting Pattern Compatibility (Universal Versions): Any Height x 3.93" - 15.75" (100mm - 400mm)
  • Post-Installation Leveling Roll: +/-3°
  • Screen Array Configuration: 2 x 1
  • Shipping Weight: 82.00lbs
  • Solution Type: Universal
  • Tilt: +5°, -20°
  • Typical Screen Sizes: 40" - 55" (up to 65" with FCAX extension brackets)
  • Weight Capacity: 100lbs (45.4kg) per display


• GTIN:

  0841872158969
