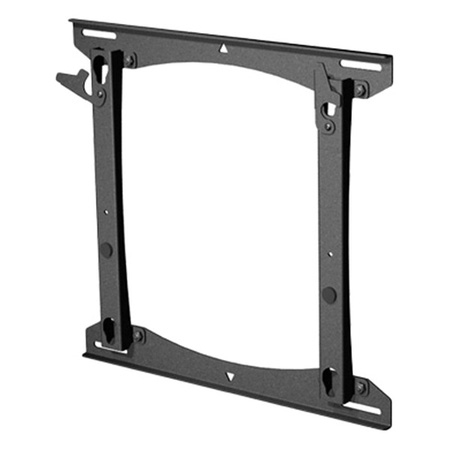

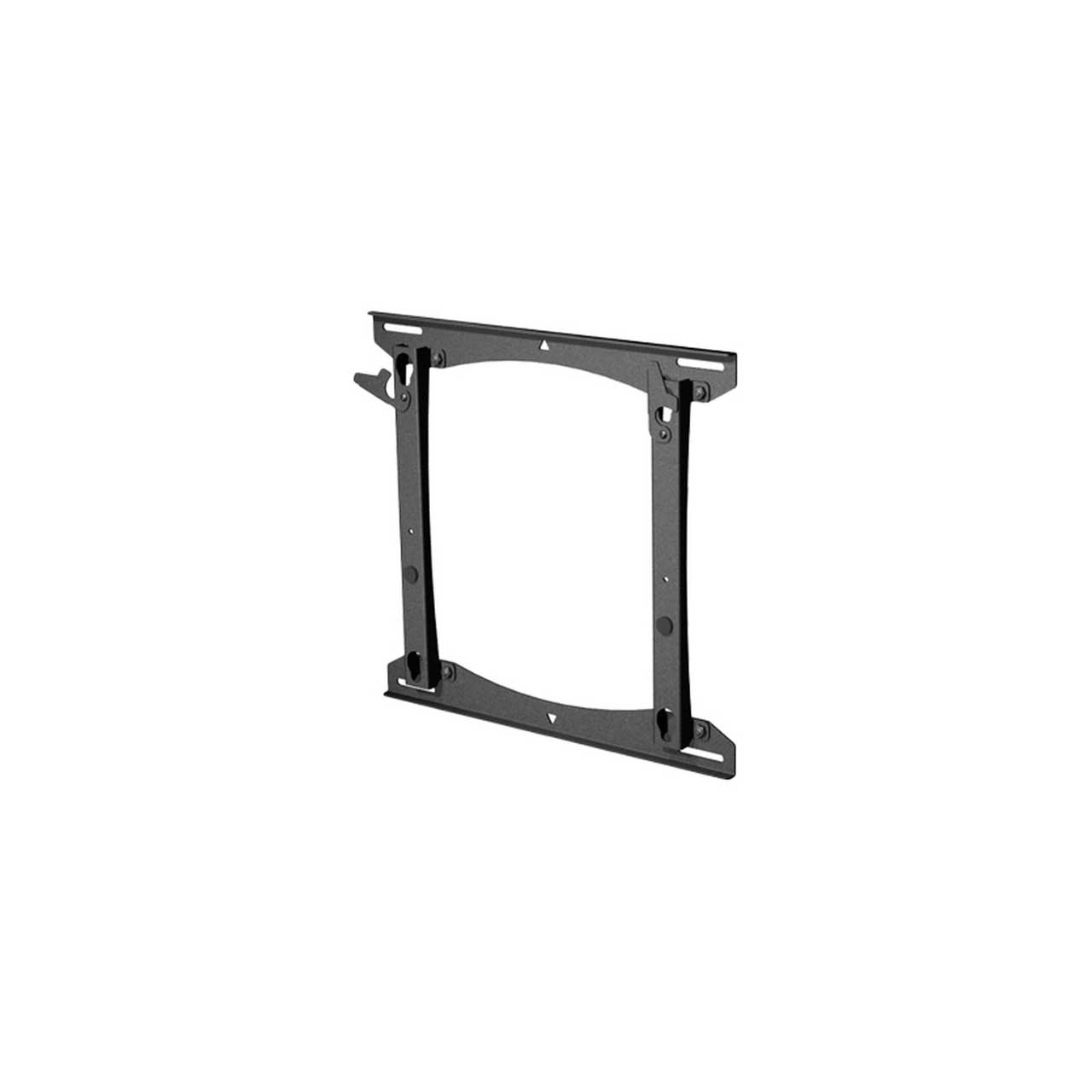

Chief Large Flat Panel Fixed Wall Mount - Black

ITEM #: CHF-PST2000B MFG #: PST2000B

Primary Image
Free Shipping with $49 Minimum Order

List Price:


Our Price:


Availability: Extended Lead Time. Email, Chat or Call Us for more details.
iAvailability Description Popup

    PST2000B - Overview

    A low-profile, fast-installation wall mount for large flat panel TVs. Requires a universal or custom PSB interface bracket (sold separately). The PST2000B Can be used for universal or custom models and is great for digital display or retail applications.

    The PST static wall mount accommodates large flat screens weighing up to 200 lbs (90.72kg). The teardrop holes in the mount allow for quick connect/disconnect of the screen, thus simplifying installation and maintenance processes.

    The top and bottom mounting brackets are adaptable to supporting framework with wood studs that are 16” on center or 24”on center.

    The mount has integrated lateral shift, allowing for four different mounting options. For dual wood studs 16” on center, the lateral shift is ±4.5 inches. For dual wood studs 24” on center, the lateral shift is ±0.5 inches.

    After installing the flat screen on the mount, the screen can be locked in place using the convenient locking flag. A padlock can be used on the latching flag for added security.

    The mount is concealed behind the display, making it a low profile wall mount.

    Please Note This model will be discontinued soon although there are limited quantities still available! The current replacements are the LSM1U and the MTMP1U.

    • Features:

      • Ultra low-profile design
      • Unique design provides cable access through sides of mount
      • Q-Latch Mounting System simplifies installation and provides integrated security
      • Expanded wall plate opening provides cable access and reduces risk of outlet interference
      • Rapid Level System provides hands-free leveling of mount on wall
      • Screen can be installed in portrait or landscape orientation ( PAC400 or MAC400 accessory can be used to rotate without removing the screen)
      • Integrated lateral shift up to 4" (102 mm) left or right of 16" centers
      • Allows for 16"
    • Specifications:

      • Color: Black
      • Lateral Shift: 8" (203.2mm)
      • Minimum Depth: 1.21" (30.7mm)
      • Orientation: Landscape, Portrait
      • Overall Dimensions (H x W x D): 18.4" x 26.0" x 1.2" (467 x 660 x 31mm)
      • Shipping Weight: 9.00 lbs
      • Typical Screen Sizes: 42" - 71"
      • undefined: Steel stud mounting possible with series PAC115 and using 2 studs only
      • Wall Stud Compatibility (inches): 16", 24"
      • Weight Capacity: 200 lbs (90.7kg)
    • Item Includes:

      • 1x - Plasma Static Mount
      • 2x - Flag Extender
      • 2x - Phillips Machine Screw, 10-24 x ½"
      • 2x - Thin Nylock Nut, 10-24
      • 4x - Lag Bolts, 5/16" x 2-½"
      • 4x - Flat Washer, 5/16"
    • Warranty:

      • 10 Years
    • GTIN:


    PST2000B - Required Accessories
