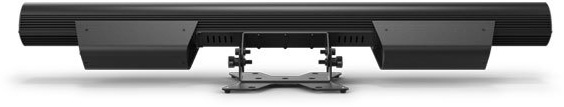

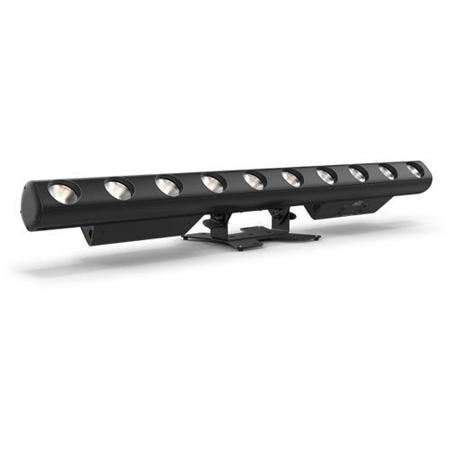

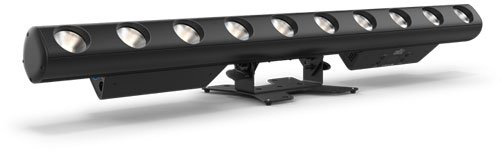

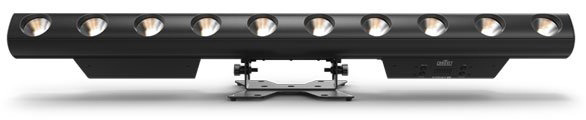

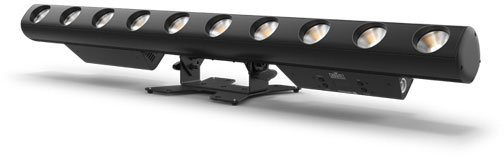

Chauvet STRIKE SABER Strong Blinder Footlight or Tunable Warm-White Wash Powered by 10 17-Watt bi-color (WW/Amber) LEDs

STRIKESABER - Overview

• Features:

  • Intense 10-cell batten perfect as a blinder, footlight or tunable warm-white
  • Emulated "red shift" to mimic incandescent fixtures perfectly
  • 16-bit dimming control for smooth, perfect fades
  • Strobe functionality for high-impact effects on-the-fly
  • Pixel mappable for intense chase and strobe effects
  • Included floor plate for easy ground level mounting
  • Easy to use OLED display
  • Adjustable Pulse Width Modulation (PWM)
  • RDM (Remote Device Management) for added flexibility


• Specifications:

  • Optical
  • 10, LEDs (Warm White/Amber) 17 W, (310 mA), 3134 K, 50,000 hours life expectancy
  • Color Temperature (at full): 3134 K
  • CRI: 89
  • Beam Angle vertical: 15°
  • Beam Angle horizontal: 18°
  • Field Angle vertical: 30°
  • Field Angle horizontal: 35°
  • Lumens: 5,675
  • Illuminance: 2,466 lux @ 5 m
  • Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz

    Dynamic Effects
  • Dimmer: Electronic
  • Strobe: Electronic
  • Strobe Rate: 0 to 26.7 Hz
  • Dim Modes: 4
  • Built-in Automated Programs: Yes

    Construction / Physical
  • Dimensions: 39.3 x 3.08 x 6.18 in (1000 x 78.4 x 157 mm)
  • Weight: 14.6 lb (6.7 kg)
  • Exterior Color: Black
  • Housing Material: Aluminum alloy, Aluminum die-cast, High-impact flame-retardant polymer, Steel

    Connections
  • Power Connection: Edison (Local) plug to Neutrik powerCON
  • Power Input: Neutrik powerCON
  • Power Output: Neutrik powerCON
  • Data Connectors: 5-pin XLR
  • Cable Length (power): 5 ft (1.5 m)

    Control
  • Control Protocol: DMX, RDM
  • DMX Channels: 1, 3, 7, 10, 11, 20, or 27
  • Modes/Personalities: 6 personalities (1ch, 3ch, 7ch, 10ch, 11ch, 20ch, 27ch)

    Electrical
  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 9 units @ 120 V; 16 units @ 208 V; 18 units @ 230 V
  • Power and Current: 174 W, 1.434 A @ 120 V, 60 Hz
  • Power and Current: 172 W, .829 A @ 208 V, 60 Hz
  • Power and Current: 170 W, .741 A @ 230 V, 50 Hz

    Certifications / Qualifications
  • CE
  • IP Rating: IP20, dry location
  • Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

    Optional Accessories
  • Professional Clamps: CTC-50HC, CTC-50HCN
  • Powerkon power linking cables
  • 5-pin DMX Cables


• Item Includes:

  • 1x STRIKE Saber
  • 1x Neutrik powerCON power cord
  • 1x Floor Stand


• GTIN:

  0781462218225
