    CL1151EPAFATBEUI - Overview

    The Patton CL1151E/PAFA/RJ45/EUI-2PK demand for IP/Ethernet-connected devices in the Audio Video space is growing rapidly. Power-over-Ethernet (PoE) in particular-has grown in popularity because it strikes the perfect blend of speed, cost, and ease of use.

    Ethernet, however, presents a few drawbacks that may overshadow the benefits by creating escalating infrastructure costs and system downtime. The Ethernet standard specifies a distance limitation of 328 ft (100 m), which restricts location options for device installation. Standard Ethernet also requires Cat 5 cabling or better, which often leads to installing new cabling infrastructure-involving tearing into walls, ceilings, pavement, and worse.

    The CopperLink 1151E from Patton enables Ethernet connectivity of your Dante enabled devices over previously installed copper infrastructure, such as existing speaker, alarm cables even CCTV coaxial cable.

    Instantaneously install your 10/100BaseTX Dante enabled speakers, I/O converters and more-with no additional overhead cost. With the extended reach the CL1151E provides, you can install your IP Audio Video and teleconferencing equipment exactly where you want it!

    Extend Power and Ethernet to compliant or legacy PoE devices using already installed twisted-pair cable or coax

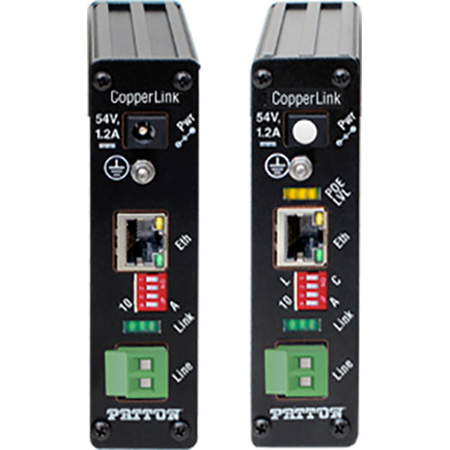

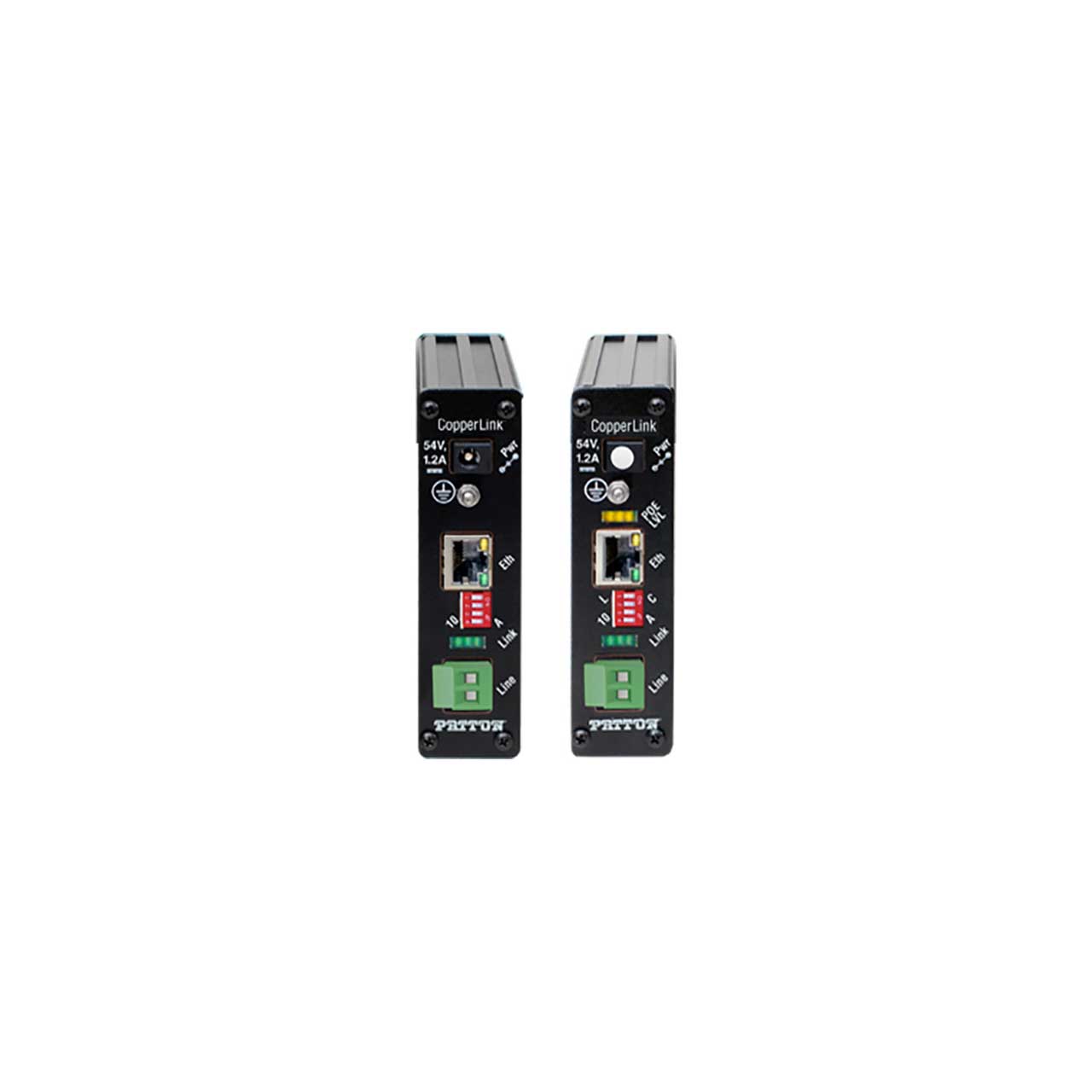

    Please note: This is a kit with both a LOCAL (SEND) unit and a REMOTE (RECEIVE) unit.

    • Features:

      • Dante Ethernet Extension: Extends 10/100Base-TX Ethernet over 3,300 feet (1005 meters) using 2-wire, 18-26-AWG twisted-pair, Cat 3, Cat 5e/6/7, or coaxial cable.
      • Delivers PoE: Power Plus technology powers up both the remote CopperLink extender and the Dante PoE enabled device connected to it. No power is required at the remote location.
      • Transparent LAN Bridging: Will pass higher layer AES67/TSN/AVB protocols and all audio/video compression schemes.
      • Plug and Play: Modems need no configuration to operate, Ethernet ports are auto-sensing 10/100, full or half-duplex.
      • Over-voltage Protection: Over-voltage protection on Line and Ethernet ports prevents damage from ESD (electrostatic discharge), CDE (cable discharge events), and lightning.
      • Made in the USA: This Patton equipment is designed by Patton engineers and built in our Gaithersburg, Maryland facility. Patton's American-made manufacturing process delivers high-quality networking solutions with reliability you can trust.
    • Specifications:

      • Line Interfaces (Data)
      • 1 x RJ45 or BNC (Coax)
      • Supports 1-4 pairs

        Ethernet Interfaces
      • 1 x RJ45 Auto-Sensing 10/100Base-TX with full or half-duplex operation

      • Power, Line, (10 or 100 operation), Eth, and PoE

      • Transparent to high layer AES67/AVB/TSN Ethernet protocols
      • Supports 802.1Q VLAN tagged frames
      • Transparent to IP video schemes
      • Fully transparent to compression schemes such as WMV, MPEG-4, and MJPEG

        Over-Voltage Protection (Line and Ethernet)
      • IEC 61000-4-2 (ESD) 25kV (air), 15kV (contact)
      • IEC 61000-4-4 (EFT) 40A (5/50ns)
      • IEC 61000-4-5 (lightning) 25A (8/20æs)

        Power Injection (PSE only)
      • DC voltage on Ethernet port
      • 54 VDC

        Power Consumption
      • 1.5 W

        Power Supply
      • External AC Adapter 100-240 VAC to 54 VDC
      • Input: 30-57 VDC (Recommended 54 VDC)

      • 83,043 hours

      • Temperature: 14° to 158°F (-10° to 70°C)
      • Humidity: 10 to 95% (non-condensing)

      • Dimensions (WxHxD): 1.19 x 4.28 x 3.36" (30.2 x 108.7 x 85.3mm)
      • Weight: 0.78 oz (22 g)

      • FCC Part 15A, Class B
      • CE Mark
      • EMC Directive 89/336/EEC
      • LVD Directive 73/23/EEC
