Patton CL1212E/EUI-2PK - Industrial High Speed HDMI Extender Kit RJ45 Line

ITEM #: CL1212E-EUI-2PK MFG #: CL1212E/EUI-2PK

  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
free ship

Our Price:

$905.52

Availability: Extended Lead Time. Email, Chat or Call Us for more details.
iAvailability Description Popup


    CL1212E/EUI-2PK - Overview

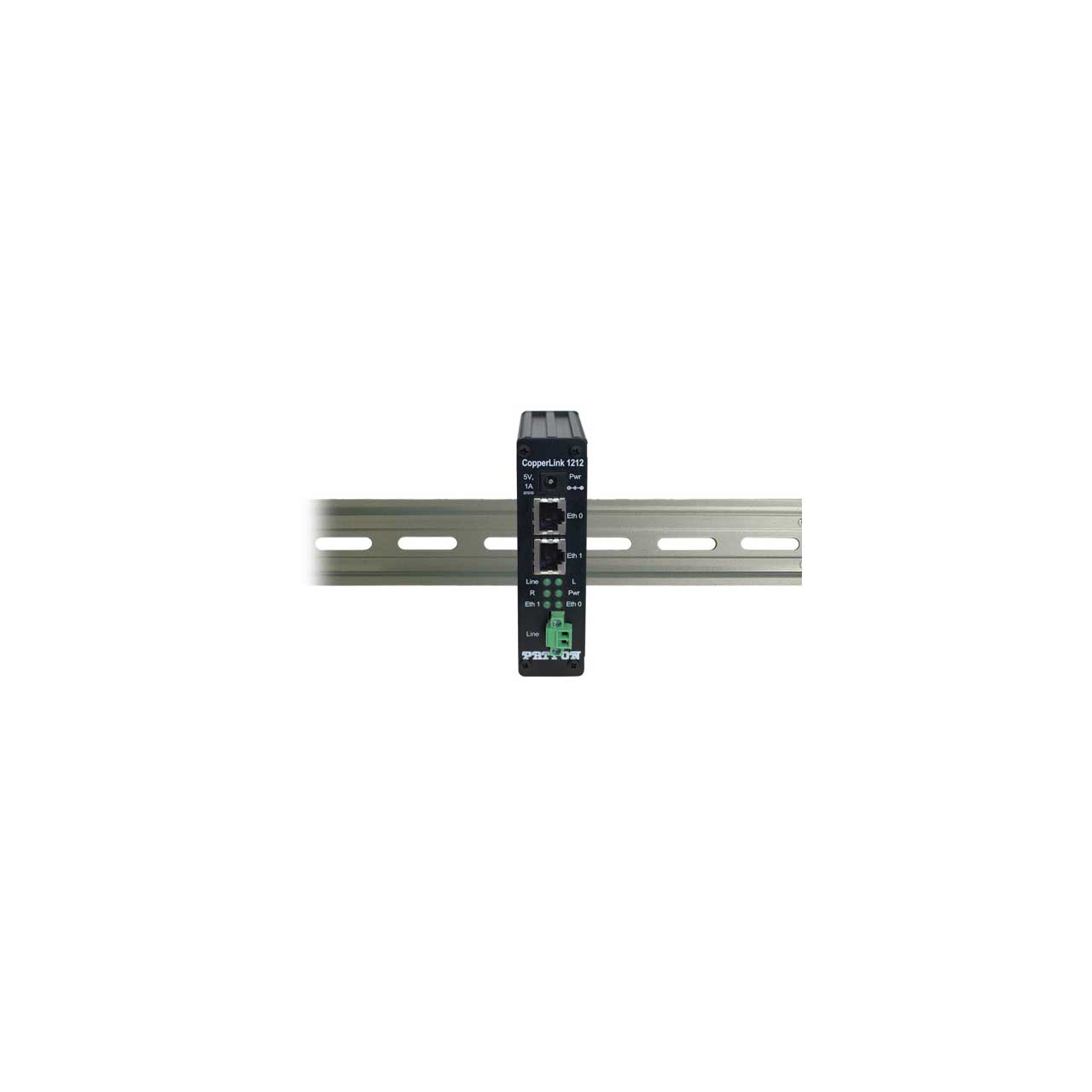

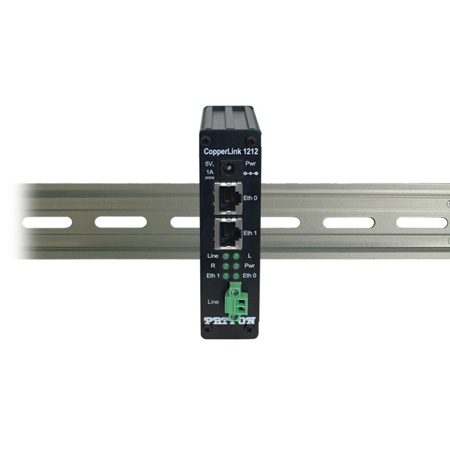

    Patton CL1212E/EUI-2PK is an Industrial High Speed Extender Kit RJ45 Line.

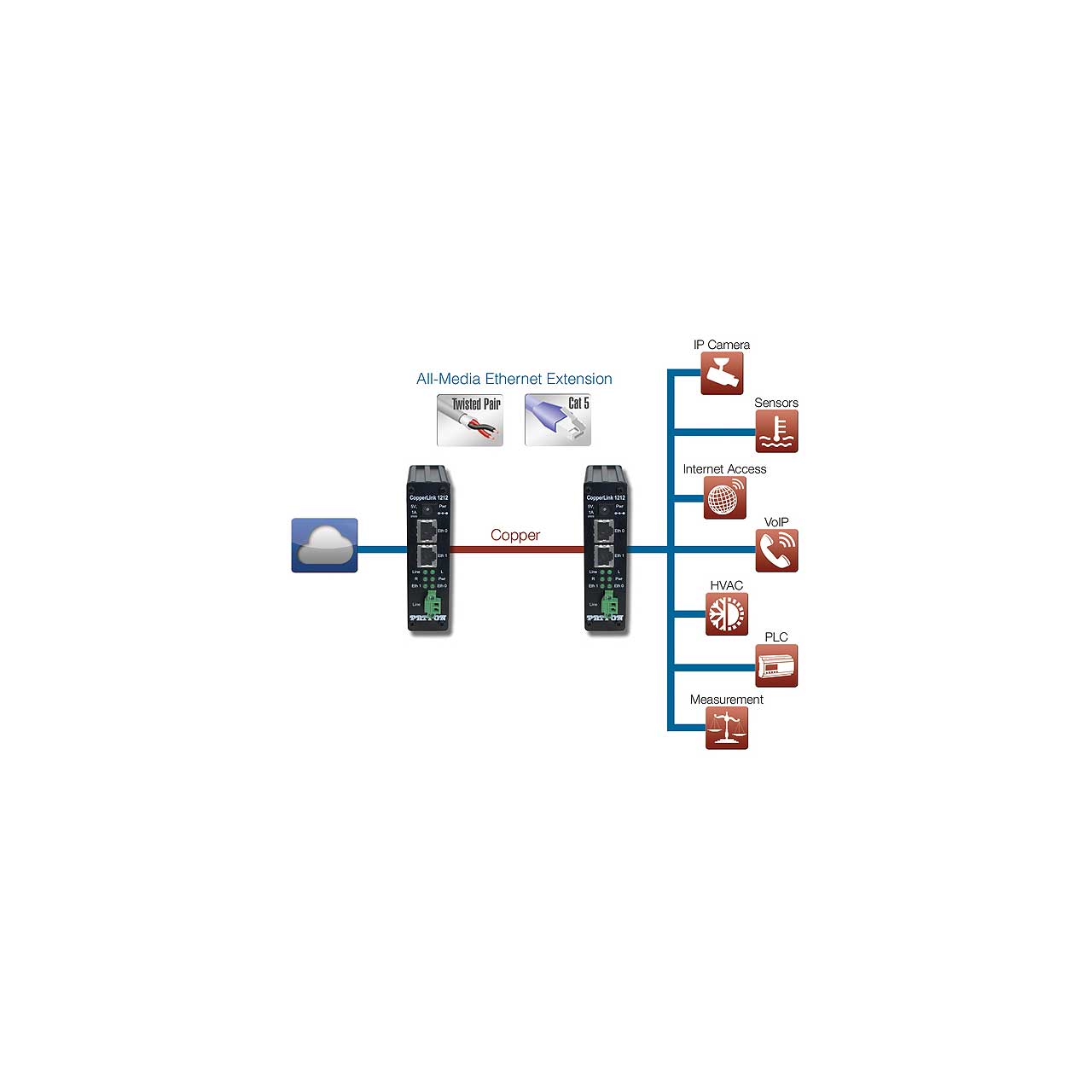

    Combining data flows from up to four network-enabled devices onto a single twisted pair or coax cable, the Model 1212E can deliver IP traffic up to 1.8 miles (3 km) away—well beyond the standard 328-foot (100-meter) Ethernet distance limitation.

    With achievable line rates up to 168 Mbps, the CopperLink 1212E eliminates the bandwidth constraints commonly experienced with other copper-based transmission technologies. The Model 1212E is engineered to re-use existing infrastructure previously employed in legacy applications including alarm circuits, E1/T1 circuits, RS-232, RS-422, RS-485, CCTV and CATV. Many newer cabling standards are also supported, including Cat 5e, Cat 6 and Cat 7.

    A built-in 2-port Ethernet switch makes the CopperLink Model 1212E ideal for delivering simultaneous connectivity to more than one IP enabled device such as a laptop, a motion sensor, or even a few high resolution IP video cameras—all over a single twisted-pair!

    A single-port version, the CopperLink Model CL1211E (available by special order) is ideal for applications requiring the enhanced security of a single Ethernet port.

    • Features:

      • Ethernet Extension: Extend 10/100Base-TX Ethernet well beyond its 328-foot (100-meter) limitation over a single unshielded twisted pair (UTP), Cat 5e/6/7 cable.
      • Operates Over Twisted Pair: Realize fiber-optic speeds without the expense—and hassle—of installing new cables or line-of-sight wireless circuits.
      • Plug and Play: Set these units up straight out of the box. No configuration is required. Auto-sensing 10/100 Ethernet ports support full or half duplex operation.
      • Multiple Line Rates Supported: Switch-selectable rate mode options optimize rate and reach for the noise environment, wire gauge/type and length.
      • Transparent LAN Bridging: Bypass network configuration requirements by transparently passing all higher layer protocols—including 802.1Q VLAN frames (tagged and untagged).
      • Made in the USA: This Patton equipment is designed by Patton engineers and built in our Gaithersburg, Maryland facility. Patton's American-made manufacturing process delivers high-quality networking solutions with reliability you can trust.

    • Specifications:

      • CopperLink Line Interface
      • RJ-45 (pin 4 = ring; pin 5 = tip)
      • BNC 75-ohm coax
      • Terminal block, 2 position

        CopperLink Line Modulation
      • DMT (Discrete Multi-Tone)

        Ethernet Interface (x2)
      • 8-position, shielded RJ-45. Auto-sensing 10/100Base-TX with half or full duplex operation.
      • Model 1211E has one 10/100Base-TX port.

        Protocol
      • Transparent to high layer protocols: supports 802.1Q VLAN tagged or untagged frames.
      • Transparent to IP Video schemes: fully transparent to such compression schemes as MPEG-4, H.264, and MJPEG.

        Target SNR Modes
      • 6 dB and 9 dB

        Management
      • 8-position DIP switch

        Monitoring
      • 6 LEDs display status for the following:
        Pwr (Power)
        Line
        Eth (Ethernet) 0 & Eth 1
        R (Remote)
        L (Local)

        Power Supply
      • External AC: 100–240 VAC

        Compliance
      • FCC Part 15A, CE Mark, EMC Directive 89/336/EEC, Low-Voltage Directive 73/23/EEC

        Environment
      • Temperature: -4° to 158°F (-20° to 70°C)
      • Humidity: 5 to 85% (condensing)
      • Dimensions (WxHxD): 1.18 x 4.28 x 3.36" (30.2 x 108.7 x 85.3mm)
      • Weight: 1.37Lbs (623.7g)
      • MTBF: 77,000 hours

    • GTIN:

      0847840010512
