Clear-Com HKB-2X HelixNet 4-Channel 2 Display Digital Intercom Speaker Station with Shift Page

ITEM #: CLCM-HKB-2X MFG #: HKB-2X

  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with Minimum Order Banner

Our Price:

$1,695.00

Availability: In Stock
iAvailability Description Popup


    HKB-2X - Overview

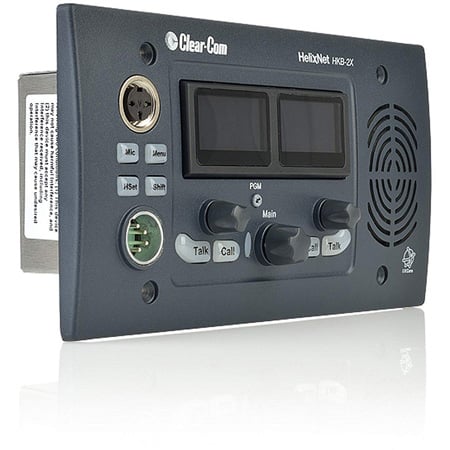

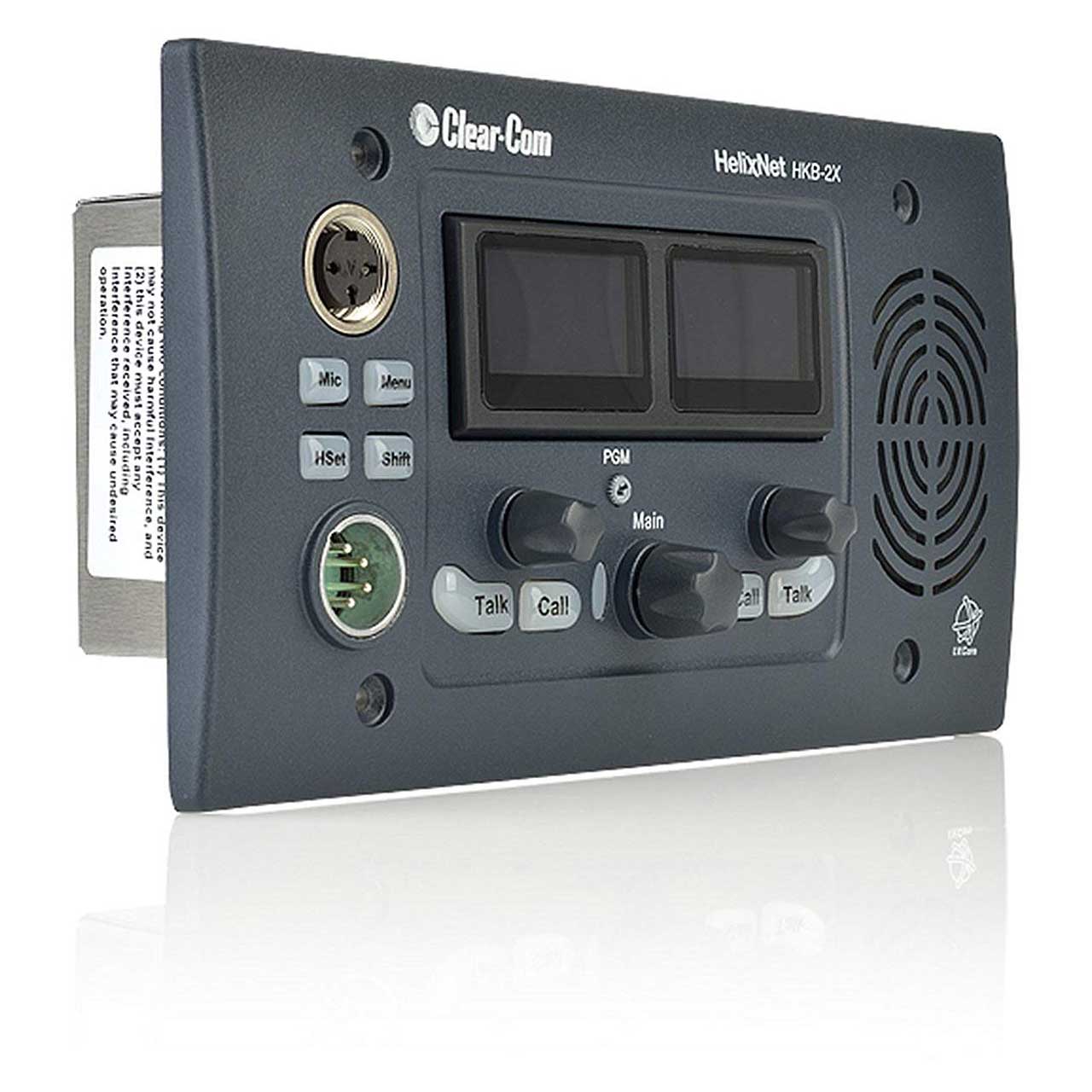

    The ClearCom HelixNet HKB-2X intercom speaker station is a 4-gang flush-mountable user station with four channels over two displays with shift pages designed to be used with the HMS-4X main station. HelixNet™ is a fully networked partyline intercom, supporting up to 24 channels and independent Program Audio over XLR, LAN or WAN. This innovative front panel user station provides two keysets assignable to any intercom channel to each of the two pages, which the user can toggle between for a total of four channels. The station's displays can be swiveled for optimal viewing angle. The user station is provided with a headset connection, gooseneck mic connector, loudspeaker and Program Audio level controls. HKB-2X can be mounted in a standard 4-gang electrical enclosure or the optional S-MOUNT multipurpose enclosure for portable and desktop applications.

    HKB-2X can be added to a HelixNet system without central configuration or interruption. Front panel keysets form unique waterfall menu allowing tactile device configuration and channel assignments. Roles can be created and applied to one or multiple HKB-2X remotely or locally. Roles can be edited locally or centrally managed from the Core Configuration Manager™ (CCM). HKB-2X connects to HMS-4X main station over Powerline or network to HMS-4X with HLI-ET2 Ethernet module. Power can be supplied to the HKB-2X over the Powerline, locally with a supplied power supply with either connectivity method or PoE when connected over Ethernet. Powerline and local DC inputs connections are on Terminal Block Connectors for ease of installation.

    • Features:

      • Speaker Station
      • Easy to use front panel with OLED displays
      • Headset or hands free support with speaker and mic
      • 2 Keysets freely assignable to system channels
      • Shift page for 4-channel operation
      • Program Audio level control
      • Display swivels allowing optimal viewing angles

        Connectivity
      • Powerline terminal plug connection
      • Ethernet Network port with PoE

        Mechanical
      • 4-gang for flush mounting
      • Optional S-MOUNT for desktop use

        The HelixNet System
      • Networked Intercom System
      • Flexible cabling
      • 12 partyline channels; expandable to 24 channels via optional license
      • Program Audio distribution with independent level controls

        Effortless Management
      • Easy to use CCM browser configuration
      • Fast front panel control and configuration
      • Plug-and-go with auto discovery
      • Central upgrades from main station

    • Specifications:

      • Channels
      • System provides 12 or 24 intercom channels. Four channels can be assigned to station keysets. System Program Audio can be associated with any channel with independent endpoint level control.
      • Connectors
      • Powerline: Powerline, Terminal Block 5 pole, 5mm pitch
      • Ethernet/PoE: RJ45
      • Headset: 4-pin XLR-M or 7-pin XLR-M with (2) PTT GPI (-X7)
      • Gooseneck Mic: 3-pin Tuchel
      • Power Connector: Terminal Block 2 Pole, 5mm
      • Microphone Pre-amplifier
      • Headset Mic Impedance: 200Ω(Dynamic)
      • Headset Mic Voltage: 1.7V (Electret selectable)
      • Limiter: +23dB
      • Route to four-wire output at 0dBu out:
      • Mic Gain: 60dB (Dynamic), 45dB (Electret)
      • Frequency Response: 300Hz - 10 kHz ± 3dB, contoured for intelligibility
      • Distortion: <0.1% THD @ 1kHz
      • Noise: <-65dBu
      • Headphone Limiter: 0dB (selectable)
      • Headphone Amplifier
      • Load Impedance: >32Ω
      • Output Level: +12dBu before clipping
      • Sidetone: -12dB (selectable)
      • Route from a four-wire input at 0dBu in:
      • Max Gain: 0dB
      • Frequency Response: 40Hz - 10kHz ±3dB
      • Distortion: <0.1% THD @ 1kHz
      • Noise: -65dBu
      • Headphone Limiter: 0dB (selectable)
      • Loudspeaker Amplifier
      • Load Impedance: 8Ω
      • Output Level: +18dBu before clipping
      • Route from a 4-wire input at 0dBu in:
      • Max Gain: 18dB
      • Frequency Response: 200Hz - 10kHz ±3dB
      • Distortion: <0.1% THD @ 1kHz
      • Noise: <-50dBu
      • Logic Inputs - PTT/GPI (-X7 only)
      • Assignable to talk, call, mic and headset keys
      • Input: 2
      • Style: Powered input, close contact to ground
      • Detection Voltage (Min): 3V
      • Input Voltage (Max): 5V
      • Output Voltage: 5V
      • Output Current (Max): 1mA
      • Device Power
      • Voltage: 48V DC
      • Current (Max): 0.3A
      • Power (Max): 14.4W
      • BTU (Max): 49BTU/hr
      • Input Power Connector: Terminal Block 2 Pole, 5mm
      • This unit can be powered via:
      • Powerline:
      • Input Voltage: ±29.5V DC
      • Input Current (Speaker Off): 0.3A
      • Input Current (Max): 0.5A
      • Powerline Utilization:
      • HKB (Local Power) = 1 beltpack
      • HKB (Speaker Off) = 2 beltpacks
      • HKB (Speaker On) = 3 beltpacks
      • Note the maximum Powerline capacity of the HMS-4X.
      • PoE - Power over Ethernet
      • IEEE 802.3af-2003 - Class 0
      • PSE: 15.4W DC max @ Power Source Req.
      • PD: 12.95W DC max @ Powered Device Draw
      • Environmental
      • 32§ - +113§F (0 - +45§C)
      • 90% relative humidity
      • Network Specifications (Version 4.2+)
      • Network Protocols
      • Ethernet IPv4 - Unicast Audio and Control
      • mDNS - Multicast Device Discovery
      • Layer 3-Routable with mDNS function limitations
      • HTTP-Management
      • RTP-Audio Transport
      • WavPack - Audio Codec
      • Network Ports
      • Unicast:
      • Port 80 TCP - System Management
      • Port 6001 TCP - System Management
      • Port 6001 UDP - Audio Streams
      • Multicast:
      • Port 5353 UDP - mDNS, Names, Discovery, Linking
      • Optional for device names and linking
      • Network Parameters
      • Endpoint Resource Use: 1
      • Bandwidth:
      • 300 (max) kbps from each HKB to HMS
      • 1200 (max) kbps from HMS to HKB
      • Network Jitter Tolerance: <= 128ms jitter buffer per audio stream receiver automatically adjusted to network performance
      • QoS tags: DSCP=41, Assured Forwarding (AF)
      • Link-Local Default IP address range: 169.254.0.0/16
      • System reserved IP range: 10.0.0.0/8 for endpoints
      • Recommended Ethernet Switches
      • Managed Ethernet Switch - Layer 3
      • 100/1000 Base-T ports for endpoints
      • 1000 Base IP Trunks between switches
      • QoS configuration
      • Energy Efficient Ethernet bypass option and GMP Snooping bypass option

    • GTIN:

      0097652108703
