    6RMD50125OM3R - Overview

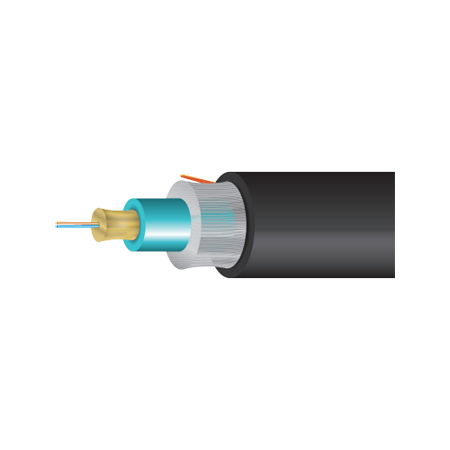

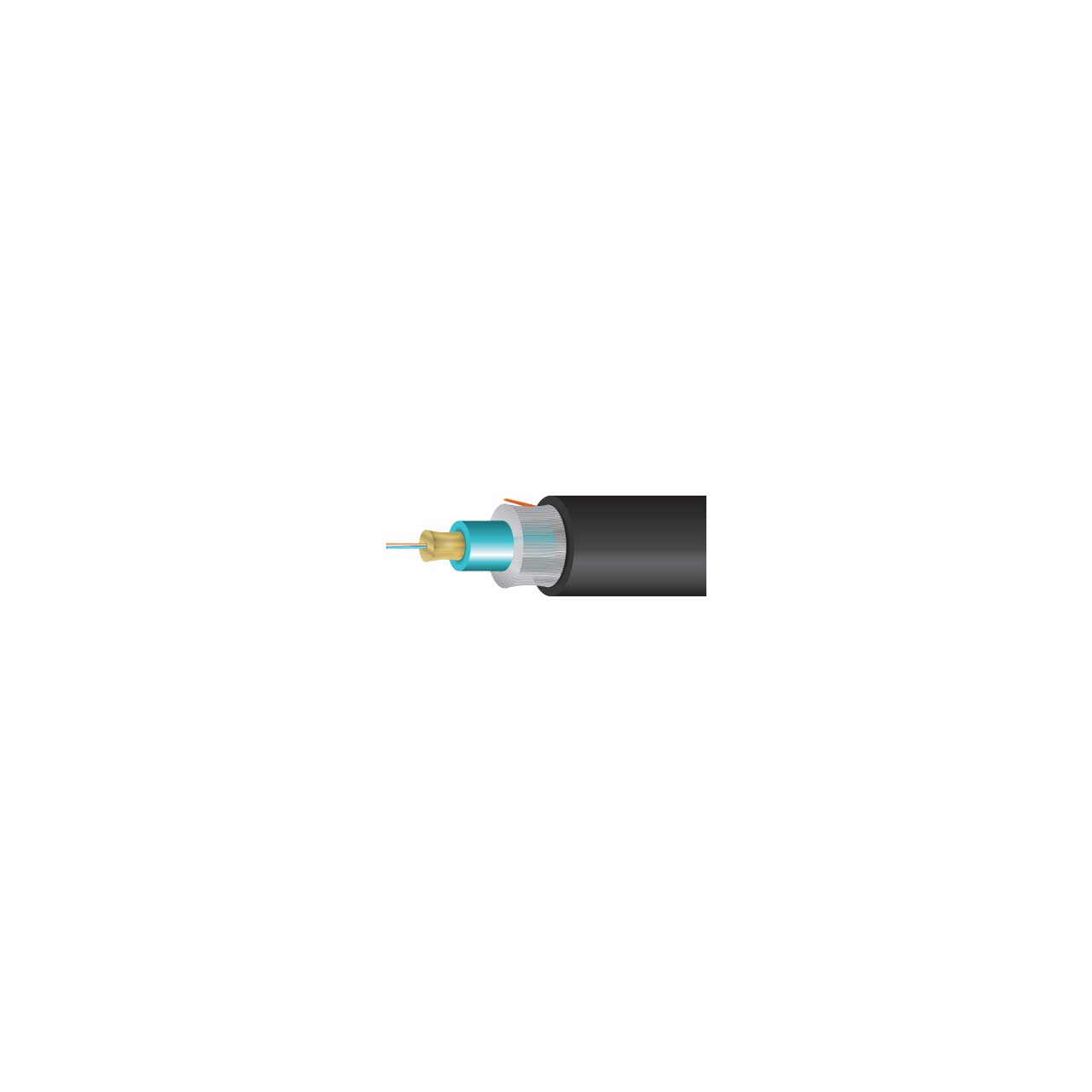

    Cleerline 6RMD50125OM3R SSF™ 6 strand fiber Rugged Micro Distribution cable is composed of a 3.0 mm distribution style SSF™ cable subunit within an overall Riser rated PVC jacket.

    SSF™ Rugged Micro Distribution is ideal for installation outdoors in ducts or indoors in riser spaces and tray installations. This cable incorporates an additional layer of fiberglass yarns for strength. SSF™ Rugged Micro Distribution is also rodent resistant.

    Cleerline SSF™ Micro Distribution Multimode is fully compatible with all common connector systems for standard 50/125 multimode fiber.

    The included SSF™ fiber provides extreme durability and strength.

    Installation in ducts outdoors
    Riser space and tray installations
    ETL listed type OFNR
    ANSI/TIA-568-C.3 compliant

    • Features:

      • Dielectric construction
      • Rodent resistant
      • Compatible with common connector systems for 50/125 multimode or 9/125 single mode
      • Installation in ducts outdoors
    • Specifications:

      • Fiber
      • Fiber Count: 2-12 OM3/OS2, 6-12 OM4, 24 OS2
      • Fiber Type: OM3, OM4, or OS2
      • Fiber Coating: Soft Peel
      • Color Coding: Per TIA

      • Jacket Type: Riser
      • Outer Diameter: 6.1 mm
      • Jacket Color: Black
      • Jacket Markings: Sequential Per Foot
      • Strength Member: Aramid yarns
      • Subunits: 3.0 mm, PVC + UV, OM3 = Aqua, OM4 = Violet, OS2 = Yellow

        Physical Data
      • Storage Temperature: -40° to 158°F (-40° to 70°C)
      • Operating Temperature: -40° to 158°F (-40° to 70°C)
      • Max Tensile Load (Installation): 1000 N (225 lbf)
      • Max Tensile Load (Long Term): 500 N (112 lbf)
      • Rating: FT4 - Riser
