Cleerline D29125SMOSP SSF Indoor/Outdoor Fiber Optic Duplex Cable - Singlemode - Plenum - 1000 Foot

ITEM #: CLT-D29125SMP-1K MFG #: D29125SMOSP

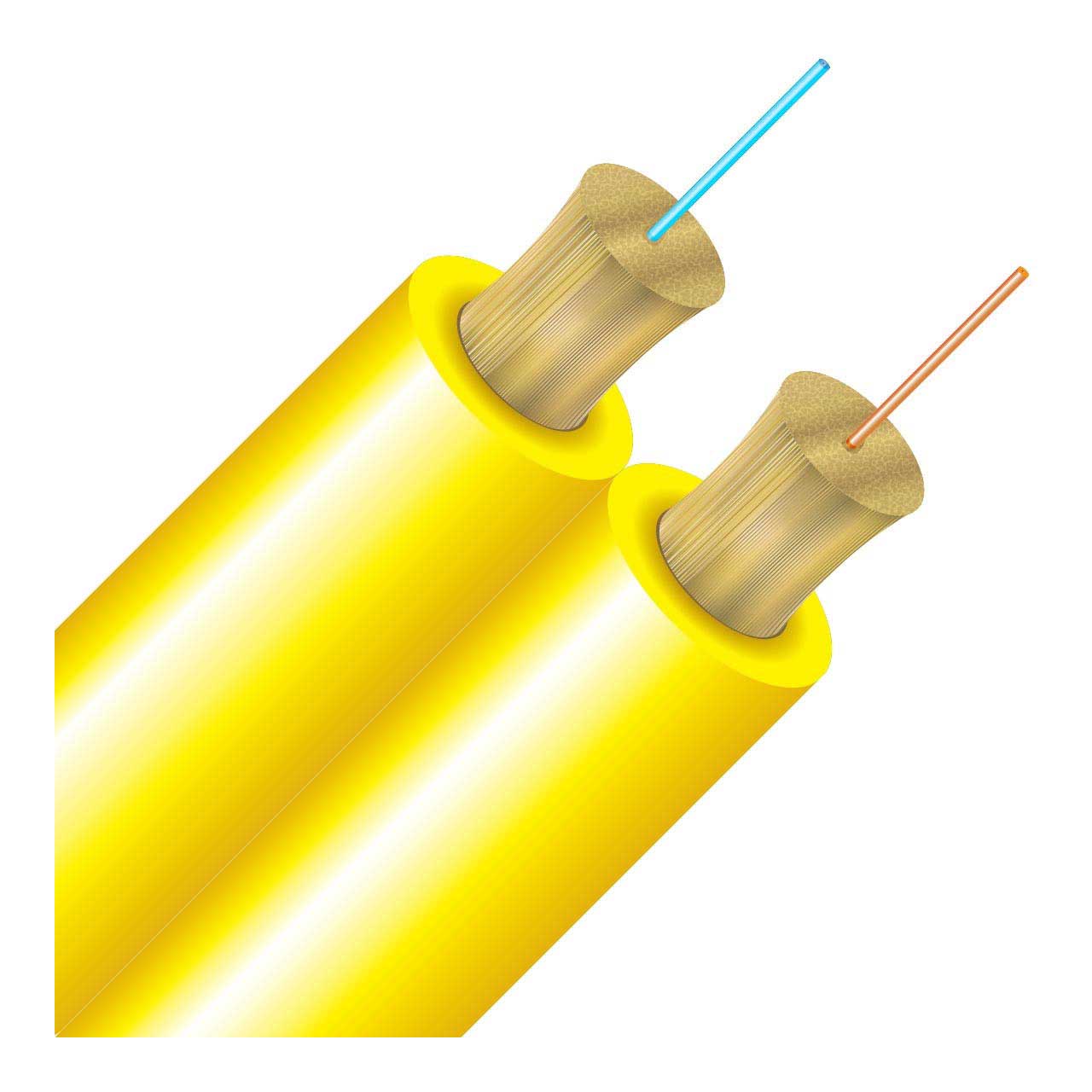

Primary Image

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the CLT-D29125SMP-1K

D29125SMOSP - Overview

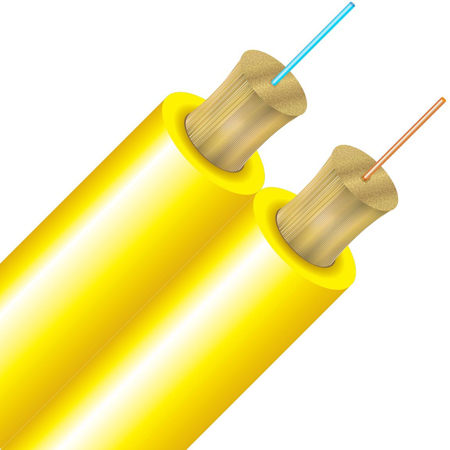

Cleerline D29125SMOSP SSF™ fiber Duplex cable is composed of two strands of OS2 cable in a zipcord style with an overall 3.0mm Riser, Plenum, or CPR-rated LSZH jacket.

Cleerline SSF™ Duplex cable is stronger, safer, and faster to terminate than typical fibers. Increased bend insensitivity and tensile strength is achieved via the integral polymeric coating at glass level. Cleerline SSF™ fibers are compatible with all common connector systems on the market for standard 50/125 multimode and 9/125 Single mode fibers.

Applications:
Inter-/Intra-building voice or data communication
Installation in ducts or underground conduit
Fiber-to-the-desk (FTTD) / Fiber-to-the-Home (FTTH)
ETL listed type OFNP for installation in ducts, plenums and other spaces used as environmental air returns when installed in accordance with NEC article 770-51 (a) and 770-53(a)

  • Features:

    • High mechanical strength and superior fatigue & durability
    • Integral coating eliminates stripping, provides glass protection
    • Up to 10,000x the bend longevity of traditional fibers
    • Increased safety factor due to the incredible bend insensitivity
    • Glass fiber remains protected at all times from the elements
    • Simplified termination process designed for ease of use
    • Ultra low Attenuation loss on tight bend radius
    • Exclusive 250um Soft peel jacket identifier


  • Specifications:

    • Fiber
    • Fiber Count: Duplex = 2
    • Fiber Type: 9/125 Singlemode Dry w/super-absorbent polymer
    • Coating: 250um "Soft Peel" coating (1 = Blue, 2 = Orange)
    • Color: Color Coding per TIA/EIA 568C

      Jacket
    • Type: Riser Rated PVC / Plenum Rated PVC + UV I/O / CPR Rated LSZH
    • Diameter: 3.0mm unit
    • Jacket Color: Yellow jacket = Singlemode fiber OS2
    • Markings: Sequential footage markings
    • Strength Member: Kevlar (Plenum/LSZH + water blocking yarns)

      Physical Data
    • Storage Temperature Range: -40° to 185°F (-40° to 85°C)
    • Operating Temperature Range: -4° to 167°F (-20° to 75°C)
    • Max Tensile Load for Installation: 1000(225) N (lbf)
    • Max Tensile Load Long term: 500(112) N (lbf)
    • Min. Bend Radius, Unloaded: 1 x OD (1 x 3.0mm)
    • Cable Outside Diameter, Nominal: 3.0mm x2 (6.2mm)
    • Cable Package: 1000ft/304.8m Reel*
    • Rating: FT4-Riser / FT6-Plenum / CPR LSZH
    • Crush Resistance (TIA/EIA 455-41A): 100 kgf /mm
    • Impact Resistance (TIA/EIA 455-25B): 1500 impact cycles
    • Flexing @ 90 degrees (TIA/EIA 455-104A): 2000 flexing cycles

      Environmental Characteristics
    • Temperature Dependence, 1310nm and 1550nm: ≤0.05dB/km
    • Induced Attenuation: -76° to 185°F (-60° to 85°C)
    • Watersoak Dependence, 1310nm and 1550nm: ≤0.05dB/km
    • Induced Attenuation at 68°F (20°C), for 30 days
    • Damp Heat Dependence, 1310nm and 1550nm: ≤0.05dB/km
    • Induced Attenuation at 185°F (85°C), 85% R.H., 30 days
    • Dry Heat Dependence, 1310nm and 1550nm: ≤0.05dB/km
    • Induced Attenuation at 185°F (85°C), 30 days

      Physical Characteristics
    • Core/Hybrid Cladding Concentricity Error: ≤0.5 µm
    • Hybrid Cladding Diameter: 125 ±0.7 µm
    • Hybrid Cladding NonCircularity Error: ≤ 1.0%
    • Soft Peel Jacket Identifier: 250 ±0.7 µm
    • Coating Strip Force: 100g
    • Fiber Curl: ≥2m
    • Proof Test: 100kpsi
    • Dynamic Fatigue: 73°F (23°C), 41% R.H. > 30nD
    • Bend Induced Attenuation, 1550nm: 1 turn around 10mm radius ≤ 0.3dB; 10 turns around 15mm radius mandrel: ≤ 0.03dB
    • Bend Induced Attenuation, 1625nm: 1 turn around 10mm radius: ≤ 1.0dB; 10 turns around 15mm radius mandrel: ≤ 0.2dB

      Optical Characteristics
    • Attenuation Coefficient: 1310nm ≤ 0.35dB/km; 1550nm ≤ 0.21dB/km
    • Mode Field Diameter: 1310nm 8.6 ± 0.4 µm; 1550nm 9.7 ± 0.5 µm
    • Cable Cut-off Wavelength: ≤ 1260nm
    • Zero Dispersion Wavelength: 1310nm - 1324nm
    • Zero Dispersion Slope: 0.092ps/nm² km

      Backscatter Characteristics
    • Attenuation Directional Uniformity: ≤0.03dB/km
    • Attenuation Uniformity: ≤0.05dB/km
    • Group Index of Refraction: 1310nm 1.467; 1550nm 1.468
