Imagine CMN-41-3GB cMon 3G / HD/ SD-SDI Compact Multi-format On-Screen Monitor
  • Imagine CMN-41-3GB cMon 3G / HD/ SD-SDI Compact Multi-format On-Screen Monitor
  • Imagine CMN-41-3GB cMon 3G / HD/ SD-SDI Compact Multi-format On-Screen Monitor
  • Imagine CMN-41-3GB cMon 3G / HD/ SD-SDI Compact Multi-format On-Screen Monitor
  • Imagine CMN-41-3GB cMon 3G / HD/ SD-SDI Compact Multi-format On-Screen Monitor
  • Imagine CMN-41-3GB cMon 3G / HD/ SD-SDI Compact Multi-format On-Screen Monitor


Imagine CMN-41-3GB cMon 3G / HD/ SD-SDI Compact Multi-format On-Screen Monitor

Manufacturer: Imagine Communications

Item #: CMN-41-3GB   •   MFG #: CMN-41-3GB



This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

800-522-2025Email





Item unavailable. Please select another option.

Items similar to the CMN-41-3GB

California Residents:
8pt-triangleWARNING:
Cancer and Reproductive Harm - www.P65Warnings.ca.gov

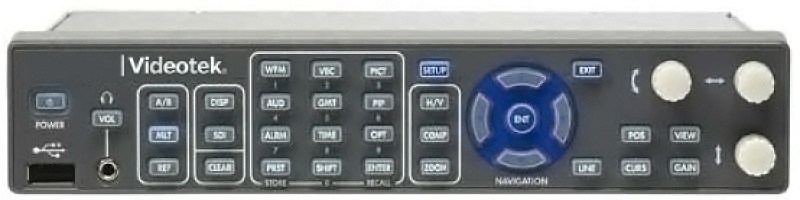

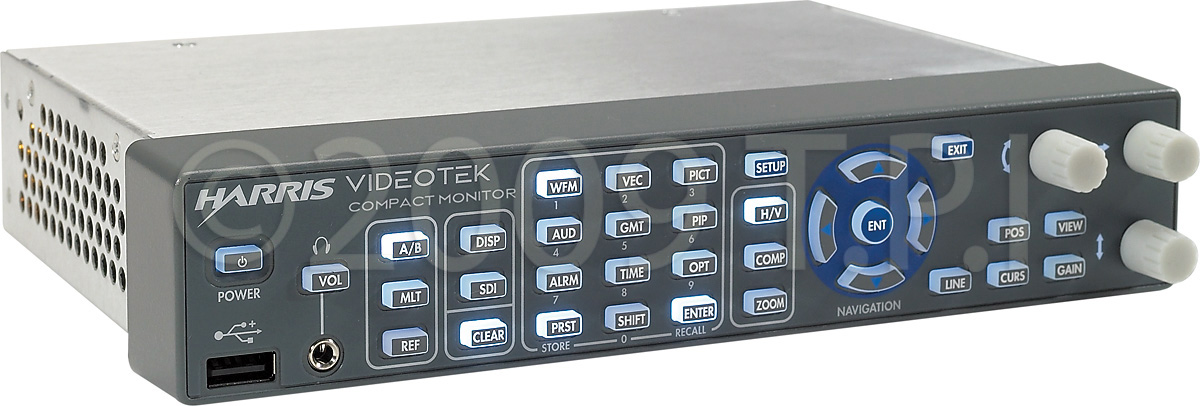

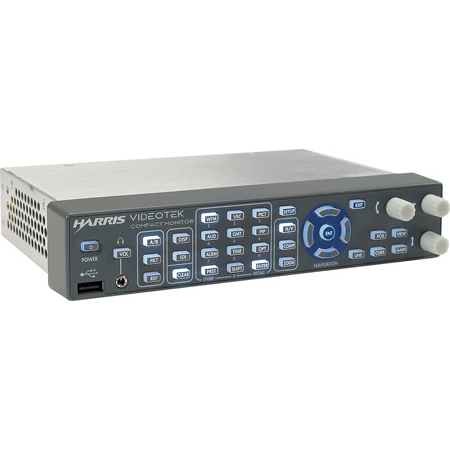

You'll be amazed by the new Compact Monitor Series - the smallest solution on the market for efficient video and audio signal monitoring. Two models are available: the CMN-41 multiformat on-screen monitor and the CMN-91 multiformat signal analyzer with integral LCD. Each model has two SDI inputs, with versions covering SD through 3 Gb/s and selectable waveform, vector, gamut, timing, and picture full-screen display. With Compact Monitors you can meter all 16 channels of embedded audio or the one AES input. You can also view the waveform of the composite or tri-level external reference to verify signal integrity and customize the MLT display with independent size and position of waveform, vector and picture. A standard 11-17 VDC power input and optional battery mount provide flexible powering for both fixed installations and field operation. Low power consumption allows the use of convection cooling for silent operation. Both the scope (CMN-91) and rasterizer (CMN-41) packages are extremely lightweight and are available as portable or "rackmountable" units. Each package provides a compact half-rack footprint less than seven inches deep, and the short mounting depth integrates easily with today's LCD monitors.


  • Features

    • Metering of all 16 channels of embedded audio
    • One AES audio input
    • Two active looping SDI inputs

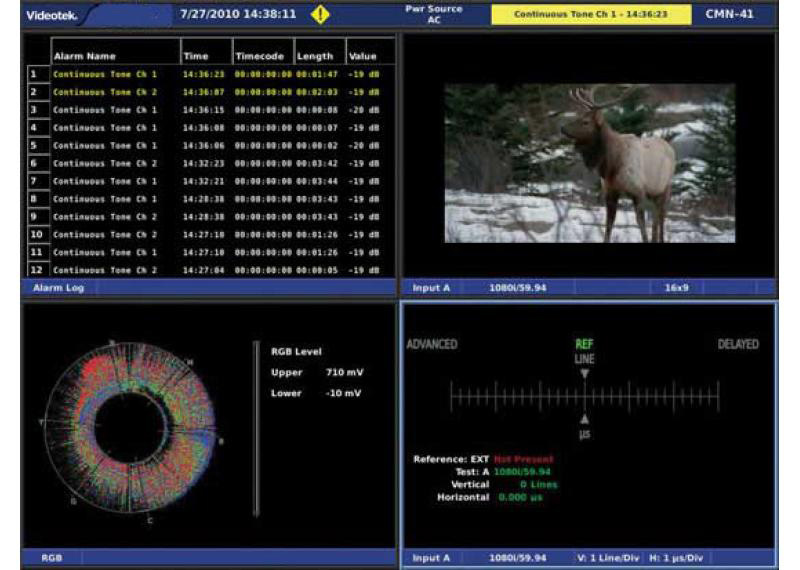

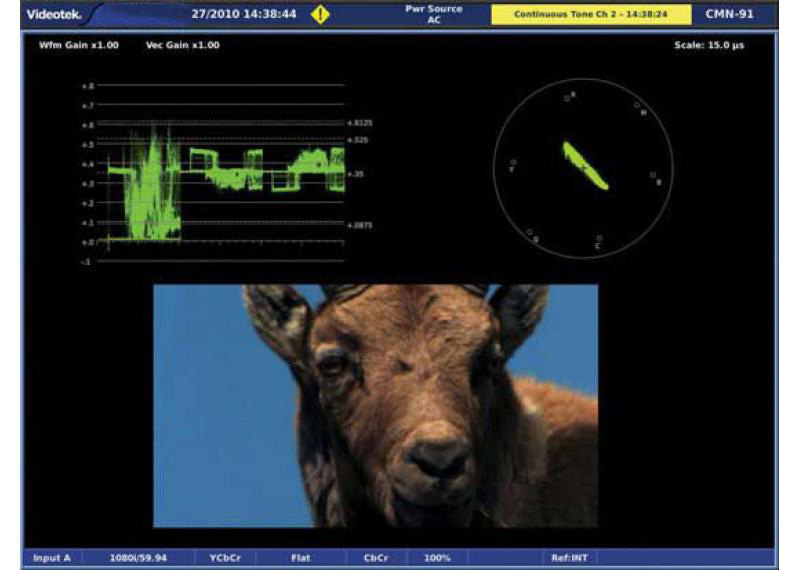

    • Quad display of audio, picture, waveform and vector
    • Thumbnail picture with adjustable size and position
    • 608, 708 closed-caption detect, alarm, display
    • Teletext detect, alarm, display
    • OP-47 HD subtitle display
    • Waveform display of external reference or LTC input
    • Overlay display with independent size and position of waveform, vector and picture
    • DVI-D external display output (CMN-41 and CMN-41L)
    • 720p/59.94 SDI display output (CMN-MV)
    • 99 presets
    • Standard four-pin XLR DC power input (AC adapter supplied)
    • Convection cooled, silent operation (no fan)
    • Front-panel headphone jack (except CMN-41L)
    • Front-panel USB port for save/recall of presets, screen captures and SDI captures (except CMN-41L)
    • Dual rackmount option available
    • Desktop case with tilt bail option available
