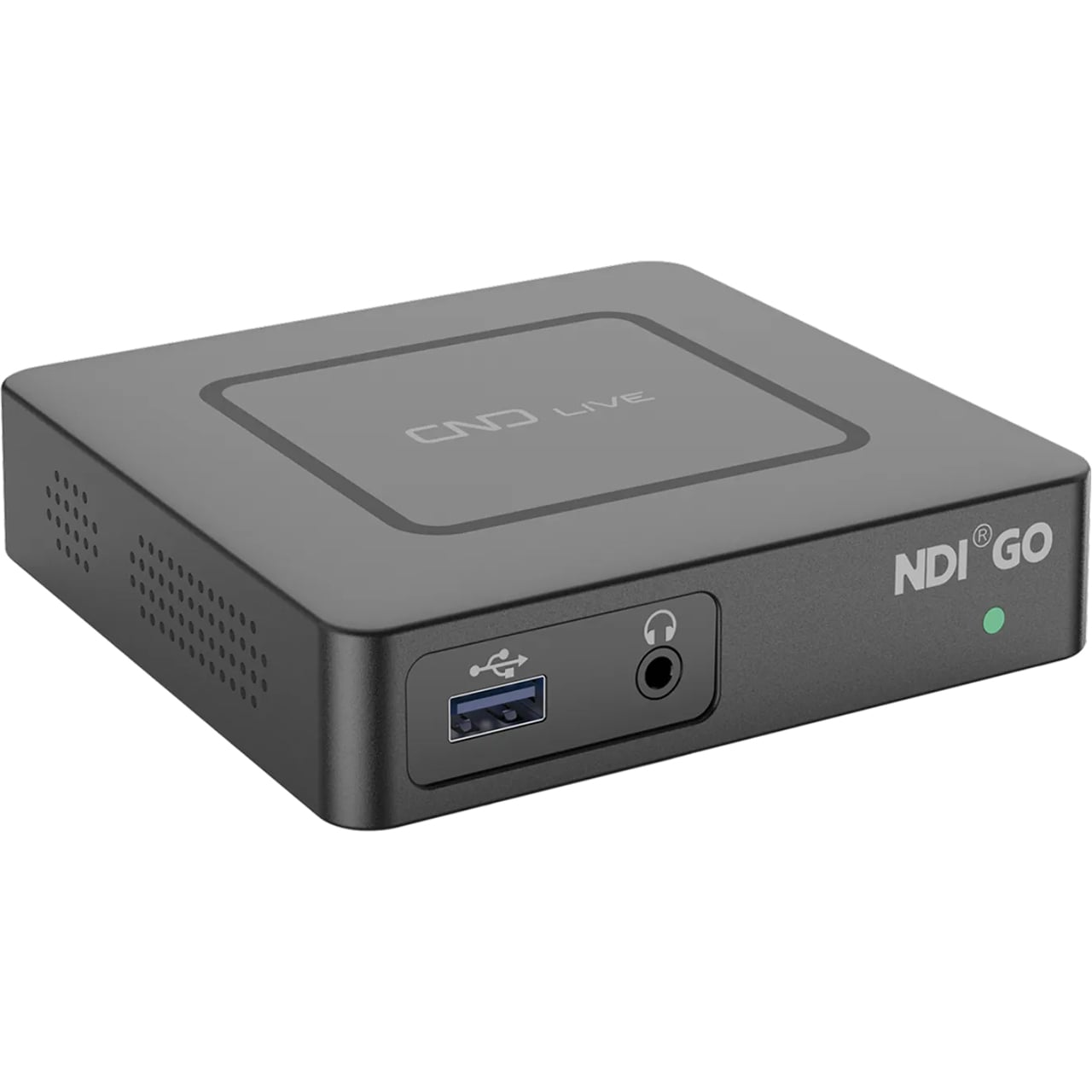

CNDLive NDI Go 4K HDMI NDI Decoder

NDI GO - Overview

Superior 4K Decoding Performance!

• Features:

  • Full Protocol Support: Supports standard decoding for NDI High Bandwidth, NDI|HX 2, and NDI|HX 3
  • 4K Ultra HD: Supports video output up to 3840x2160p at 60fps.
  • Versatility: Capable of handling various NDI decoding and playback needs efficiently
  • Ultra-Small Form Factor: Weighing only approximately 0.38lbs (173g), it is easy to install behind TVs or monitors
  • Ease of Use: Simple interface designed for stability and "plug-and-play" operation

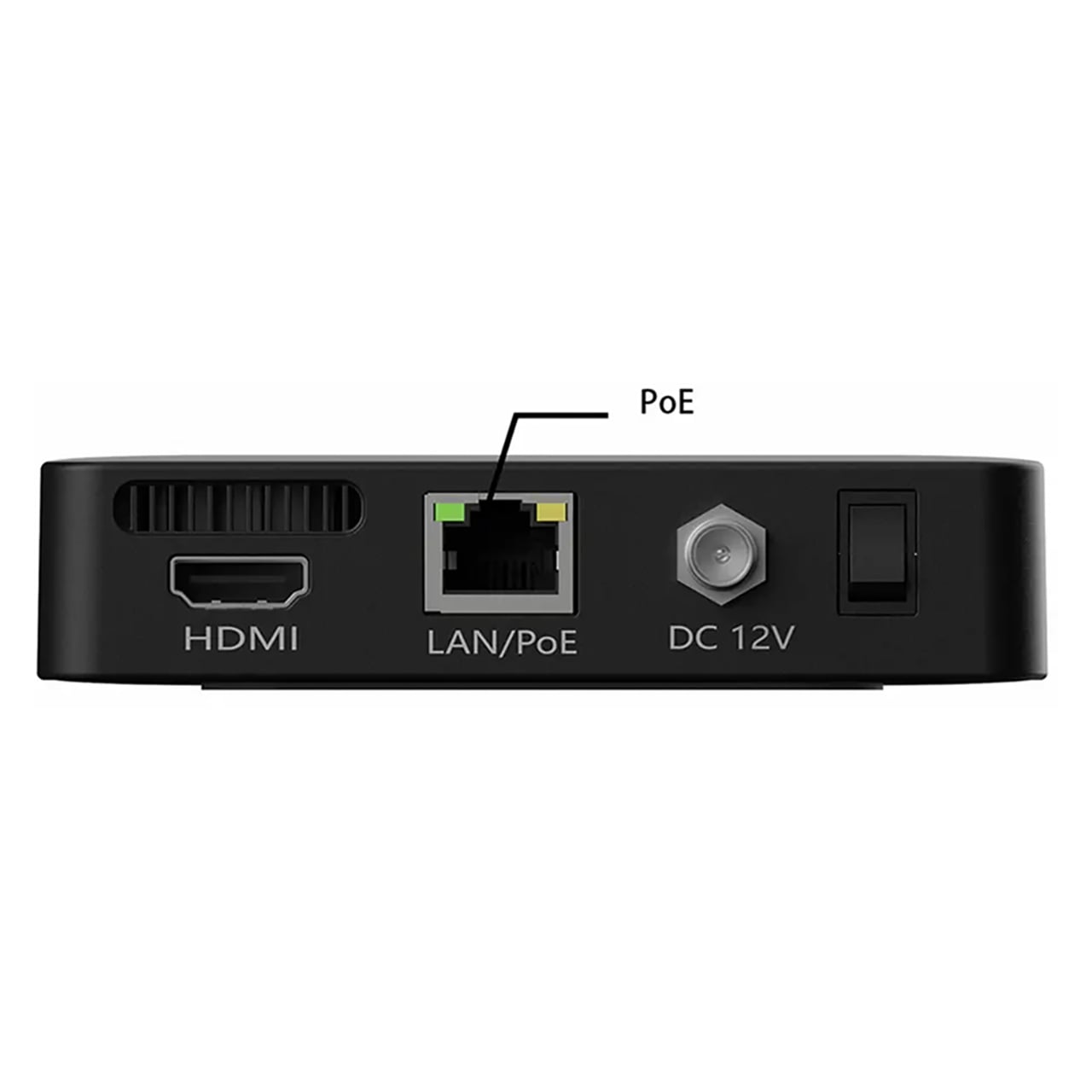

  • Connectivity: Equipped with a Gigabit Ethernet port that supports PoE (Power over Ethernet) for simplified cabling


• Specifications:

  • Output Interface: 1x HDMI 2.0
  • Decoding Capability:
    - NDI High Bandwidth
    - NDI HX 2/3 (Max support up to 4Kp60)
  • Supported Resolutions:
    - 4K: 3840x2160p (24/25/30/50/60)
    - HD: 1920x1080p (23.98/24/25/29.97/30/50/59.94/60)
    - Interlaced: 1920x1080i (50/59.94/60)
    - HD: 1280x720p (25/29.97/30/50/59.94/60)
    - SD: 720x576p50, 720x480p60
  • Network: 1x 1000Mbps Ethernet (Supports PoE)
  • USB Interface: 1x USB 3.0 (Type-A), used for voice intercom
  • Audio Output: 3.5mm Line Out
  • LED Indicators:
    - Green Solid: Decoding
    - Green Flashing: Waiting to decode
    - Red Solid: System resource usage too high
  • Power Supply: DC 12V 2A
  • Working Temperature: -4°F - 140°F (-20°C - 60°C)
  • Dimensions (LxWxH): 3.93" x 3.93" x .98" (100mm x 100mm x 25mm)
  • Weight: 0.38lbs (173g)


• Item Includes:

  • 1x NDI Go HDMI Decoder
  • 1x Warranty Card
  • 1x Power Adapter
  • 1x Quick Start Guide
  • 1x Certificate of Conformity
