    CVM-AX3 - Overview

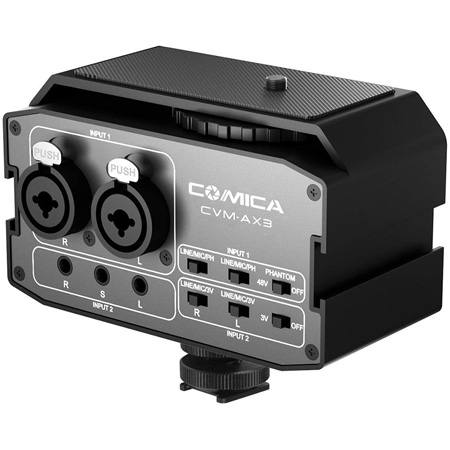

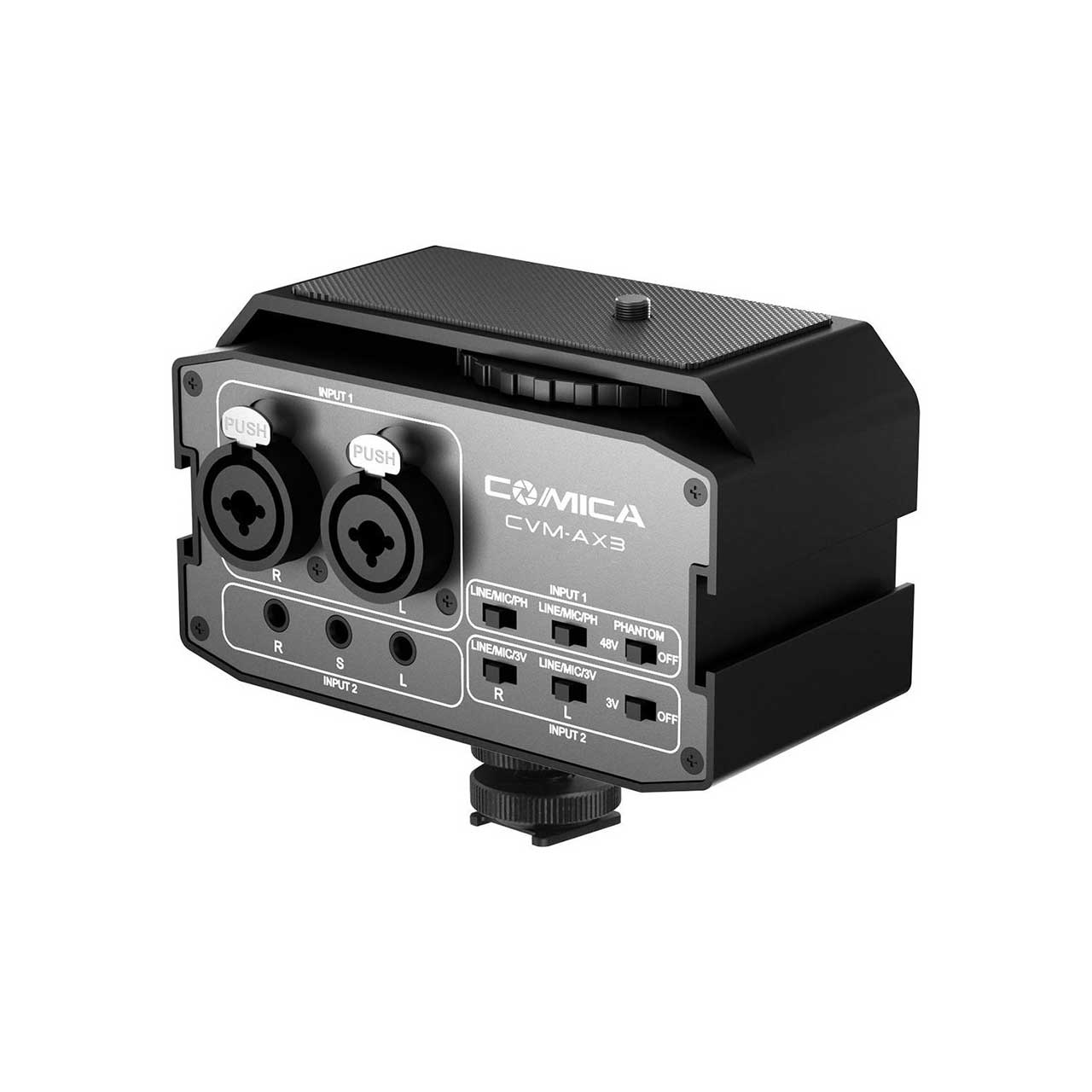

    The Comica CVM-AX3 is a dual XLR/3.5mm/6.35mm Audio Mixer for shooting videos with DSLRs and camcorders. It is designed to support dynamic & passive microphones, real-time monitoring, & dual gain-control knobs. It provides a compact audio mixing solution.

    Battery Life

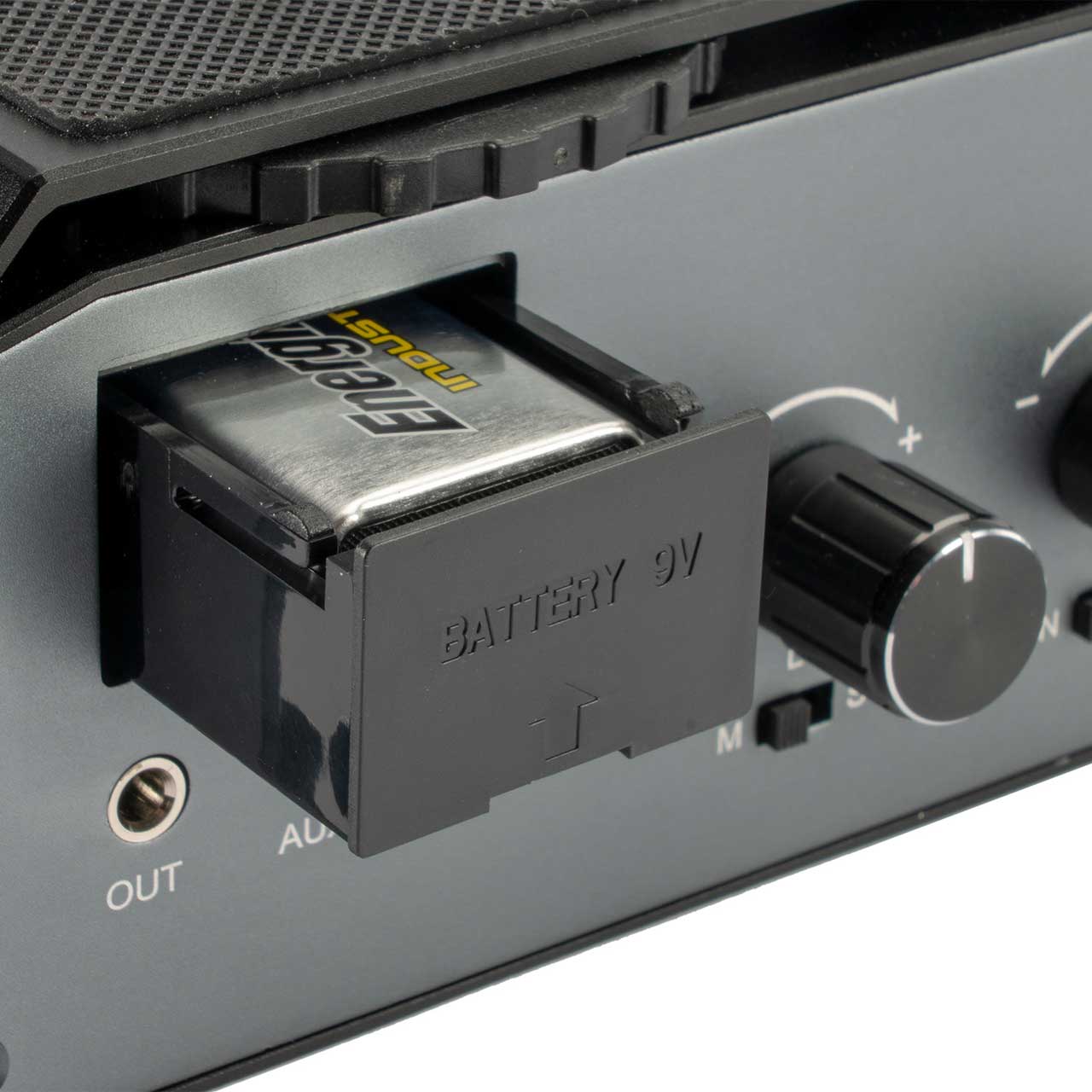

    The Comica CVM-AX3 battery supports 48V Phantom power with a working time of up to 6 hours. When the 48V Phantom power is off, the working time of a 9V battery is up to 40 hours.

    Dual Gain-Control Knobs

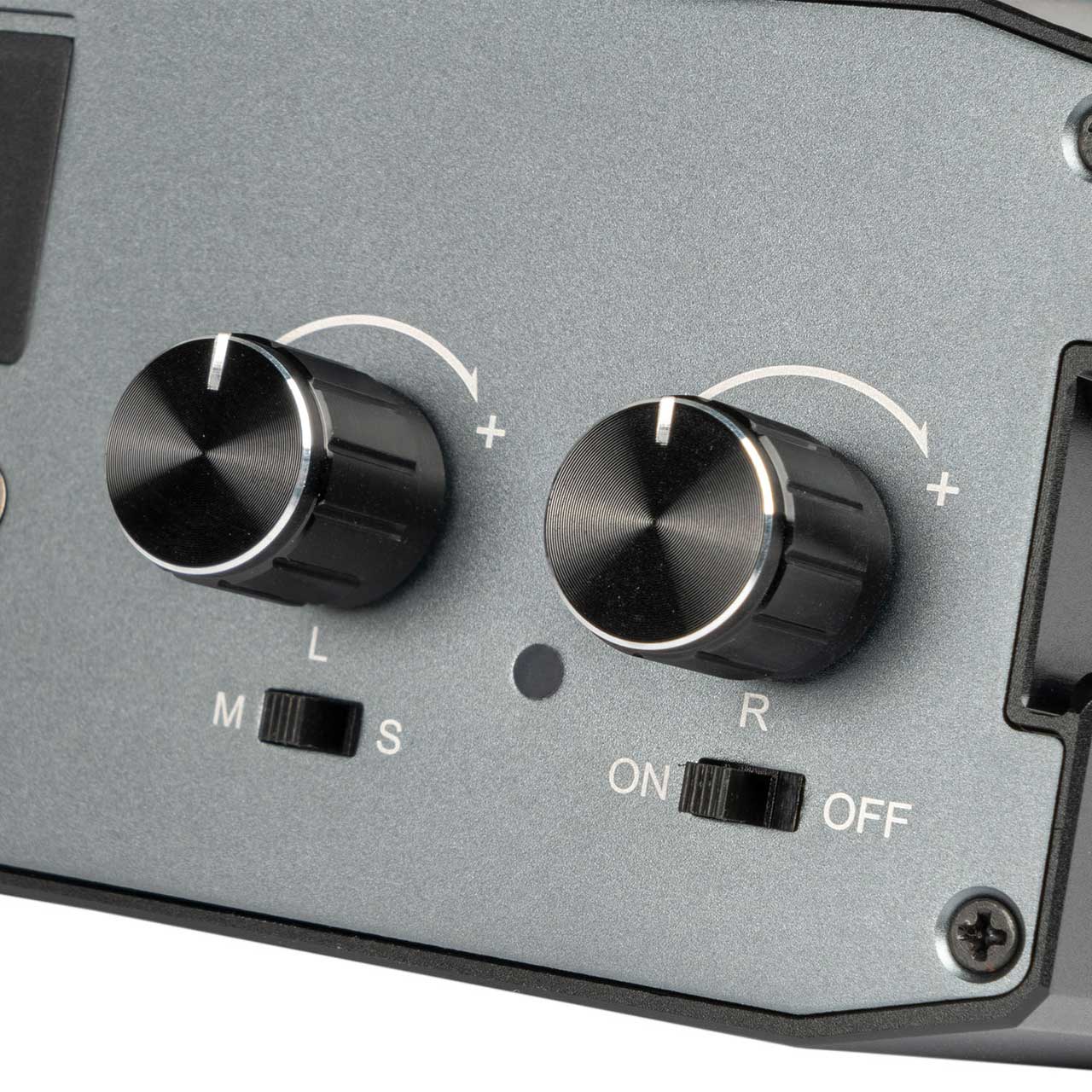

    The Comica AX3 allows independent gain control for each audio channel by simply adjusting the knobs to the desired level.

    Dual XLR Head

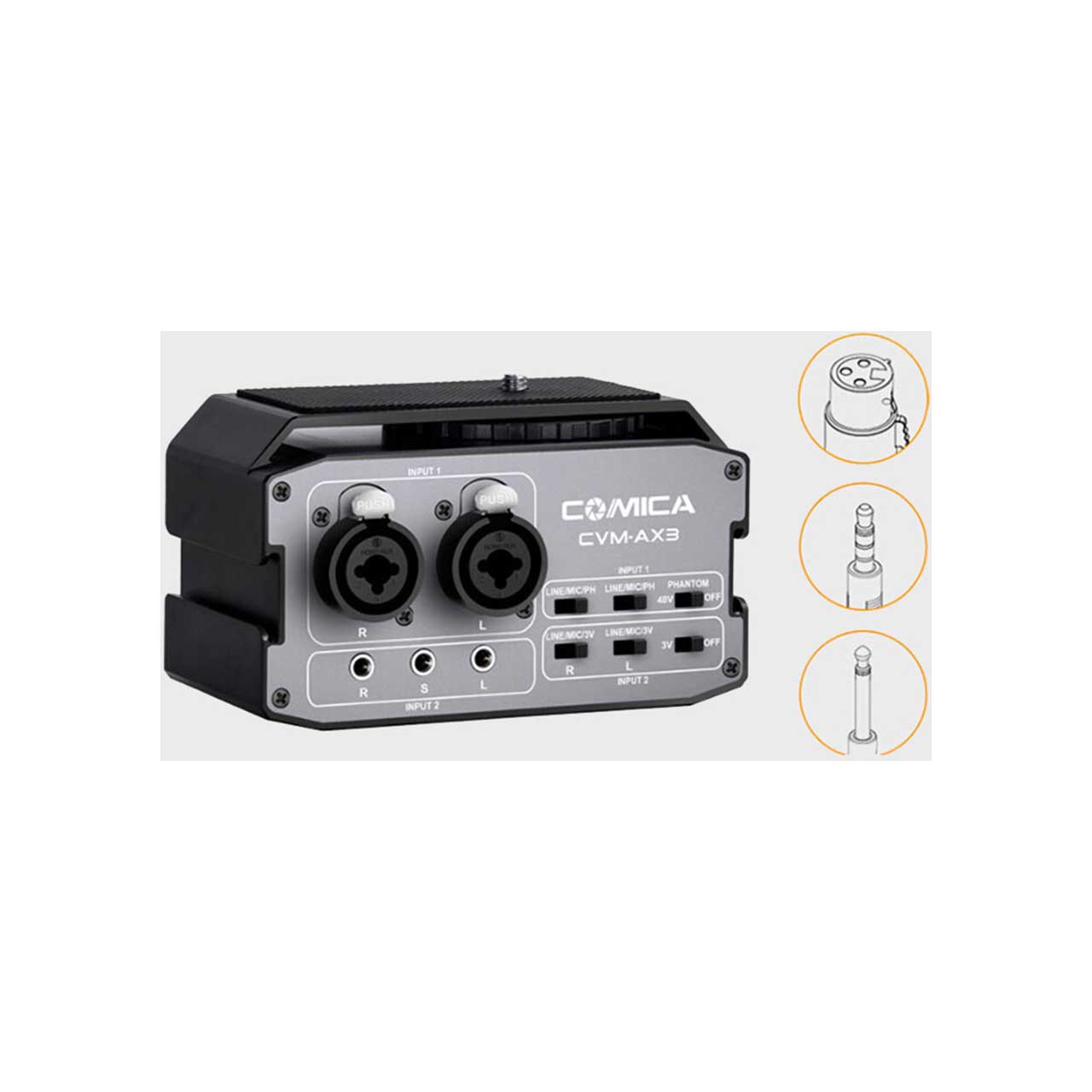

    The Comica AX3 mixer breaks the single interface limit and adopts the latest multi-interface mixing technology. XLR/6.35mm/3.5 is unrestrained and more professional.

    Cold Shoe Mounts
    The AX3 includes two cold shoe mounts on both sides of the unit. This makes it easy to mount accessories such as LED lights, microphones, receivers, transmitters, monitors, articulating arms, and batteries.

    • Features:

      • Supports Both 9V & 48V Phantom Power
      • Includes Dual XLR/6.35mm/3.5mm Microphone Inputs
      • Dual Gain Control Knobs
      • Mono/Stereo Output Switch
      • Supports Real-time Monitoring
      • Three Cold Shoe Connectors Ideal For Mounting Accessories
      • Made of Aluminum-Alloy
    • Specifications:

      • Audio Output: 3.5mm audio output, 3.5mm headphone output
      • Battery Stand By Time: 40 hrs. in 9V/6 hours in Phantom 48V
      • Battery Type: 9V 6LR61/6F22 x 1
      • Frequency Response: 20Hz~20kHz, ±1dB
      • Input Audio Format: XLR x 2 (L/R), 6.35mm x 2 (L/R)
      • Noise Db: <0.02%, RL=2kΩ, f=20Hz~20kHz, Vo=1Vrms
      • Operating Temperature: 0°C ~ +50°C
      • Storage Temperature: 0°C ~ +60°C
      • UPC Code: 6971120980869
      • Shipping Weight (lbs): 2
      • Shipping Dimensions (in): 7 x 7 x 4
      • Product Weight (lbs): 1.01
      • Product Dimensions (in): 4.8 x 2.8 x 2.4
    • Item Includes:

      • 1x Audio mixer
      • 1x 3.5mm Audio Output Cable
      • 1x Cold Shoe Mount
      • 1x User Manual
      • 1x Warranty Card
    • Warranty:

      • 1 Year
