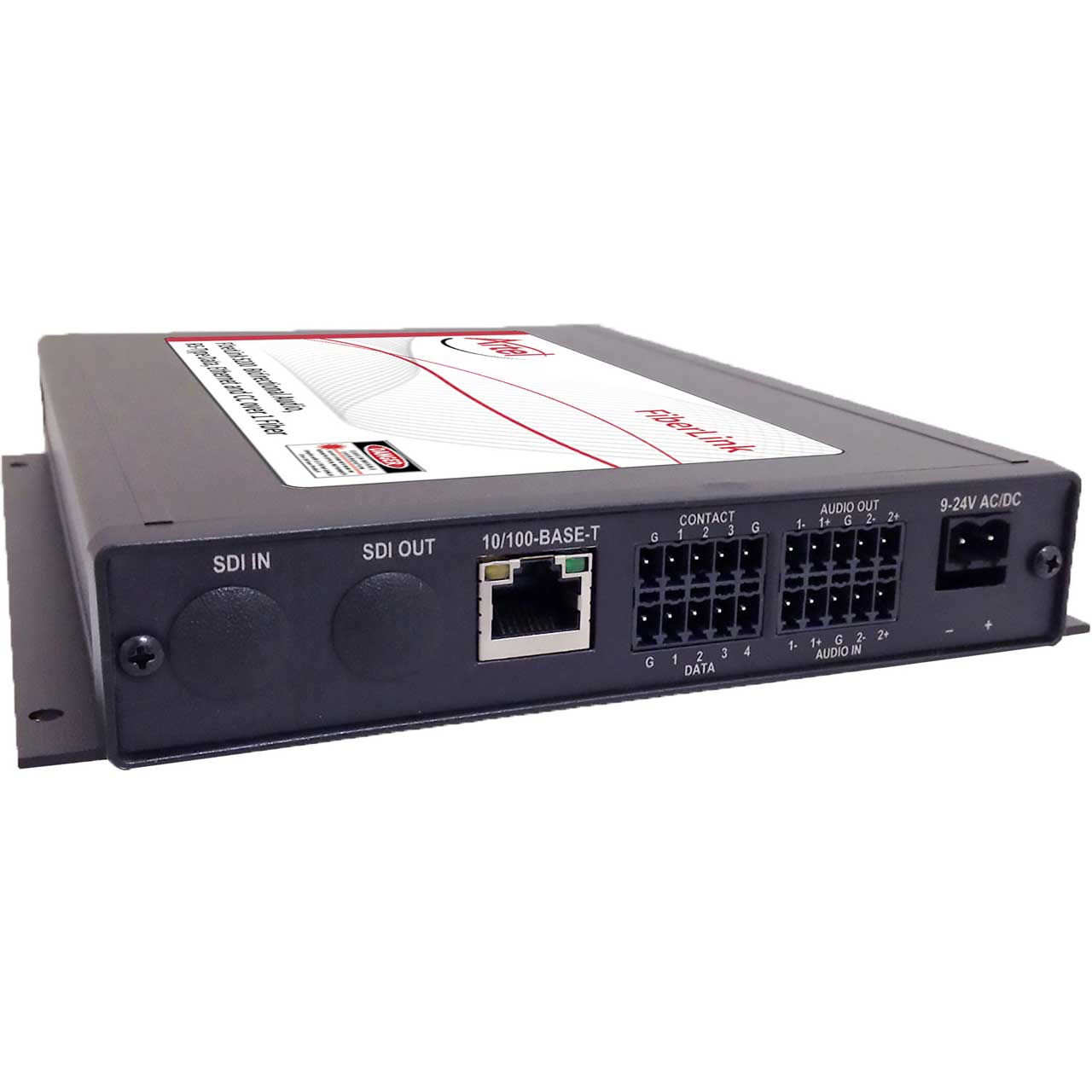

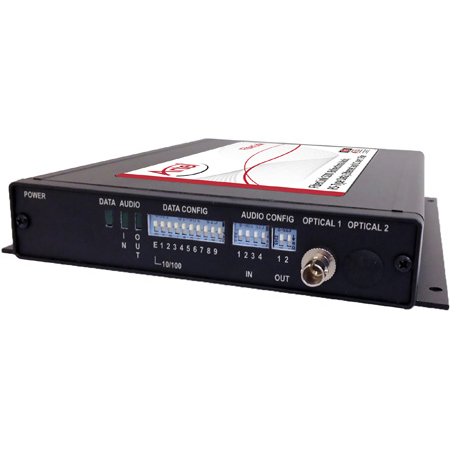

Artel FiberLink 5201-B3S Multimode Bidirectional Audio/ Ethernet/ Data & CC Box with ST Connectors - Receiver
  • Artel FiberLink 5201-B3S Multimode Bidirectional Audio/ Ethernet/ Data & CC Box with ST Connectors - Receiver
  • Artel FiberLink 5201-B3S Multimode Bidirectional Audio/ Ethernet/ Data & CC Box with ST Connectors - Receiver
Questions? Ask a Markertek Expert:
800-522-2025 Email

Artel FiberLink 5201-B3S Multimode Bidirectional Audio/ Ethernet/ Data & CC Box with ST Connectors - Receiver

Manufacturer: Artel Video Systems

Item #: CSI-5201-B3S   •   MFG #: 5201-B3S


List Price:$1,975.00
Our Price:$1,705.49

free ship
Availability: Usually ships in 3-10 business days
This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.

    California Residents:
    Cancer and Reproductive Harm -


    The Fiberlink 5200 Series transmits bidirectional audio, RS-Type Data, 10/100 Base-T Ethernet and contact closure over one single mode or multimode fiber optic cable. All channels are independent and are simultaneously available offering unrivaled flexibility in one product: deploy it for audio and Ethernet today, redeploy it for audio, RS-Type Data, Ethernet and contact closure tomorrow!

    All signals are bidirectional and travel to an astonishing distance of 30km when used with single mode fiber. Of course, you can use 50u and 62.5u multimode fiber as well to impressive distances of 1km and 0.8km respectively.

    The Fiberlink 5200 Series is designed with CSI's proprietary optics providing stable, predictable and long-lasting performance.

    Fiberlink 5200 supports the most common RS formats: RS-232, RS-422 & RS-485 4 wire or 2 wire.

    The applications in which the Fiberlink 5200 Series can be used are endless, but it is ideal for broadcast or corporate studios, OB Vans, Point-of-View Cameras, Rental & Staging, auditoriums, stadiums and theaters, airport or transportation hubs, distance learning, surgical or medical imaging and more!

    • Features

      • Bi-directional audio.
      • Bi-directional serial data.
      • 10/100 Base-T Ethernet.
      • Bi-directional Contact closure.
      • One-fiber for single mode and multimode fiber types.
      • All channels are independent and available simultaneously.
      • Wide operating temperature range: -10C to +50C.
      • Available in Box and Card versions.
      • Removable terminal blocks for audio, data, and contact closure connections.
      • ST or LC connectors available.
    • Specifications

      • General Specifications
      • Number of Fibers: 5200/5201: 1 Fiber
      • Indicators: Power, Audio activity, RS-Data Activity, Ethernet LEDs on RJ-45 Connector, Alarm (card version only)
      • Box Version Dimensions: 6.5 W x 1.15 H x 8 L (inches) 165 W x 29 H x 203 L (mm)
      • Weight: approx. 1 lb.; 0.45 kg
      • Slots in 6000A Card Cage: 2
      • Power:
      • 9-24 volts, AC or DC
      • 5200: 7.5 watts, 25.6 BTU/Hr
      • 5201: 7.5 watt s, 25.6 BTU/Hr
      • Operating Temperature: -10° C to +50° C
      • MTBF: 27,000 Hours

      • Ethernet Specifications
      • Port: 10/100 Base-T, RJ-45 connector, Configured as MDI
      • Speed: 10 Mbps & 100 Mbps Ethernet, Switch Selectable

      • Data Specifications
      • Data Channels: 1 Channel, Bi-Directional
      • Data Bandwidth: DC to 115 Kb/sec, max.
      • Control Format: Switch selectable RS-232, RS-422 & RS-485 (4 wire or 2 wire);
      • Protocols: NRZ, NRZI, RZ, Manchester, Bi-phase
      • Signal Connectors: Removable terminal block

      • Contact Closure Specifications
      • Contact Closure Input: Dry contact or TTL level referenced to GND
      • Contact Closure Output: Isolated reed relay contacts; 115 Volts AC; 50/60 Hz @ 0.2 A or 24 Volts DC @ 1 A
      • Contact Closure Connectors: Removeable terminal block

      • Fiber Optic Output
      • Connector: LC or ST
      • Wavelengths Used: 1310nm, 1490nm, 1550nm
      • Emmiter Type: Laser
      • Output Power (nominal): -3.0 dBm

      • Fiber Optic Input
      • Connector: LC or ST
      • Wavelength: 1100 - 1620 nm
      • Minimum Input Sensitivity: -17 dBm
      • Maximum Input Power: 0 dBm
