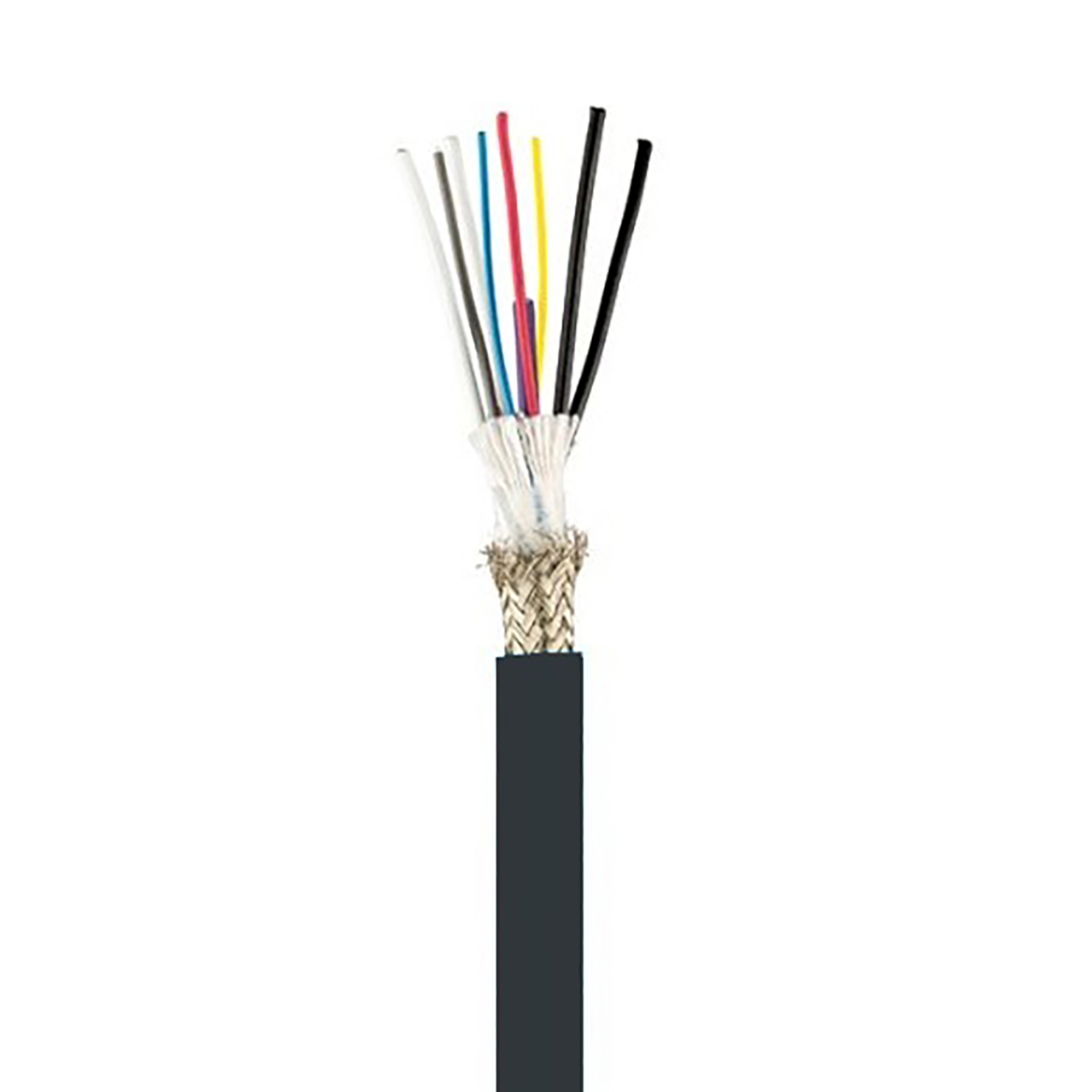

OCC CX008HBWA9KR SMPTE Riser WBT Indoor/Outdoor Cable - 2 Fiber - (4) 20 AWG and (2) 24 AWG with TC - Per Foot

CX008HBWA9KR - Overview

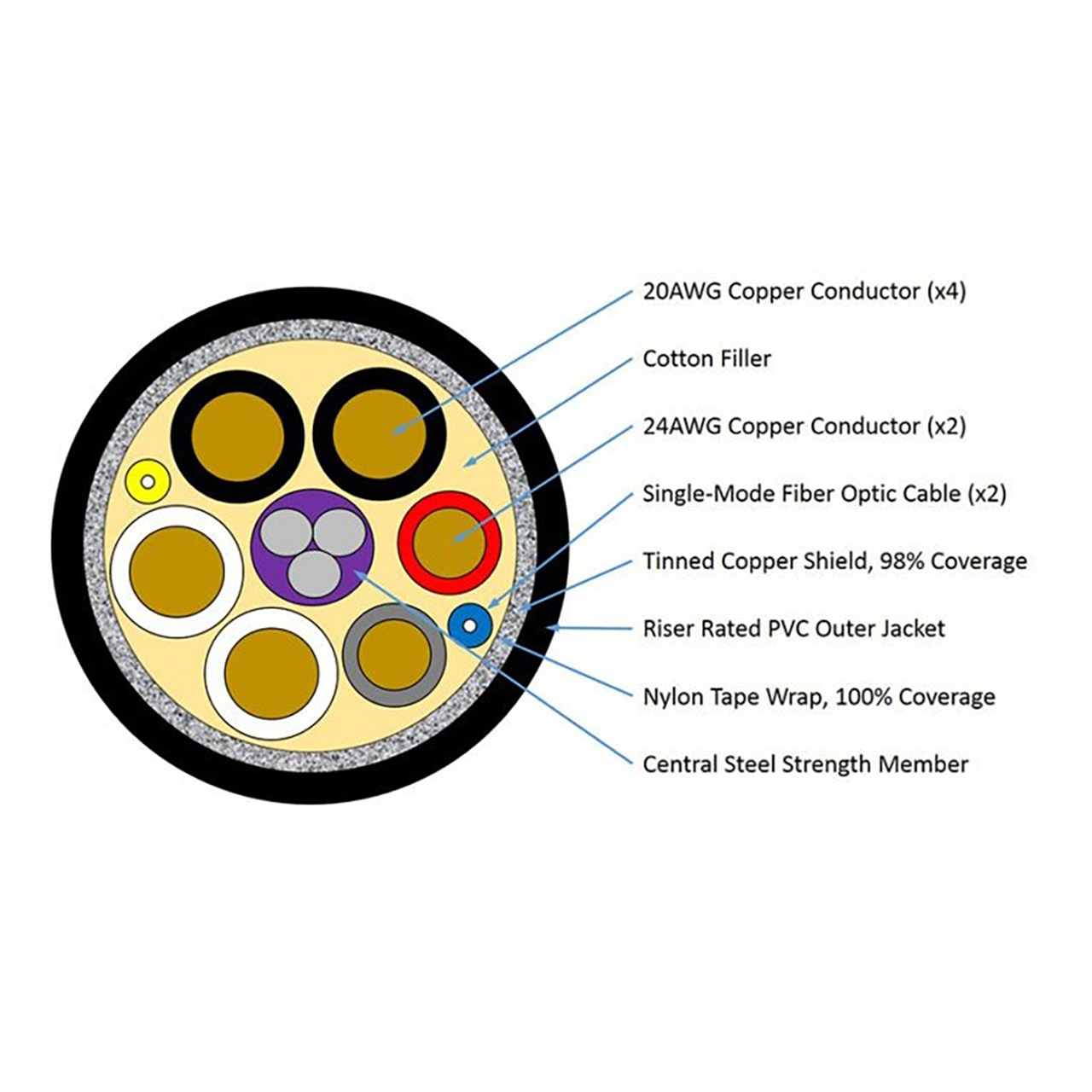

• Features:

  • UL Riser Rated
  • Fully SMPTE 311 Compliant
  • Riser Rated PVC Jacket
  • 500æm Acrylate Primary Buffer on Fiber for Added Durability
  • Jacketed Steel Central Strength Member
  • Cotton Filler and Nylon Over-Wrap Help Minimize Cable Migration During Flexing
  • 98% Braided Shield Coverage


• Specifications:

  Performance
  • Fiber Code/Count: SLA/2
  • Industry Standard Designation: Bend tolerant, single-mode, ITU-T G.657.A1, ITU-T G.652.D (Yellow and Blue)
  • Core/Cladding Diamater: 9/125&um;m
  • Wavelength: 1310/1550nm
  • Maximum Cable Attenuation 0.5dB/0.5km
  • Primary Coating Diameter: 2245&um;m
  • Secondary Buffer Diameter: 900&um;m
  • Zero Dispersion Slope: 0.092ps/nm²-km
  • Proof Test Level: 100kpsi

    Cable Characteristics
  • Jacket Color: UV Resistant Black
  • Jacket Material: Riser Rated PVC
  • Buffer Material: Indoor/Outdoor PVC
  • Subunit OD: 0.9mm
  • Cable Weight 80lb/1000' (199kg/km)
  • Cable Diameter: 0.36" (9.17mm)
  • Strength Member: 16 AWG Galvanized Steel PVC Insulated - Purple
  • Tape: Water-Blocking Tape, Overall, 100% Coverage

    Conductors
  • 4x 20 AWG 19 Strand Class C Annealed Tinned Copper PE Insulated 300V - Black, Black/White, White/Black, White
  • 2x 24 AWG 7 Strand Class B Annealed Tinned Copper PE Insulated 300V - Red, Gray

    Mechanical and Enviornmental
  • Operating Temperature: -4°F~167°F (-20°C~75°C)
  • Installation Temperature: 32°F~167°F (0°C~75°C)
  • Standards: UL Subject 444, Type CMR-OF/FT4


• Item Includes:

  • 1x foot OCC CX008HBWA9KR broadcast cable


• Warranty:

  • 25-Year Limited Warranty
