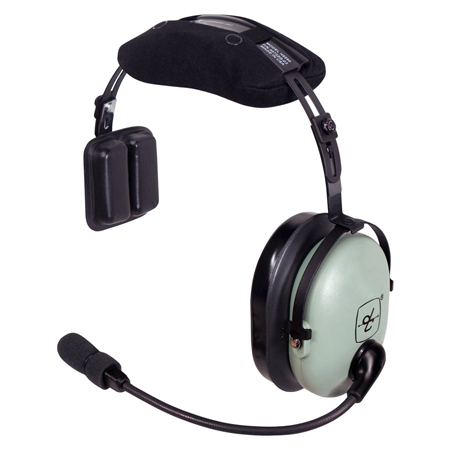

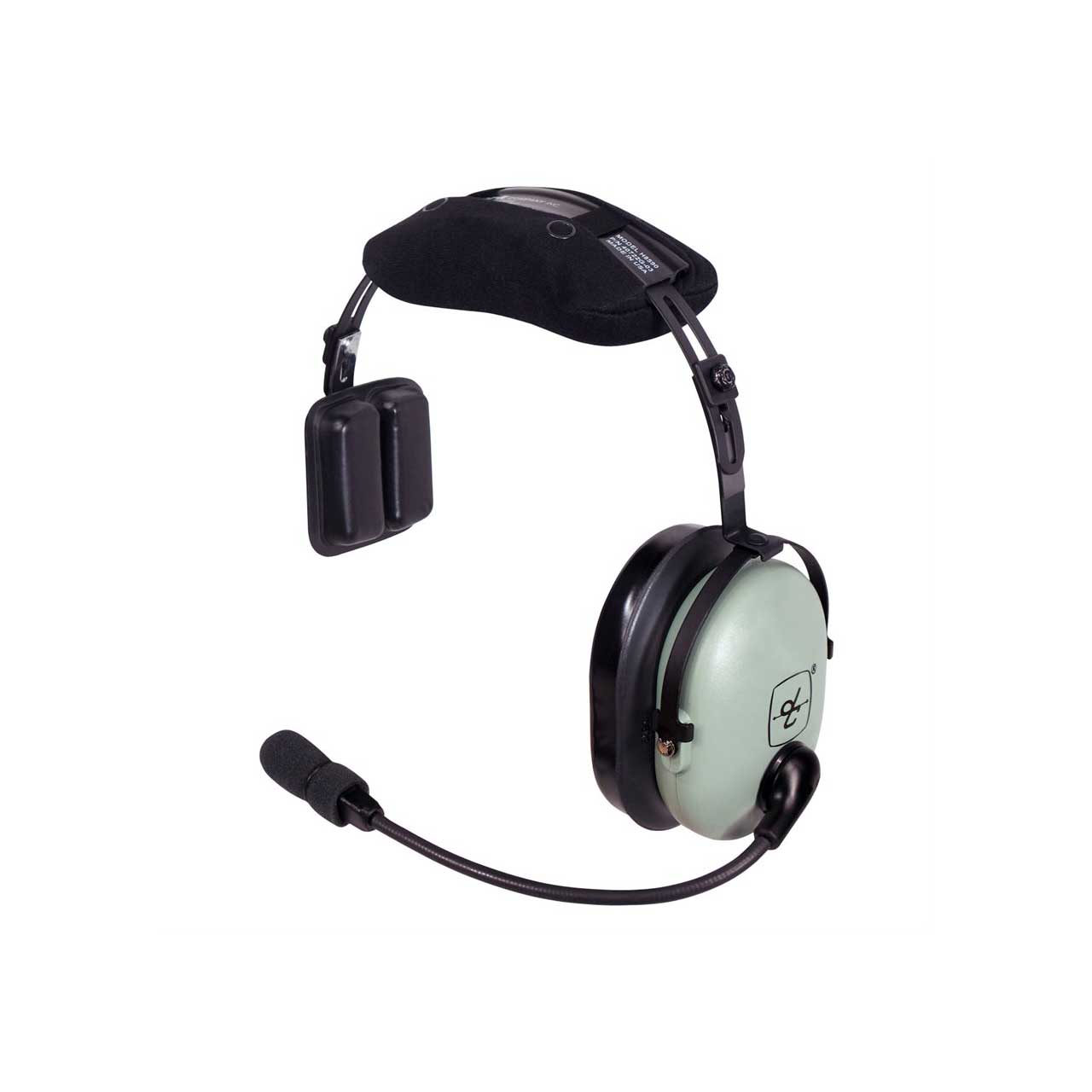

David Clark H8592 Single Ear Headset Microphone - 8ft Extended Coil Cord & 4-Pin Female XLR

H8592 - Overview

• Features:

  • Comes with 5-foot extended coil cord and 4-pin female XLR connector
  • Single ear style permits hearing of ambient sound
  • M-2H noise-canceling microphone, 150 ohms, ensures superior transmit clarity with high output use
  • Full flex boom assembly rotates for precise, 'one-touch' microphone placement
  • Dynamic 60-ohm, 20-20 kHZ earphone element for outstanding reception quality
  • Black matte, non-reflective suspension assembly
  • Soft foam head pad provides added comfort
  • Undercut, comfort-gel ear seal and foam-filled temple pad provide all-day wearing comfort
  • Lock nut adjustable stirrup assembly provides a personalized, comfortable fit


• Specifications:

  • Ear Coupling: Around-the-ear (Circumaural)
  • Hardware: Carbon steel, flat black finish
  • Dome Type: Lightweight, ABS Composite
  • Contact Pressure: ~ 1.5 lbs. (6.67 N)
  • Connector Type: 4-Pin XLR Female
  • Connection Cable: 8' extended coil cord with 2 twisted pairs shielded
  • Earphone Type: Dynamic, moving coil
  • Earphone Impedance: 60Ω +/- 10% @ 1kHz
  • Earphone Frequency Response: 20 - 8,000 Hz
  • Earphone Sensitivity:
    - 125 +/-3 dB SPL @ 1kHz
    - Re: 1mW rms
  • Total Harmonic Distortion (THD): <2% @ 1mW 300 - 3,500Hz
  • Microphone Principle: Dynamic
  • Microphone Impedance: 150Ω nominal
  • Microphone Sensitivity:
    - 1.73 mV rms nominal
    - 150 Ω load re: 104dB SPL ¼" @ 1kHz
  • Microphone Frequency Response: 200 Hz - 5 kHz


• Item Includes:

  • 1x David Clark H8592 Single Ear Headset Microphone - 5-foot Extended Coil Cord and 4-pin Female XLR
