Digital Forecast Bridge1000 SHA 3G-SDI to Analog Composite & HDMI Converter with Analog Audio & AES/EBU Out

Manufacturer: Digital Forecast

Item #: DF-BRIDGE1000SHA   •   MFG #: BRIDGE1000 SHA



List Price:$280.00
Our Price:$265.00

free ship


Availability:
Direct Ship from manufacturer, contact us for availability
i
Item ships directly from the manufacturer and is subject to manufacturer availability. We will contact you with expected availability. You can also email [email protected], chat or call customer service (800)-522-2025 for expedited delivery options.



    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov

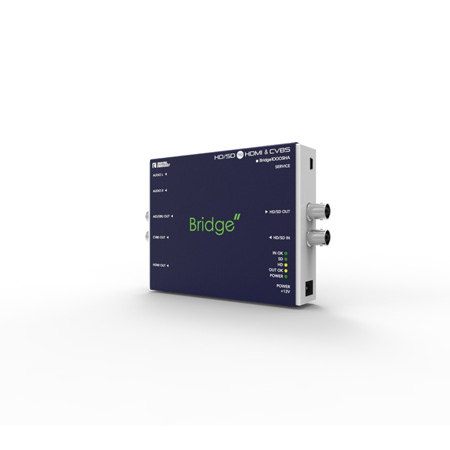

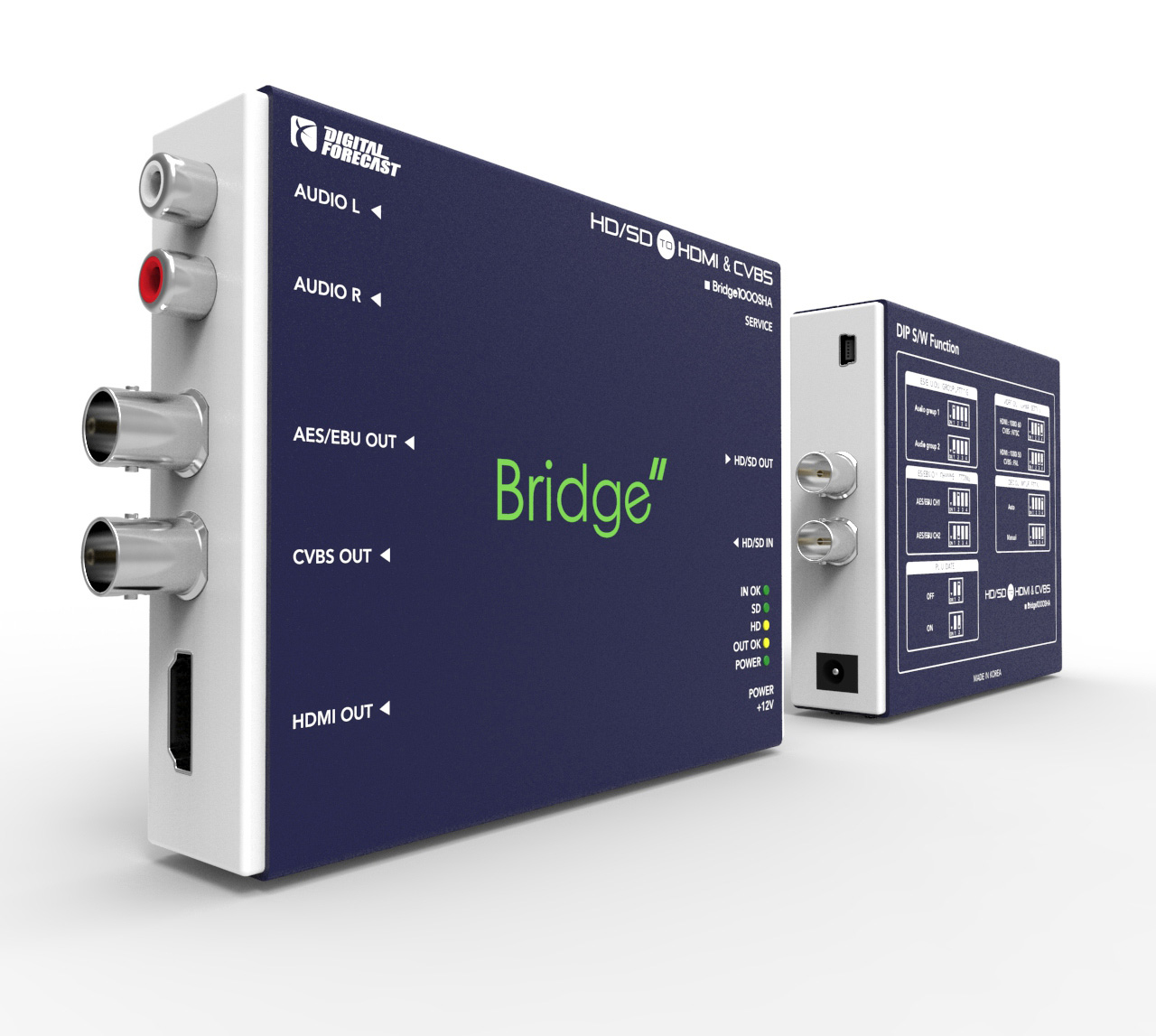

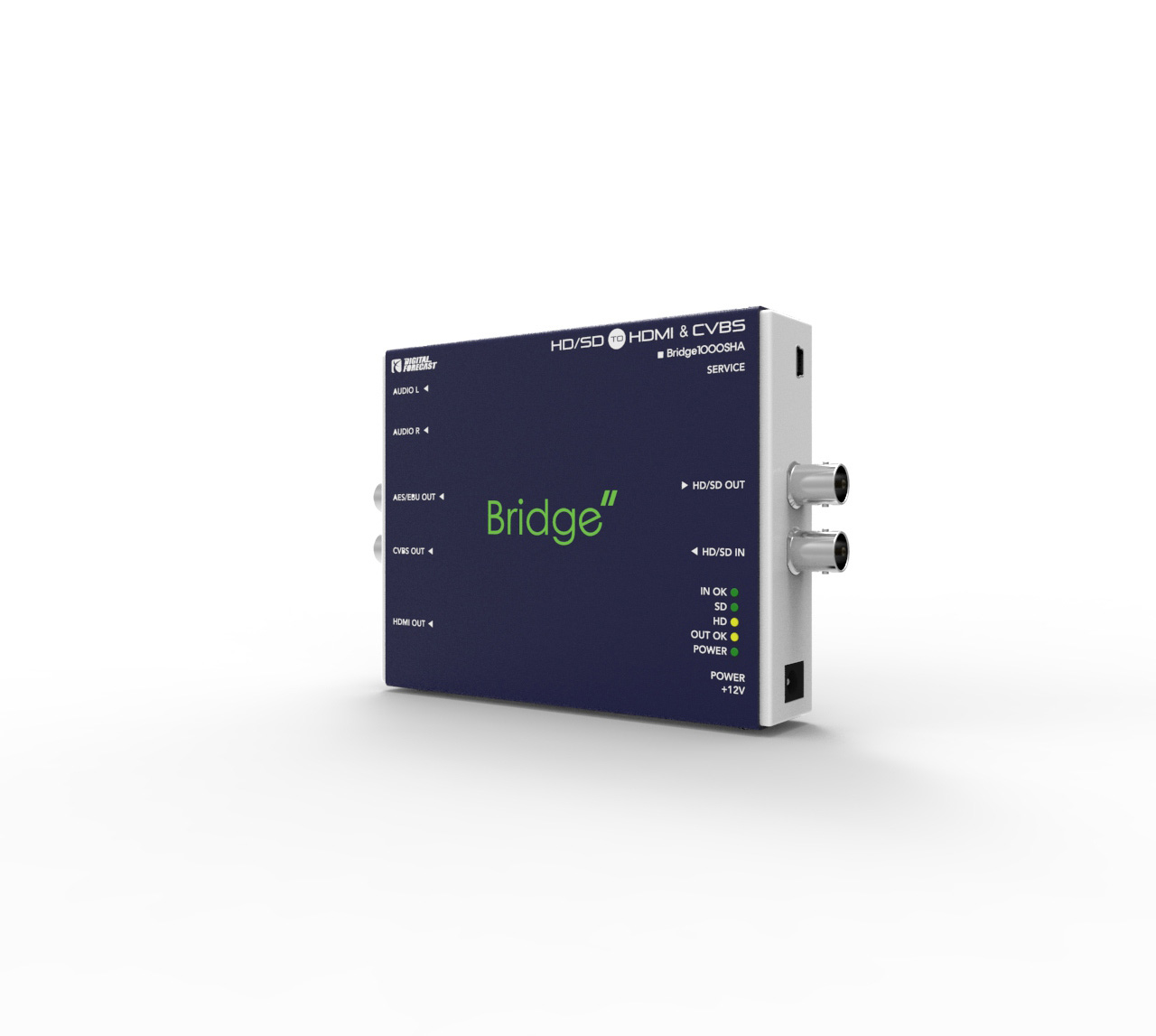

    Bridge1000 SHA is a 3G-SDI to Composite & HDMI video converter that will automatically output video signals according to the SMPTE SDI input standard. It supports up to 1080p60 and includes a Composite video monitoring output. The Bridge1000 SHA will also disembed audio to an AES/EBU output or RCA L/R Analog.


    • Features

      • HD/SDI to HDMI with monitoring CVBS and Audio
      • Built-In Down scaling function
      • Full Aspec Ratio Conversion Mode
      • 1 HD/SDI input (SD/HD/3G) with Reclocked Loop Out
      • 1 HDMI Out (SD/HD/3G)
      • 1 Composite Video Out (NTSC/PAL)
      • 1 Stereo Analog Audio Out
      • 1 AES/EBU Out (Digital Audio)
      • DC 12V Power Supply

    • Specifications

      • Supports Multi-Rate SDI Formats Including: SMPTE 125M: NTSC (480i 59.94), PAL (576i 50); SMPTE 296M: 720p (60/59.94/50); SMPTE-274M,SMPTE-292M: 1080i (60/59.94/50), 1080p (30/29.97/25/24/23.98); SMPTE-424M: 1080p (60/59.94) 3G
      • Composite Analog Video: NTSC/PAL , 800mV +- 10%
      • Digital Audio AES/EBU: 48Khz, 75 Ohm , 1 Vp-p
      • Dimension (W x H x D): 126 x 100 x 25 (mm)
      • Weight: 210 g
      • Power Level: +12 VDC
      • Power Consumption: 9.1 Watts (Max: 10 Watts)
      • Operating Temperature: -20° ~ 70°
      • Humidity: 0 to 95% RH, non-condensing

    • Item Includes

      • Power Adaptor

    • Warranty

      • 2 Years

    • GTIN:

      0704006295254
