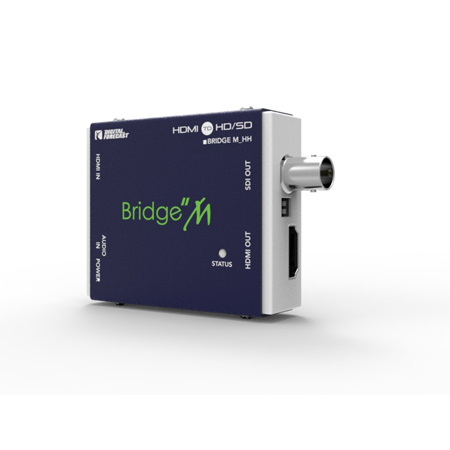

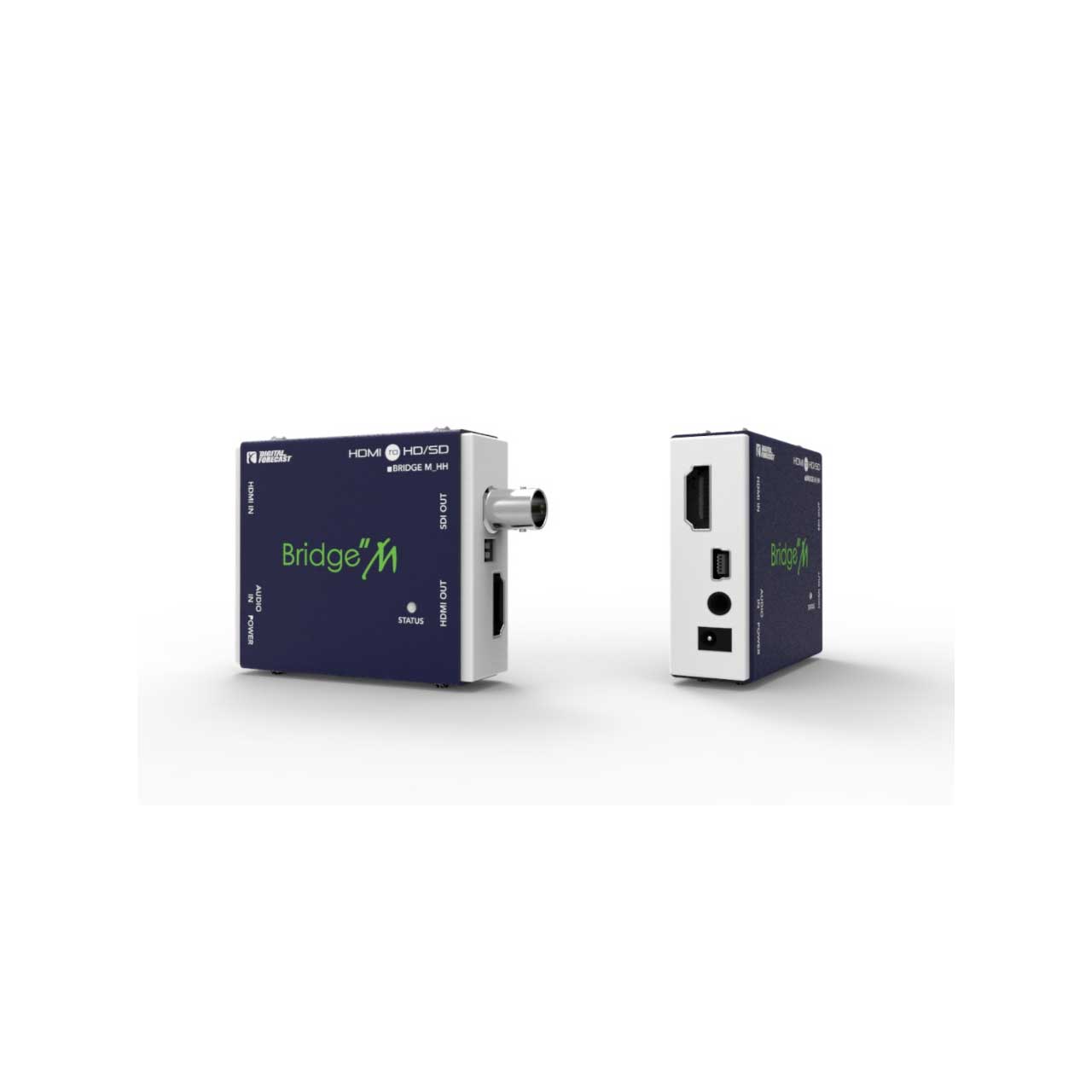

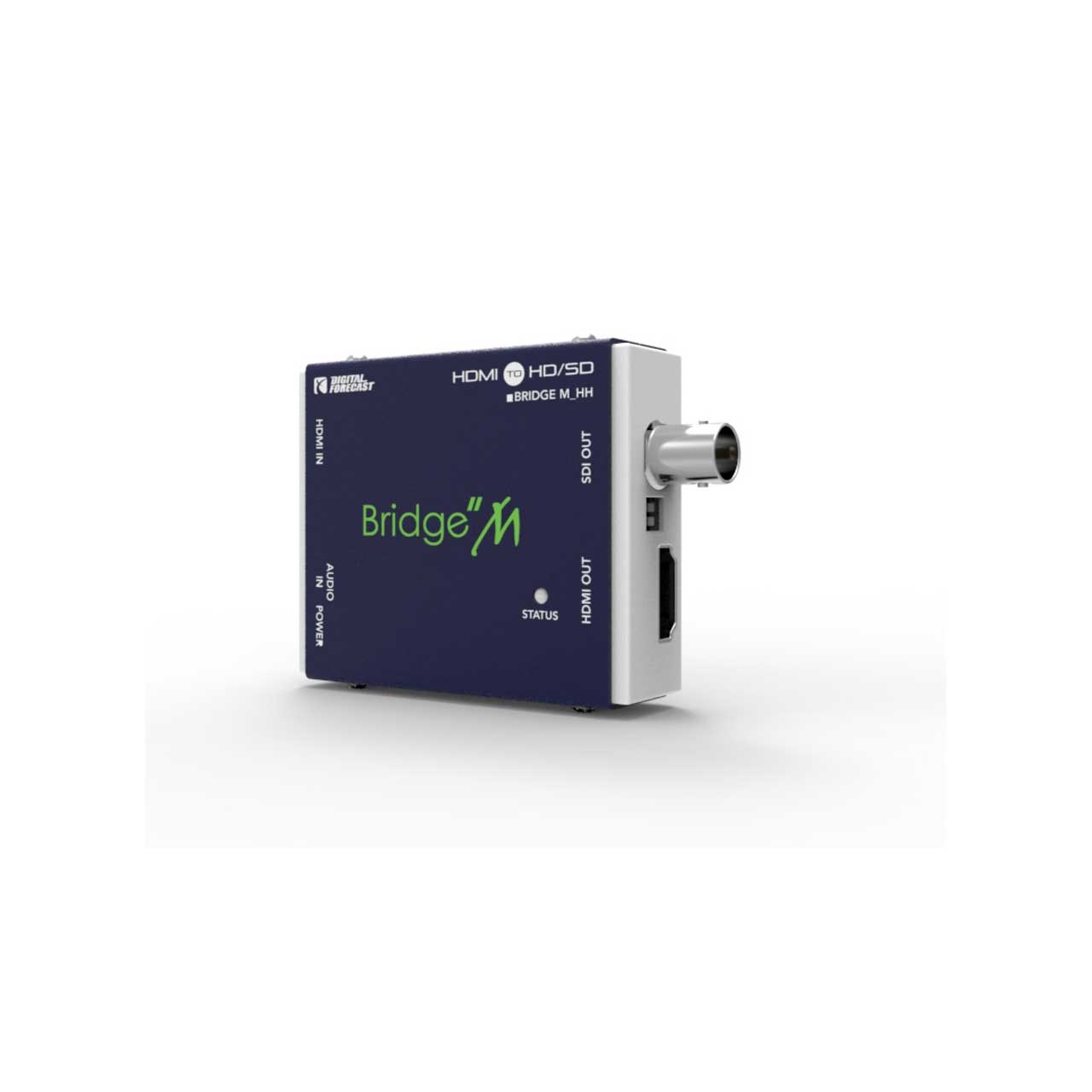

Digital Forecast M-HH HDMI to SDI Converter with SCAN Mode

Manufacturer: Digital Forecast

Item #: DF-M-HH   •   MFG #: M-HH



List Price:$270.00
Our Price:$257.00

free ship


Availability: Direct Ship From Manufacturer
i
Item ships directly from the manufacturer and is subject to manufacturer availability. We will contact you with expected availability. You can also email [email protected], chat or call customer service (800)-522-2025 for expedited delivery options.



    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov

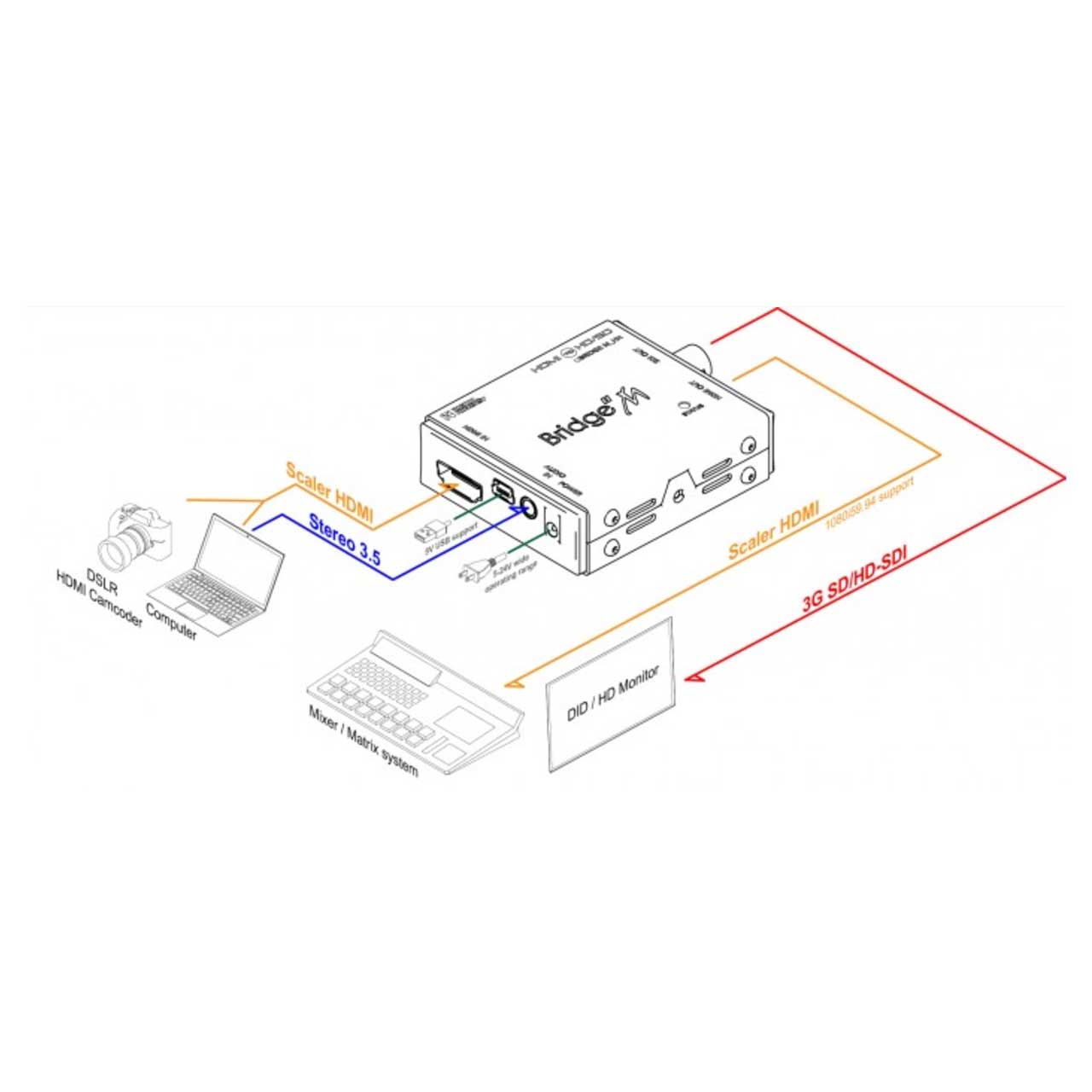

    The M-HH Converter is part of the Digital Forecast Bridge M Series (Micro Type Converters). The M-HH converts HDMI signals to SMPTE standard SDI signals, supporting formats up to 1080p60, for use in professional A/V settings. Additionally, this converter allows you to mux your analog audio signal into your outgoing SDI video signal if necessary, as well as fix the SDI output to a specific format using the built-in scaler. The HDMI output is also capable of being scaled. This converter includes a USB input and a 3.5mm stereo analog audio input.


    • Features

      • HDMI to SDI converter with monitoring HDMI out
      • Small and high-end function inside high video processing engine
      • Selectable mux audio source between embedded
      • HDMI and analog L/R

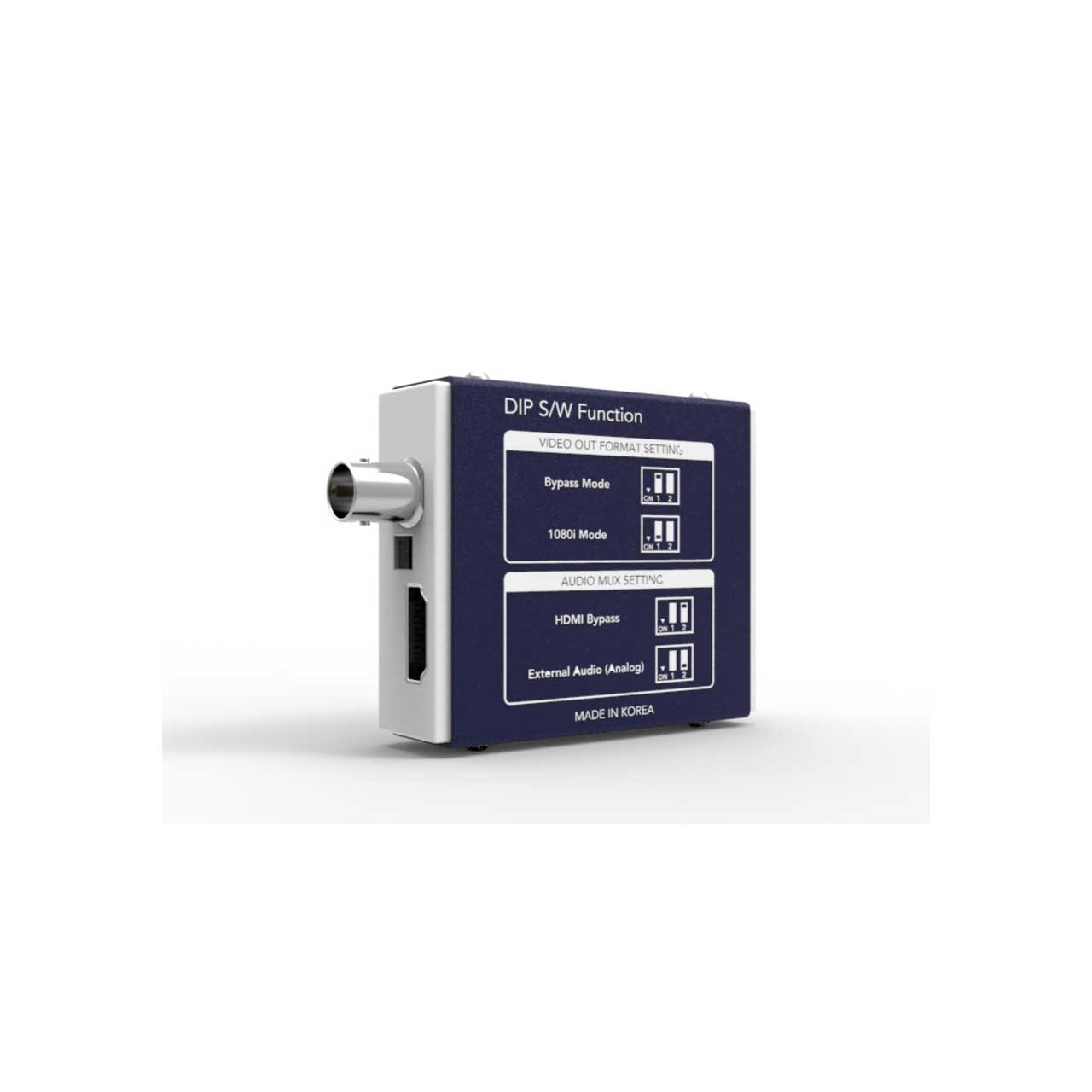

      • Normal bypass mode or fixed scan converter mode for standard
      • 1080i50/1080i59.94 broadcast format

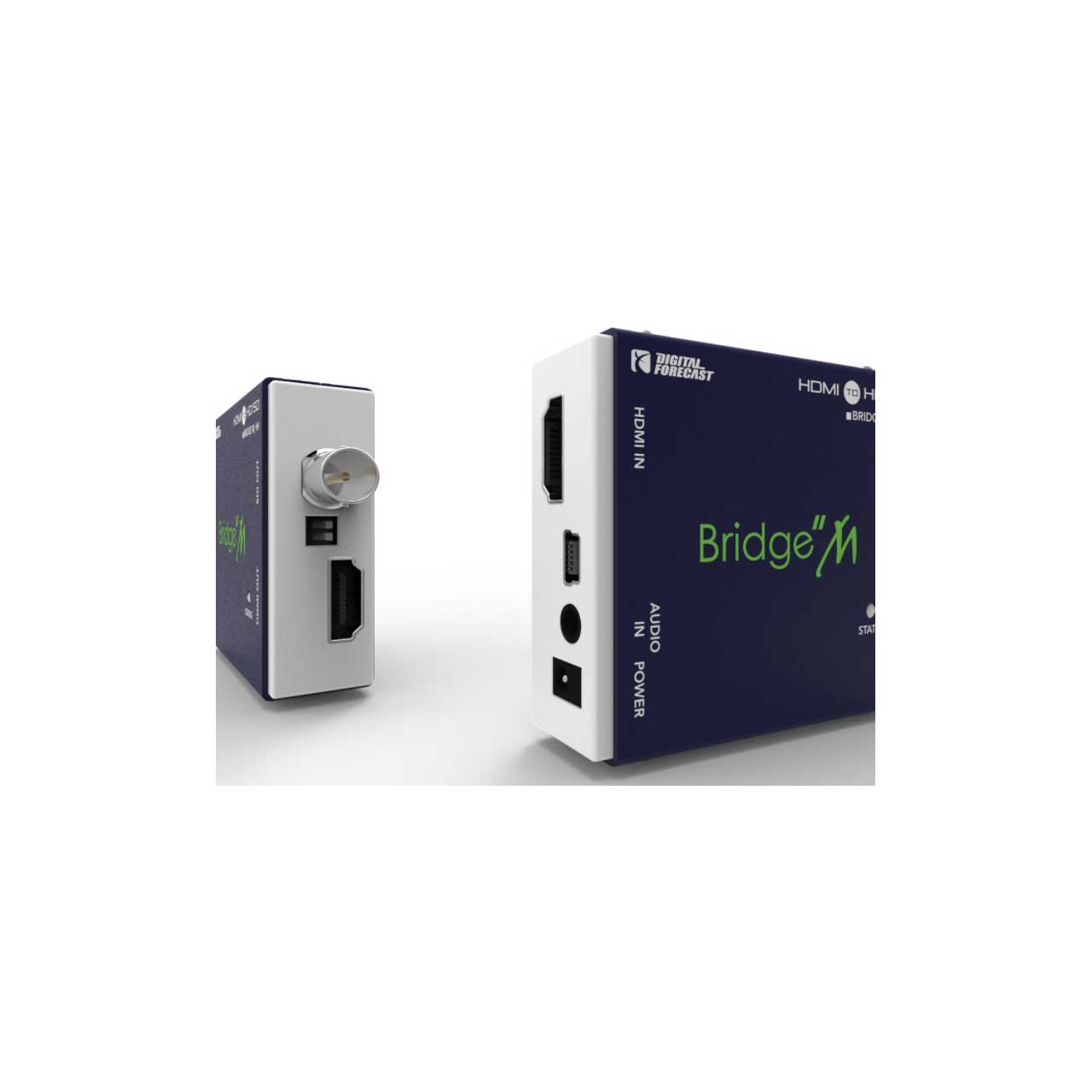

      • 1 HDMI input ( SD/HD/3G all standard format )
      • 1 L/R stereo Audio input (stereo audio jack )
      • 1 HDMI out ( SD/HD/3G all standard format )
      • 1 HD-SDI out ( SD/HD/3G all standard format )
      • DC 5V - 24V wide operating range

    • Specifications

      • Physical
      • Dimension (H x W x D): 68 x 59.2 x 20 (mm)
      • Weight: 95g
      • Power Level: +12 VDC
      • Power Consumption: 4.73 Watts (Max: 5 Watts) ?
      • Operating Temperature: -20? ~ 70?
      • Humidity: 0 to 95% RH, non-condensing
        Digital Video Specs
      • Supports HDMI v1.3
      • Supports multi-rate SDI formats
      • SMPTE 125M: NTSC (480i 59.94), PAL (576i 50)
      • SMPTE 296M: 720p (60/59.94/50)
      • SMPTE-274M, SMPTE-292M: 1080i (60/59.94/50) 1080p (30/29.97/25/24/23.98)
      • SMPTE-424M: 1080p (60/59.94) 3G

    • Warranty

      • 2 Years
