AJA OG-ROI-HDMI openGear HDMI to 3G-SDI Scan Converter
    Questions? Ask a Markertek Expert:
    800-522-2025 Email

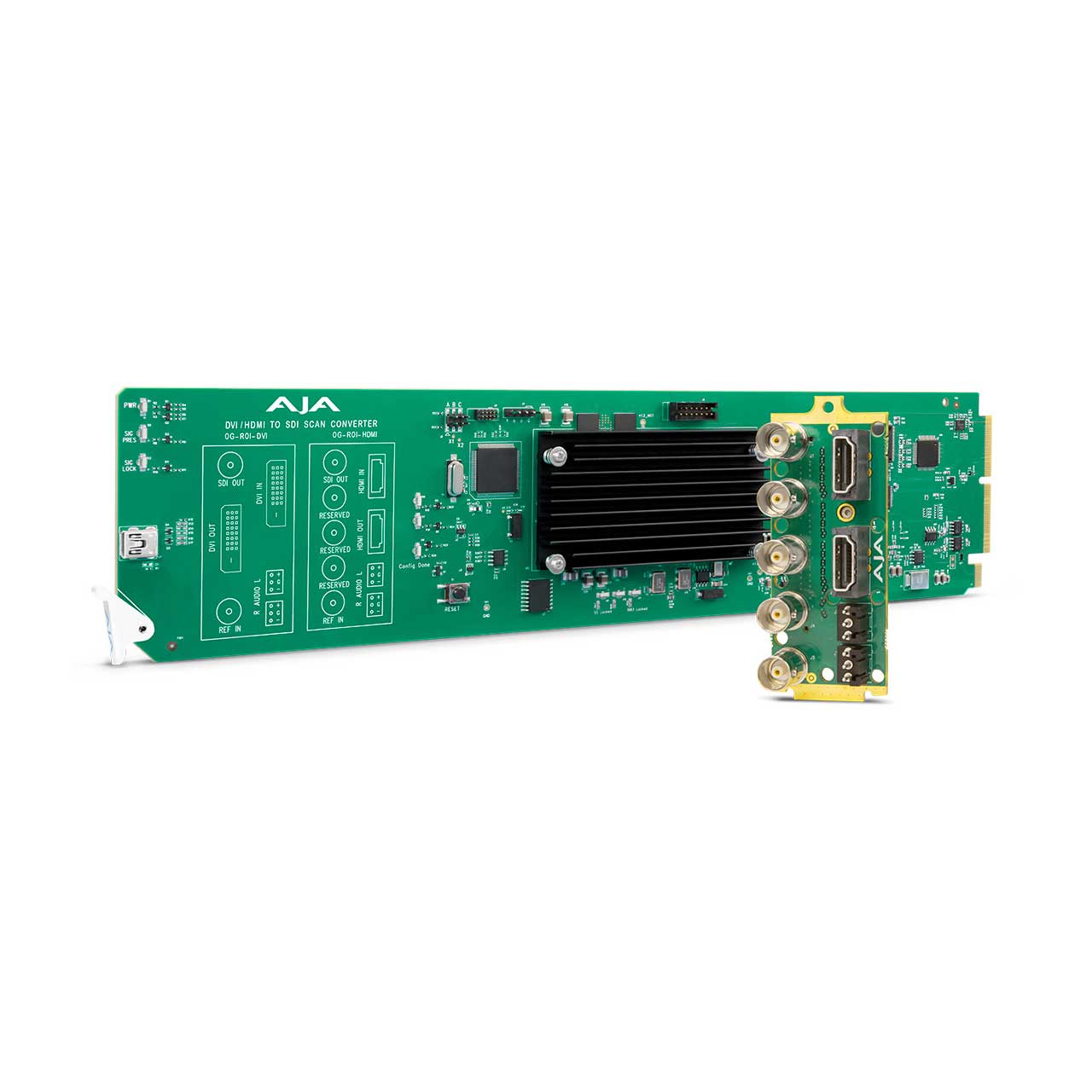

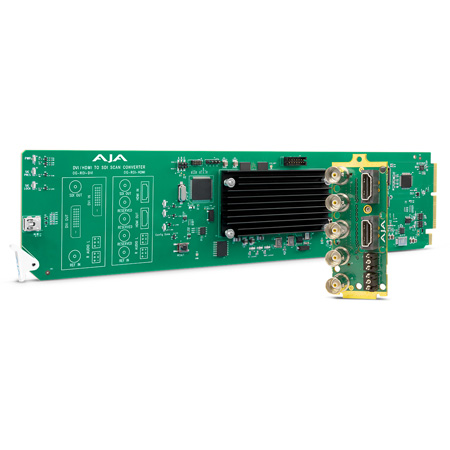

    AJA OG-ROI-HDMI openGear HDMI to 3G-SDI Scan Converter

    Manufacturer: AJA Video

    Item #: AJA-OG-ROI-HDMI   •   MFG #: OG-ROI-HDMI


    Our Price:$995.00

    free ship
    More on the way, usually ships in 3-10 business days
    This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.

      California Residents:
      Cancer and Reproductive Harm -


      Required Accessories

          Show More

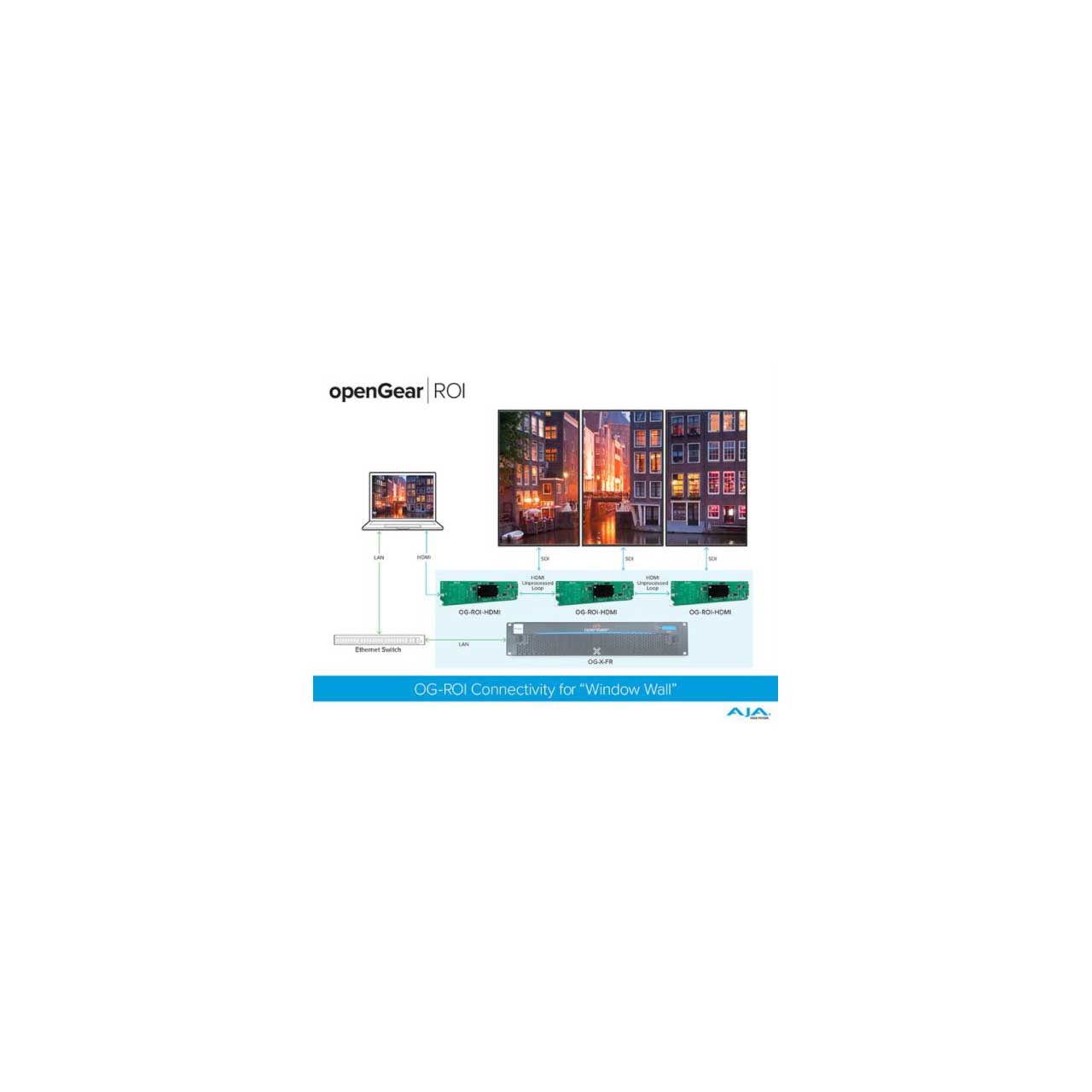

      AJA's OG-ROI-HDMI is an openGear card that allows exceptionally high-quality conversion of computer and HDMI outputs to 3G-SDI baseband video. With incredible region-of-interest image scaling as well as aspect ratio and frame rate conversion, OG-ROI-HDMI fulfills the growing need to properly incorporate extractions from HDMI sources and computer signals into the video world without sacrificing budget or space.

      • Features

        • HDMI to 3G-SDI scan conversion
        • Region of Interest scaling
        • HDMI input with loop-through
        • 3G-SDI output
        • Aspect ratio conversion and image rotation
        • Genlock input
        • Audio embedding
        • Configure via Dashboard
        • Compatible with OGX, OG3 and DFR-8321 openGear frames
      • Specifications

        • Video Input Formats
        • Computer Signals: WUXGA (1920 x 1200) 60 Hz max; VGA (640 x 480) minimum
        • Video Signals:
        • (HD) 1920 x 1080i 50, 59.94; 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60; 1280 x 720p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
        • (SD) 625i, 525i; 580p, 480p
        • Note: Frame rates limited by the 166 MHz max pixel rate of the HDMI receiver.

          Video Output Formats
        • (HD) 1920 x 1080p 50, 59.94, 60, SMPTE 425-1 Level A mapping structure 1 (4:2:2 10-bit YCbCr); 1920 x 1080p 23.98, 24, 25, 29.97, 30; 1920 x 1080i 50, 59.94, 60; 1280 x 720p 50, 59.94, 60
        • (SD) 625i 25; 525i 29.97
        • Color Range: Full; SMPTE

          Reference Source
        • Free Run
        • Card Ext Ref
        • OG Frame Ref 1
        • OG Frame Ref 2

          Reference Input
        • Supported Reference Video Inputs Include: 1080i, 1080p, 720p tri-level sync; 625i, 525i Color Black
        • 75-ohm terminating

          Video Input
        • 1x HDMI input connector (with embedded audio, up to 8-channels)
        • Video Outputs: HDMI: 1x HDMI loop through connector (with embedded audio, up to 8-channels); SDI: 3G-SDI, SMPTE-259/292/424, 1x BNC

        • ROI does not encode the HDMI output with HDCP encryption
        • ROI does not accept HDCP input

          Audio In/Outputs
        • 2-channel Balanced analog audio inputs, 2x 3-Pin terminal blocks connectors; HDMI embedded audio, 24-bit, 8-channel
        • Output: SDI embedded audio, 24-bit, 2-channel or 8-channel

          User Interface
        • openGear DashBoard network control software via Windows, macOS or Linux

        • Size: openGear standard form factor, front slot, and rear card. Two slots required for each card
        • Weight: 0.5lb (0.3kg)
        • Power: openGear frame compatible, 12.0 watts max per card
        • Operating/Storage Temperature: 0 to 40°C (32 to 104°F)/-40 to 60°C (-40 to 140°F)
        • Humidity: 10-90% (non-condensing)
        • Operating Altitude: <3,000 meters (<10,000 feet)
      • Warranty

        • 5 Year Warranty
      • GTIN:
