Digital Forecast X-S2 HDMI & DVI to 3G/HD/SD SDI Converter with SCAN Mode
  • Digital Forecast X-S2 HDMI & DVI to 3G/HD/SD SDI Converter with SCAN Mode
  • Digital Forecast X-S2 HDMI & DVI to 3G/HD/SD SDI Converter with SCAN Mode
  • Digital Forecast X-S2 HDMI & DVI to 3G/HD/SD SDI Converter with SCAN Mode
  • Digital Forecast X-S2 HDMI & DVI to 3G/HD/SD SDI Converter with SCAN Mode

Questions? Ask a Markertek Expert:
800-522-2025 Email

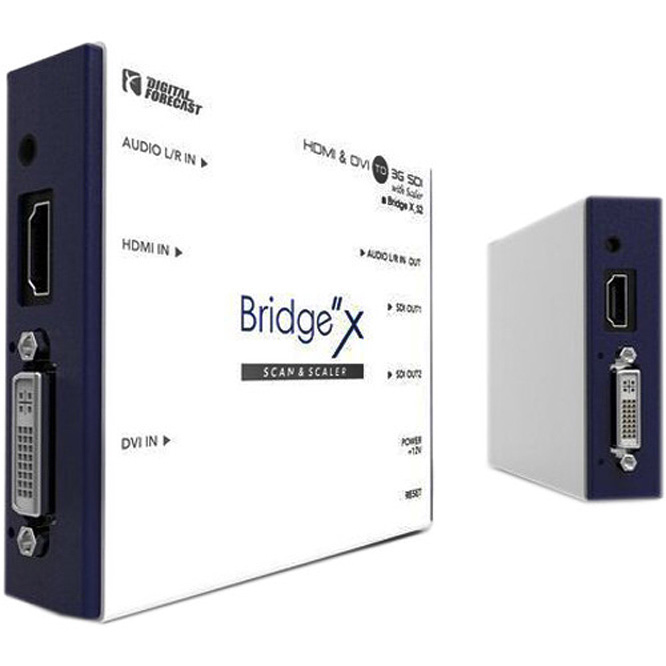

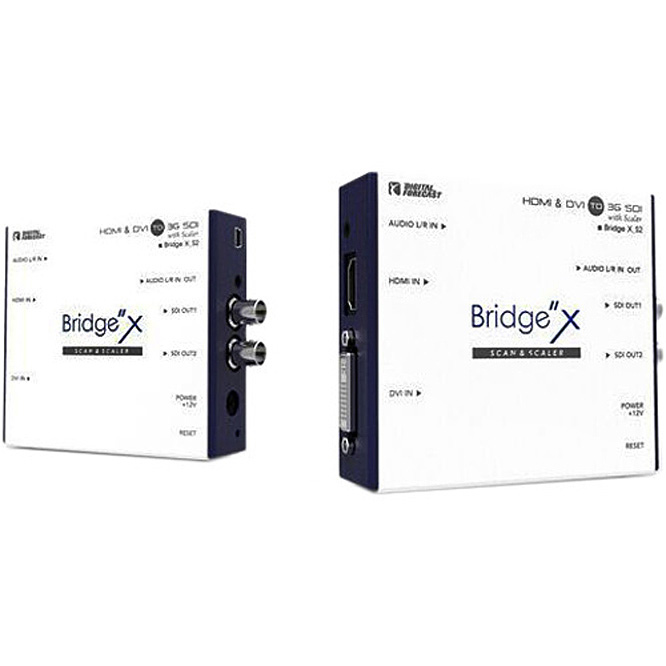

Digital Forecast X-S2 HDMI & DVI to 3G/HD/SD SDI Converter with SCAN Mode

Manufacturer: Digital Forecast

Item #: DF-X-S2   •   MFG #: X-S2



List Price:$360.00
Our Price:$342.00

free ship


Availability: Usually ships in 3-10 business days
i
This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.



    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov





    The X-S2 is part of the Digital Forecast Bridge X Series and is an HDMI & DVI to 3G-SDI converter with scaler, supporting formats up to 1080p60 resolution. This converter takes your incoming HDMI or DVI signal and converts it to an outgoing SDI SMPTE standard signal, for use in pro A/V or broadcast productions. You can select your mux audio source, choosing between embedded HDMI or L/R analog and then determine the output.


    • Features

      • HDMI or DVI to SDI converter
      • PC DVI format support
      • High end video scaler function inside high video processing engine
      • Selectable Mux Audio source between Embedded HDMI and Analog L/R
      • Normal Bypass mode or fixed scan converter mode for standard 1080i50/1080i59.94 broadcast format
      • Fixed format setting with USB serial (default: 1080i)
      • 1x HDMI input (SD/HD/3G all standard format)
      • 1x DVI input (PC dvi format support)
      • 1x L/R stereo Audio input (stereo audio jack)
      • 2x HD-SDI out (SD/HD/3G all standard format)
      • DC 7V ~ 24V wide operating range

    • Specifications

      • Physical
      • Dimension (H x W x D): 105 x 94 x 25 (mm)
      • Weight: 165g
      • Power Supply: 12 VDC
      • Power Consumption: 5.28 Watts (Maximum: 6Watts)
      • Operating Temperature: -20? ~ 70?
      • Humidity: 0 to 95% RH, non-condensing
        Digital Video Specs
      • Supports HDMI v1.3
      • Supports DVI format
      • Supports multi-rate SDI formats
      • SMPTE 125M: NTSC (480i 59.94), PAL (576i 50)
      • SMPTE 296M: 720p (60/59.94/50)
      • SMPTE-274M,SMPTE-292M: 1080i (60/59.94/50) 1080p (30/29.97/25/24/23.98)
      • SMPTE-424M: 1080p (60/59.94/50) 3G

    • Warranty

      • 2 Years
