ES2-WHT - Overview

The Doug Fleenor Design ES2 is a stand-alone DMX snapshot recorder which can store two preset scenes or "looks". It can be used as a stand-alone main station or configured as a remote station in conjunction with another ES2 configured as a main station. It can be used as a remote station with Doug Fleenor Design’s Preset 10-A, Preset 10-A2, or Rerun stations.

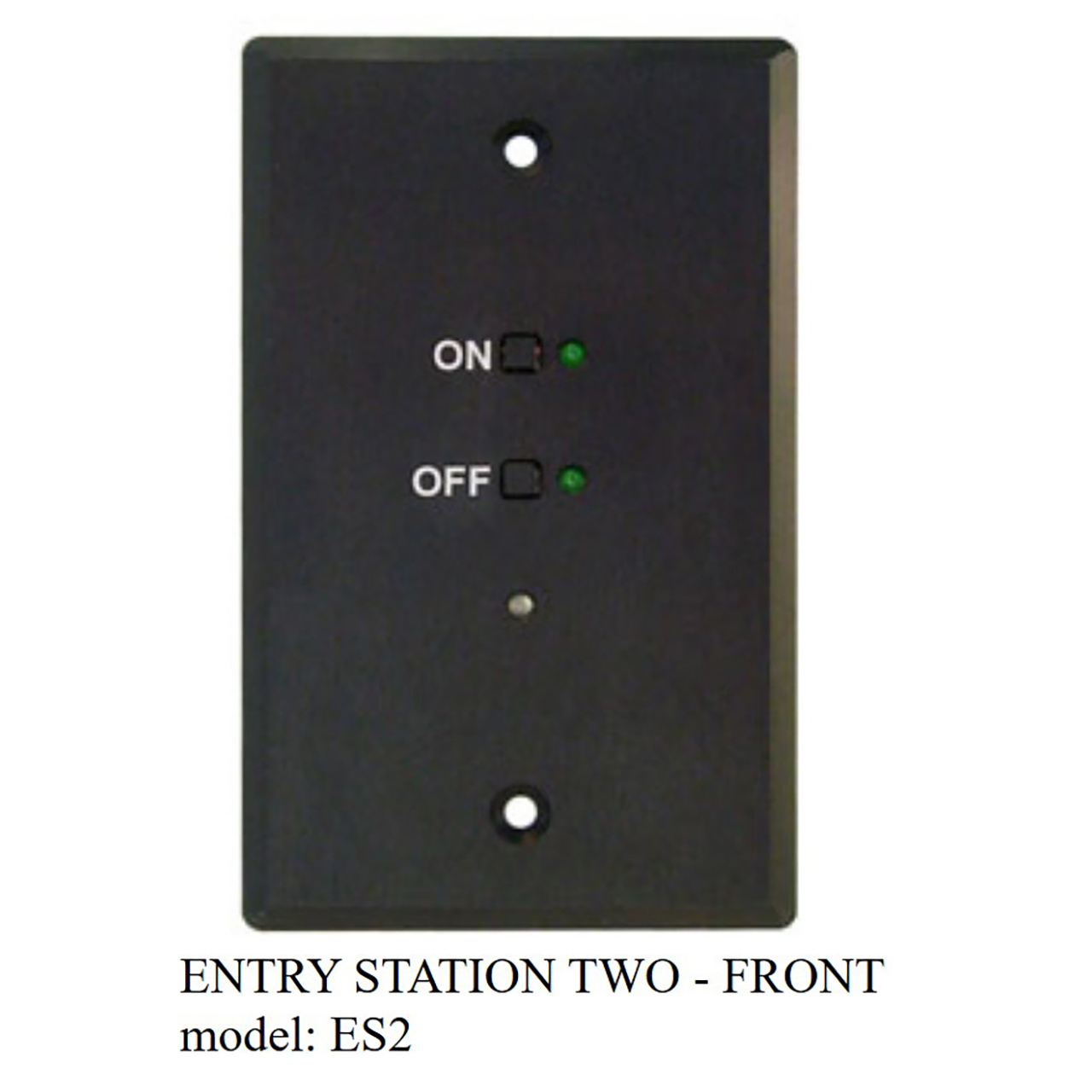

In remote mode, the ES2 has two buttons which can be assigned to remotely trigger any of the presets/shows on a master station. There is also a recessed button which is used to record presets and to set fade times when the ES2 is configured as a main station.

Please Note: Image is for reference only. Color is WHITE.

  • Specifications:

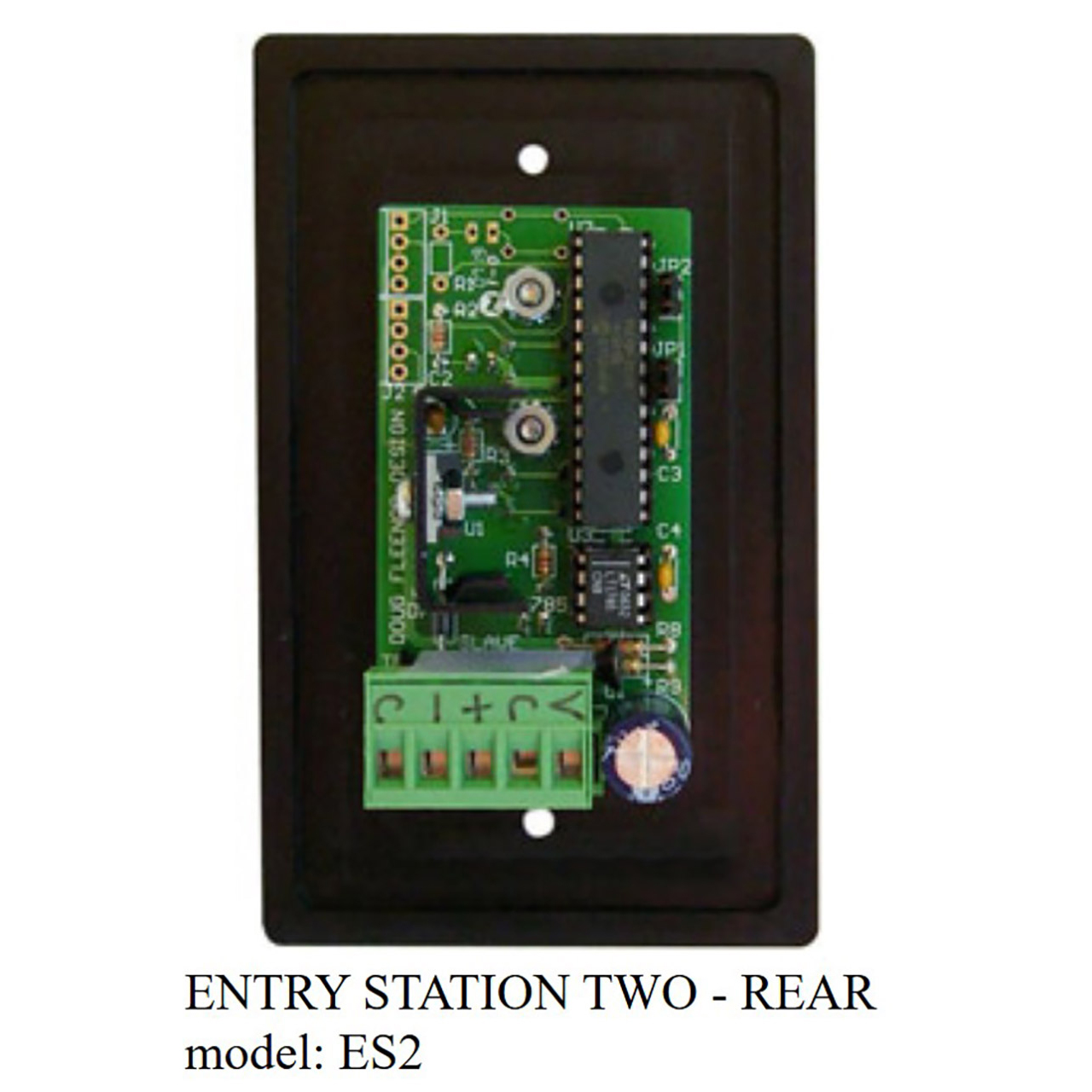

    • Connector: Phoenix Contact MSTB series 5 position two part terminal block
    • Model: MSTB 2,5/5-ST-5,08
    • Order Number: 17 57 04 8
    • Connector Pin Out:
      - 1 (C) DMX512 common
      - 2 ( -) DMX512 data -
      - 3 (+) DMX512 data +
      - 4 (C) Supply common (internally tied to pin1)
      - 5 (V) Supply voltage "hot"
    • Input/Output Circuit: ESD protected EIA-485 transceiver (LT1785)
    • Indicators:
      - 2x green preset indicators
      - 1x bi-color indicator (Red = Lockout, Yellow = Time, Green = Inactive)
    • User Controls: 2x push buttons
    • Option Jumpers: Set button association and select main/remote
    • Power Input: 9V - 24V DC or 6V - 16V AC/200mA per station; (A 10V class 2 "doorbell" transformer is recommended for fixed installations)
    • Color: Black anodized with optional laser engraving

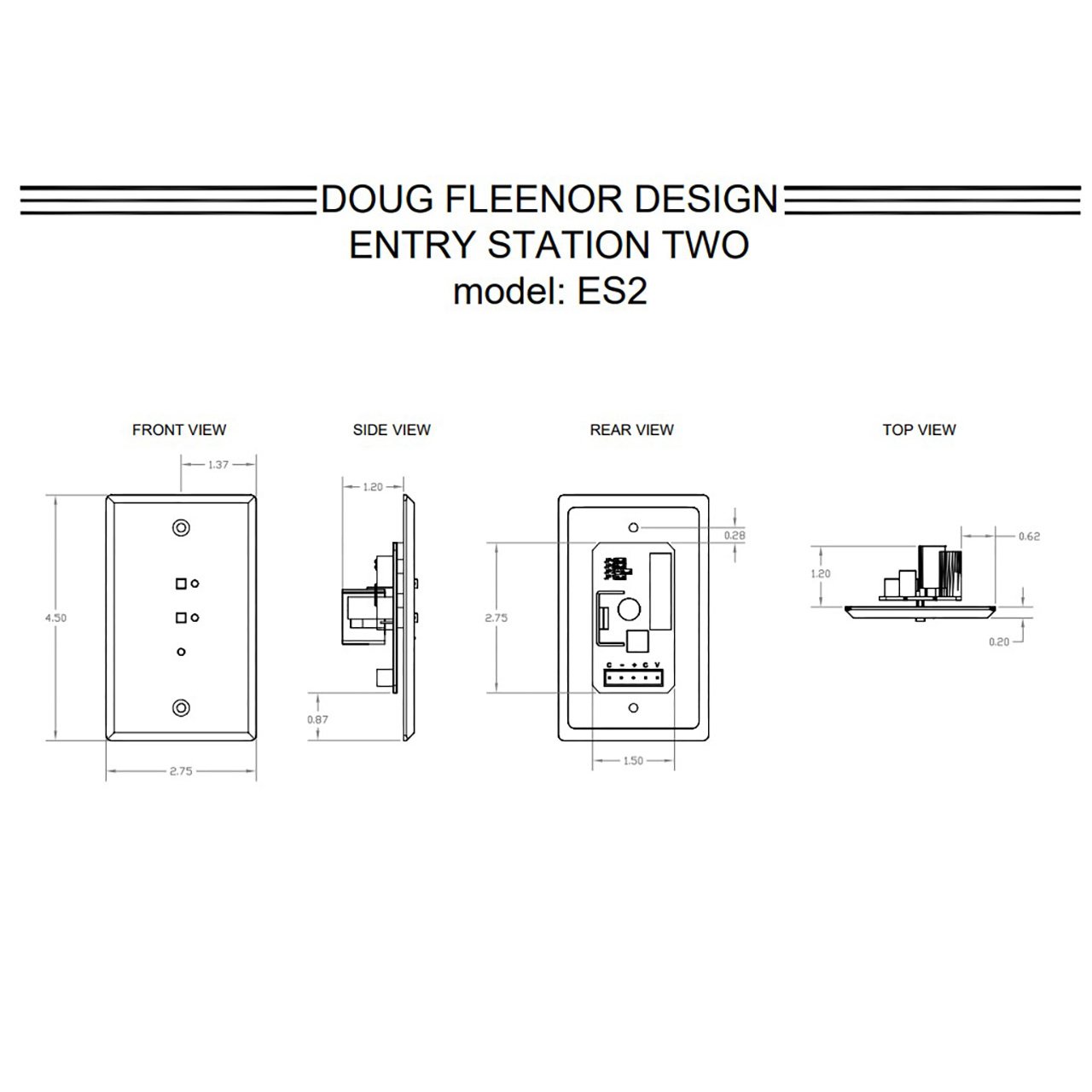

    • Size Faceplate (HxWxD): 4.5" x 2.75" x 0.2"
    • Faceplate Rear Inset (HxWxD): 4.15" x 2.4" x 0.1"
    • Electrical Box Minimum Inside Dimensions (HxWxD): 2.75" x 1.5" x 1.25"
