Denon DN-205W 2-Way In-Wall Speaker with (2) 5 Inch LF and (1) 1 Inch HF Drivers - Each

ITEM #: DN-205W MFG #: DN-205W

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the DN-205W

DN-205W - Overview

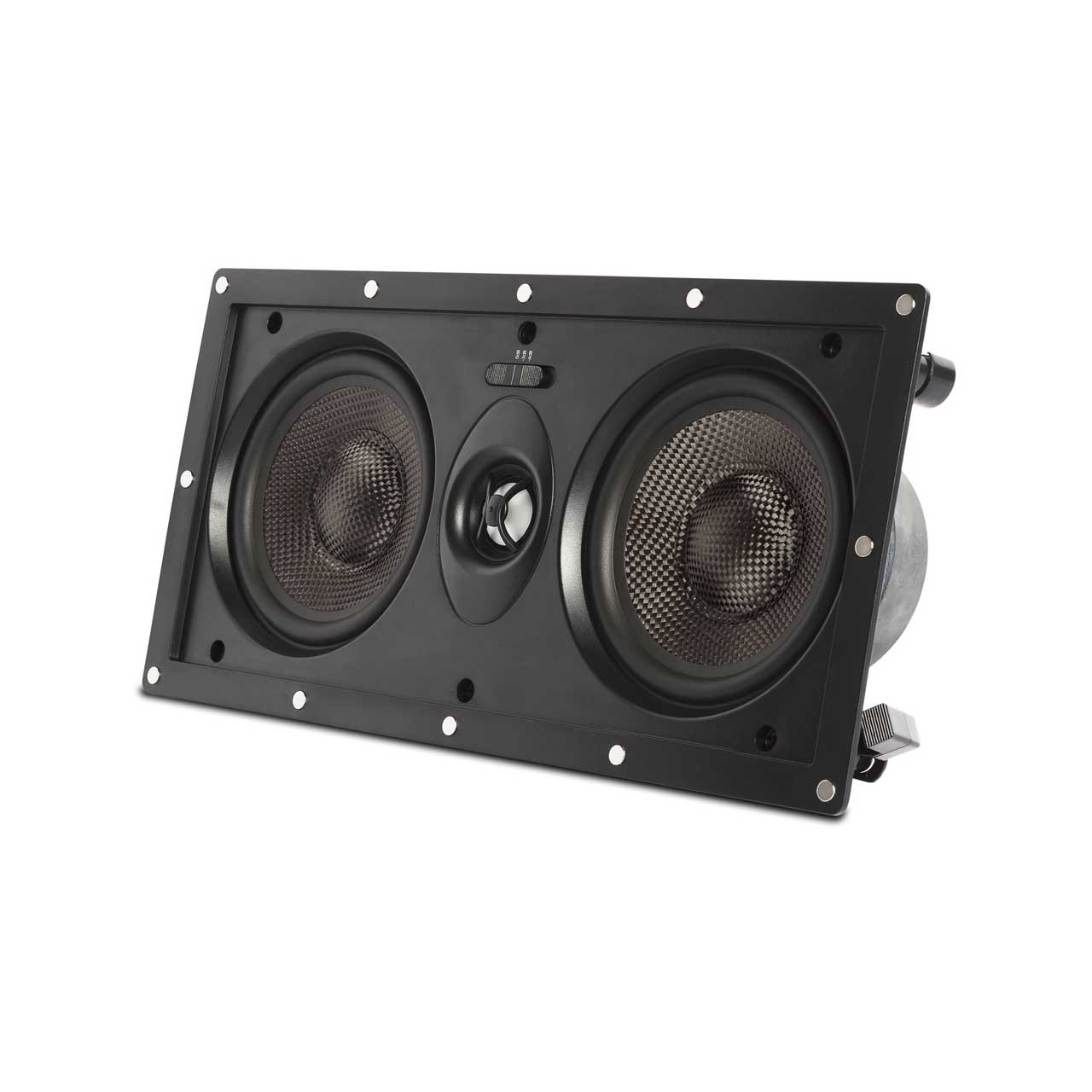

The Denon Professional DN-205W two-way wall speaker is designed for commercial installations and is compatible with 70V/100V/8-ohm systems. The assembly is composed of two 5-1/4 inch carbon fiber woofers for superior bass and mid-range reproduction, and a 1-inch silk dome aluminum tweeter for smooth high-end.

Along with full-range response, the unit also features a two position high-frequency roll-off for additional acoustic control. The paintable, magnetic grille enables the DN-205W to completely blend into its surroundings for a profesional, clean installation.

  • Features:

    • Two 5-1/4" carbon fiber woofers
    • 1" silk and aluminum dome swivel tweeter
    • Full-range frequency response
    • 50W power handling (100W peak)
    • Paintable, magnetic speaker grille
    • EN 54-24 compliant

  • Specifications:

    • Low Frequency Drivers: 2x 5.25" (133mm) carbon fiber woofers
    • High Frequency Driver: 1" (25mm) aluminum and silk swivel dome tweeter
    • Frequency Response: 62 - 20kHz
    • High-frequency Roll-off: Two positions, -3dB and -6dB
    • Power Handling: 50W RMS (100W peak)
    • Sensitivity: 88dB (1W/1m)
    • Speaker Connection: Push terminals for wire up to 14AWG
    • Regulatory Compliance: EN 54-24

      Transformer Power Taps
    • 70V: 30, 15, 7.5W
    • 100V: 30, 15W
    • Bypass: 8Ω

      Physical
    • Grille Material: Steel
    • Overall Dimension: 14.7 x 7.4 x 3.8" (373 x 187 x 98mm)
    • Cut-out Hole: 13.3 x 6" (338 x 152mm)
    • Wall Clearance: 3.66" (93mm)
    • Weight:7.7 lbs. (3.5kg)

  • Item Includes:

    • 1x DN-205W
    • 1x Installation template
    • 1x Speaker grille

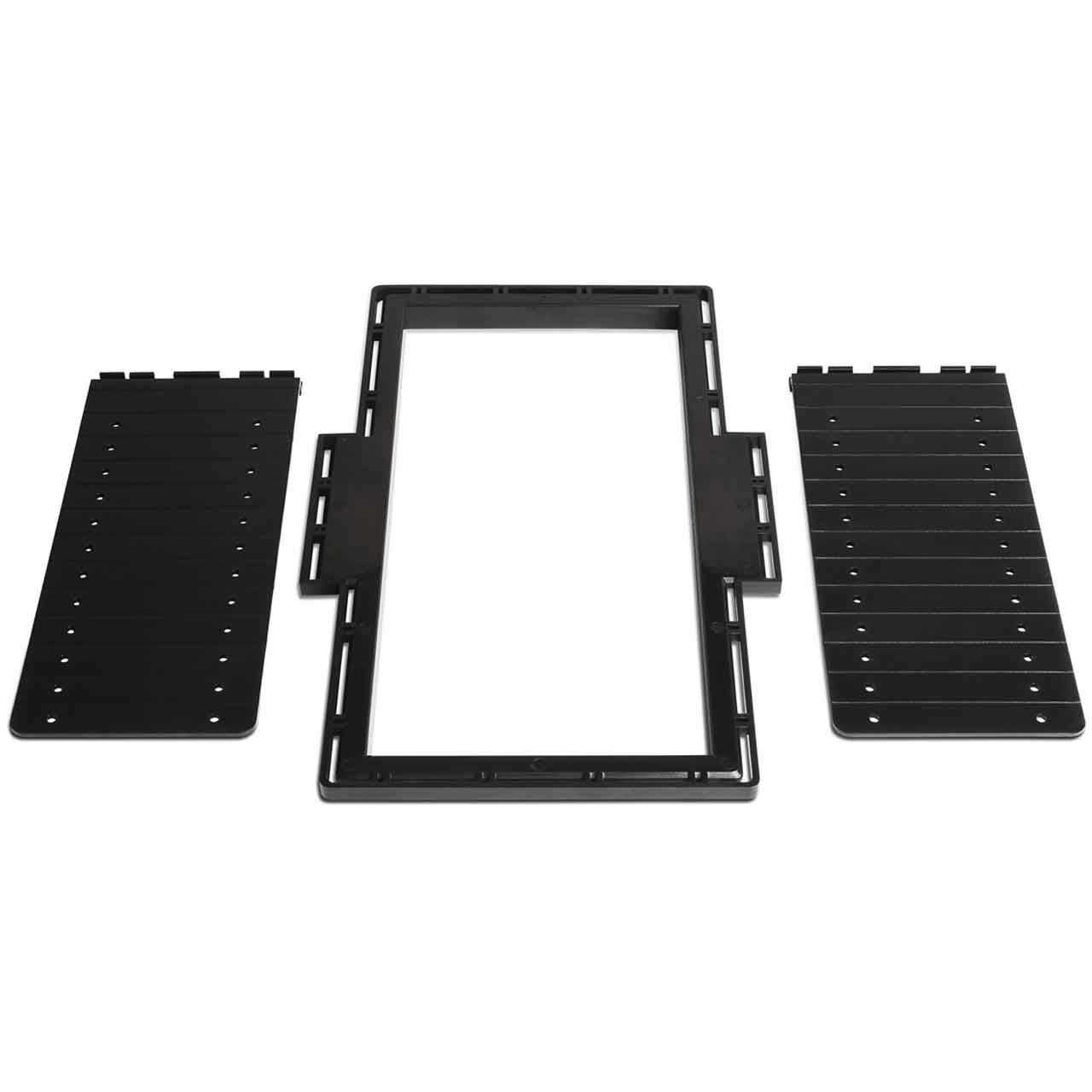

    • 1x Mounting bracket
    • 1x User Guide
    • 1x Safety and Warranty Manual

  • GTIN:

    0694318022672
